Category
|
Specification
|
|
Model
|

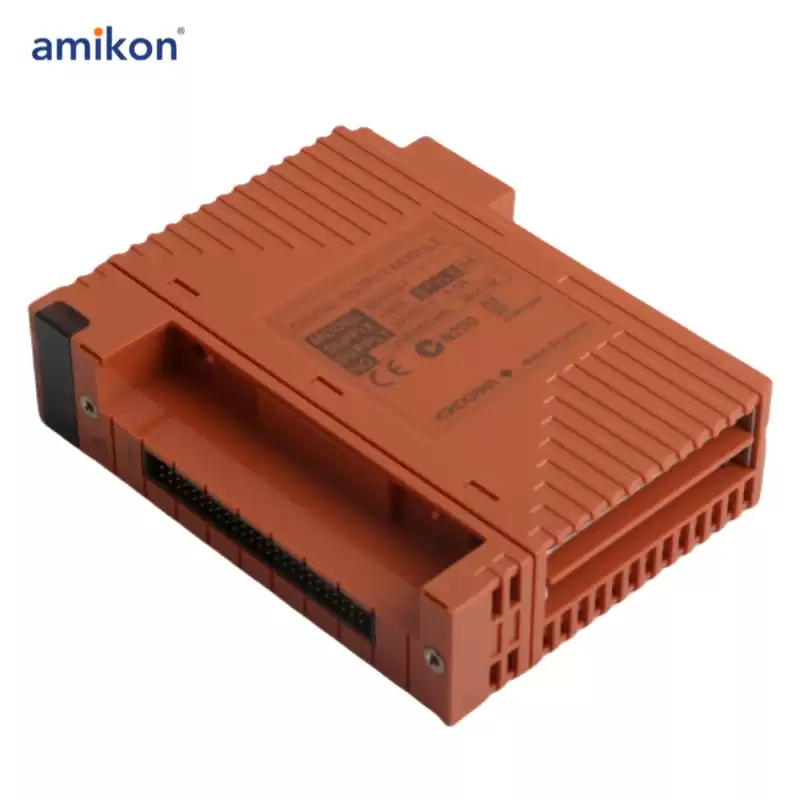

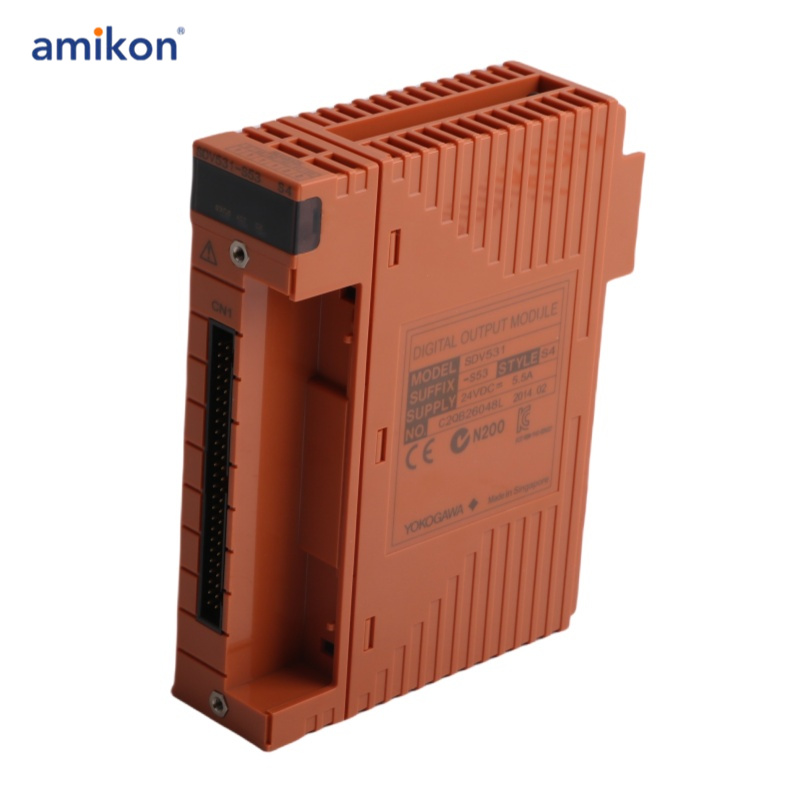

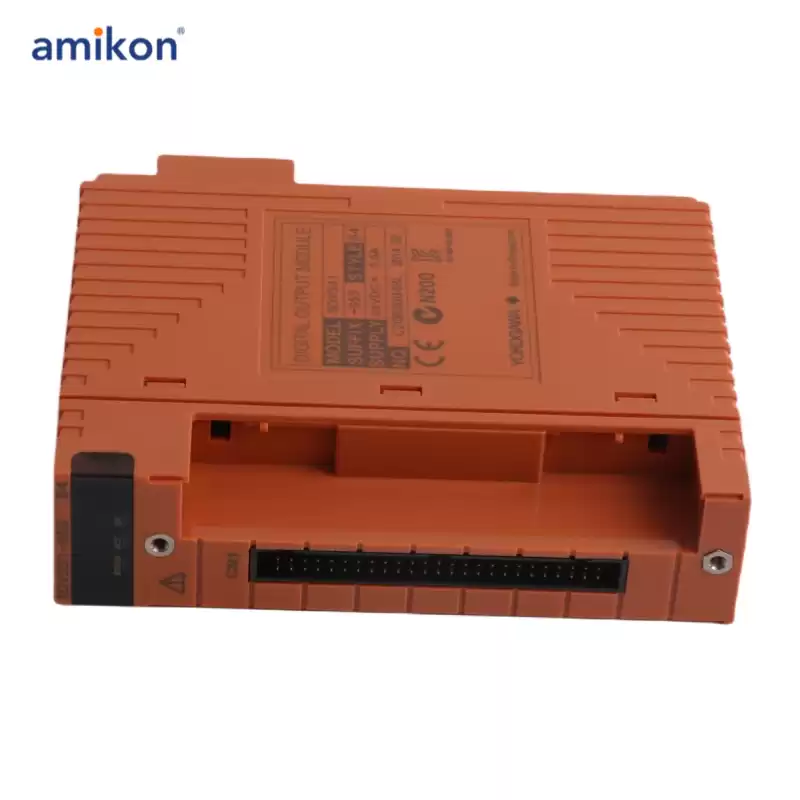

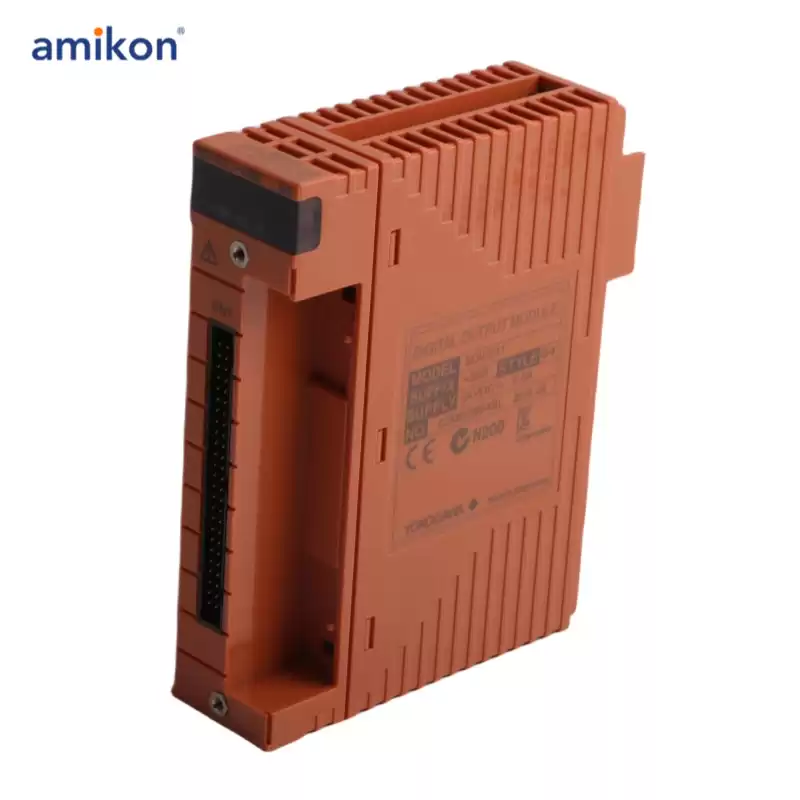

SDV531-L63 S4
|
|
Number of Outputs
|
8-channel, module isolation (*3)
|
|
Output Voltage
|
24 V DC
|
|
Output Voltage Drop
|
1 V maximum
|
|
External Power Supply Rating
|
24 V DC, 5 A minimum
|
|
External Power Supply
|
24 V DC +20 %/–10 % (*4)
|
|
Current Capacity
|
5 A
|
|
Maximum Leak Current (Output Off Status)
|
1.6 mA
|
|
Output Format
|
Current source
|
|
Maximum Load Current
|
0.6 A/output line (4.8 A in total output lines) (*3) (*5)
|
|
Minimum Load Current
|
35 mA
|
|
Load Resistance Range
|
40 to 685 Ω (*6)
|
|
Output Response Time
|
30 ms maximum
|
