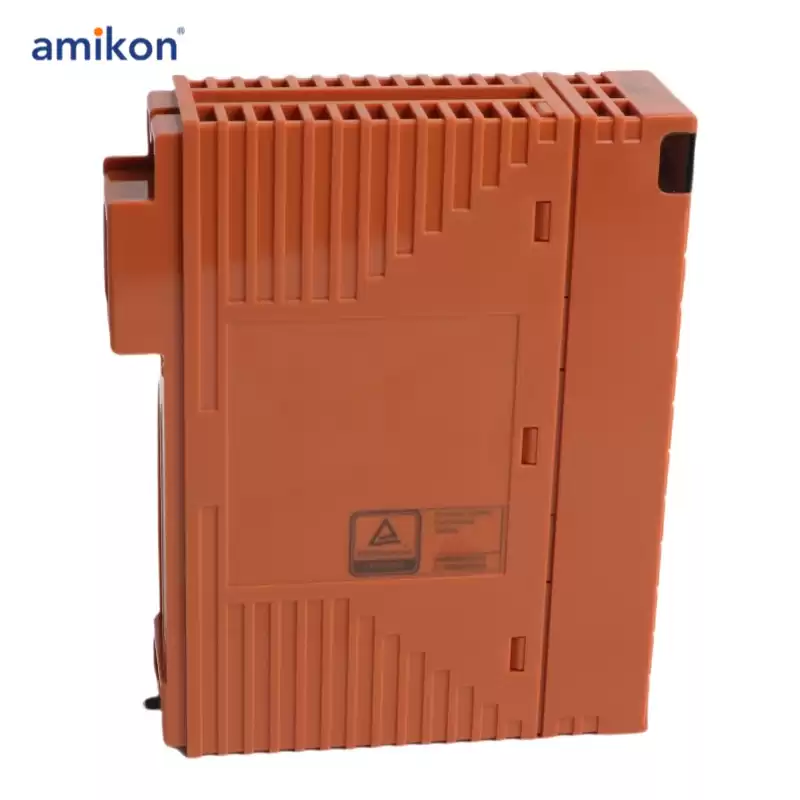

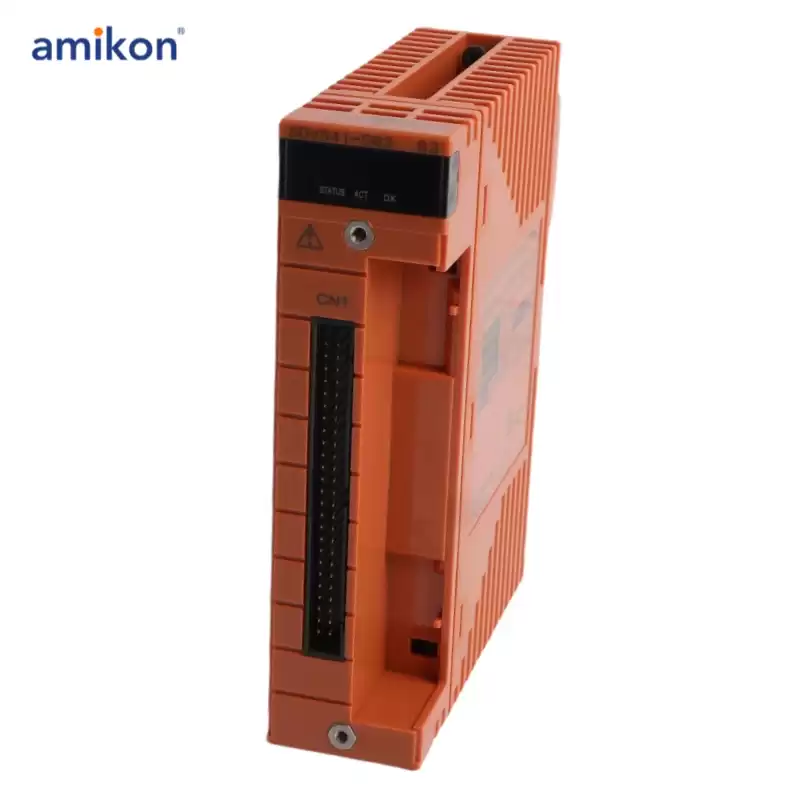

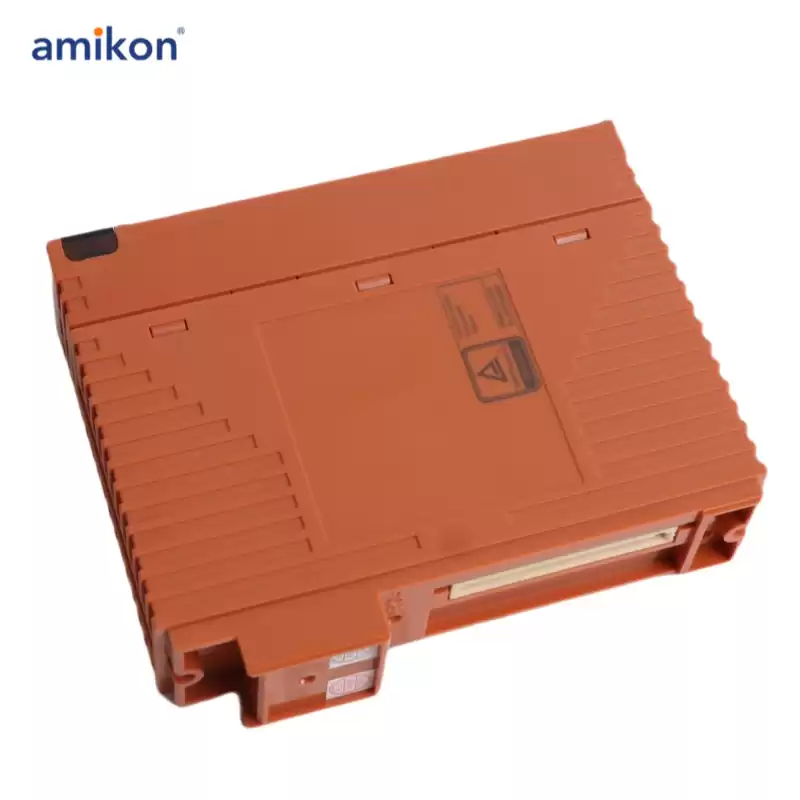

SDV541-S33 S2 Yokogawa Digital Output Module

Category

Specification

Model

SDV541-S33 S2

Number of Outputs

16-channel, module isolation (*5)

Output Voltage

24 V DC

Output Voltage Drop

1 V maximum

External Power Supply Rating

24 V DC, 3.4 A minimum

Maximum Leak Current at Output Off Status

1.6 mA

Output Format

Current source

Maximum Load Current

0.2 A/output line (3.2 A in total output line) (*2) (*5)

Minimum Load Current

35 mA

Load Resistance Range

120 to 685 Ω (*3)

Output Response Time

30 ms maximum

Withstand Voltage

2 kV AC (between output signal lines and system), 16-point input lines collectively connected (negative lines) (*4)

Current Consumption (5 V DC)

300 mA maximum

Current Consumption (24 V DC)

150 mA maximum

Weight (Pressure Clamp Terminal Block or MIL Cable)

0.29 kg

Weight (With Dedicated Signal Cable Interface Adapter)

0.31 kg
