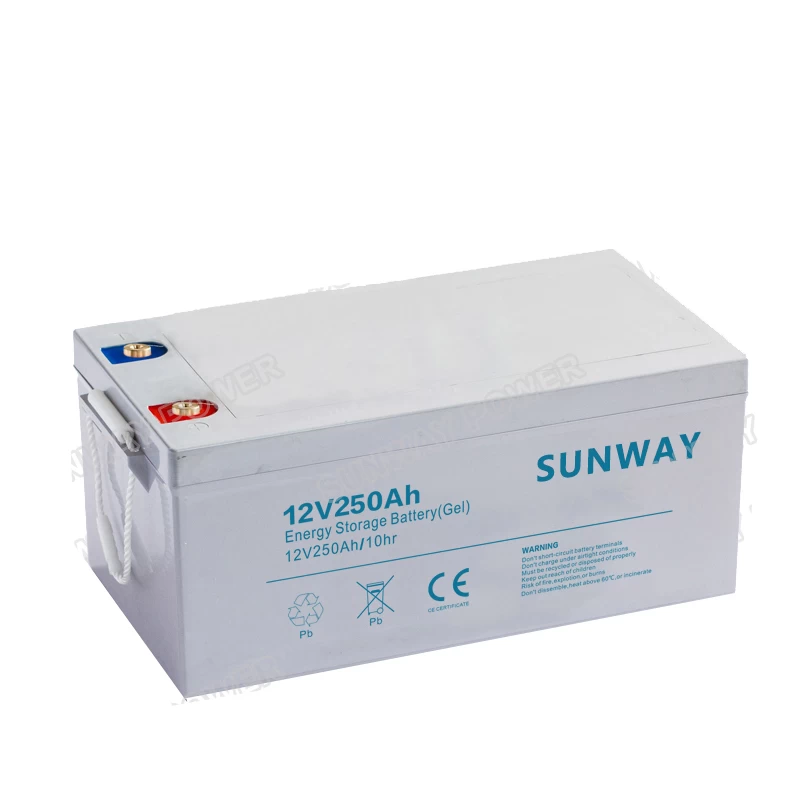

12V 250AH lead acid gel battery
Description of 12V 250AH lead acid gel battery
Feature of 12V 250AH lead acid gel battery
1). AGM (Absorbing Glass Mat) technology of which
the electrolyte is absorbed.
2). Maintenance-free operation - no addition of
water to the electrolyte is required.
3). Sealed Battery with Valve Regulated
Construction .Can be mounted in any orientation.
4). Wide range of operating temperatures with
temperature compensated charging.
5). Computer designed lead, calcium tin alloy
grid for high power density.
6). Extended service life due to low
self-discharge levels.
7). Available in flame retardant ABS
material for the battery case
Technical Data of 12V 100AH lead acid gel battery
|
Rated
Voltage
|
12V
|
|
Rated
capacity (10 hour rate)
|
250Ah
|
|
Dimension
|
Length
|
520mm (20.49inches)
|
|
Width
|
269mm (10.60inches)
|
|
Height
|
220mm (8.67inches)
|
|
Total
Height (with terminal)
|
245mm (9.65inches)
|
|
Weight
Approx
|
69Kgs (151.8Ibs)
|
|
Terminal
|
Cable(10.0 mm²×2 m)
|
M8-20 copper terminal
|
Characteristic of 12V 100AH lead acid gel battery
|
Capacity
at 25'C (77'C)
|
10
hour rate / 1.8V/Cell
|
250Ah
|
|
Charge
|
Limit
initial current to 25A.
|
|
Cycle

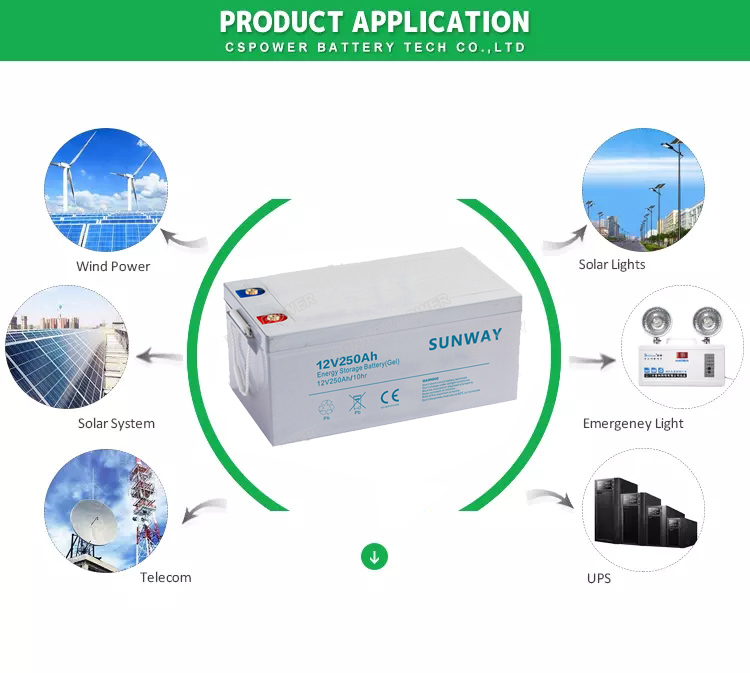

Applications
|
14.5V-14.8V
|
|
"Float"
or "Stand-By" Service
|
13.5V-13.8V
|
|
Note:
Due to the self-discharge characteristics of this type of battery,
it is
imperative that they be charged within 6 months of storage, otherwise permanent
loss of capacity might occur as a result of sulfation.
|
|
Operating
Temperature Range
|
-25'C~50'C
|
|
Shelf
Life
(%
of nominal capacity at 77°F(25°C))
|
1
Month
|
97%
|
|
3
Months
|
93%
|
|
6
Months
|
87%
|
|
The
shelf life shall be a minimum of 6 months at 25°C. The available capacity at
the end of this time period shall not be less than 80% of the rated capacity.
The cell shall recharge to at least 80% of the rated capacity within 8 hours.
|
Terminal type of 12V 250AH lead acid gel battery
Product line of 12V 250AH lead acid gel battery
Package information
|
In
carton
|
packing
in wooden Box
|
|
Pcs/Ctn
|
Ctn
|
Ctns/Box
|
Box
Size
|
|
1
|
535*284*296mm
|
18
|
1120*905*1060mm
|
Payment
|
|
|
EXW
|
30% T/T in advance, paid the balance before shipment
|
|
FOB
|
|
CFR(C&F)
|
30% T/T in advance, paid the balance against copy of B/L
|
|
CIF
|
|
|
L/C amount above 50,000 usd, we can accept L/C at sight
|
|
|
Amount lower than 5000usd
|
|
|
|
|
7~10days after receiving payment for one container
|
