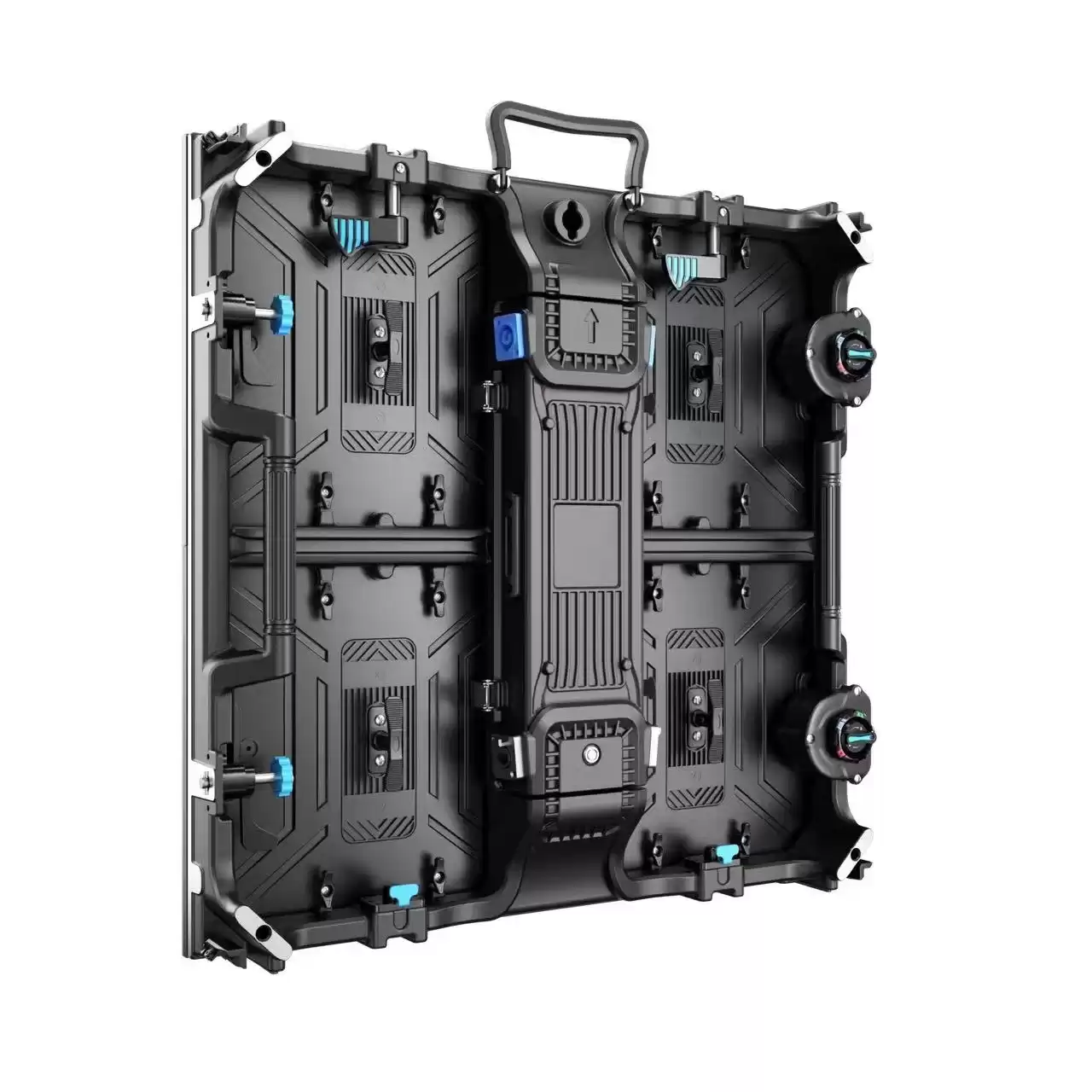

Seamless Splicing Indoor Outdoor Concert Stage Rental Led Video Wall

1. Ultra-light - the weight, one person can carry it by one hand, and it is very easy to install;

2. Ultra-thin - the box body is formed by die-casting aluminum, which has high strength, strong toughness,
    high precision, and is not easy to deform, saving labor for transportation;

3. High precision - the size is electromechanical processing accurate to 0.1mm;

4. Compatible - the new structural design meets the requirements of hoisting and stacking, as well as indoor and outdoor requirements;

5. Fast - the top, bottom, left and right connections of the box body adopt a quick locking mechanism, and the installation of a
box body can be completed in 10 seconds, with high installation accuracy;

6. Reliable - high strength and hardness, good heat dissipation effect;

7. Cost - the box is light in weight and requires low installation costs; the box has low power consumption, saving operating costs and reducing labor costs.




















rental satged events led display

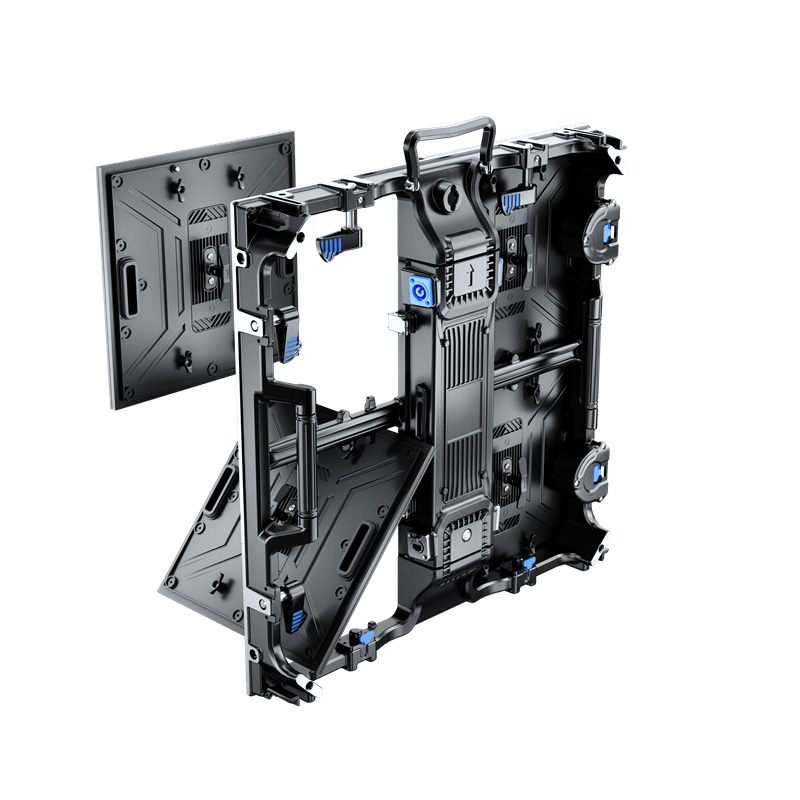

Module disassembly mode:



Remove  the module from the front and back, much easy to do maintenance

Use the latest optimized module connector,prevent module installation Gerror,

easier installation and more stable use





A : knob ,  Fix the module to prevent it from falling off

B : magnet,  High strength magnet ensures perfect fit of modules

C : Handle,  to ensure convenient operation during  module installation/removal

D : Locating column, Make installation of modules easier



led rental advertising display

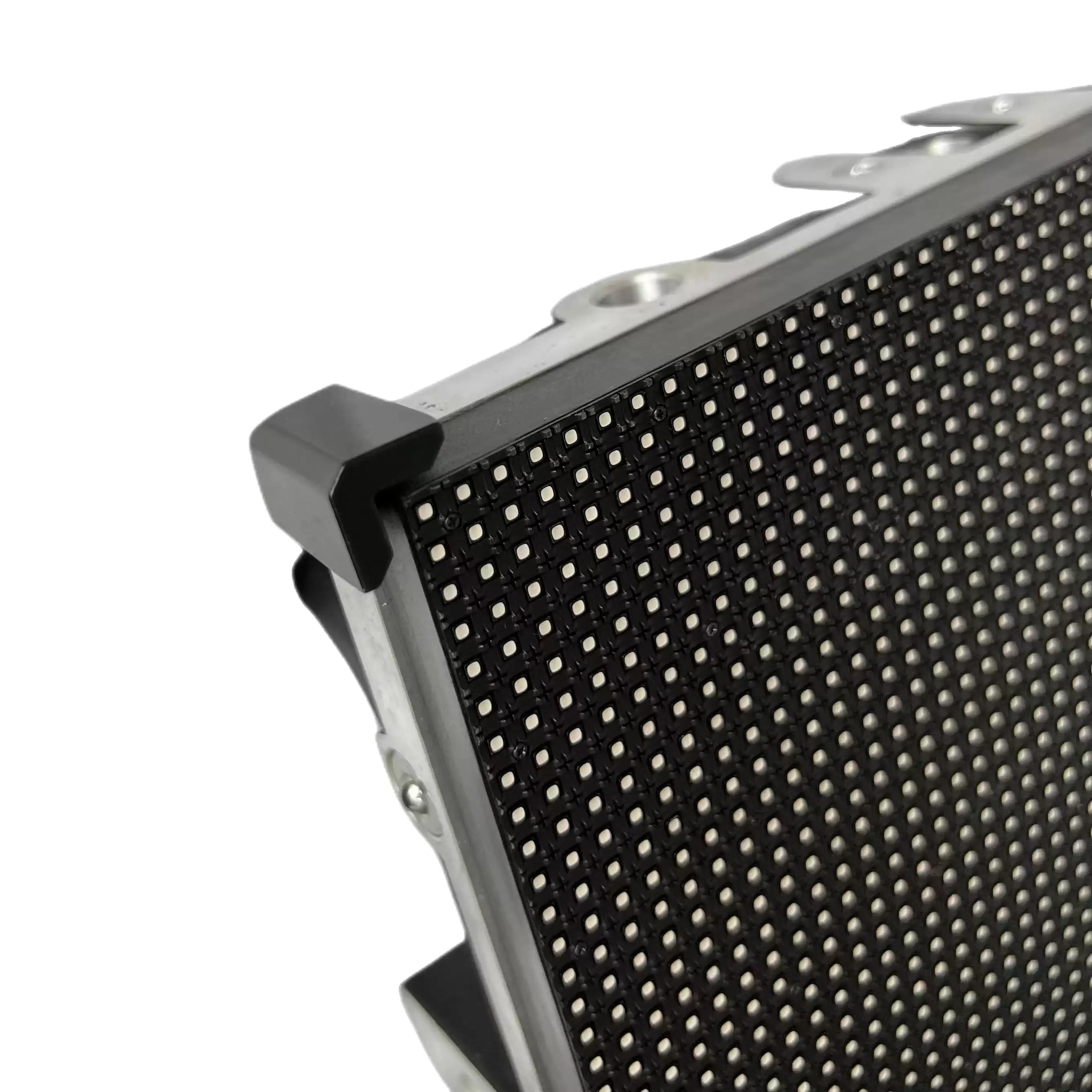

Cabinet corner protection design



the module can be well protected during handling to prevent collision







rental stage events led display

High refresh rate and high contrast



Our LED TV support for 3840Hz-7680Hz different refresh according to different site requirements. For example, 1920-3840Hz use for video game, meeting room, stage, led tv, monitor led screen, etc. And 7680Hz use for TV studio, led live broadcasting and cinema. We can use MBI5153 IC and ICN2153 IC to greatly improve refresh to 7680Hz.



This new Led panle is new high-performance outdoor and indoor HD LED display incorporating professional industrial design.

Die cast aluminum makes it lightweight and strong.

The module uses Multi-Color's newest anti-glare black LEDs to get a high contrast  ratio. The innovative and friendly design supports a convenient installation for both

hanging and stacking which makes it the ideal solution for large events, concert  tours and exhibitions. The finest pixel pitch and outstanding color processing  ensures

a high-end performance in TV studios and lecture halls





Installation methods


  • #

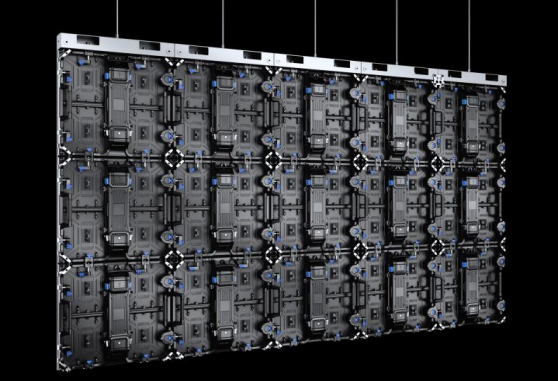

    Hanging  installation

  • #
    Wall installation

Specifications:


Technical  parameter:(T=25℃)(Indoor)

PixelPitch

2.25mm

2.98mm

3.6mm

Pixel Structure

3IN1 SMD

3IN1 SMD

3IN1 SMD

Pixel Density

197530/㎡

111111/㎡

77160/㎡

Module Resolution

128×128 dots

96×96 dots

80×80 dots

Module Size(WXH)

288mm×288mm

288mm×288mm

288mm×288mm

White Balance Brightness

600-800cd/㎡

≥720-1000cd/㎡

800-1000cd/㎡

Color Temperature

6500K-12500K

6500K-12500K

6500K-12500K

Horizontal Viewing Angle

160°

160°

160°

Vertical Viewing Angle

120°

120°

120°

Optimal Viewing Distance

≥5meters

≥6meters

≥8meters

Contrast

5000:1

5000:1

5000:1

Grayscale

12-14Bit

12-14Bit

12-14Bit

Refresh Rate

≥3840Hz

≥3840Hz

≥5000Hz

Continuous Working Time

72H

72H

72H

LifeSpan

100,000H

100,000H

100,000H

Protection Class

IP20

IP20

IP20

Operating Voltage

DC4.2-5V

DC4.2-5V

DC4.2-5V

Maximum Power Consumption

700W/㎡

700W/㎡

700W/㎡

Average Power Consumption

260W/㎡

260W/㎡

260W/㎡



Technical  parameter:(T=25℃)(Outdoor)

PixelPitch

2 98mm

3 6mm

4 5mm

Pixel Structure                                          3IN1 SMD                                      3IN1 SMD                                      3IN1 SMD

Pixel Density                                                  111111/㎡                                             77160/㎡                                            49382/㎡

Module Resolution                                        96×96 dots                                       80X80 dots                                       64X64 dots

Module Size(WXH)                                    288mm×288mm                           288mm×288mm                           288mm×288mm

White Balance Brightness                          ≥3000cd/                                    ≥3800cd/㎡                                    ≥3600cd/㎡

Color Temperature                                   6500K-12500K                             6500K-12500K                             6500K-12500K

Horizontal Viewing Angle                          ≥160°                                            ≥160°                                            ≥160°

Vertical Viewing Angle                              ≥120°                                            ≥120°                                            ≥120°

Optimal Viewing Distance                        ≥6meters                                      ≥8meters                                      ≥10meters

Contrast

5000:1

5000:1

5000:1

Grayscale

12-14Bit

12-14Bit

12-14Bit

Refresh Rate                                            ≥3840Hz                                      ≥5000Hz                                      ≥7680Hz

Continuous Working Time                        ≥72H                                            ≥72H                                            ≥72H

LifeSpan

100,000H

100,000H

100,000H

Protection Class

IP65

IP65

IP65

Operating Voltage                                    DC4.2-5V                                     DC4.2-5V                                     DC4.2-5V

Maximum Power Consumption                  850W/㎡                                         850W/㎡                                         850W/㎡

Average Power Consumption                    300W/㎡                                         300W/㎡                                         300W/㎡





FAQ:



Q1: When is the delivery time?

A1: we will accomplish manufacturing within 10 days after receiving the deposit.



Q2: What is the payment method?

A2: We support a variety of payment methods, the most common is the TT.



Q3: Can it play HD video?

A3: Yes, we can.



Q4:Can I have a sample order for your company products?

A4: Yes, we welcome sample order to test and check quality. one set sample is acceptable.



Q5: What about the lead time?

A5: Sample order needs 10 days ,20 days for order quantity more than 100 units.



Q6: How do you ship the goods and how long does it take to arrive?

A6:We usually ship by DHL, UPS, FedEx or TNT for sample, It usually takes 3-5 days to arrive.

Airline and sea shipping also optional for the qty order.



Q7: Is it OK to print my logo on product?

A7: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q8: How to deal with the faulty?

A8: 1.Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

      2. we will send the extra parts along with the goods for you About the defective batch products, we will repair them and

      resend them to you or we can discuss the solution including re-call according to real situation



Q9: Do you offer guarantee for the products?

A9: Yes, we offer 2-5 years warranty to our products.
