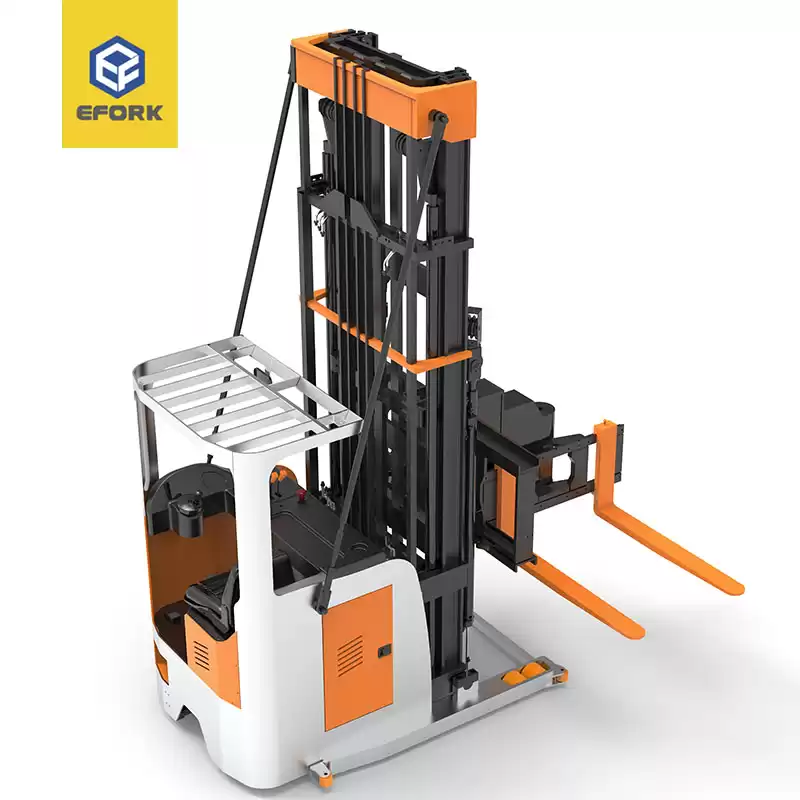

Product Name: Seated Type 3-Way Electric Pallet Stacker Forklift CDDM-E
Seated Type 3-Way Electric Pallet Stacker Forklift is a multi-functional and highly adaptable VNA forklift, which meets the requirements of narrow roadway, wide roadway and platform.
Product Advantage :
●48V full AC system, full electric steering;
●The high-strength German Krupp steel mast is not easy to be deformed, and it runs smoothly and reliably. The vibration of the mast is small when it rises and falls, and the operation is more comfortable;
●American Curtis control system has multiple automatic protection systems to provide a higher level of functional safety;
●Equipped with a large-screen high-definition display with camera, electronic display, timing, fault display and excellent digital transmission, it can display the information of the vehicle's operating status in real time, which is convenient for troubleshooting and maintenance;
●Magnetic navigation/laser navigation AGV can be customized.
Parameters
|
Name
|
Seated Type 3-Way Electric Pallet Stacker Forklift
|
|
Operation type
|
Seated Type
|
|
Model No.
|
Unit
|
CDDM15E-60S
|
|
Power type
|
|
Full-Electric
|
|
Capacity
|
KG
|
1500
|
|
Max Lifting Height
|
H2(mm)
|
6000
|
|
Load center
|
C(mm)
|
600
|
|
Wheel type
|
|
Pu solid tire
|
|
Fork dimensions
|
mm
|
1220*125*45
|
|
Fork spread
|
mm
|
260-650
|
|
Overall length including fork
|
L(mm)
|
4060/2740
|
|
Overall width
|
S(mm)
|
1567
|
|
Channel guide width
|
mm
|
1625
|
|
Channel guide height
|
mm
|
120
|
|
Channel shelf width
|
mm
|
1830(1200*1200 pallet）
|
|
Main channel width
|
mm
|
3450
|
|
Height--Mast Lowered
|
H2(mm)
|
3165
|
|
Maximum height when fork is lifting
|
H3(mm)
|
7185
|
|
Turning radius
|
Wa(mm)
|
1940
|
|
The height of overhead guards
|
mm
|
2180
|
|
Min ground clearance
|
mm
|
32
|
|
Max travel speed
|
Km/h
|
8/7
|
|
Lifting speed
|
mm/s
|
215/275
|
|
Total weight
|
KG
|
＞6000
|
|
Driving wheel
|
mm
|
Ø400*160
|
|
Front wheel
|
mm
|
Ø145*100
|
|
Balance wheel
|
mm
|
0
|
|
Battery capacity
|
V/Ah
|
48/400
|
|
Charger-Intelligent
|
V/A
|
48/50
|
|
Driving motor
|
Kw
|
8（AC）
|
|
Lifting motor
|
Kw
|
8.6（AC）
|
|
Steering control type
|
|
EPS
|
|
Walking Adjustable Type
|
|
Holzer type accelerator
|
|
Brake type
|
|
Electromagnetism
|
Configuration
1、CURTIS controller
2、CURTIS control accelerator
3、AC drive motor
4、Brand instrument
5、Brand multi way valve and gear oil pump
6、Key components such as oil seal and oil pipe are imported
7、Side pull battery
8、External 48V intelligent charger
9、Polyurethane solid tire with high wear resistance
10、Drive wheel position display
11、Cylinder safety shut-off valve
12、Electromagnetic brake system
13、Electronic power steering
