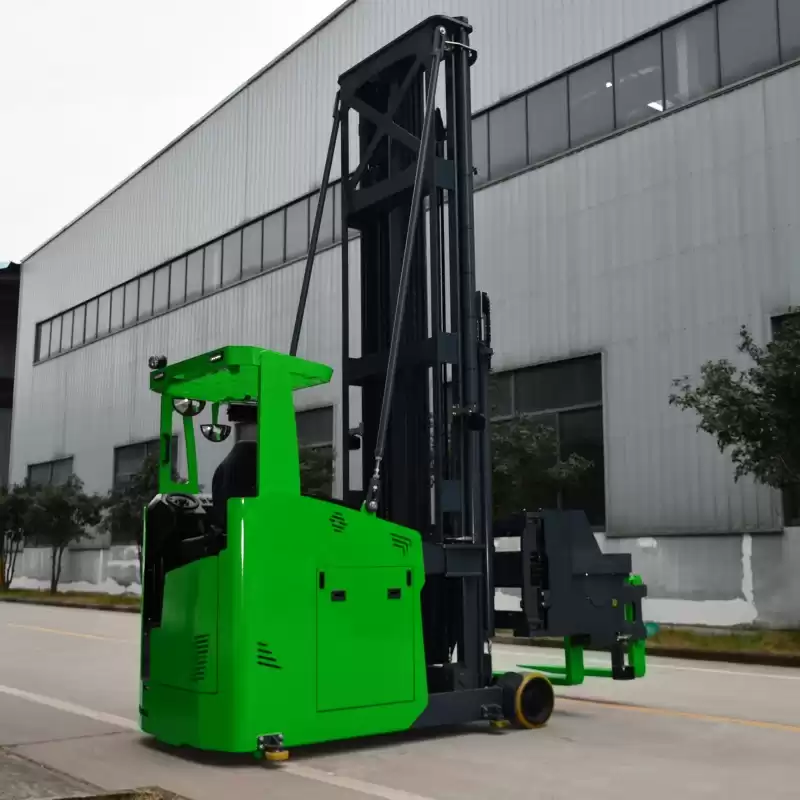

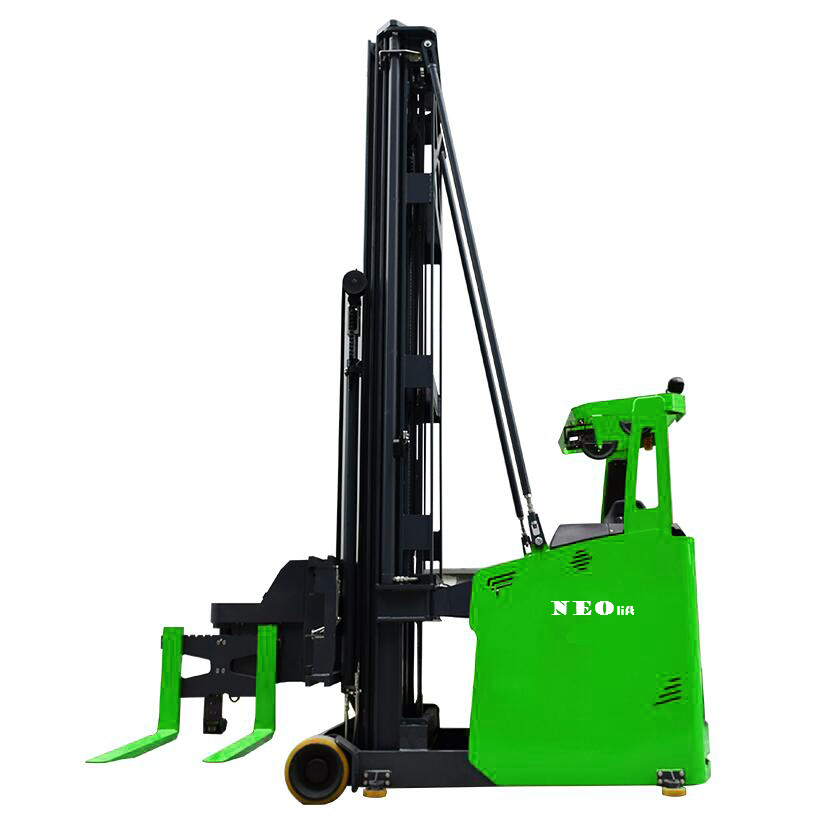

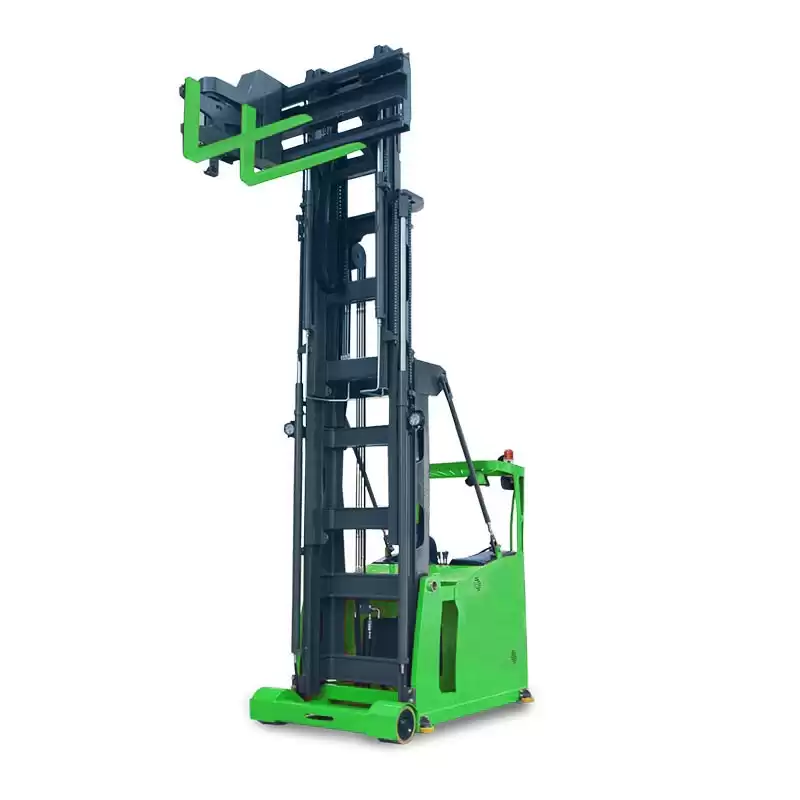

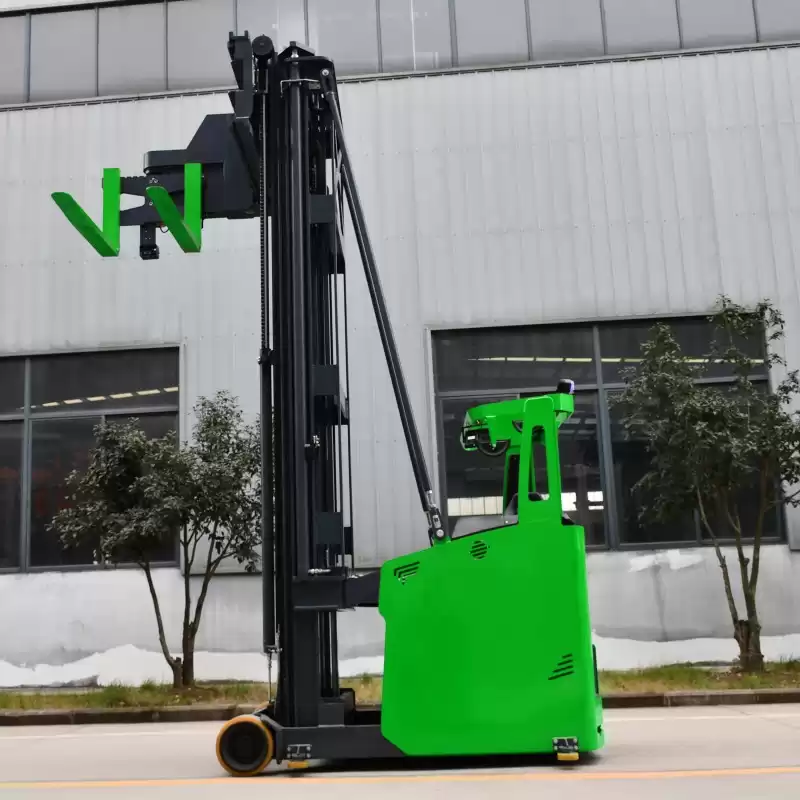

Seated Type 3 Way Pallet Stacker VNA Forklift
Seated 3 Way Pallet Stacker,very narrow asile forklift the min. stacking aisle width is 1.6M.Rated capacity 1500kg,lifting height 4.5-10 meters.The 3-way pallet stacker is the first choice of intensive storage, which is mainly used in logistics, medicine, food and low-temperature cold storage.It can greatly improve the storage capacity.

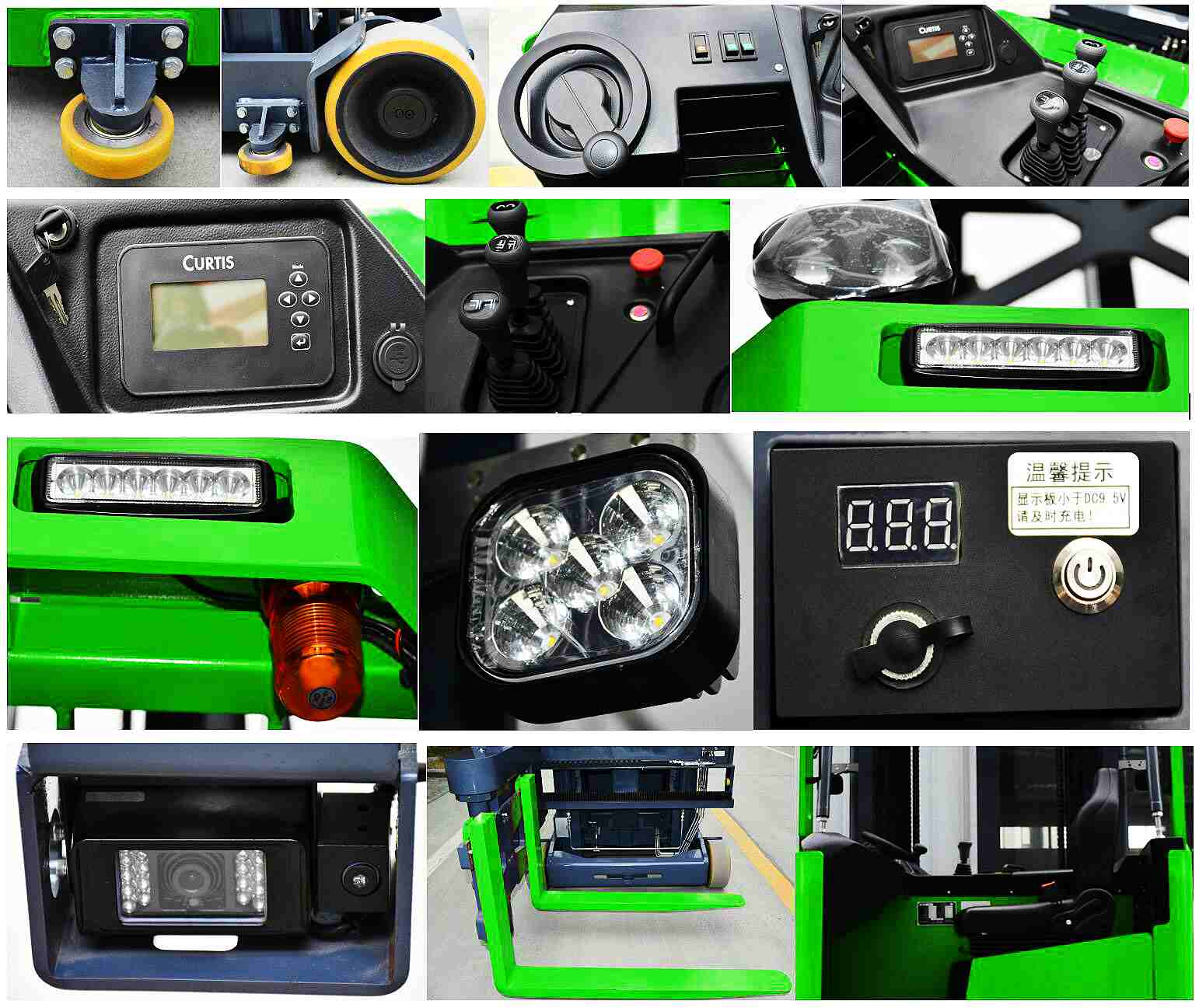

Features:

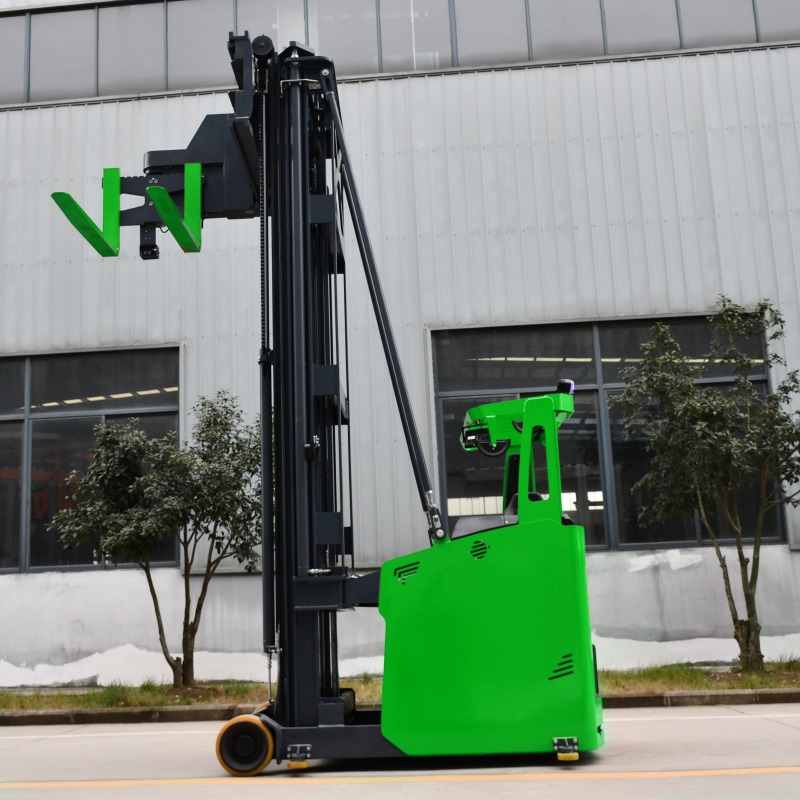

1.3-way pallet stacker forks can rotate 180°and do left-right side shift without body turning, with high strength mast design. Min. channel: 1600mm; Max. lifting height: 10000m. The 3-way pallet stacker can improve space utlization and increase the storage capacity.
2.Advanced Curtis controller and more stable, safer whole-AC system for high efficency, energy conservation and environmental protection.
3.Maintenance-free whole-AC driving system for quick and accurate reaction. Maintenance-free motor, with long service life and low noise and low maintenance cost.
4.Standard electric power steering is safe and reliable, with easy and comfortable operation.
5.Large section mast structure design to ensure the rigidity of mast and improve loading performances, which is very suitable to high shelf storage.
6.Imported hydraulic parts for stable and reliable hydraulic system.
7.Side pull type battery for convenient charging and maintenance.

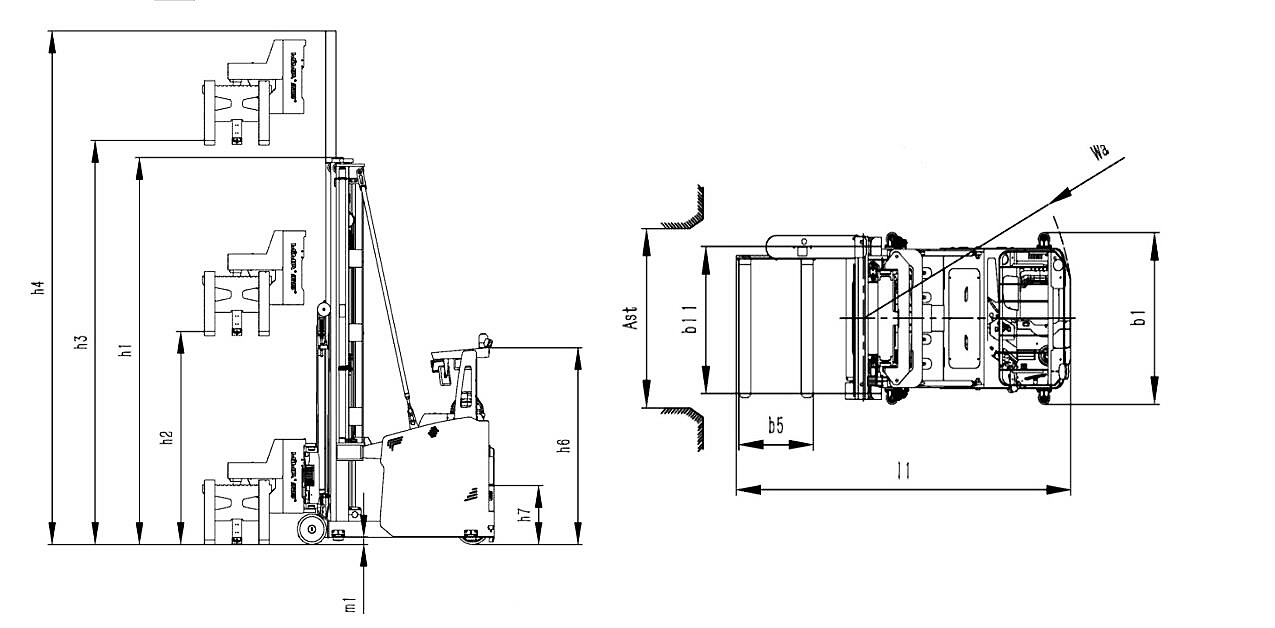

Specification:
| |
| |
Manufacturer |
|
NEOlift |
|
| Model |
|
NVS15 |
| Power type |
|
Battery |
| Rated capacity |
kg |
1500 |
| Service weight(incl.battery） |
kg |
6345 |
| Lift height |
mm |
4500 |
| Overall width |
mm |
1550 |
| Fork size |
mm |
1200/125/50 |
| Aisle width for pallet 1000x1000mm |
Ast(mm) |
1600 |
| Driving motor (S2-60min) |
kw |
7 AC |
| Lifting motor (S3-15%) |
kw |
15 AC |
| Battery voltage /capacity |
V/Ah |
48/900 |
| Battery weight |
kg |
1380 |
| Steering system |
|
EPS |
| Battery replacement type |
|
Side pull |
| |

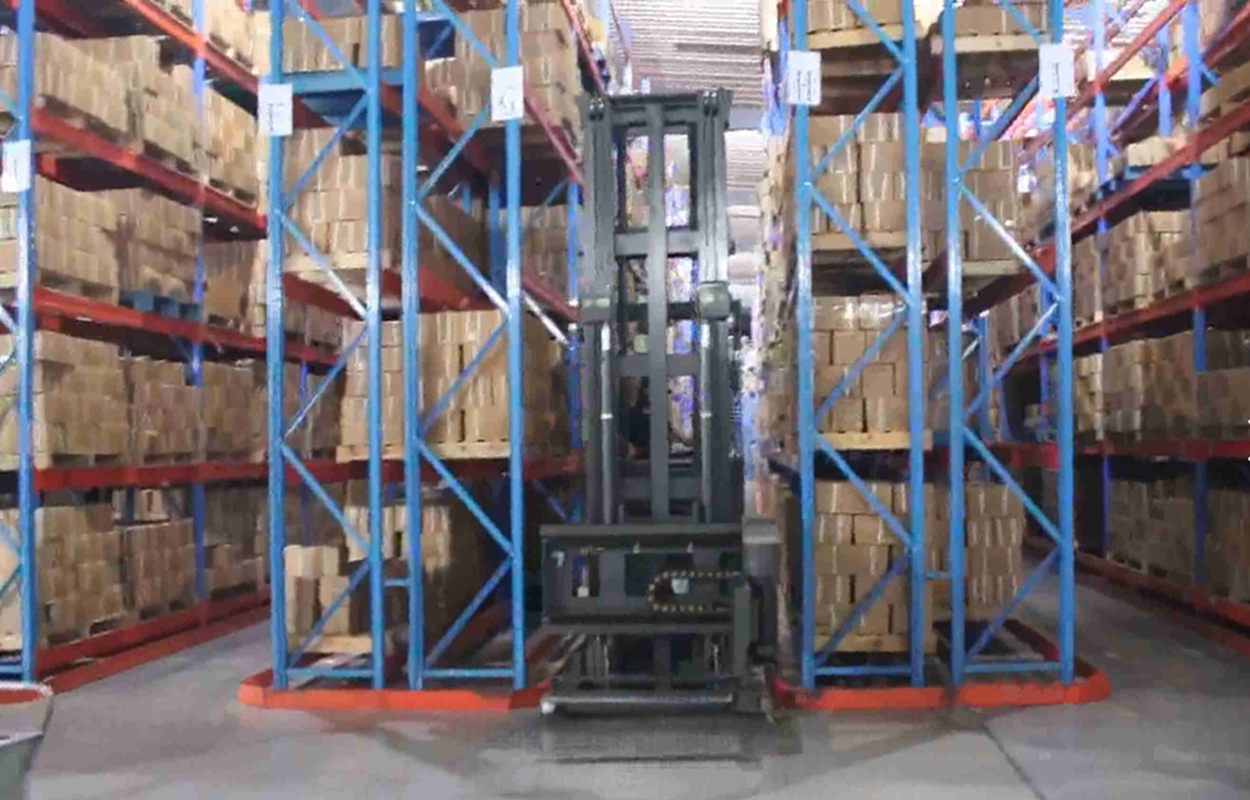

Application:
1.Cold warehouse
2.Food
3.Medical
4.Electronics
5.Hardware
6.Logistics
Certificate:
Why choose NEOlift?
1.NEOlift has 20+ years experience in the field of electric material handling equipment! We can provide our customers with full range warehouse equipment based on various requirement.
2.The product range is comprehensive, the quality is safe and reliable.We have strict quality management system. We can provide customers with non-standard customized solutions according to their needs.
3.Professional and strong technical research and development team and timely and effective after-sales service.Shanghai Zon-Cho Huge Science And Technology Co., Ltd. has more than 60 professional technical R&D personnel, and each model has a professional R&D personnel responsible for it. Among them, more than 30% of the R&D personnel have a master's degree, 5 have a doctorate degree, and more than 60% of the R&D personnel have been engaged in the industry for more than 5 years.
