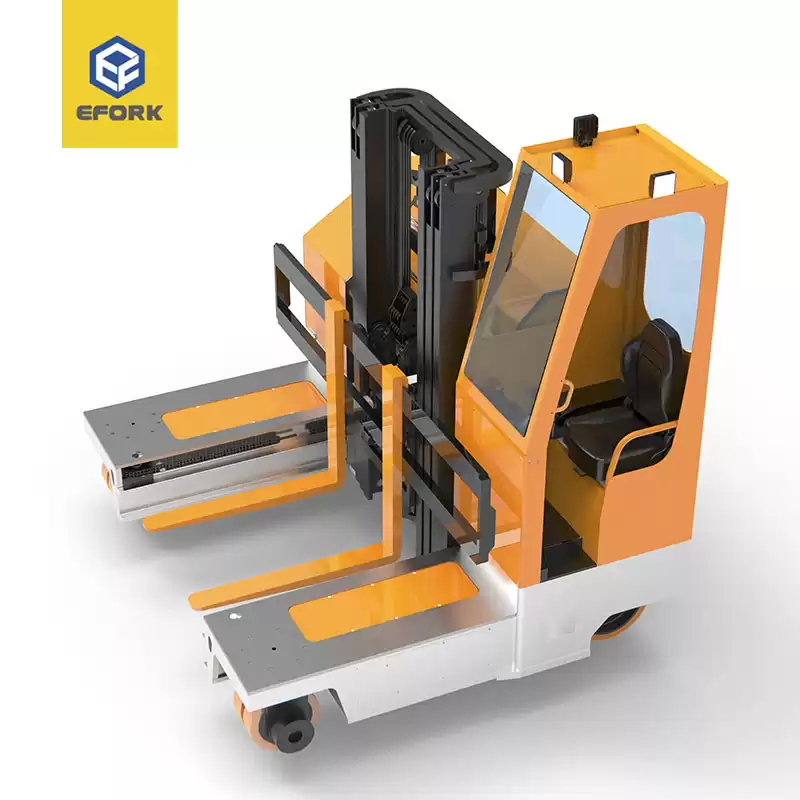

Product Name: Seated Type Electric Multi-Directional Forklift CQD-Q
Electric multi-directional forklift CQD-Q is an omnidirectional forklift, which has the functions of multi-directional driving and absolute in-situ rotation, so it is mainly used to fork long-shaped goods.
Product Advantage :
●Equipped with a full AC drive system, it has the characteristics of strong climbing ability, maintenance-free, regenerative braking, good working stability and high efficiency. It eliminates the trouble of replacing the carbon brushes of the DC motor and does not require more maintenance and maintenance.
●American CURTIS electronic control, with multiple automatic protection systems, provides a higher level of functional safety.
●The externally-mounted widened fork frame is equipped with a freely adjustable width design, which is suitable for storing long materials, ring materials, plates, pipes and irregular goods.
●Imported integrated multi-functional operating handle assembly, in line with ergonomics, strong anti-interference, flexible and comfortable operation.
●The ergonomically designed cab provides wide and comfortable operation space and excellent vision in all directions.
●The more accurate and powerful proportional hydraulic circuit design ensures the coordination and stability of the whole vehicle.
Parameters
|
Characteristic
|
Model
|
|
CQD20Q
|
CQD25Q
|
CQD30Q
|
CQD40Q
|
|
Product name
|
|
multi-directional forklift
|
|
Power
|
|
Electric
|
|
Operate type
|
|
Seated type
|
|

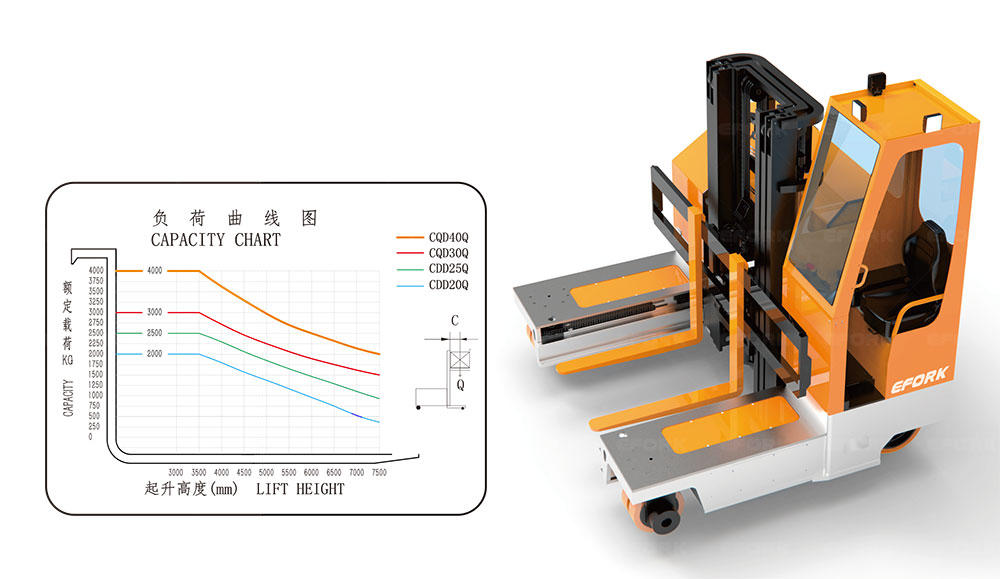

Rated capacity
|
Q(kg)
|
2000
|
2500
|
3000
|
4000
|
|
Load center
|
C(mm)
|
500
|
500
|
599
|
600
|
|
Wheelbase
|
Y(mm)
|
1326
|
1326
|
1800
|
1800
|
|
Weight
|
Weight with battery
|
kg
|
4200
|
4200
|
7900
|
7900
|
|
Wheels, chassis
|
Wheel type
|
|
Polyurethane
|
Polyurethane
|
Polyurethane
|
Polyurethane
|
|
Front wheel
|
|
350*100
|
350*100
|
350*110
|
350*110
|
|
Drive wheel
|
|
457*160
|
457*160
|
457*160
|
457*160
|
|
Wheelbase, front wheel
|
b10(mm)
|
1520
|
1520
|
1520
|
1520
|
|
Dimension
|
Height-mast closed
|
h1(mm)
|
2100
|
2100
|
2100
|
2100
|
|
Mast tilt forward/backward
|
°
|
3/5
|
3/5
|
3/5
|
3/5
|
|
Free lifting height
|
h2(mm)
|
1500
|
1500
|
1500
|
1500
|
|
Lifting height
|
h3(mm)
|
4500
|
4500
|
4500
|
4500
|
|
Max height during operation
|
h4(mm)
|
6915
|
6915
|
7140
|
7140
|
|
Outrigger height
|
h13(mm)
|
506
|
506
|
509
|
509
|
|
Vehicle body length (including fork)
|
l2(mm)
|
2080
|
2080
|
2300
|
2300
|
|
Vehicle body width
|
b1(mm)
|
2430
|
2430
|
2650
|
2650
|
|
Fork size
|
s/e/l(mm)
|
40/120/1070
|
45/120/1070
|
45/120/1220
|
50/125/1220
|
|
Fork adjustment size
|
b5(mm)
|
250-700
|
250-700
|
250-700
|
250-700
|
|
Reach distance
|
L4(mm)
|
1100
|
1100
|
1300
|
1300
|
|
Min. ground clearance (wheelbase center)
|
m2(mm)
|
70
|
70
|
70
|
70
|
|
Side working channel
|
b2(mm)
|
2630
|
2630
|
2850
|
2850
|
|
Performance
|
Driving speed, no load/full load
|
km/h
|
8/6
|
8/6
|
8/6
|
8/6
|
|
Lifting speed, no load/full load
|
mm/s
|
260/230
|
260/230
|
260/230
|
260/230
|
|
Lowering speed, no load/full load
|
mm/s
|
210/310
|
210/310
|
210/310
|
210/310
|
|
Max. gradeability, no load/full load
|
％
|
8/6
|
8/6
|
8/6
|
8/6
|
|
Service brake
|
|
electromagnetic
|
electromagnetic
|
electromagnetic
|
electromagnetic
|
|
Motor
|
Drive motor power
|
kw
|
6.5
|
6.5
|
2X6.5
|
2X6.5
|
|
Lifting motor power
|
kw
|
8.6
|
8.6
|
12
|
12
|
|
Battery
|
|
Lead-acid battery
|
Lead-acid battery
|
Lead-acid battery
|
Lead-acid battery
|
|
Battery voltage/capacitance
|
V/Ah
|
48V400Ah
|
48V450Ah
|
48V600Ah
|
48V800Ah
|
|
Charger
|
V/Ah
|
48V/50A
|
48V/50A
|
48V/80A
|
48V/100A
|
|
Others
|
Drive control mode
|
|
AC
|
AC
|
AC
|
AC
|
|
Steering mode
|
|
Electric steering
|
Electric steering
|
Electric steering
|
Electric steering
|
