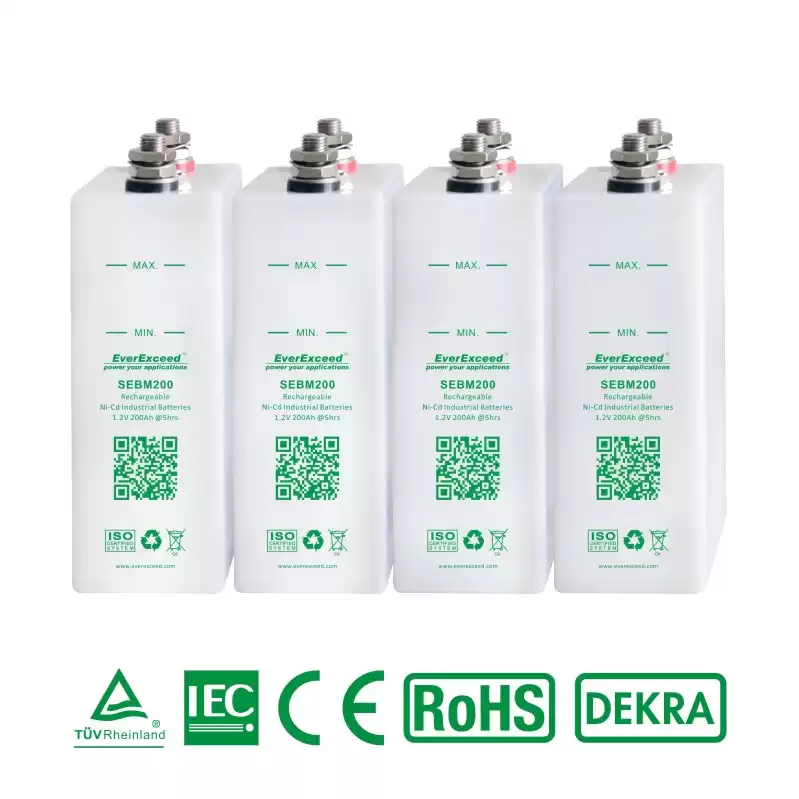

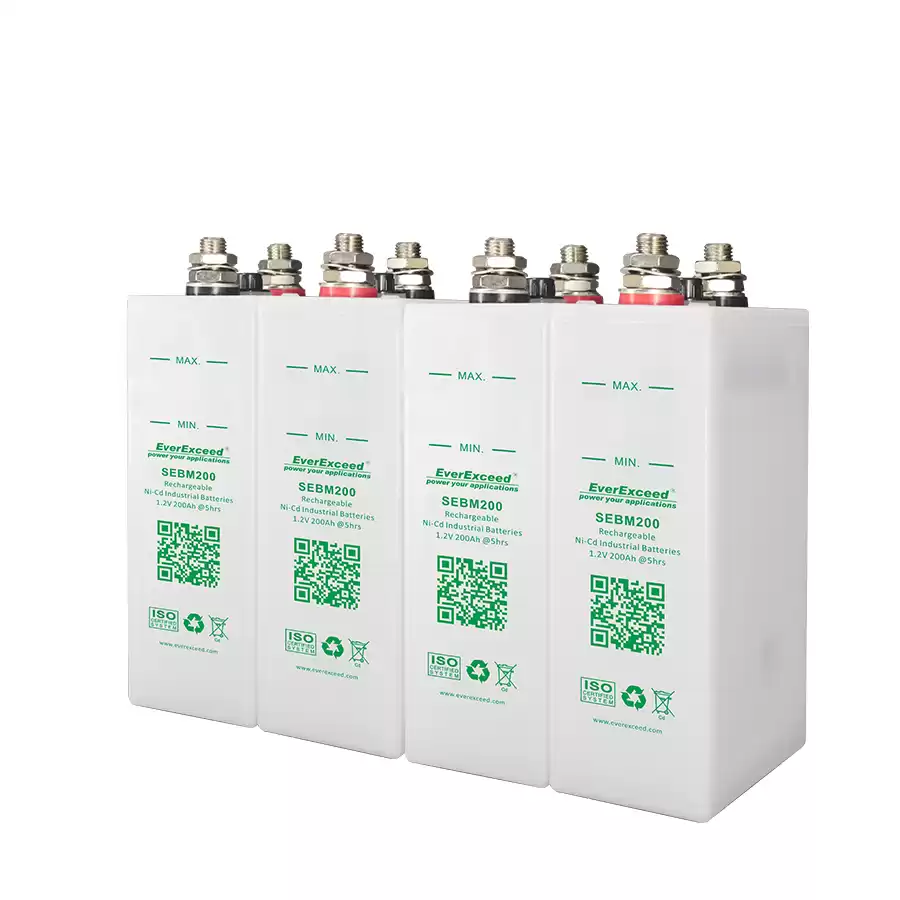

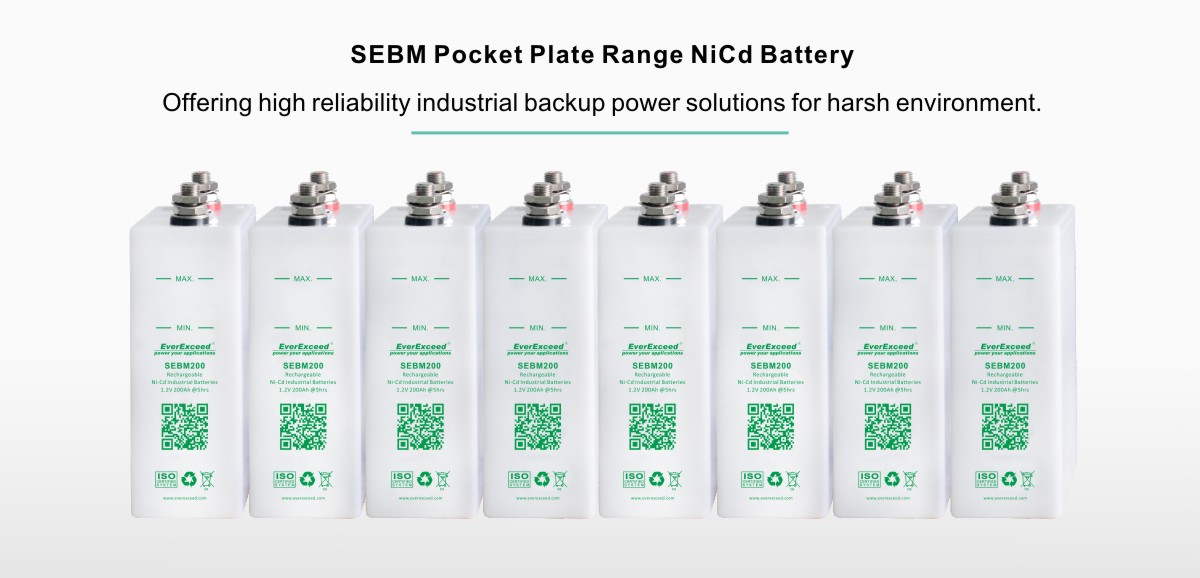

SEBM Sealed low Maintenance Pocket Plate Range NiCd Battery

EverExceed pocket type nickel cadmium battery has been supplied stable and reliable battery solution for many industrial power applications. Our block batteries function in a wide range of temperatures, resist electrical abuse, shock and vibrations and need only basic maintenance. This ensures a low total cost of ownership (TCO) over a life cycle that can last 20 years or more.


  • UsageRailway DC power supply, UPS switch transition, power plant, substation, and other back up power supply
  • CertificatesTUV;IEC;ROHS;DEKRA
  • OEM/ODM ServiceYes, customized
  • Rated Capacity(Ah)10Ah-1100Ah
  • Rated Voltage(V)1.2V
  • ModelSEBM Series



Technical features:











High float charge efficiency

High reliability

Trouble free long cycle life
The battery adopts high perfomance positive and negative active materials, improving the charging efficiency of positive and negative electrodes, reducing the float-charge voltage of the battery, under the lower float charge voltage

Ni-Cd is equally dependable in controlled city environments or harsh, unpredictable conditions in the world's most remote and unpopulated areas.
High tolerance to rough handling and mechanical abuse due to strong components & robust construcation

The EverExceed nickel-cadmium block battery's unique electrochemistry enables it to regularly withstand any depth of discharge. Following a deep discharge the block battery is designed to recharge very quickly and economically, using standard single or two-level charging equipment










Easy storage and installation
Low maintenance
Long service life

Nickel-cadmium block batteries are quick and easy to install as original equipment and may be stored for many years in a discharged state under correct conditions


Adopts "valve-regulated vent plug technology", therefore, the water consumption is low, the electrolyte is rich. Within service life, the battery top up time up to 3~5 years due to EverExceed excellent valve-regulated feature

Up to 20+ years completely faithful service. No replacement cost & no downtime










Low discharge rate

Assured quality

Wide operating temperature range
The discharge time for 3h to 100h;  Rated capacity range:10~ 1100Ah

Authorative TUV, CE certificates and IEC60623,IEC62259 test reports

Generally operating between temperatures of -40°C to +60°C, they can tolerate extremes of -50°C to
+70°Cfor short periods

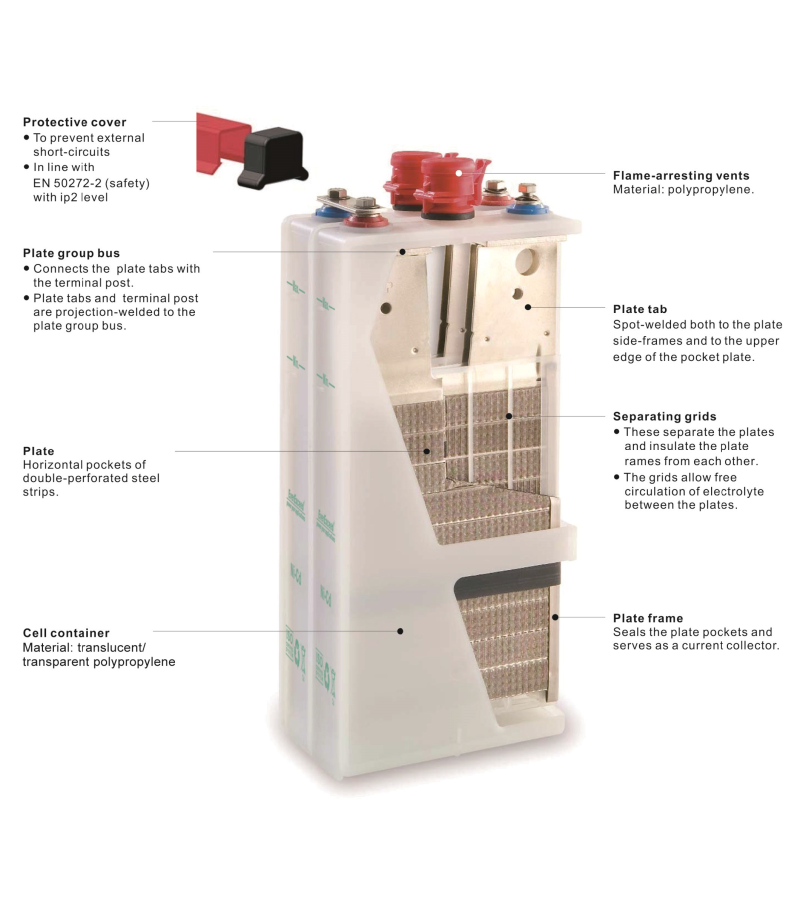

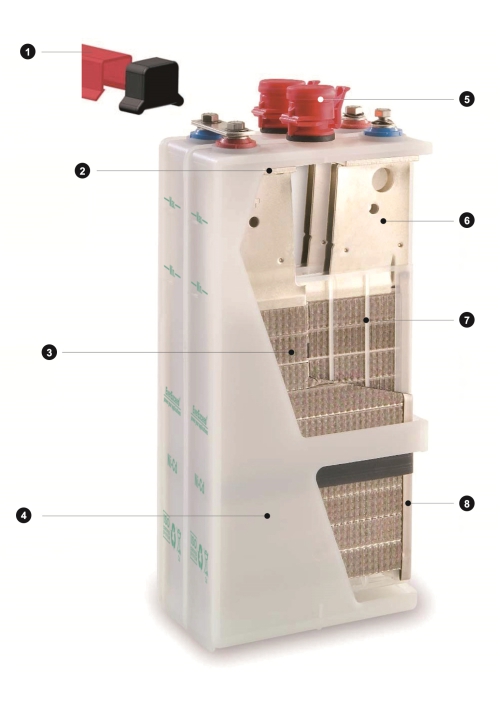

①Protective cover
To prevent external short-circuits;

In line with EN50272-2(safety) with ip2 level;


②Plate groups bus
Connects the plate tabs with the terminal post;

Plate tabs and terminal post are projection-welded to the plate groups bus;

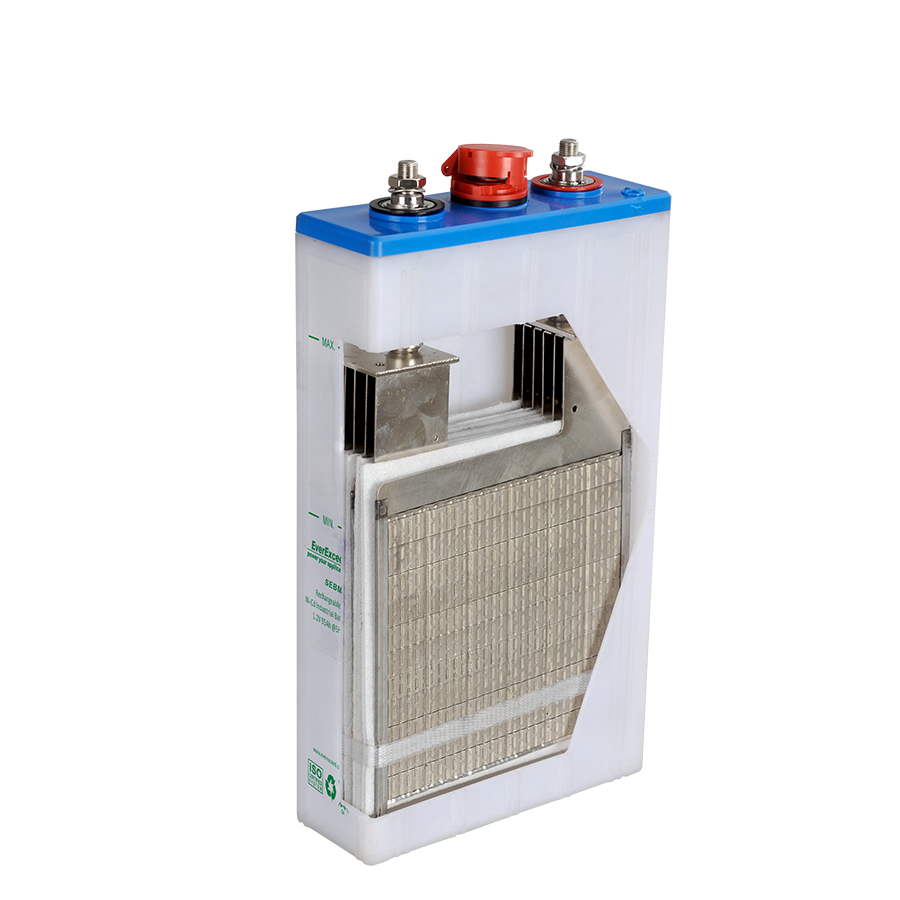

③Plate

Horizontal pockets of double-perforated steel stirps;


④Cell container

Material:translucent transparent polypropylene;


⑤Flame-arresting vents

Material: polypropylene;


⑥Plate tab

Spot-welded both to the plate side-frames and to the upper edge of the pocket plate;


⑦Separating grids
These separate the plates and insulate the plate rames from each other;

The grids allow free circulation of electrolyte between the plates;


⑧Plate frame
Seals the plate pockets and serves as a current collector.



Applications:


• Railway DC power supply, UPS switch transition, power plant, substation, and other back up power supply

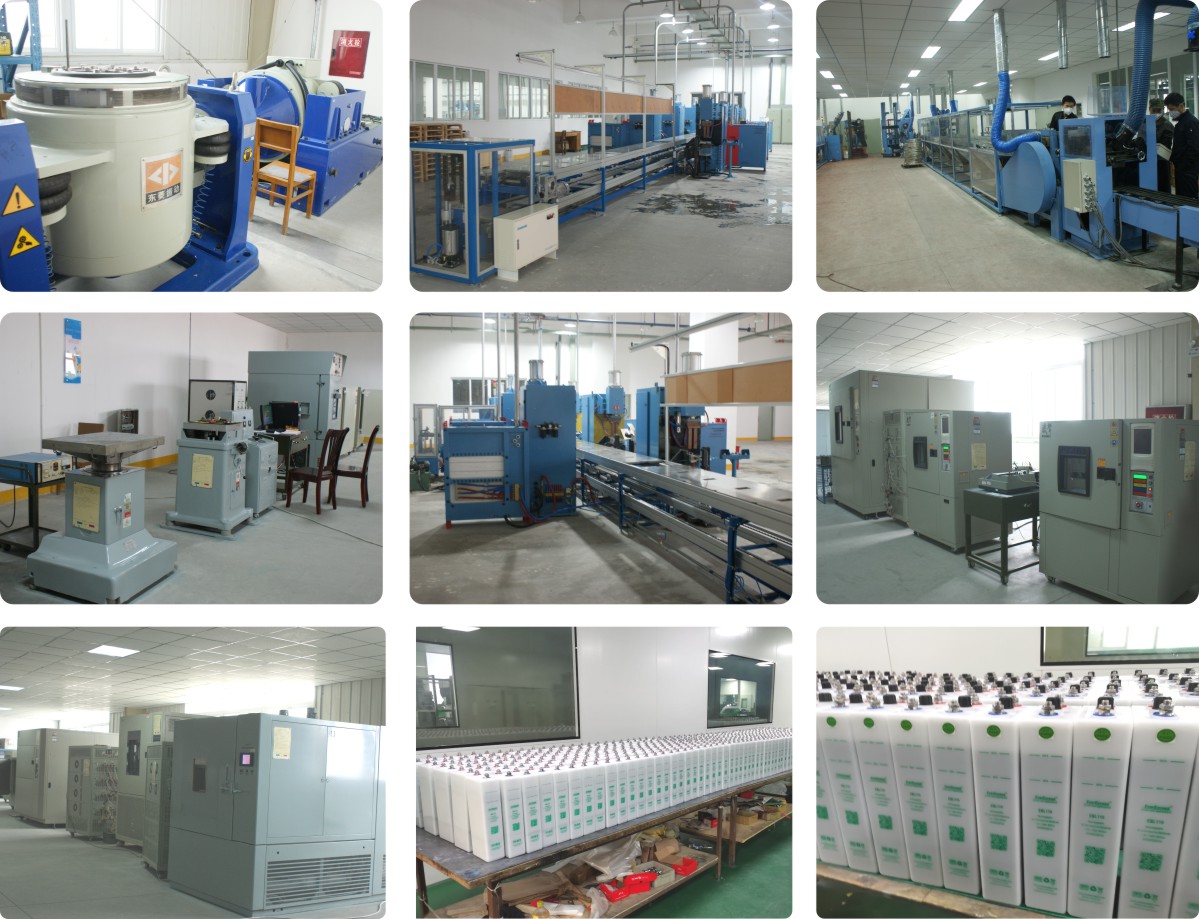

Factory:
