Secondary Vacuum Sealing Machine for Polyer Cell after Electrolyte Filling
Product Specification
TOB-BFZ200 is mainly used for pouch cell vacuuming and second sealing after electrolyte filling.
|
Sealing head temperature
|
RT-250℃,adjustable
|
|
Temperature control precision
|
±1.5℃
|
|
Heat sealing pressure
|
0-7kg/cm2,adjustable
|
|
Heat sealing time
|
0-99 second,adjustable
|
|
Sealing width
|
5mm,adjustable
|
|
Max sealing size
|
200mm
|
|
Vacuum degree
|
Max-95Kpa adjustable
|
|
Voltage
|
220V/50Hz
|
|
Power
|
900W
|
|
Compressed air source
|
0.5-0.7Mpa
|
|
Size
|
L500mm*W500mm*H700mm
|

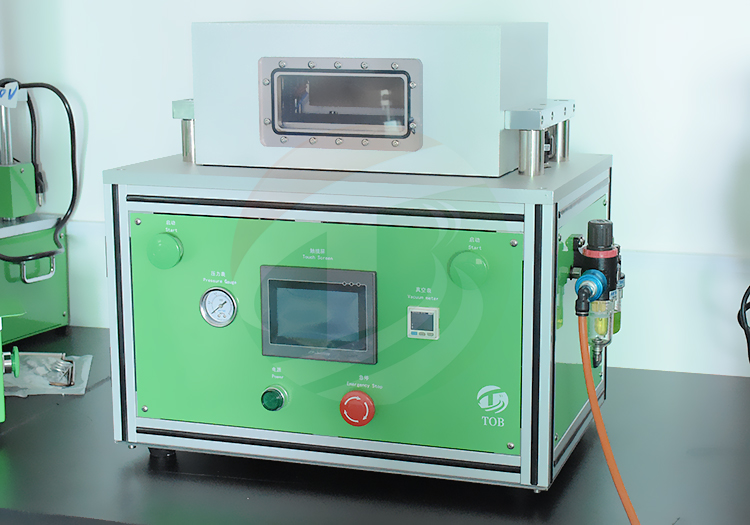

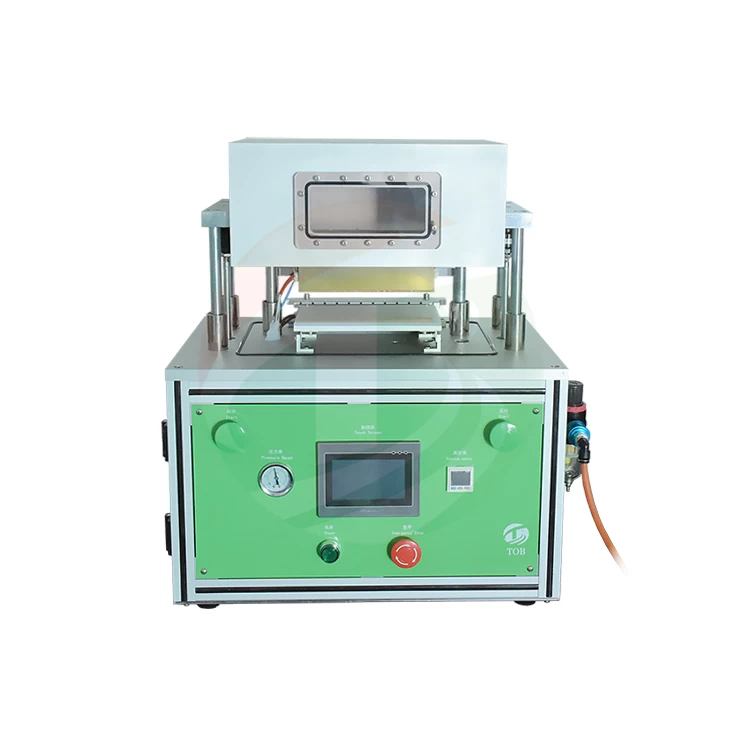

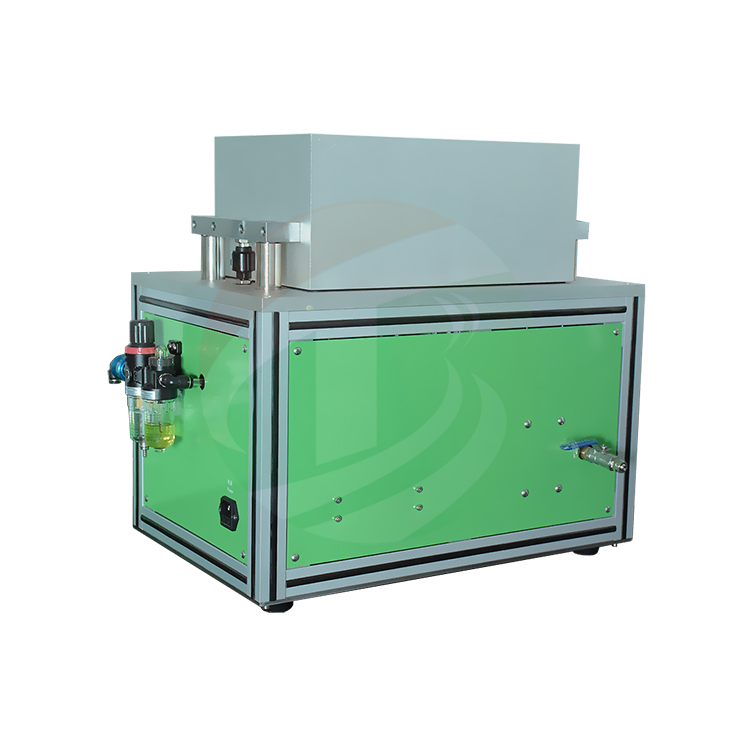

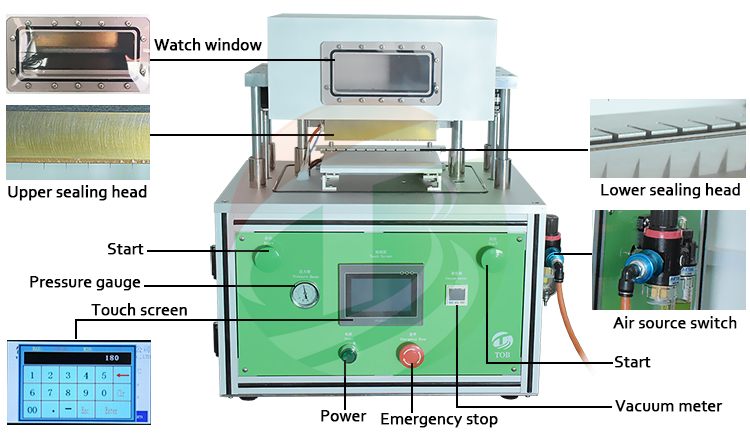

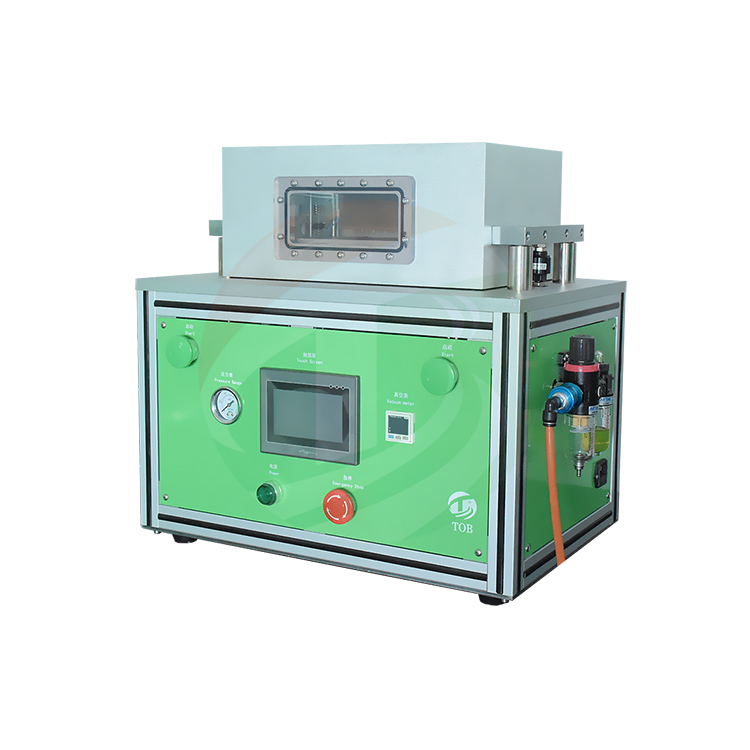

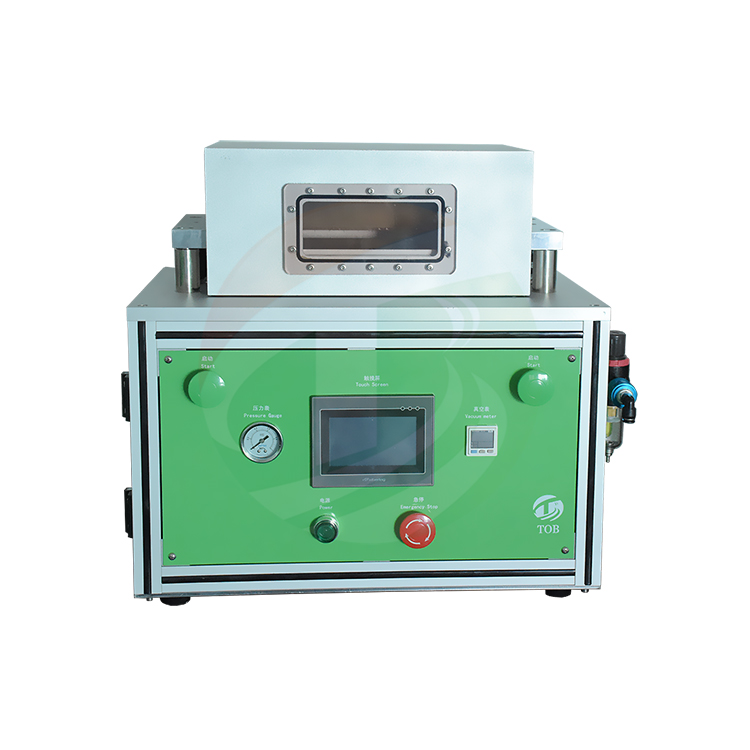

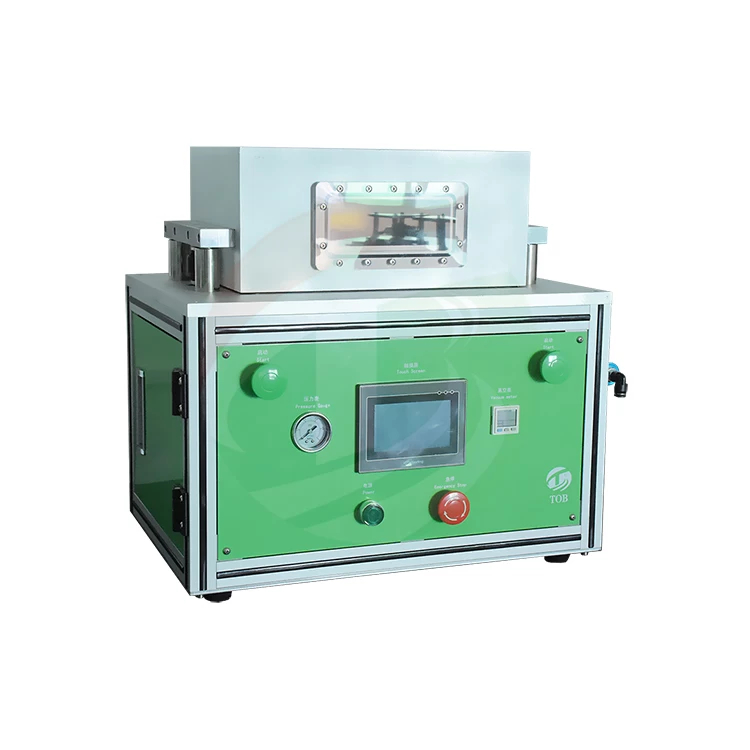

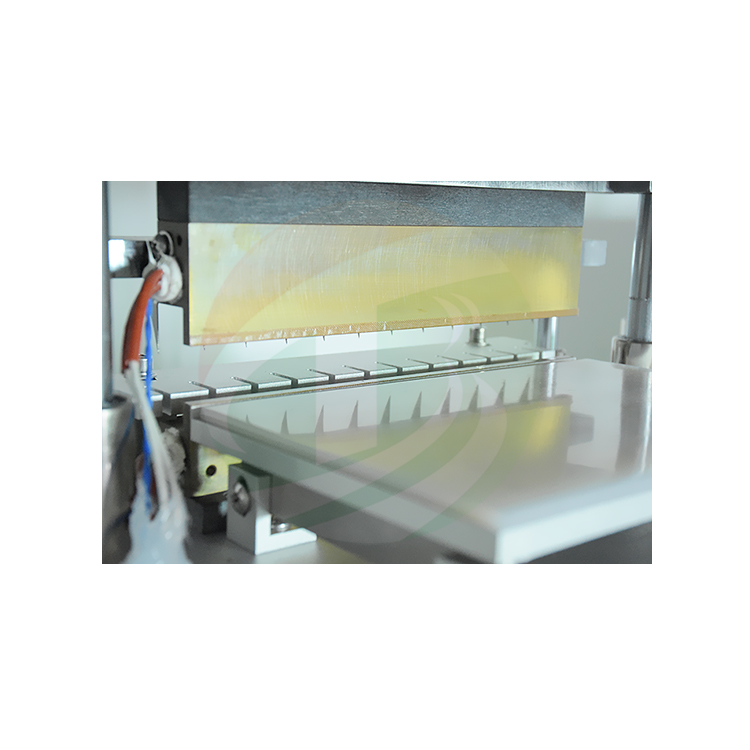

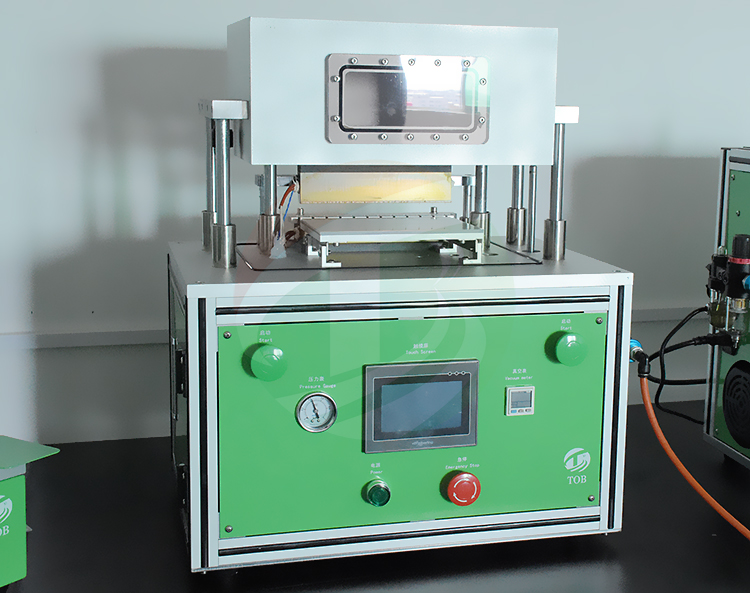

Product Image
Packing
