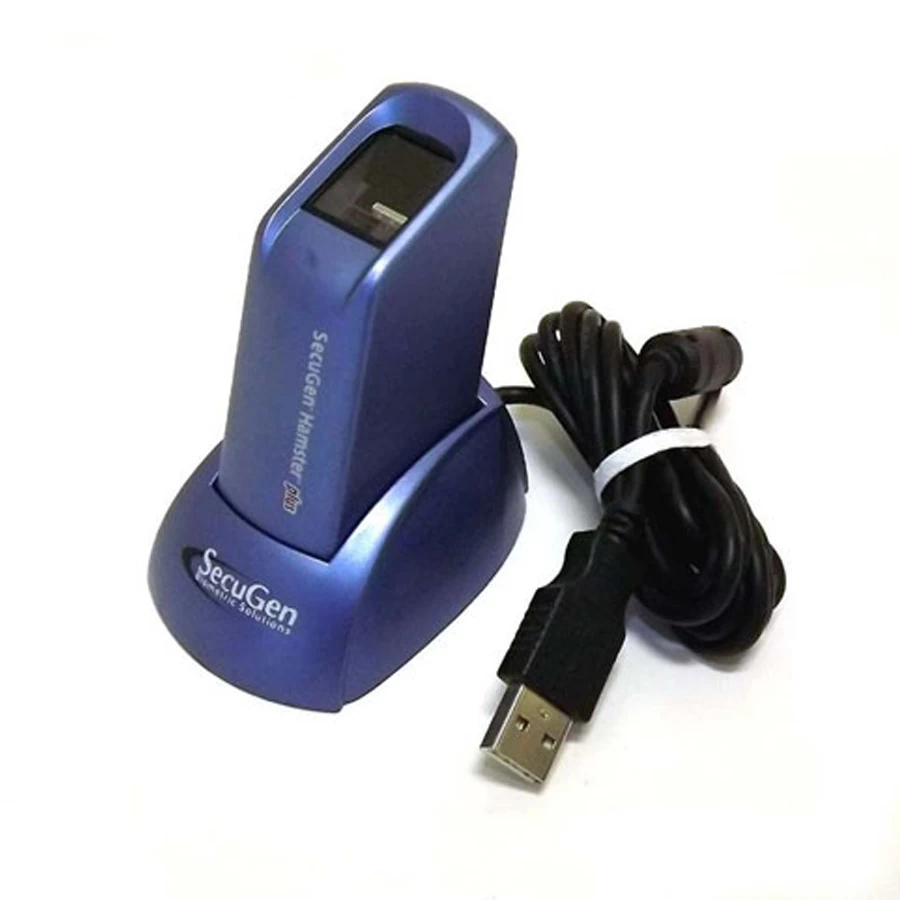

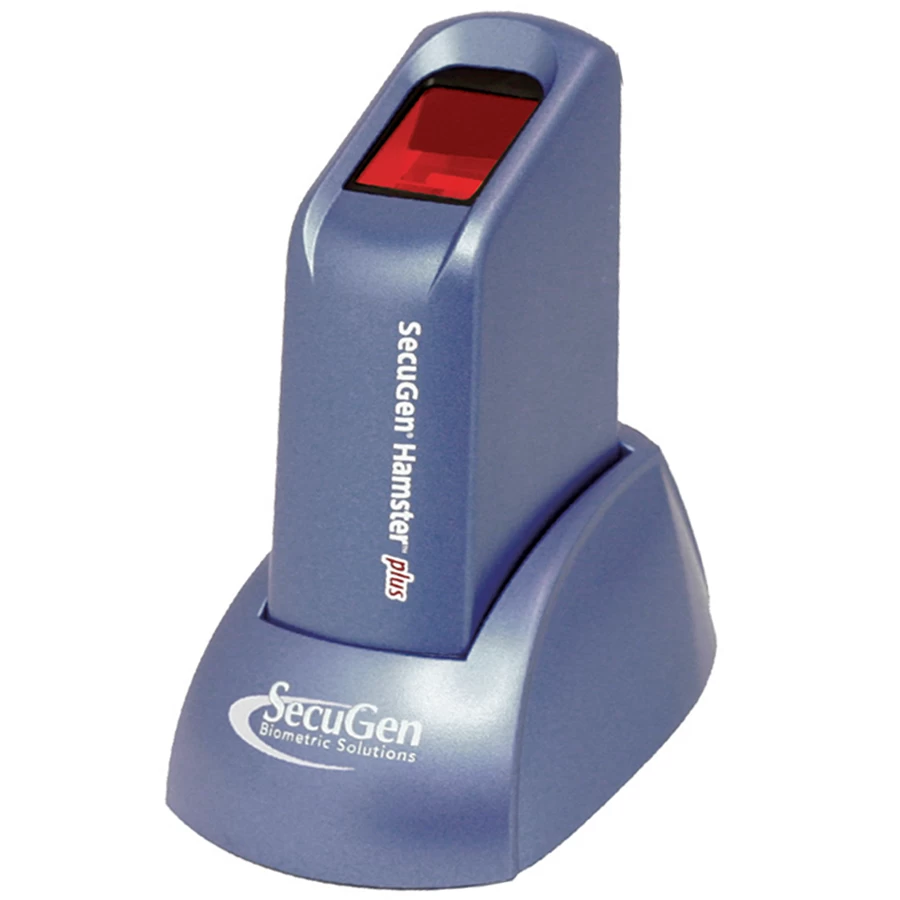

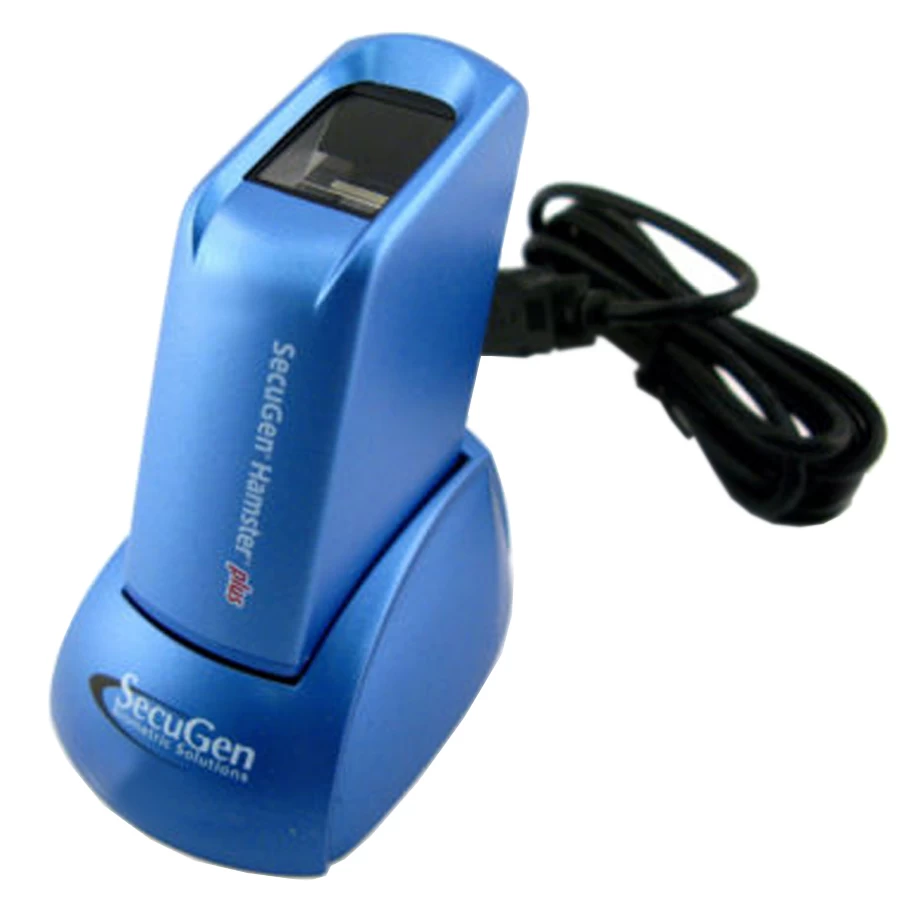

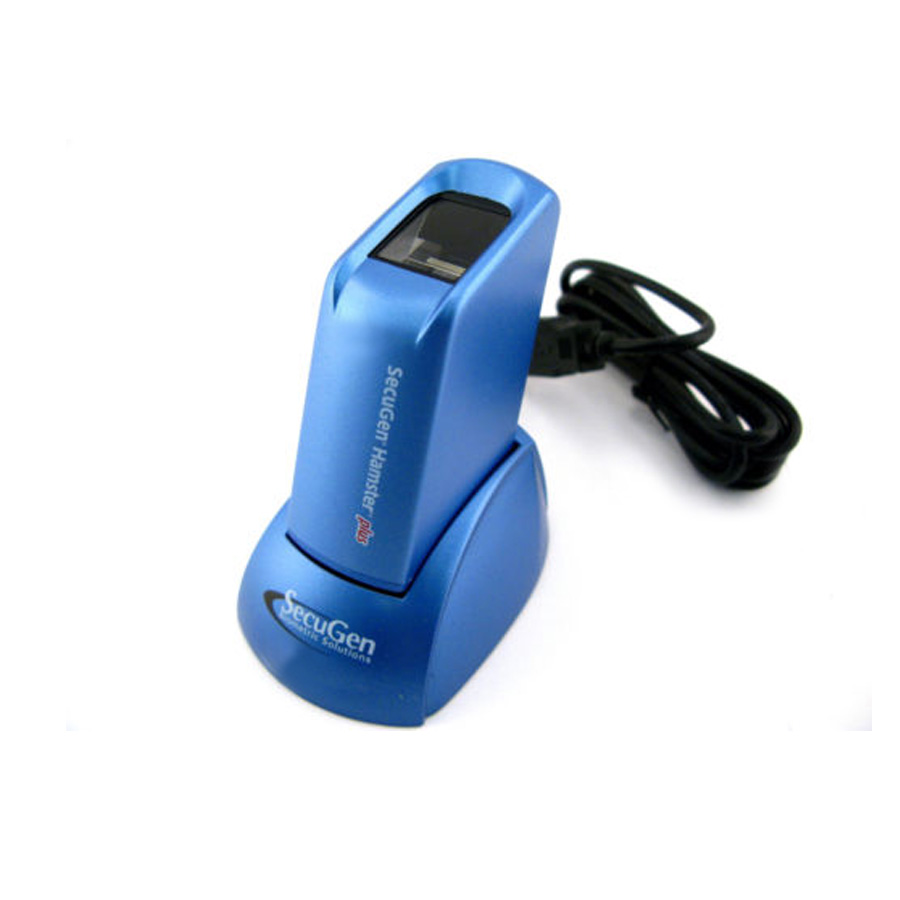

Product Name: SecuGen Hamster Plus Fingerprint Scanner with Auto On™ and Smart Capture™
Description:
The SecuGen Hamster Plus is the improved version on basis of SecuGen Hamster fingerprint reader, with Auto-On™ and Smart Capture™. The Hamster Plus fingerprint scanner is designed to be easy to understand and use. Setup is quick on any Windows PC. The primary connection between the Hamster Plus and the PC is a USB cord. The SecuGen Hamster Plus Fingerprint Scanner features the industry's most rugged and advanced optical sensor ,as well as friendly, ergonomic design.
The fingerprint scanner, or sensor, is a critical component of any fingerprint reader device, and the Secugen Hamster Plus has a high-quality sensor. The device requires no maintenance and is quite rugged – scratches, impacts, vibrations and electric shocks all meet a tough defense. This device should have a relatively long lifespan.
Features:
．USB connection
．Integrated finger guide
．Removable, weighted stand
．Ultra-precise 500 DPI resolution
．Auto-On automatically turns on sensor when it detects a finger
．High-quality, rugged, maintenance-free optical fingerprint sensor
．Smart Capture ensures quality fingerprint scanning of difficult fingers
．Compact and ergonomically designed to work with any finger or thumb
．Hardened fingerprint contact area that’s resistant to scratches, impact, corrosion and electrostatic discharge (ESD)
Specifications:
Fingerprint Sensor
|
SecuGen SDU03M™ Optical Fingerprint Sensor
|
Image resolution
|
500 DPI + 0.2 %
|
Image Size
|
260 x 300 pixels
|
Platen Size
|
16.1 mm x 18.2 mm
|
Effective Sensing Area
|
12.7 mm x 14.9 mm
|
Image Gray scale
|
256 shades (8-bit gray level)
|
Fingerprint Capture Speed
|
0.2 ~ 0.5 second with Smart Capture™
|
Interface
|
USB 1.1, 2.0
|
Cable Length
|
1500 mm
|
Lifetime (typical)
|
60,000 hours
|
Ambient Light Tolerance
|
5,000 Lux
|
Operating Temperature
|
-20° ~ 65°C
|
Operating Humidity
|
90% RH or less, non condensing
|
Supported Standards
|
INCITS 378, ISO/IEC 19794-2, ISO/IEC 19794-4
|
Certifications
|
FCC, CE, KCC, RoHS
|
Operating Systems
Supported
|
Windows 7,Vista , XP, 2000, Me, 98 SE
Windows Server 2008 Release 2, Server 2003
|
Dimension
|
27 x 40 x 73 mm (without stand)
|
Weight
|
100G (without stand)
|

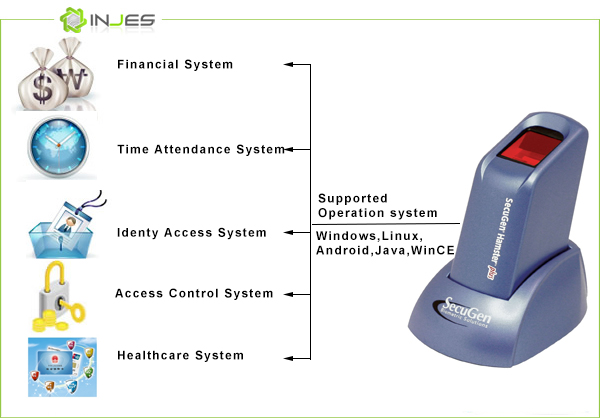

Introduction:
Configuration:

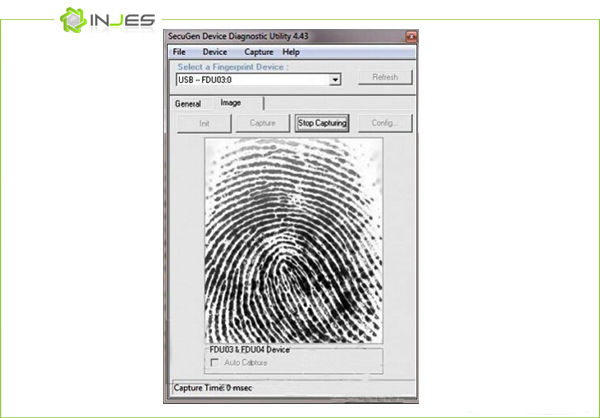

SDK Demo:
