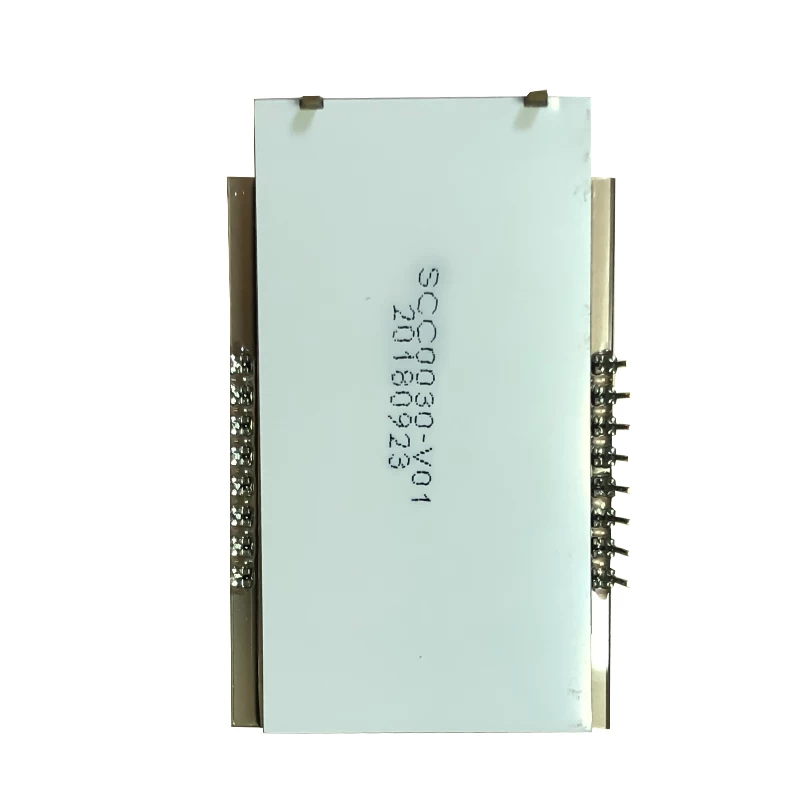

Segment LCD Display STN-Grey Positive Transflective COB Lcd Screen

SCC0030-V01 is a Customized Segment Mono LCD Display, it built in with 16 PIN, 12 o'clock View direction.


  • View Direction12
  • BacklightWhite LED
  • Driver IC-
  • View area43.00*25.00
  • Outline Dimension (mm)52.00*28.00*2.10
  • Display TypeSTN
  • PIN16

Basic Information


LCD Type:                     STN-Grey Postitive Transflective

Number of Graphic:      Segment

Outline Dimension:       52.0×33.0×5.1

View area:                     43.00*25.00

View Direction:              12 o'clock

PIN:                               16

Backlight:                      White LED

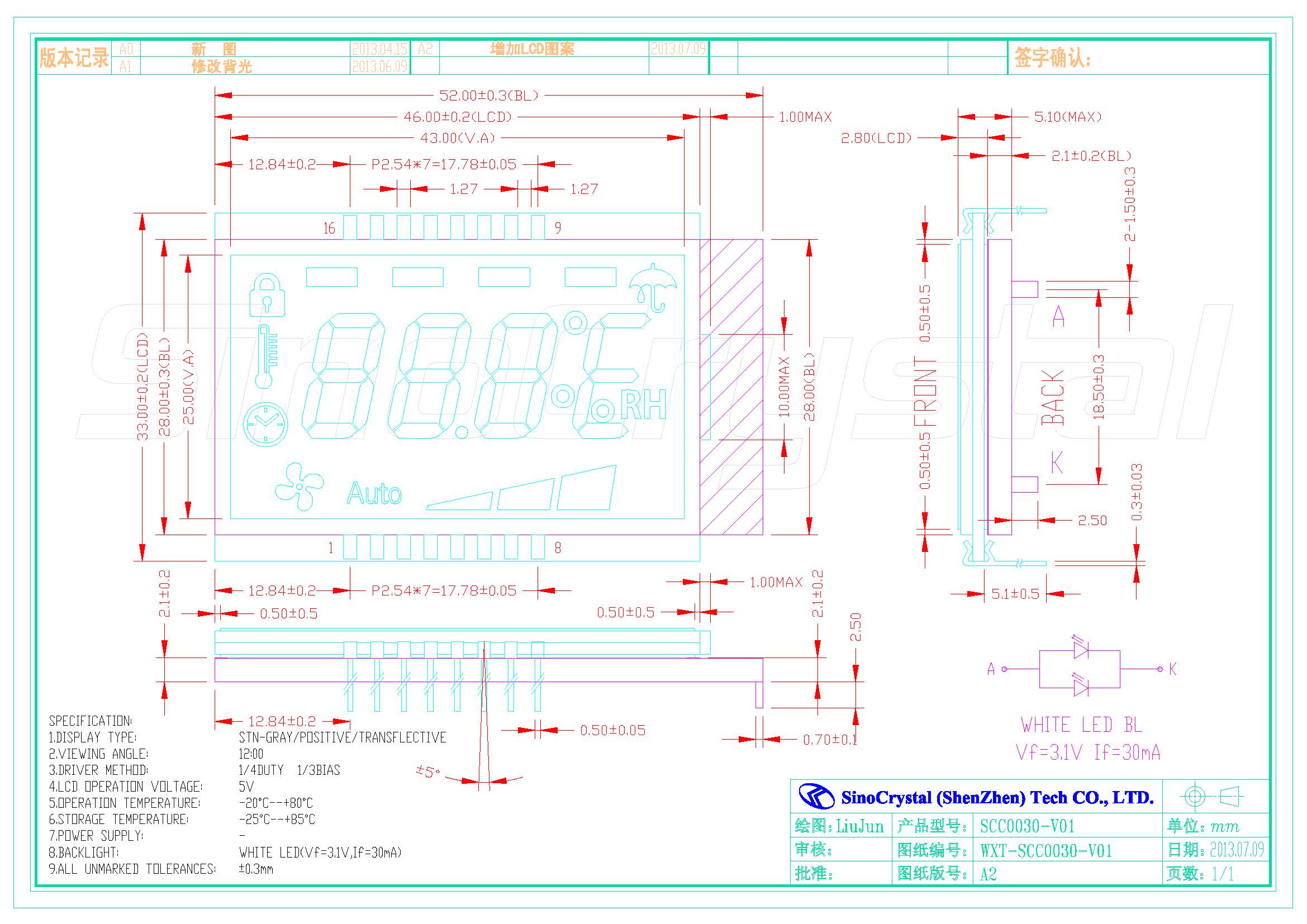

Drawing




General Specification


ITEM STANDARD VALUE UNIT
NUMBER OF GRAPHIC SEGMENT Mm
MODULE DIMENSION 52.0×33.0×5.1(MAX) Mm
VIEWING AREA 43.0×25.0 Mm
DOT SIZE - Mm
DOT PITCH - Mm
LCD TYPE STN-Grey/ POSITIVE/TRANSFLECTIVE
DUTY  1/4
VIEWING DIRECTION 12:00
o'clock
BACK LIGHT TYPE SIDE LIT LED
BACK LIGHT COLOR WHITE
APPROX. WEIGHT TBD G
