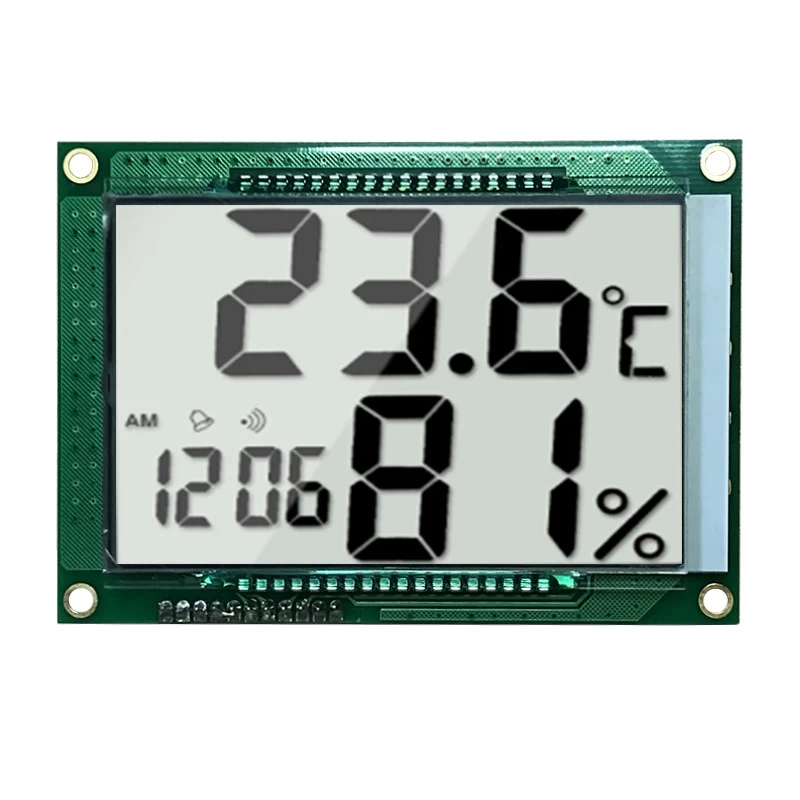

Segment LCD Display TN Positive Transmissive COB Customized LCD Display

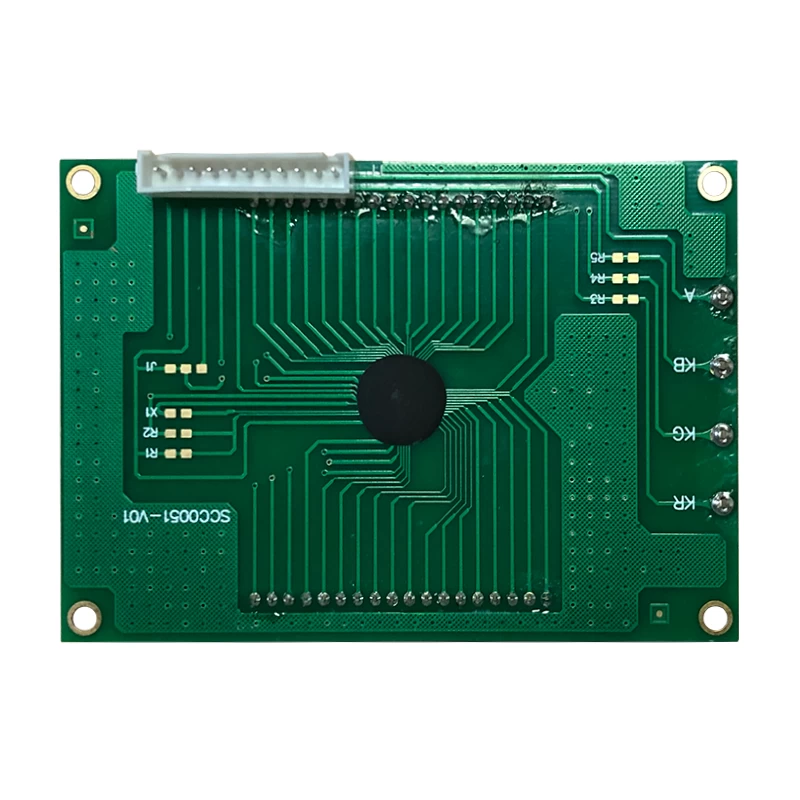

SCC0051-V01 is a Customized Segment Mono LCD Display, it built in with HT1621 Driver IC, 11 PIN, 12 o'clock View direction.


  • View Direction12
  • BacklightRGB LED
  • Driver ICHT1621
  • View area80.00*50.00
  • Outline Dimension (mm)100.00*70.00*1.60
  • Display TypeTN
  • PIN11

Basic Information


LCD Type:                     TN Postitive Transmissive

Number of Graphic:      Segment

Outline Dimension:       100.00*70.00*1.60

View area:                     80.00*50.00

View Direction:              12 o'clock

PIN:                               16

Backlight:                      White LED

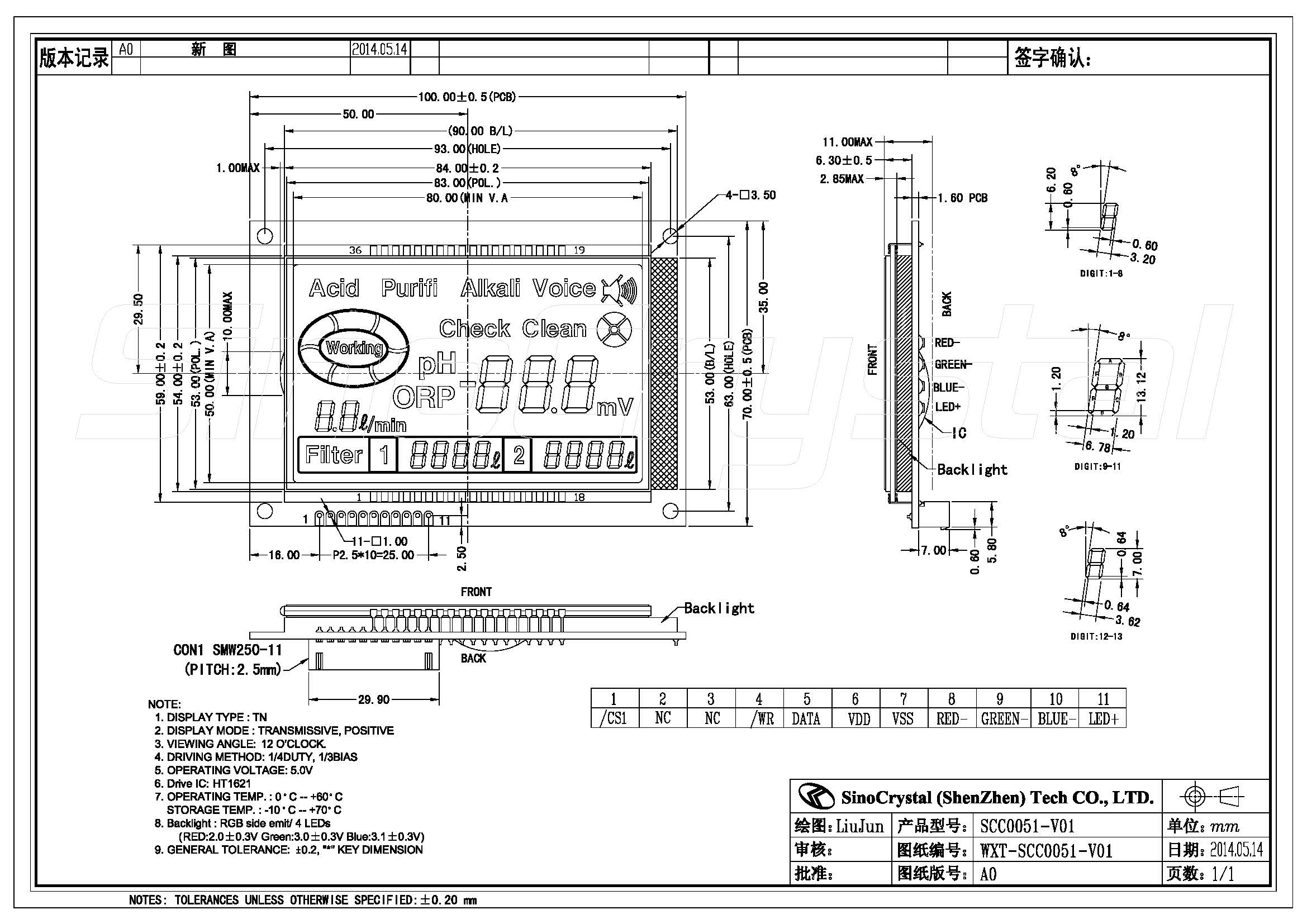

Drawing





General Specification


ITEM STANDARD VALUE UNIT
NUMBER OF GRAPHIC SEGMENT Mm
MODULE DIMENSION 100.00*70.00*1.60 Mm
VIEWING AREA 80.00*50.00 Mm
DOT SIZE - Mm
DOT PITCH - Mm
LCD TYPE TN/ POSITIVE/TRANSMISSIVE
DUTY  1/4
VIEWING DIRECTION 12:00
o'clock
BACK LIGHT TYPE SIDE LIT LED
BACK LIGHT COLOR RGB

APPROX. WEIGHT TBD G





Interface Definition


Pin No. Symbol Level Description
1 /CS1 H/L Chip selection input
2 NC - No used
3 NC - No used
4 /WR H/L Write clock input
5 DATA H/L Serial data input/output
6 VDD - Supply voltage for logic
7 VSS - Ground
8 LED+ -- Backlight anode
9 RED-
Backlight cathode
10 GREEN-
Backlight cathode
11 BLUE- -- Backlight cathode
