Self-fusing Silicone Tape
1.Product Introduction

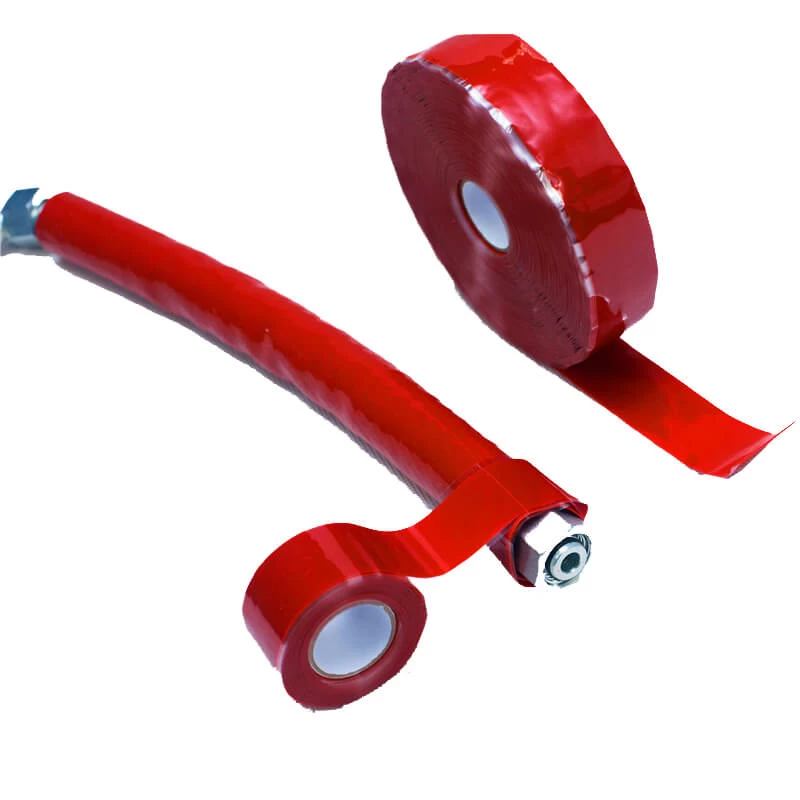

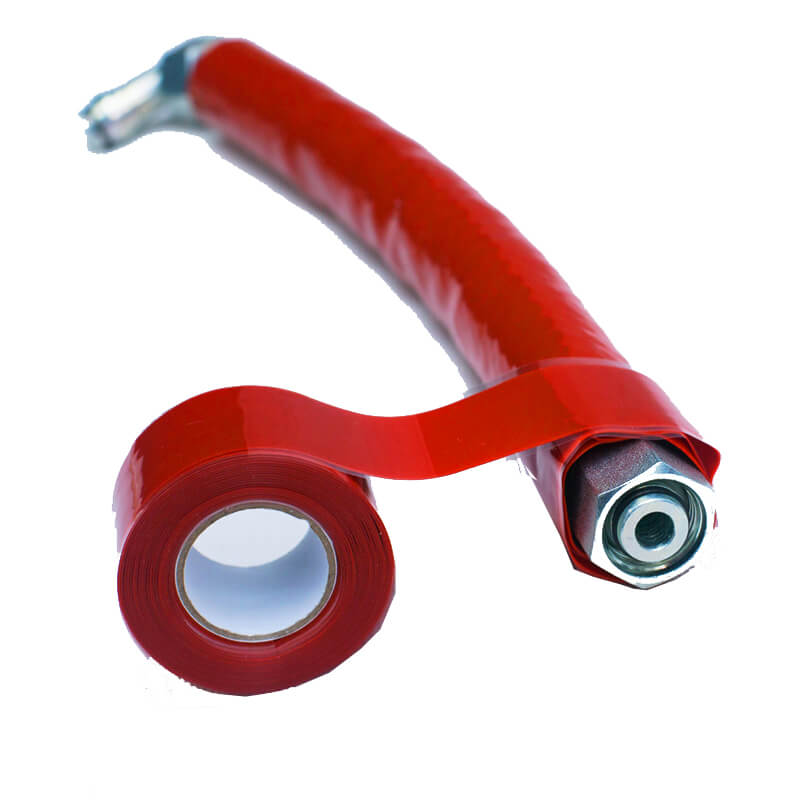

Self-fusing silicone tape is made of high temperature compression silicone rubber,is only pasted with itself. It is mainly used for sealing hoses, repairing leaky plumbing, insulating electrical connections, wrapping hand tool handles, etc.
2.Data Sheet
|
Temperature Range (Continuous)
|
-50 - 400 F(-45 - 200℃)
|
|
(Intermittent)
|
-80 - 500 F(-62 - 260℃)
|
|
Thickness
|
0.30-1.00mm
|
|
Width(mm)
|
15,20,25,30,38,40,45,50,100,150mm
|
|
Roll length
|
3,5,10,20,30m
|
|
Density
|
1.10g/cm³
|
|
Tensile Strength
|
800 PSI
|
|
Elongation
|
650%
|
|
Moisture Absorption
|
0.9%
|
|
Hardness
|
46A
|
|
Dielectric Strength
|
7KV-35KV
|
|
Cure Time (75F)
|
24h
|
3.Characteristics
☼High temperature resistance:-55℃ to 250℃
☼Good fuel,water,oil,acids resistance
☼Excellent insulation, ozone, UV and aging resistant
☼Tear and abrasion resistant
☼Easy to install by hand, no need heating and special tools
☼High reliability with excellent physical,chemical and electrical property
☼Self fusing without adhesive, removed without residue,convenient for maintenance
☼Flame retardant
☼Mechanical vibration reduction
☼Superior, heavy duty repair tape for emergency insulating
4.Product Application
Self-fusing silicone rubber tape is used on automotive,plumbing,hose,electrical;
Boats,marine application,aquariums,liquid containers,extreme temperature and pressure applications; Sealing and patching application.
Range
☼Insulation protection for substation,bare parts of the power plant and bus-bar in main network
☼Insulation protection for connections of electrical equipment,wire branch,clamps and terminal of cable head in distribution network.
☼Especially suitable for substation comprehensive insulation protection.
☼Insulation protection for any shape of electrified body,no need free end
☼Insulation and fireproof for large cables and irregular shape conductor
☼Insulation protection for power system in places where fire can't be used,like oil field and chemical industry
☼Insulation protection and fireproof of cable joint and bus-bar.
