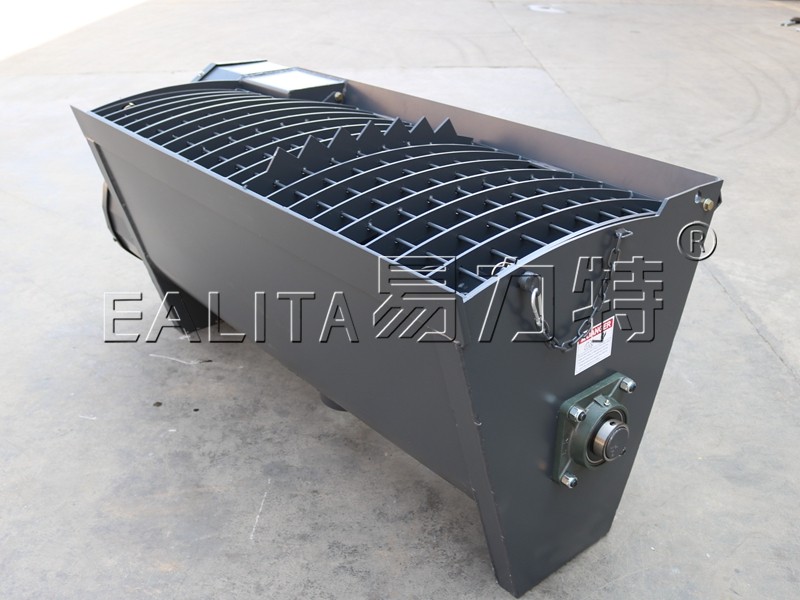

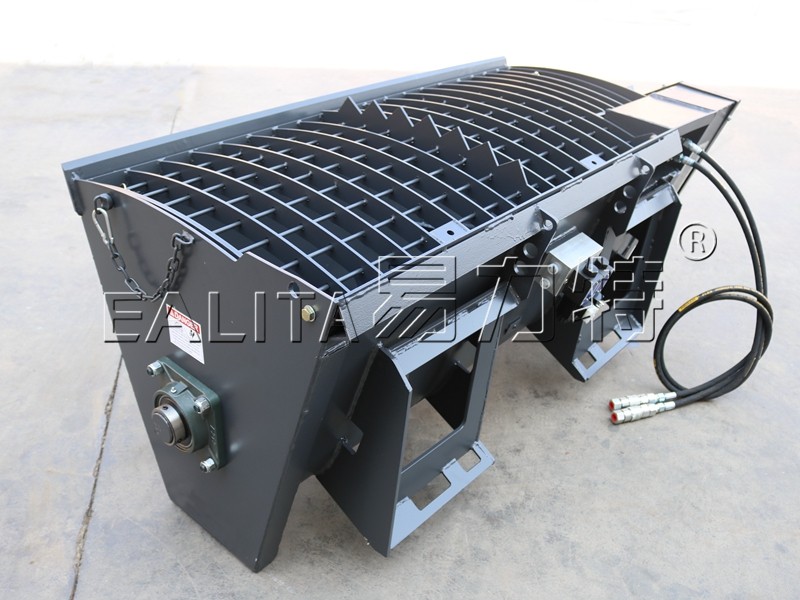

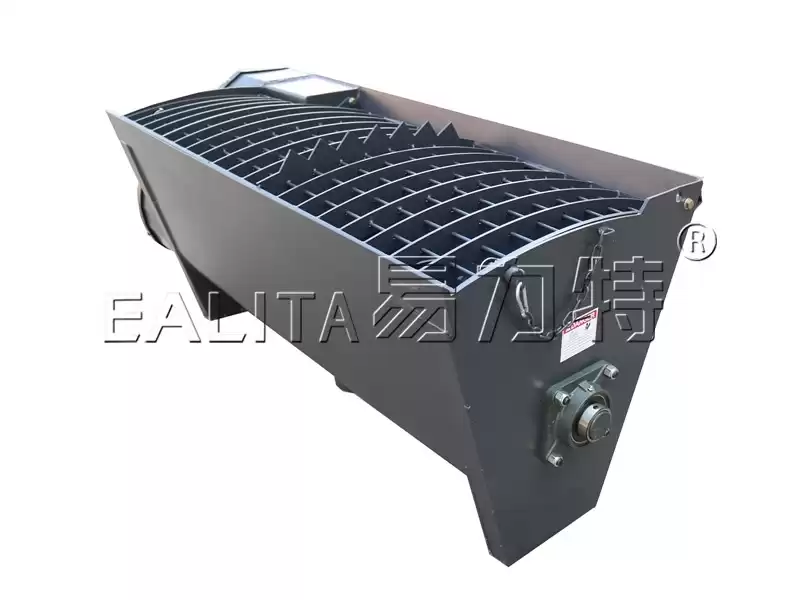

This Concrete Mixer Bucket make easy of Loading, mixing and delivering concrete across a work site.
- Mixing concrete has never been so simple with the ability to add cement powder quickly using the in-built bag breaker. With a hydraulic opening at the bottom of the attachment as well as a detachable unloading pipe, you have maximum control over each pour.
- It comes with Hardox blades and bottom.
- It loads up the loose material like a normal bucket.
- After mixing it downloads the concrete through the central outlet or by tilting the bucket.

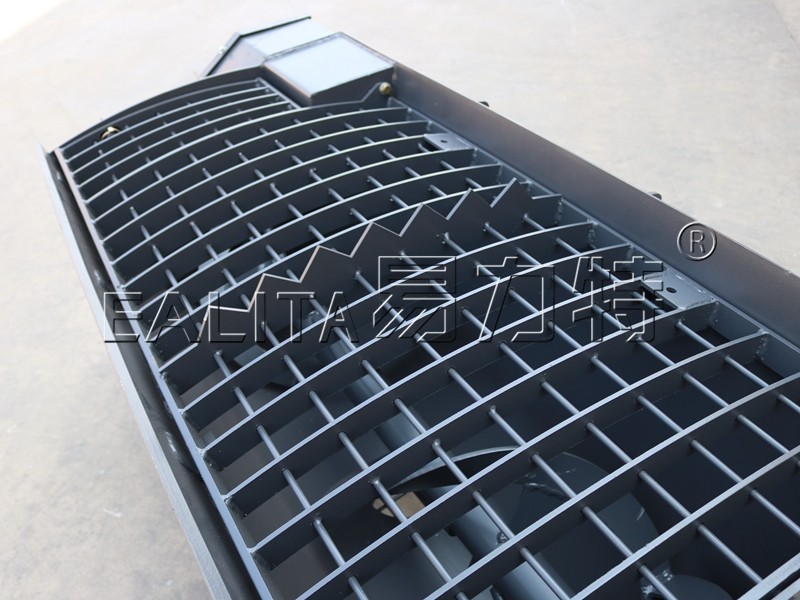

- The hinged front safety grid can be opened to clean up interior.
Specification
|
Type
|
S-BC220
|
S-BC270
|
S-BC320
|
S-BC450
|
S-BC650
|
S-BC800
|
|
Bucket Width (mm)
|
1200
|
1450
|
1650
|
1650
|
1750
|
2000
|
|
Overall Width (mm)
|
1340
|
1590
|
1790
|
1790
|
1890
|
2140
|
|
Oil Flow, Min-Max (Lt/min)
|
25-40
|
30-50
|
35-60
|
60-80
|
80-120
|
120-180
|
Oil Pressure, Min-Max (Bar)
|
170-200
|
170-200
|
180-220
|
200-240
|
200-280
|
200-280
|
|
Unit Weight (kg)
|
310
|
350
|
380
|
470
|
710
|
810
|
|
Rated Capacity (Lt)
|
220
|
275
|
320
|
450
|
650
|
800
|
|
Maximum Capacity (Lt)
|
275
|
330
|
400
|
550
|
800
|
960
|
|
Concrete Weight @ Maximun Capacity (kg)
|
660
|
792
|
960
|
1320
|
1920
|
2304
|
