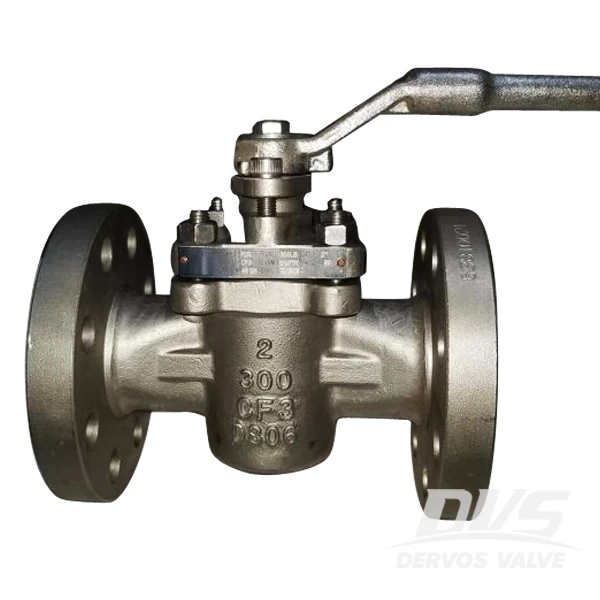

The PTFE sleeved plug valve is made of CF3 body and plug as per API 6D. The valve owns the feature of reduced port and good sealing performance. We call this type of valve as non lubricated plug valve or self lubricated plug valve.
Quick Detail
|
Type
|
Plug
Valve
|
|
Size
|
2''
|
|
DesignPressure
|
300LB
|
|
Construction
|
Self-Lubricated
Type, Sleeved Type, Non Lubricated Type, Soft Seat
|
|
ConnectionType
|
Flange
|
|
Operation
|
Lever
Operation
|
|
Design Code
|
API 599,
API 6D
|
|
Face to Face
|
ASME
B16.10
|
|
End Connection
|
ASME
B16.5
|
|
Pressure &
Temp
|
ASME
B16.34
|
|
Test &
Inspection
|
API
598
|
|
Body Material
|
CF3
|
|
Temperature Range
|
-29β~+120β
|
|
Application
|
Water,
Oil, Gas
|

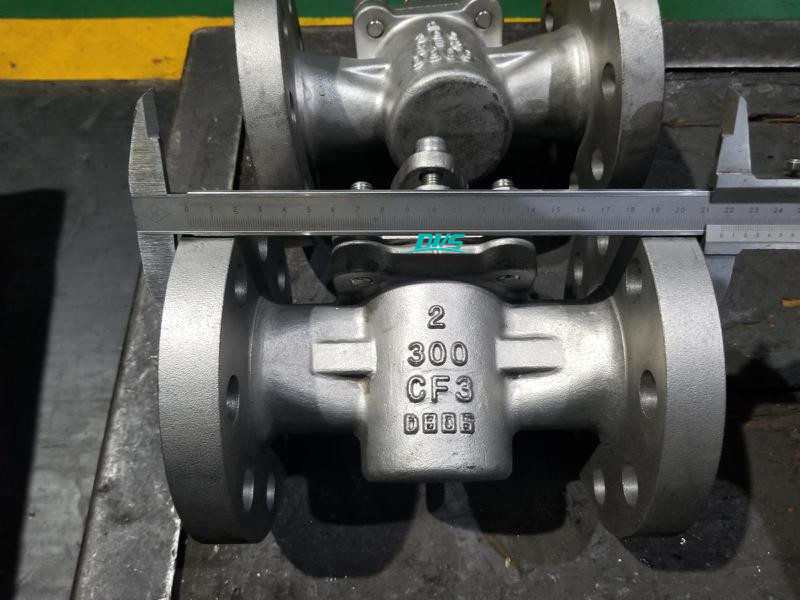

Dimension Checking

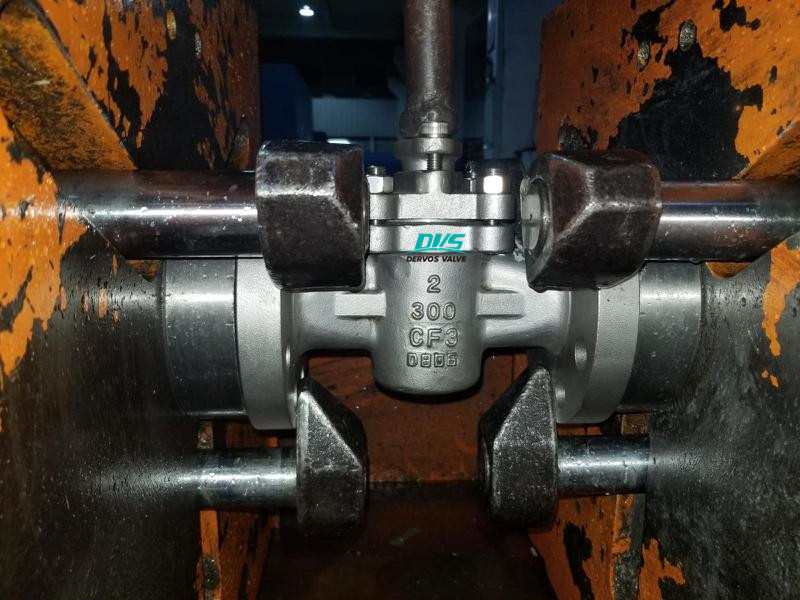

Hydrostatic Testing
