Self-lubricating lobe pumps with oil cup

The rotor pump is equipped with an oil cup to realize the dry running of the mechanical seal in a short period of time, thereby increasing the use time of the mechanical seal.

Facebook Twitter Pinterest LinkedIn 分享

Description

PUMP INTRODUCTION

V-inlet rotary lobe pumps/ Rotor pumps with oil lubrication

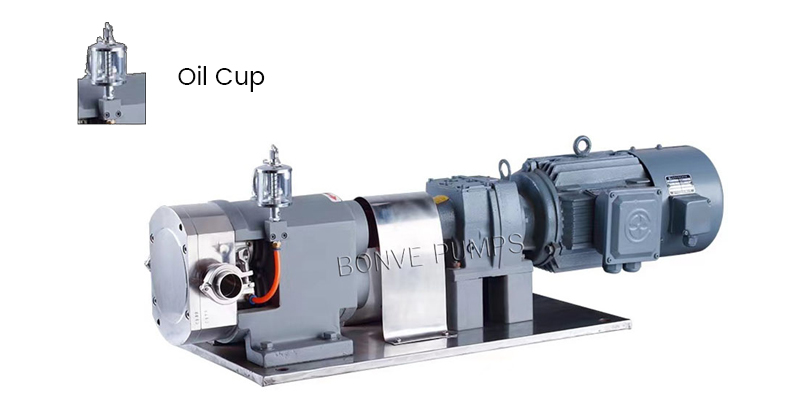

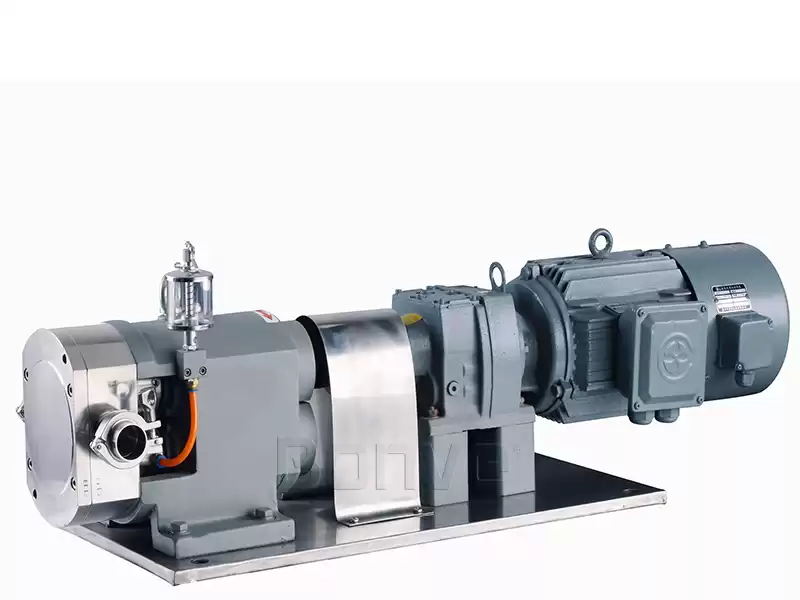

BONVE self-lubricating lobe pumps are equipped with an oil cup for their mechanical seal. The main purpose is to optimize the lubricity of the mechanical seal, so as to realize the idling of the mechanical seal in a short time and prevent the mechanical seal from dry grinding during operation.

PUMP MAIN FEATURES

The all main parts are made by CNC, which have high precision;
Simple structure, easy to clean and maintaince;
Long service life, reducing use cost;
Energy saving, low noise;
Various of drive method can meet customers’ requirement;
The transportable medium viscosity is upto 1.5 million cp, and the slurry with a solid content upto 70%;
It can transport three-phase mixture materials such as vapor, liquld and solid.

WORKING PRINCIPLE

Stainless steel pump factory

The self-lubricating lobe pumps with oil cup adopt two lobe rotors, which rotate synchronously driven by a pair of synchronous gear in the gearbox. The rotors are driven by the main shaft and sub-shaft to rotate in a synchronous reverse direction, which changes the pump capacity, builds up high vacuum and discharge pressure, thus an efficient pumping is formed.

Bi-wing rotors diagram

Tri-wing rotors diagram

PUMP STRUCTURE

TECHNICAL PARAMETERS

Model	Displace -ment	RPM	Flow	Dis. Pre.	Power	Vacuum	Port size	Max viscosity
	(L/r)	(r/min)	(m³/h)	(Mpa)	(kW)	(Mpa)	(mm)	(cp)
25BV12-05	0.06	10-1000	0-0.5	0-1.2	0.37-1.1	-0.080	25	1,500,000
40BV12-2	0.15	10-1000	0-2	0-1.2	0.75-2.2	-0.080	40	1,500,000
50BV12-5	0.32	10-800	0-5	0-1.2	1.5-4	-0.085	50	1,500,000
65BV12-10	0.65	10-600	0-10	0-1.2	2.2-7.5	-0.085	65	1,500,000
80BV12-20	1.74	10-500	0-20	0-1.2	4-15	-0.095	80	1,500,000
90BV12-30	2.60	10-500	0-30	0-1.2	5.5-22	-0.095	100	1,500,000
100BV12-40	3.65	10-500	0-40	0-1.2	7.5-30	-0.095	100	1,500,000
125BV12-50	4.60	10-500	0-50	0-1.2	7.5-37	-0.095	125	1,500,000
140BV12-70	6.10	10-500	0-70	0-1.2	11-45	-0.095	150	1,500,000
150BV12-80	7.63	10-500	0-80	0-1.2	11-55	-0.095	150	1,500,000
200BV12-120	11.56	10-400	0-120	0-1.2	15-75	-0.095	200	1,500,000
250BV12-150	14.22	10-400	0-150	0-1.2	18.5-90	-0.095	250	1,500,000
300BV12-200	20.80	10-300	0-200	0-1.2	22-110	-0.095	300	1,500,000
350BV12-300	32.60	10-250	0-300	0-1.2	45-160	-0.095	350	1,500,000
400BV12-400	50.40	10-250	0-400	0-1.2	55-200	-0.095	400	1,500,000

Note:
1. Tested medium: water. Your liquid's density, viscosity and temperature are necessary to supply when choose the pump.
2. Speed, flow rate, electrical power and pressure will be varified according to different liquid properties.
3. Port size can be changed as needed.

APPLICATIONS

Beverage Industry: Beer,carbonated soft drinks, coffee liquor, fruit juice concentrates, milk drinks, sugar solutions, wine, yeast slurries;
Confectionery Industry: Biscuit cream, caramel, chocolate, cocoa butter, cocoa mass, condensed milk, fat, fondant, glucose, high-boiled sugar syrup, jellies;
Dairy Industry: Butter, cheese, cream, egg, ice cream, milk, quarg, whey, yoghurt;
Pharmaceutical Industry: Blood, cell cultures, enzymes, ointments, protein solutions, syrups;
Prepared Foods Industry: Additives, baby food, edible oils, fruit puree, meat chunks, jam, petfood, sauces, soups, toppings;
Soap&Detergents Industry: Dishwash liquid, dodecylbenzene sulphonic acid, fabric conditioner, fatty acid, lye, neat soap, sodium lauryl ether sulphate, surfactants
Sugar Industry: Glucose, high / low green syrup, liquid sugar, magma, massecuite, molasses, sugar syrup, thick juice, treacle.
