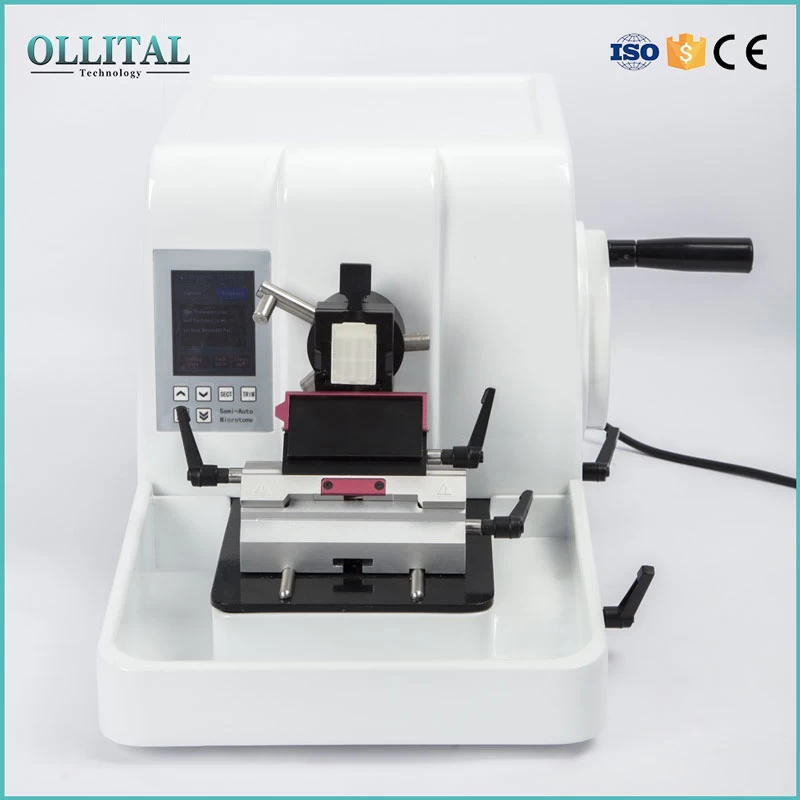

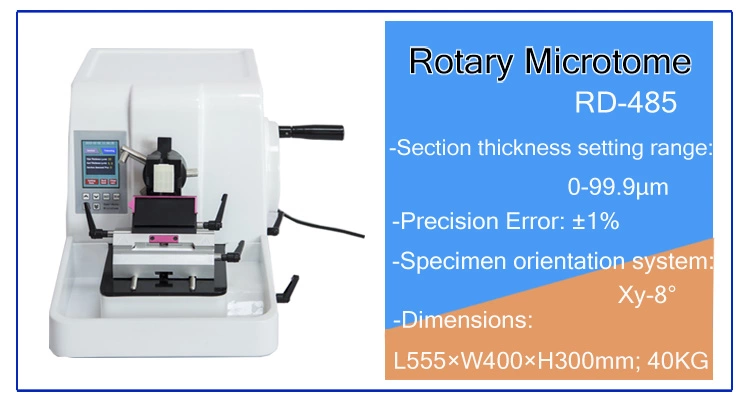

Semi-auto Tissue Microtome Rotary Microtome With Touching Screen
Model No.: RD-485 Principle of rotary microtome parts and function semi-auto microtome
|
|
|
Section thickness setting range
|
0-99.9μm
|
|
Trimming thickness setting range
|
0-200μm
|
|
Minimum setting of sectioning thickness
|
0.1μm
|
|
Minimum setting of trimming thickness
|
1um
|
|

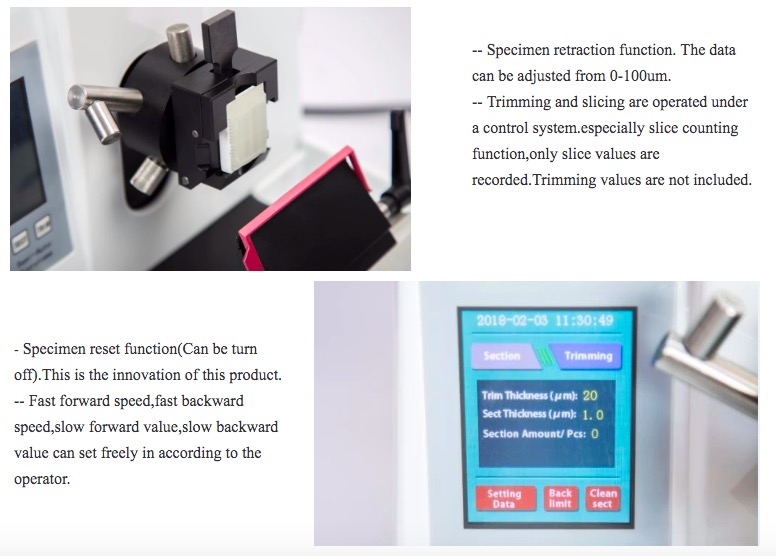

Specimen retraction
|
0-100um(Can be closed)
|
|
Precision and error
|
±1%
|
|
Maximum specimen size
|
60mm*50mm
|
|
Specimen horizontal feed
|
26mm
|
|
Specimen vertical feed
|
60mm
|
|
Specimen clamp angle range
|
XY -8º
|
|

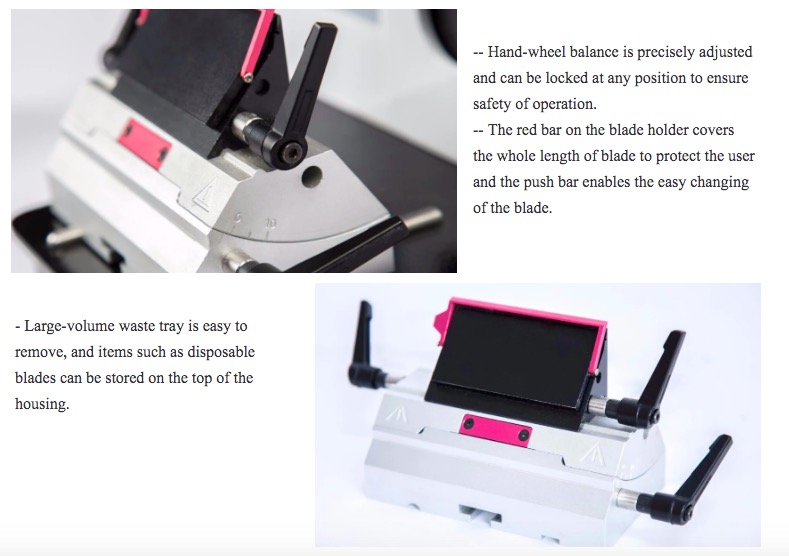

Handwheels lock
|
360º of any position
|
|
Section blade holder adjust angle
|
0º - 10º adjustable
|
|
|
Forward and backwards setting range
|
1-100μm
|
|
Fast forward and backwards setting
|
5 Stalls can be setted
|
|
Slow forward and backwards setting
|
5 Stalls can be setted
|
|
|
Voltage and frequency
|
AC100~240V±10%,50Hz±1Hz
|
|
Power
|
150VA
|
|
|
Net weight
|
40KG
|
|
Size
|
555*400*300mm(L*D*H)
|
