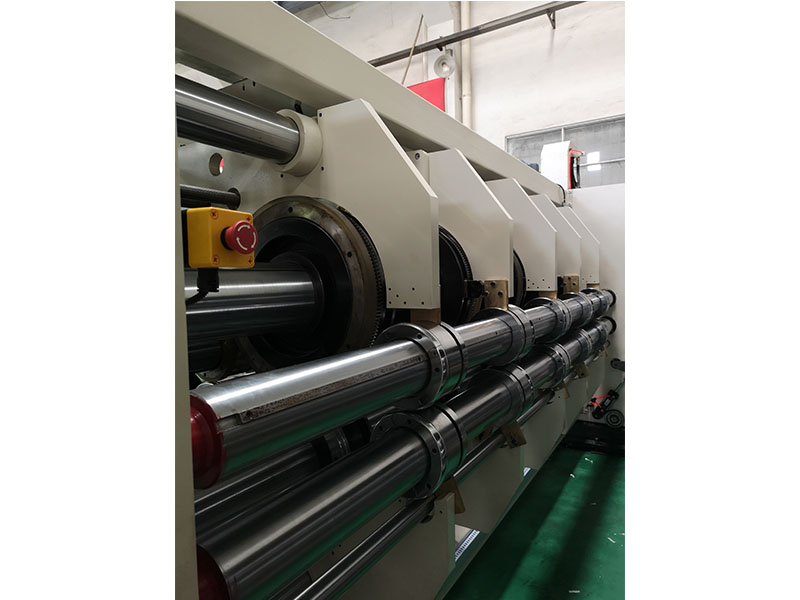

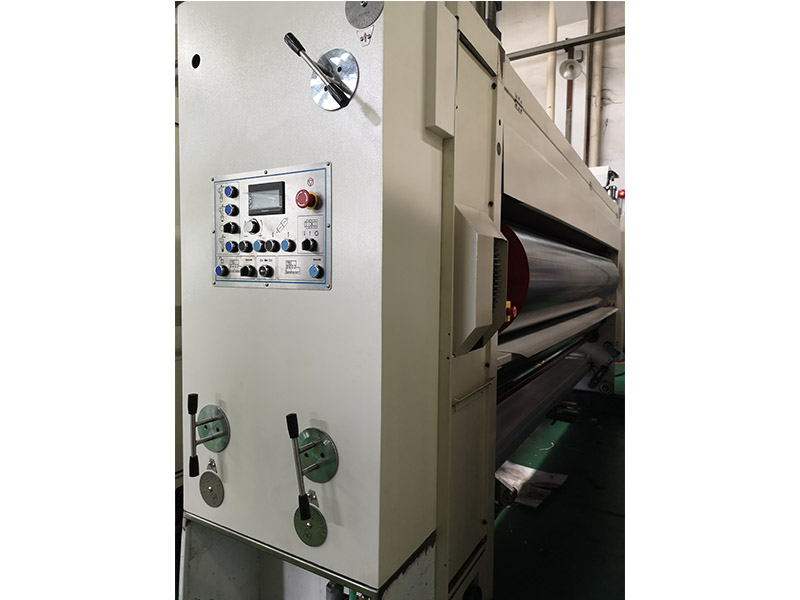

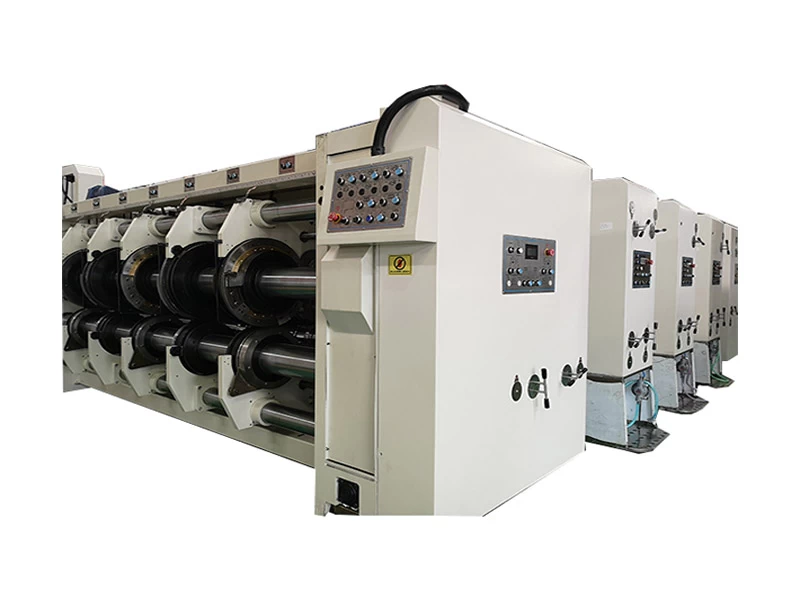

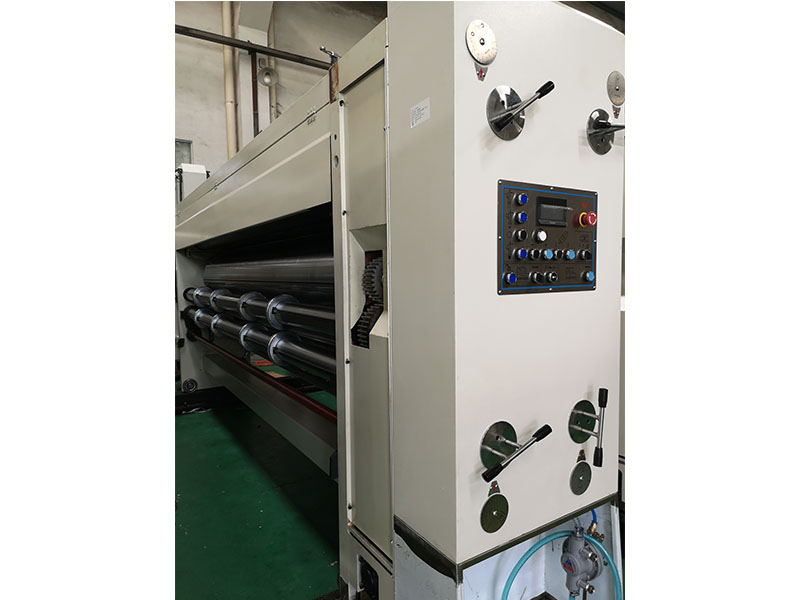

Semi Automatic Carton Flexo Printing Machine from Keshenglong
Two Color Flexo Printing Machine Features：
·This machine is designed and made to high quality and safety standard,with the advantages of high speed, auto control and quick order shift.
·Auto high quality materials and parts.
·Well hardened and ground transmission gears, hardness more than 60(HRC).
·Auto zero return and auto reset.
·All gaps between cylinders and rollers are manual adjusted,squagging after adjustment.
·Use expansion sets tight link to reduce abrasion of the shaft,keep precision of the machine for long years.
·All cylinders and rollers are chromed plated for ideal hardness.
·PLC control system with touch screen control.
·Able to save order,speed up the order shift.
·All electronic and pneumatic components are with European standards.
·Able to facilitate the production management.
Carton Flexo Printing Machine Specification：
|
Data/Model
|
900*2000
|
1200*2000
|
1200*2400
|
1200*2800
|
1400*2400
|
1400*2800
|
1600*2800
|
1600*3200
|
|
Printing Speed(m/min)
|
200
|
200
|
200
|
200
|
200
|
200
|
200
|
200
|
|
Max. Machine Speed(pcs/min)
|
300
|
250
|
250
|
220
|
220
|
220
|
200
|
180
|
|
Max.Feeding Size(mm)
|
880x2000
|
1180x2000
|
1180x2400
|
1180x2800
|
1380x2400
|
1380x2800
|
1540x2800
|
1570x3200
|
|
Min.Feeding Size(mm)
|
280x640
|
320x700
|
320x700
|
320x700
|
350x700
|
350x700
|
420x760
|
420x760
|
|
Skip Feeding(mm)
|
1100x2000
|
1500x2000
|
1500x2400
|
1500x2800
|
1700x2400
|
1700x2800
|
1900x2800
|
1900x3200
|
|
Max. Printing Area(mm)
|
800x2000
|
1150x2000
|
1150x2400
|
1150x2800
|
1350x2400
|
1320x2800
|
1540x2800
|
1540x3200
|
|
Thickness of Printing Plate(mm)
|
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
|
Min.Panel(mm) Slot Type L.
|
240x80x240x80
|
260x90x260x90
|
260x90x260x90
|
260x90x260x90
|
260x90x260x90
|
260x90x260x90
|
280x100x280x100
|
280x100x280x100
|
|
Max Slotting Depth(mm)
|
250
|
320
|
320
|
320
|
320
|
320
|
560
|
560
|
|
Max. Thickness of Sheet(mm)
|
8
|
12
|
12
|
12
|
12
|
12
|
12
|
12
|
|
Dimension(LxWxH)
T
F
|
T:11659x4240x3200
F:12079X4240X3200
|
T:13015x4400x3500
F:13550x4400x3500
|
T:13015x4800x3500
F:13550x4800x3500
|
T:13015x5220x3500
F:13550x5220x3500
|
T:13570x4830x3500
F:14028x4820x3500
|
T:13570x5220x3500
F:14028x5220x3500
|
T:14021x5220x3500
F:14071x5220x3500
|
T:14021x5719x3500
F:14071x5719x3500
|
Our Company:
Guangzhou Keshenglong Carton Packing Machine Co.,Ltd., is one of the corrugated cardboard flexo printing machine manufacturers in China, specialized in manufacturing of carton printing and packaging machinery. And our products have been exported to more than 70 countries.
