Semi Automatic Dual Table PCB Router PCB Milling Machine
PCB Router Machine Functions:
The PCB router PCB milling machine uses routing bit to mill the material of PCB of special fixture. The hardness of the PCB material wears down the bit, which must be replaced periodically.
Routing requires that single boards are connected using tabs in a panel.
PCB Router Machine Features:
High speed cutting is realized by masimizing 4 axes control
Positioning compensation done by image processing, increases the cutting accuracy.
Teaching can be done with PC
Routing bit depth changeover function lengthen router bit life-span.
;
PCB Router Machine Specs:
|
Router Machine
|
|
|
X/Y Cutting Speed
|
0 ~100mm/s
|
|
Repeatability precision
|
± 0.01mm
|
|
X/Y1/Y2/Z control mode
|
Industrial IPC and PC
|
|
X/Y1/Y2/Z driven mode
|
AC Servo Motor
|
|
Operation and data storage
|
PC
|
|
Cutting Precision
|
± 0.05mm
|
|
Spindle Speed
|
60000rpm(Germany KKAVO)
|
|
Power Supply
|
220V/110V
|
|
Air Pressure
|
4.5kg/cm 2
|
|
Power Rate
|
1.8KW
|
|
Vacuum Cleaner
|
|
|
Mode
|
Up or Bottom
|
|
Power Supply
|
380V
|
|
Up Cleaner Dimension
|
L650*W400*H1350mm
|
|
Bottom Cleaner Dimension
|
L665*W635*H1650mm
|
PCB Router Machine Spare Parts Available:
1. Spindle
2. Customized fixtures
3. Routing bits
4. Tool box
5. Exhaust pipe

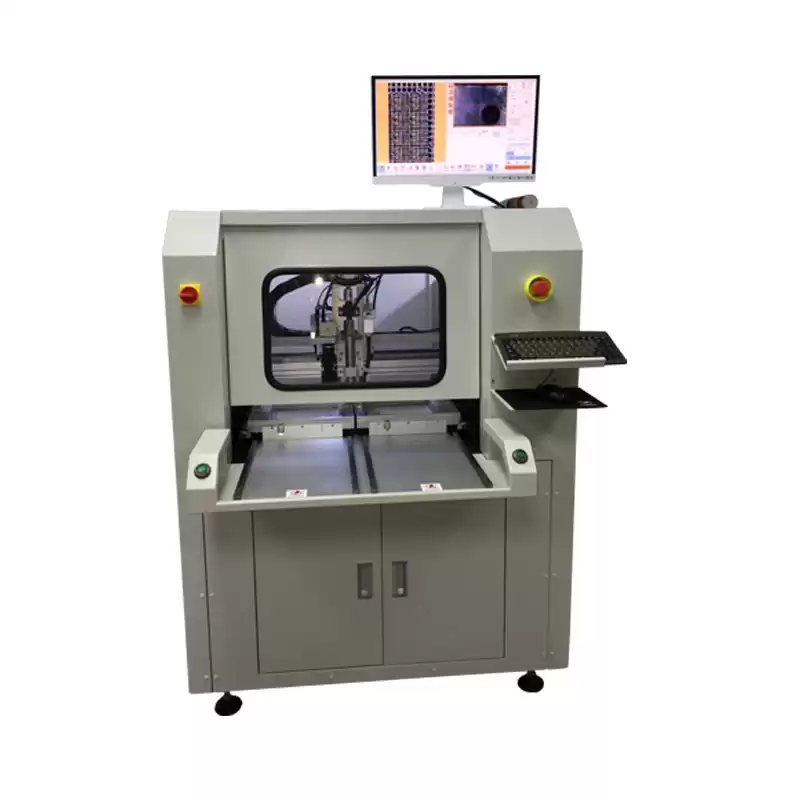

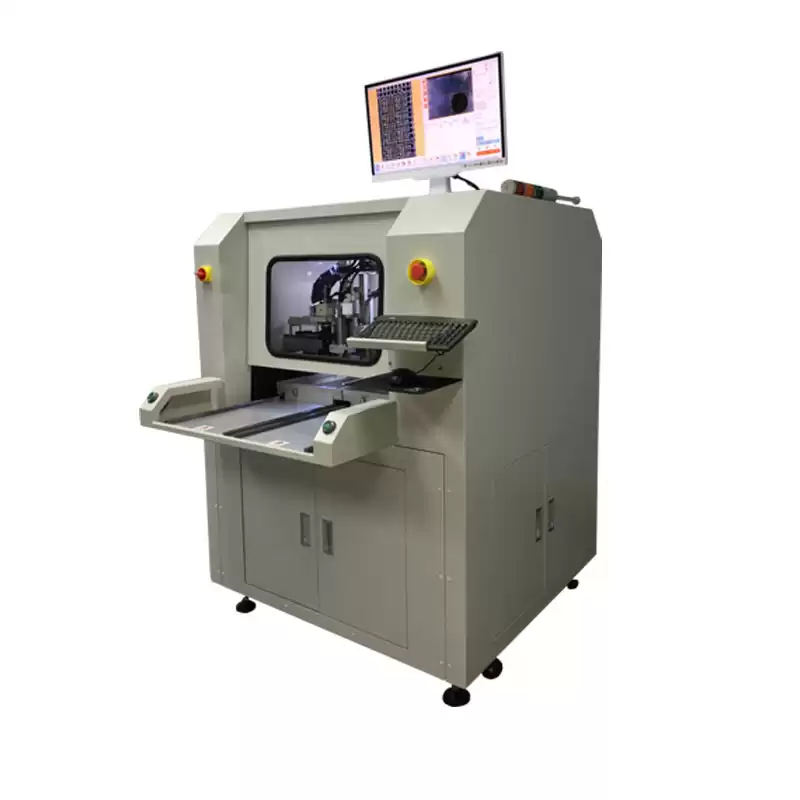

PCB Router Machine Photos:
; ;
; ;
PCB Router Machine Application:
PCB Router Machine Packaging:
