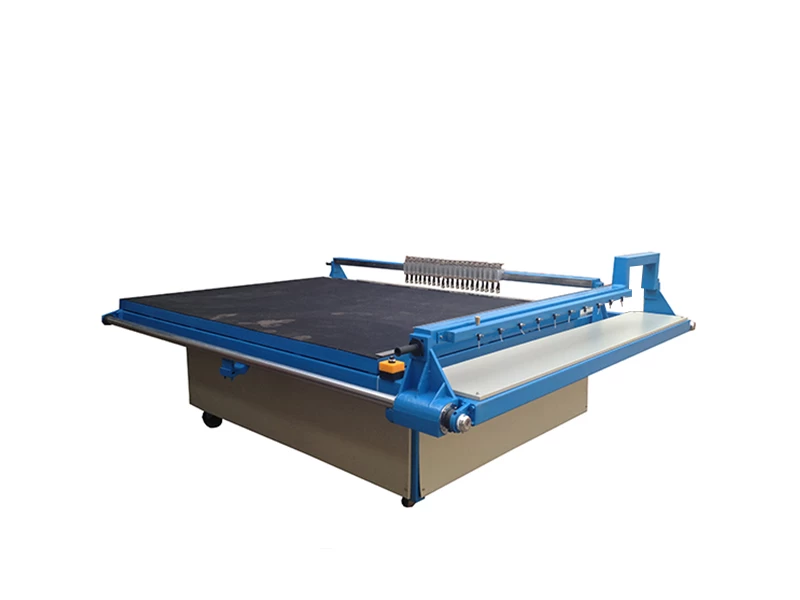

Semi automatic glass cutting machine
Semi automatic glass cutting machine overpass type double bridge precision cutting table with multiple knife cutting with high efficiency, precision accurate, suitable for large glass disposable cutting into small pieces. This machine press the control panel on the automatic device only, stepper motor drives the double beam automatic cutting, cutting double automatic homing after completion.
- Warranty1 Year
- Size Range25*25mm-3660*2440mm
- Processing RangeFloat glass
Double beam moving cutting mode
Walking part: for X, Y axis two-way straight line movement, X axis stepper motor drive beam at the speed of slow cutting, cutting after rapid return to workpiece origin, and then Y axis work in the same way
Cutting part: X, Y cutting beam is equipped with a number of cutting knife box, can be adjusted between the distance. To achieve the size of the cut glass change
All of the above actions are centralized controlled by PLC, the display interface is displayed in Chinese language, and the input data is directly controlled
Parameter
Cutting maximum size: 3750 x 2500 (mm) (special specifications can be customized according to customer needs)
Cutting minimum size: 20 x 20 (mm) (special specifications can be customized according to customer needs)
Working table: 4000 x 2600 (mm)
Cutting thickness: 219mm
Operator: 1-2 people
The cutting efficiency: 1-2 large / min
Cutting parallelism: less than 0.15mm
Diagonal: less than 0.25mm
Fan power: 4.5kw
Motor power: 1.75KW
