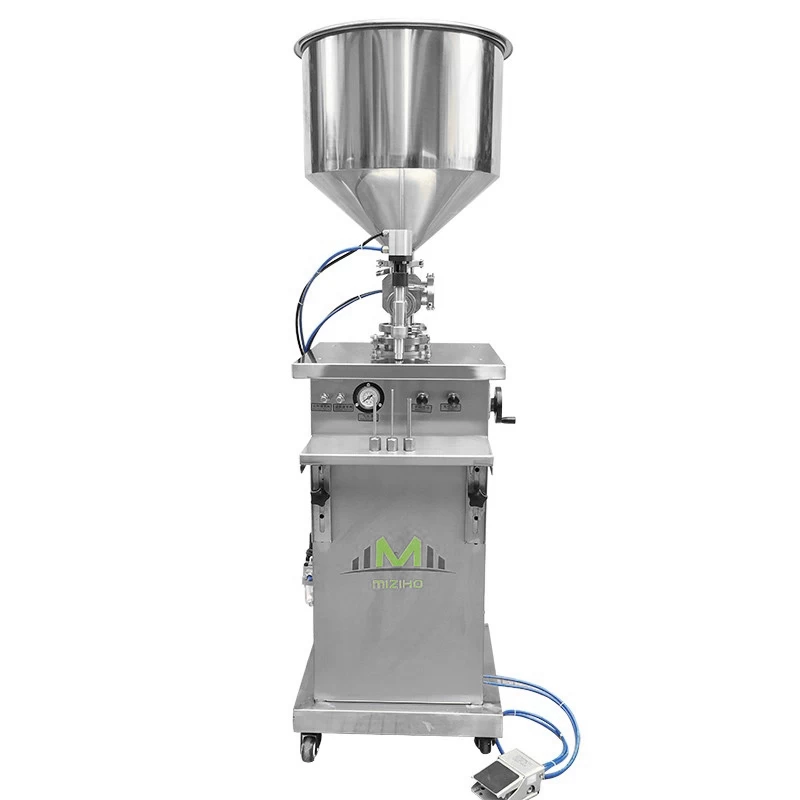

Semi automatic liquid soap filling machine
Customized And OEM Service Available
Product Description:
This series of filling machine is an innovative product based on foreign advanced filling machine technology.
Pneumatic filling machine it has the characteristics of simple and reasonable structure, high precision and convenient operation.It can also be used in medicine, cosmetics, food, special industries and other fields.
This model is the best choice for high viscosity fluids and pastes.All materials are made of 304-2b or 316L stainless steel, conforming to GMP requirements.Filling volume and filling speed can be arbitrarily adjusted, high filling accuracy
Princeple:

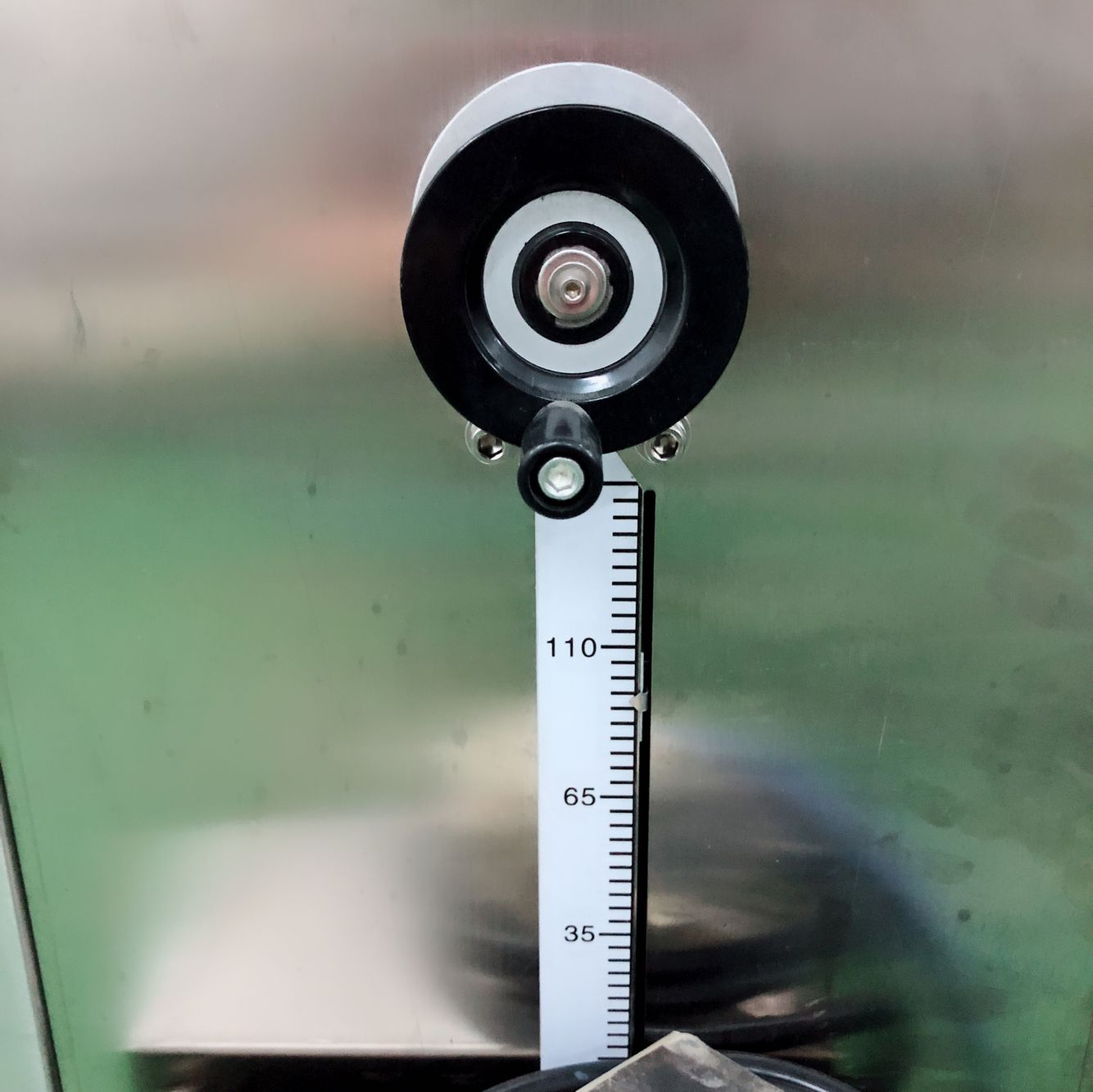

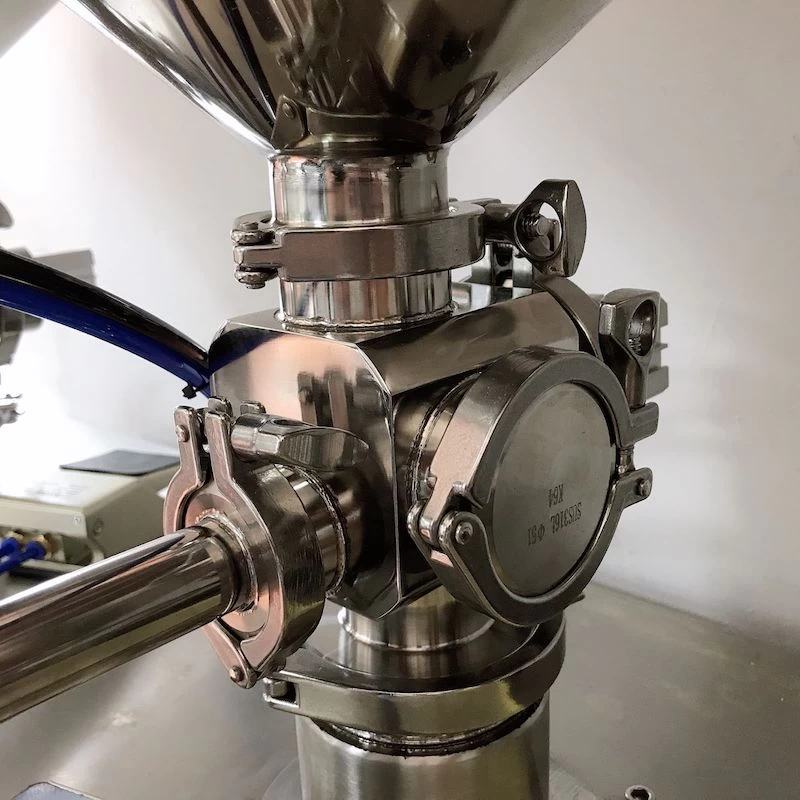

1.Semi automatic filling machine Driven by cylinder and piston, the flow rate of material is controlled by one-way valve, and the stroke of cylinder is controlled by magnetic spring switch, which can adjust the filling quantity.
2.Rational design of the aircraft, model compact, easy to operate, are used pneumatic part of Germany FESTO and Taiwan AirTac the pneumatic components.
3.materials are used 304 stainless steel materials, in line with the GMP requirements.
4.Filling volume and speed of filling can be arbitrary regulation, filling high accuracy.
Technical parameter：
|
Name
|
semi automatic liquid soap filling machine
|
|
Model
|
25-250ml
|
|
filling material
|
liquid shampoo
|
|
Volume
|
5-60ml 10-120ml 25-250ml 50-500ml 100-1000ml………
|
|
Filling
|
Piston filling
|
|
Precision
|
±0.5%
|
|
Pneumatic
|
0.6-0.8Mpa
|
|
Caliber
|
≥￠5mm
|
|
Capacity
|
20-60 times/min
|
|
G.W.
|
40Kg.
|
|
Dimension
|
L650*W550*H1350mm
|
