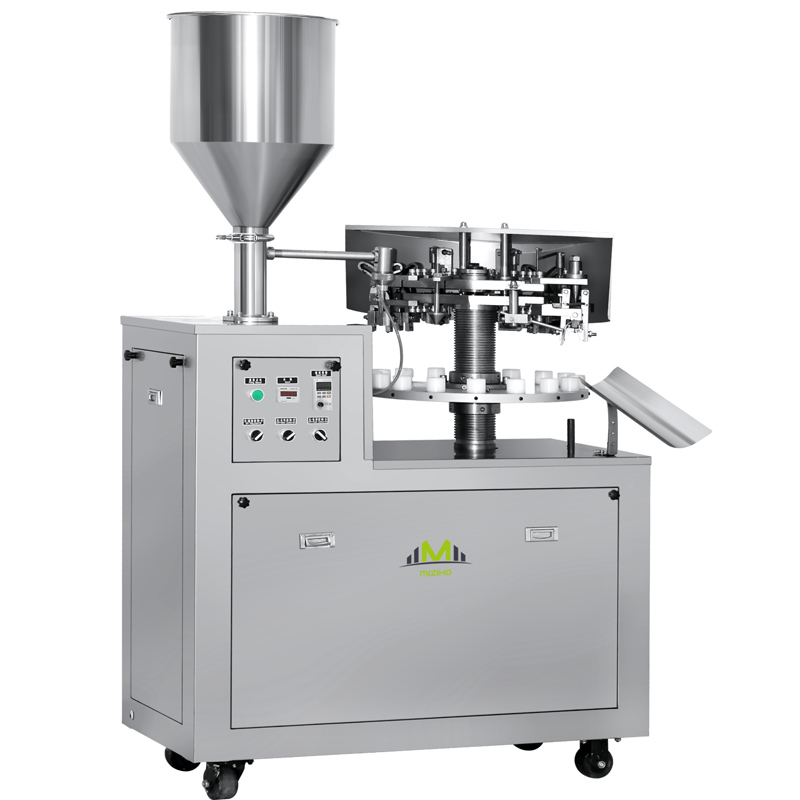

Semi automatic ointment aluminum tube filling and sealing machine
Customized And OEM Service Available
Details introduced
1. This Aluminum Tube Filling And Sealing Machine adopts closed and semi-closed filling paste, liquid, sealing without leakage, filling weight, capacity consistency, filling, sealing, printing a complete, suitable for medicine, daily chemical, food, chemical and other fields of product packaging. For example: ointment, hair dye, toothpaste, shoe polish, adhesive, epoxy glue, neoprene glue and other materials of the filling and sealing.
2. The filling volume of the Filling And Sealing Machine is easy to adjust, fast, beautiful appearance, compact structure.
The tube holder is adjustable, which can be adjusted according to the size of filling hose.
3. All parts in contact with materials are made of high-quality stainless steel (commonly used 304, medical use 316L).
The unique valve body structure, the realization paste liquid dual use, is the medicine, daily chemical, fine chemical and other industries ideal practical, economical filling equipment.
Technical parameters
|
Filling volume
|
5-60ml 10 -120ml 50-500ml
|
|
Filling accuracy
|
0.5%-2%
|
|
Production capacity
|
30-50 pcs/min
(according to the material different)
|
|
AirPressure
|
>0.8Mpa >0.14M³/MIN
|
|
Voltage
|
50HZ 220V
|
|
Over diameters
|
1200 x1000 x 1700MM
|
|
Gross weight
|
220KG
|
