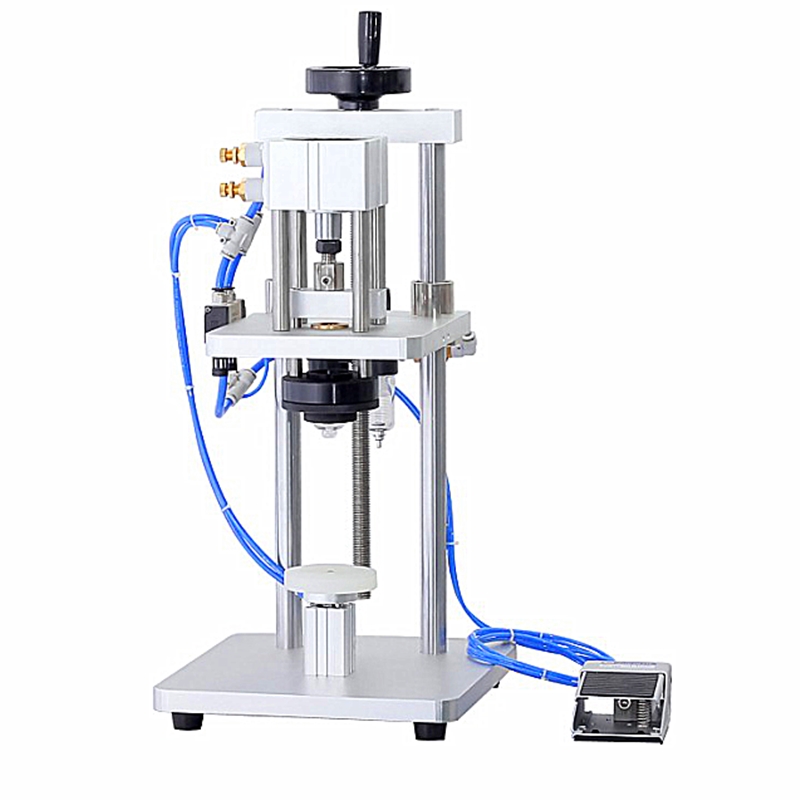

Semi-automatic penumatic perfume bottle capping machine
Customized And OEM Service Available
I.Brief instruction
It is suitable for the clamping of the spray bottle cap, Bottle Capping Machine uses the clambing head to clamb the cap,and fix tighly on the bottle mouth.
Semi-automatic Capping machine , Bottle Crimping Machineconsist of the body. platform.clamping device and pneumatic control system.
II. Feature
1) Beautiful appearance,the structure is compact.
2) Clamping symmetrical,good sealing performance
3) Accurate positioning in the bottle cap,the surface has not worn
4) Pneumatic control,easy to maintain.
III.Technical Parameter
|
Air source pressure
|
0.4-0.6Mpa
|
|
Air source consumption
|
0.05m³/min
|
|
Bottle mouth diameter
|
17mm/19 mm/21mm
|
|
Productivity
|
20-30bot/min
|
|
Shape dimension(L*W*H)
|
300*250*700mm
|
