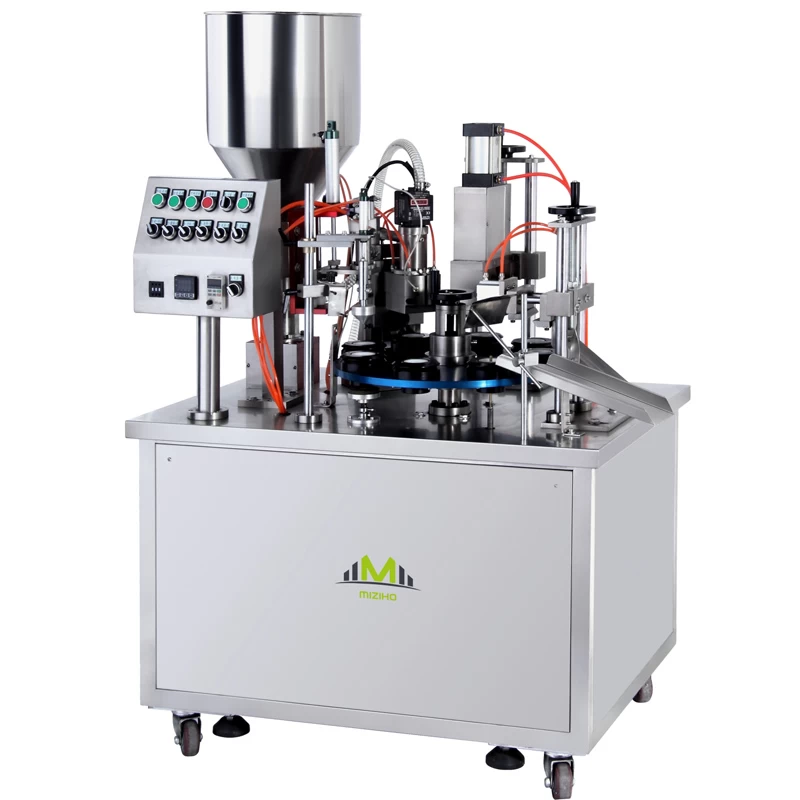

Semi automatic plastic inner heating tube filling and sealing machine
Customized And OEM Service Available
Details introduced
1. This Semi automatic plastic inner heating Tube Filling And Sealing Machine is adopt efficient heater and stable flowmeter imported from Germany.They provide a reliable hot air heating system that provides a tight seal and high efficiency.
2. The Plastic Tube Filling And Sealing Machine filling heads of different specifications are suitable for materials of different thicknesses.
3.PLC control, accurate positioning.
4. The machine adopts mechanical structure, smooth operation, fast speed, good effect, low noise, simple structure, easy operation and maintenance, low failure rate.
Technical parameters
|
Model
|
MZH-TFS
|
|
Power supply
|
380(220)V/50Hz
|
|
Air supply
|
0.6-0.8Mpa
|
|
Air consumption
|
< 0.6 m3/min
|
|
Filling Volume
|
10-50ml
|
|
Volume precision
|
<±5%
|
|
Productivity
|
25-30pcs/min
|
|
Tube Diameter
|
Ø16-50mm
|
|
Dimension
|
1100*790*1500mm
|
|
Weight
|
260kg
|
