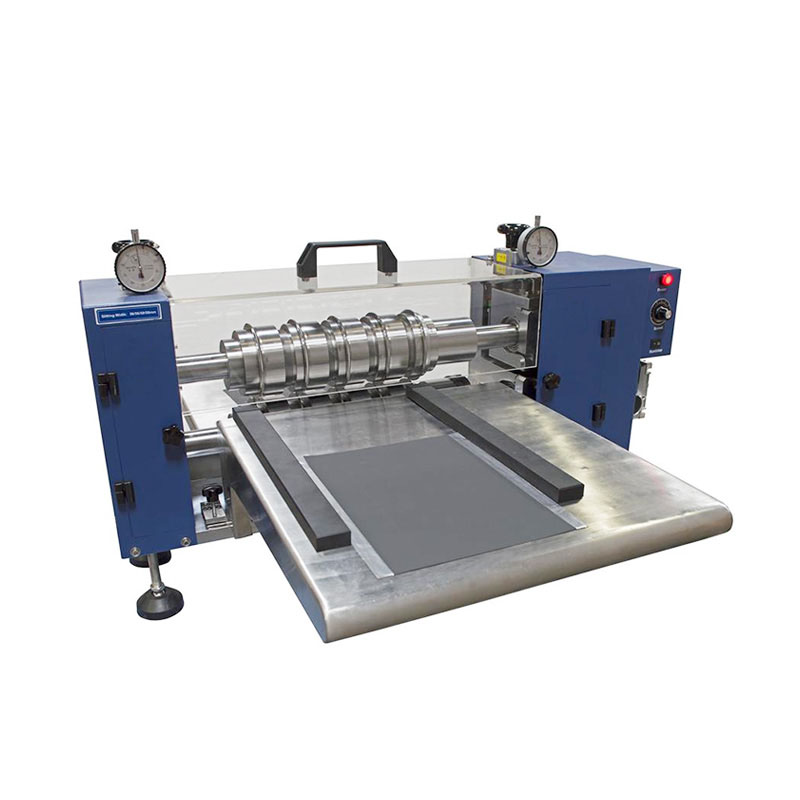

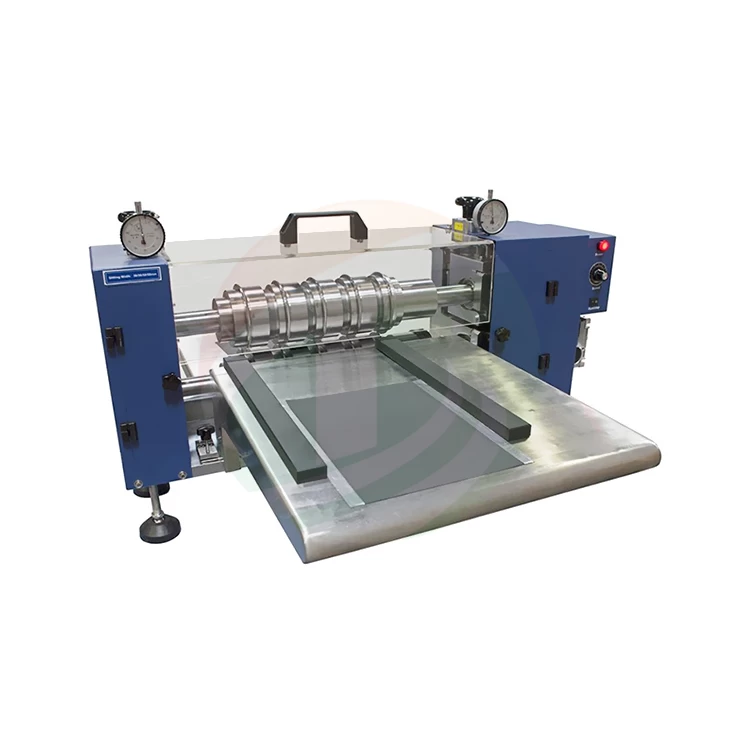

Semi-Automatic Slitting Machine for Electrodes of Lithium Battery
SPECIFICATIONS
TOB-MSK-300 is a CE Certifiedsemi-automatic slitting machine(roll slitting) for preparing electrode of cylinder batteries in R&D laboratories.
|
Model
|
Semi Automatic slitting Machine TOB-MSK-300
|
|
Working Voltage
|
Machine Input: 22-24V DC with 5mm barrel connector
Power Input: 110-240V AC , which can be used worldwide
|
|
Max. Power Consumption
|
100W
|
|

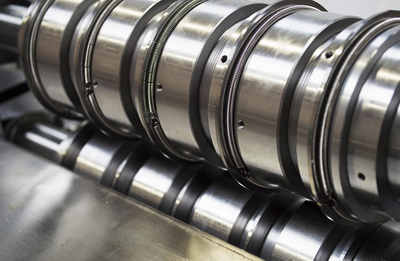

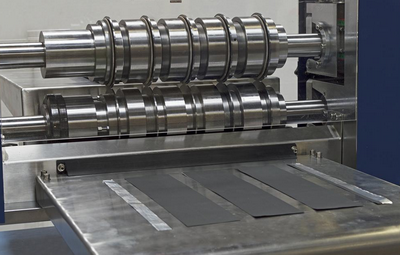

Cutting Method
|
Two round blades rolling to cut
Blade Materials: Tungsten alloys
Blade Diameter: 100mm
|
|
Cutting Width
|
A 4 sets of slitting blades (two blades with slitting width of 58mm,
and another two with slitting width of 56 mm)
B Customization: 25 - 250mm cutting width is available at extra cost,
please contact us for details.
|
|
Cutting Thickness
|
100 - 300 microns
|
|
Cutting Speed
|
0 - 4 meter / minute Adjustable
|
|
Product Dimensions
|
84.3cm(L) x 101cm(W) x 48cm(H)
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Net Weight
|
110kg (250 lbs)
|
PRODUCT DISPLAY
