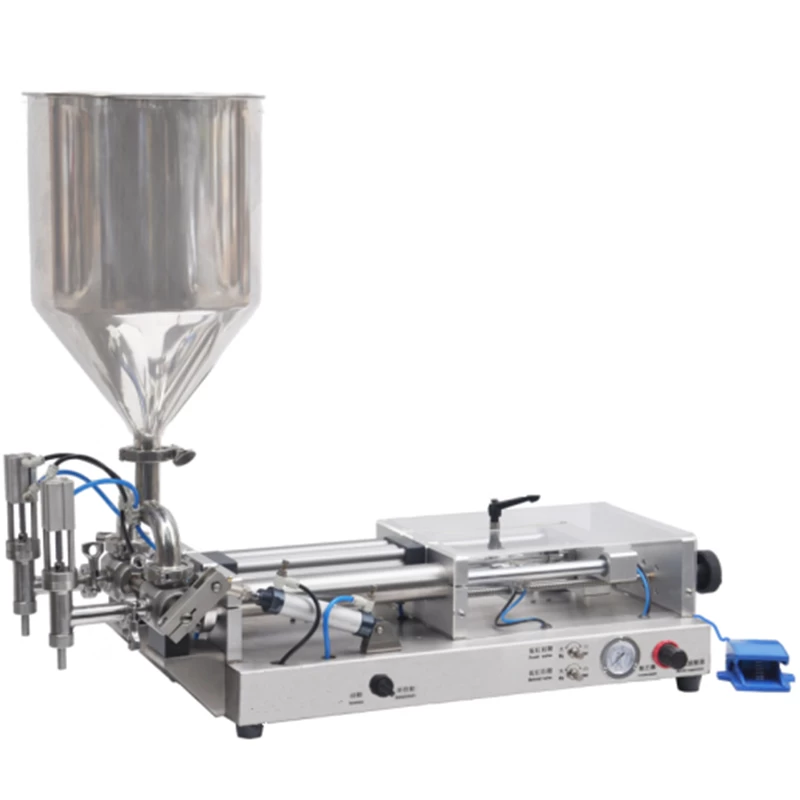

Semi automatic two nozzle pneumatic food oil liquid filling machine
Customized And OEM Service Available
Range of application
This Semi automatic two nozzle pneumatic food Oil Liquid Filling Machine suitable for pharmaceutical, cosmetic, oil, daily chemical, industrial products and other paste, sauce, liquid filling.
Details are introduced
1.This semi automatic two nozzle pneumatic food oil Liquid Filling Machine adopt full pneumatic control, higher explosion-proof function safety, simple operation, 304 stainless steel appearance.
2.This Semi Automatic Fillling Machine contact parts of materials are made of 316L stainless steel, corrosion-resistant, and the key parts are processed precisely.
3.High filling accuracy, is the cream liquid and sauce filling ideal equipment.
4.Double head filling, improve production capacity.
5.Easy to disassemble, assemble and clean.
Technical parameters
|
Items
|
MZH-60×2
|
MZH-120×2
|
MZH-500×2
|
|
Allowable filling range
|
5-60ml×2
|
10-120ml×2
|
50-500ml×2
|
|
Ideal filling range
|
25-60ml×2
|
50-120ml×2
|
200-500ml×2
|
|
Air Pressure Range
|
4-6㎏/㎝2
|
4-6㎏/㎝2
|
5-8㎏/㎝2
|
|
Filling Speed
|
0-30 (bottle/min)×2
|
0-30 (bottle/min)×2
|
0-30 (bottle/min)×2
|
|
Filling accuracy
|
≤±1%(Liquid) ≤±1%-2%(paste)
|
≤±1%(Liquid) ≤±1%-2%(paste)
|
≤±1%(Liquid) ≤±1%-2%(paste)
|
|
Weight
|
16㎏
|
18㎏
|
32㎏
|
|
Dimensions mainframe
|
888×290×655
|
972×290×679
|
1244×403×709
|
|
Packing size
|
Machine:860×330×350
(hopper):520×370×390
|
Machine:900×350×370
(hopper):520×370×390
|
1370×520×780
(wooden)
|
