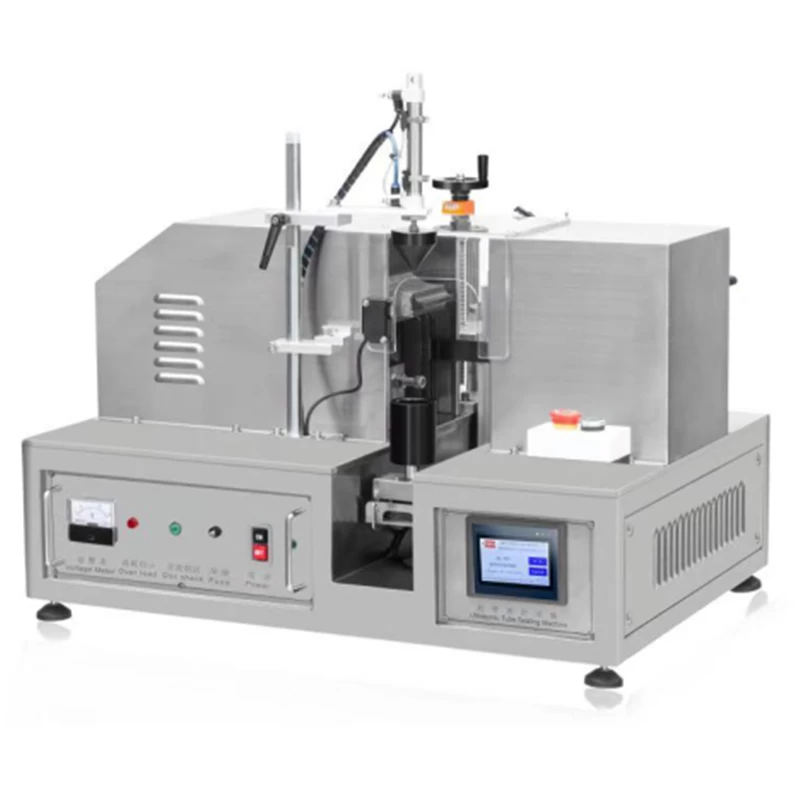

Semi automatic ultrasonic tube filling and sealing machine
Customized And OEM Service Available
Details introduced
1. This semi automatic ultrasonic tube filling and sealing machine is small size, easy to debug and operate.automatic mark finding, tube sealing, ultrasonic tube sealing, stamping and trimming
2. Adopt PLC and touch screen control system, easy to operate
3. The machine is adopts ultrasonic sealing, fast speed made of 304 stainless steel,which meets GMP requirements, beautiful and easy to clean.
4.With marking function, the seal is more accurate.
Technical parameters
|
1. Power supply：220v50Hz
|
2. Air pressure：0.5Mpa
|
|
3. Sealing efficiency：10-12 pieces/min
|
4. Sealing height：30~200mm（height can be customized）
|
|
5.Sealing diameter：15~50mm(width can be customized）
|
6. Frequency：20KHz
|
|
7. Power：2KW
|
8. Weight：90kgs
|
|
9. Machine size：860*600*750mm
|
|
Machine configuration
|
1.
|
Ultrasonic system
|
Digital automatic frequency tracking
|
2.
|
cylinder
|
AirTAC/Xingchen
|
|
3.
|
PLC
|
integration
|
4.
|
relay
|
Omron, Japan
|
|
5.
|
Touch screen
|
Coolmay
|
6.
|
nduction switch
|
Omron, Japan
|
