Semi-Automatic Winding Machine for Electrodes of Cylinder Cell
SPECIFICATIONS
TOB-JR135-Cylindersemi-automatic winder machineis used for winding battery anode/cathode electrodes with separator together in the research of Li-ion cylinder batteries.
|
Model
|
Semi-Automatic Winding Machine TOB-JR135-C
|
|
Working Voltage
|
AC110V/220V, 50/60HZ
|
|
Power
|
40W
|
|
Warranty
|
·One Year limited warranty with lifetime support
|
|
Winding Speed
|
0 - 170 RPM Adjustable
|
|
Winding Shaft
|
Dimensions: 4mm(OD) x 65mm(L) for 18650 cylinder battery core
Other sizes like 26650 and 32650 are available upon request
|
|
Winding Mode
|
Switchable between clockwise and counterclockwise
|
|
Output
|
70-100EA/h, according to battery size and maunal
|
|
Product Dimensions
(L*W*H)
|
360*310*280mm
|
|
Net weight
|
About 20kg (45 lbs)
|
|
Application Notes
|
This machine can be used for cylinder battery with round winding shaft,
and you can also choose the square winding shaft for pouch cell core winding,
We will supply with the suitable winding accessories according to your battery model
|

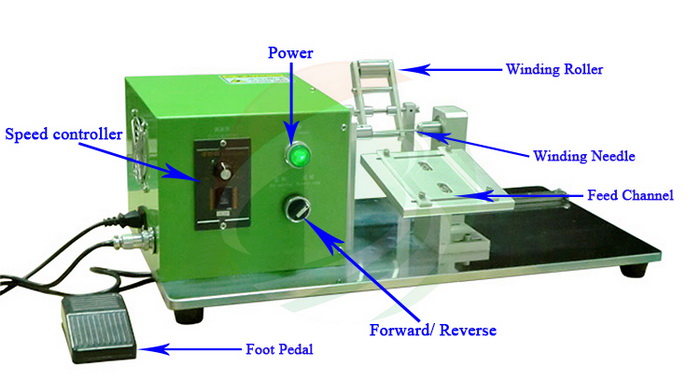

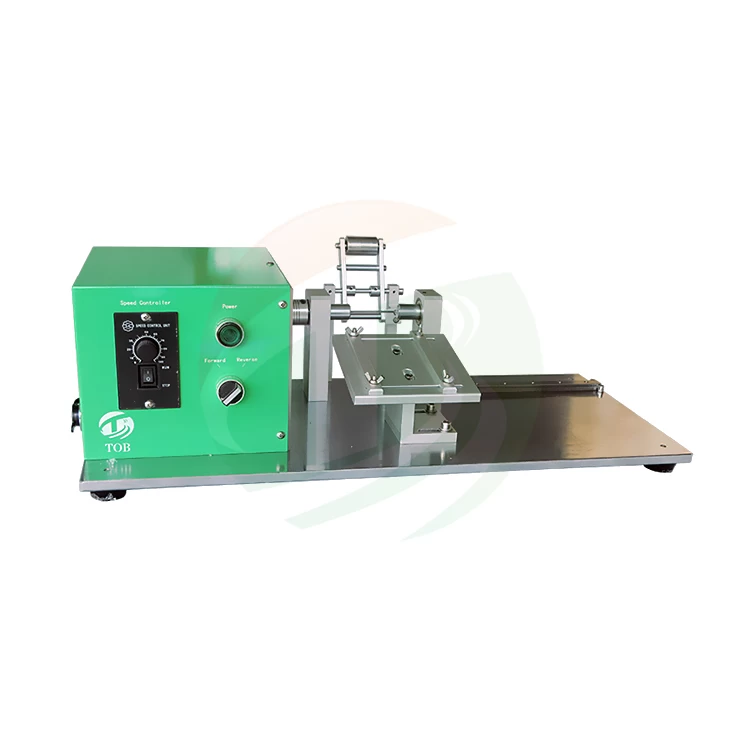

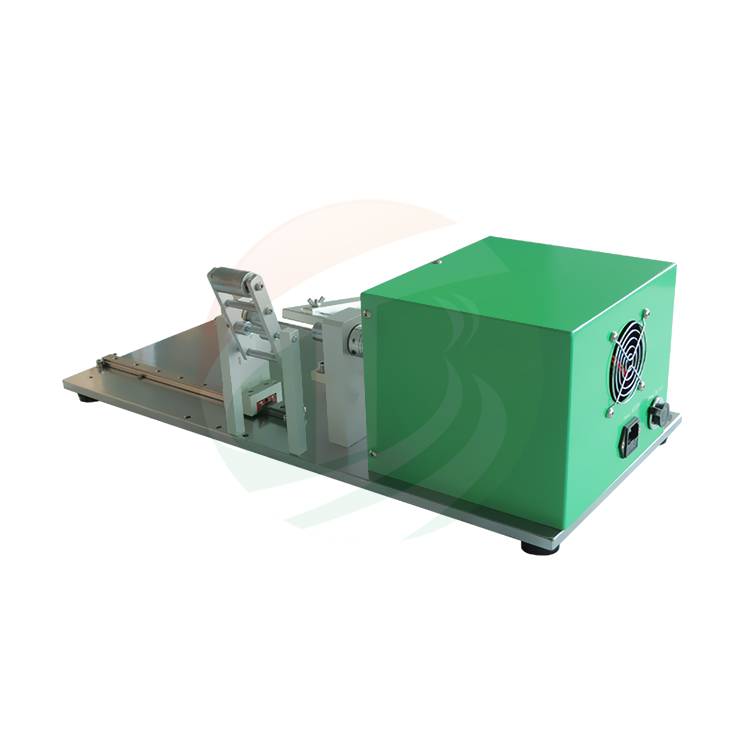

PRODUCT DISPLAY

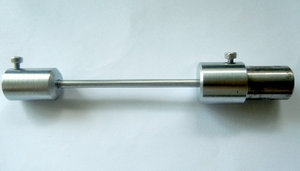

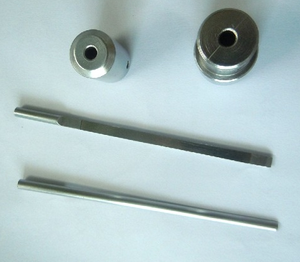

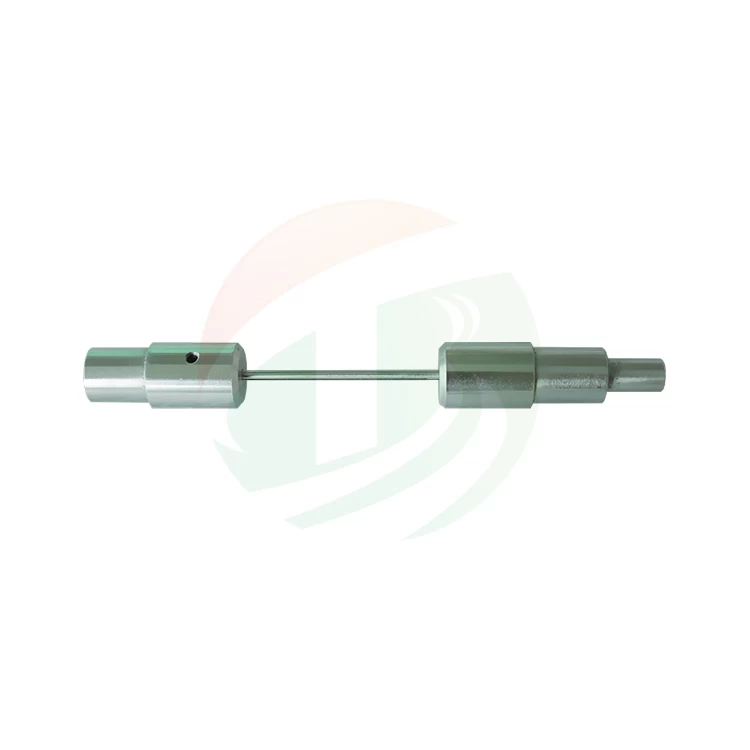

cylinder cell winding shaft

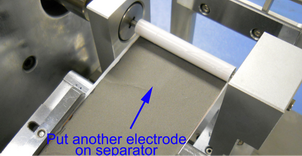

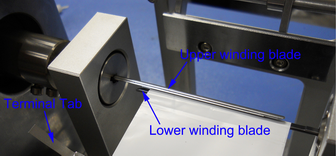

Winding machine winding process
PACKAGE
