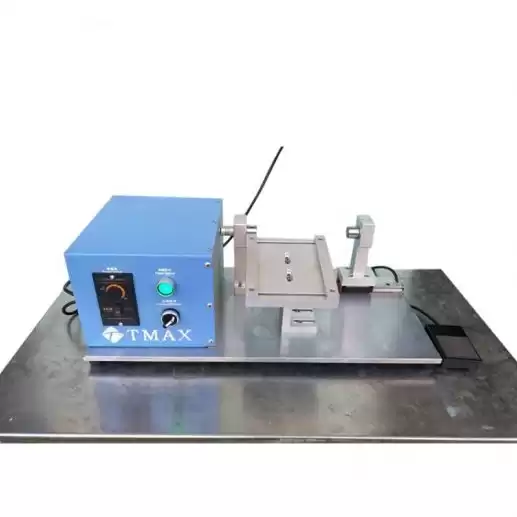

Semi-Automatic Winding Machine for Pouch Cell
|
Model
|
Semi-Automatic Winding Machine TMAX-JR135-P
|
|
Working Voltage
|
AC110V/220V, 50/60HZ
|
|
Power
|
40W
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Winding Speed
|
0 - 170 RPM Adjustable
|
|

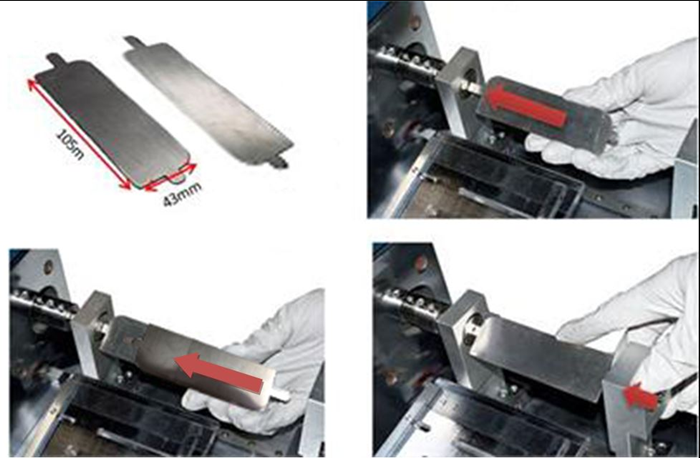

Winding blade
|
The winding width depends on the width of the winding blade
Customized square winding blade according to battery model
|
|
Winding Mode
|
Switchable between clockwise and counterclockwise
|
|
Output
|
70-100EA/h, according to battery size and maunal
|
|
Product Dimensions
(L*W*H)
|
360*310*280mm
|
|
Net weight
|
About 20kg (45 lbs)
|
|
Application Notes
|
This machine can be used for prismatic battery with square winding shaft,
and you can also choose the round winding shaft for cylinder cell core winding,
We will supply with the suitable winding accessories according to your battery model
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
