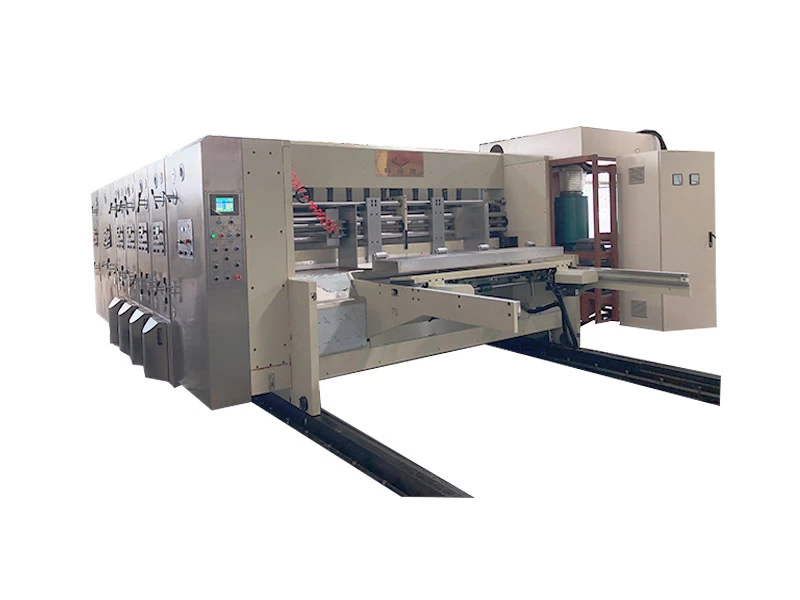

Semi Corrugated Cardboard Printing Machine
Automatic Carton Printing Features：
·Carton box printing is designed and made to high quality and safety standard,with the advantages of high speed, auto control and quick order shift.
·Auto high quality materials and parts.
·Well hardened and ground transmission gears, hardness more than 60(HRC).
·Auto zero return and auto reset.
·All gaps between cylinders and rollers are manual adjusted,squagging after adjustment.
·Use expansion sets tight link to reduce abrasion of the shaft,keep precision of the machine for long years.
·All cylinders and rollers are chromed plated for ideal hardness.
·PLC control system with touch screen control.
·Able to save order,speed up the order shift.
·All electronic and pneumatic components are with European standards.
·Able to facilitate the production management.
Carton Printing Machine China Specification：
|
Data/Model
|
900*2000
|
1200*2000
|
1200*2400
|
1200*2800
|
1400*2400
|
1400*2800
|
1600*2800
|
1600*3200
|
|
Printing Speed(m/min)
|
200
|
200
|
200
|
200
|
200
|
200
|
200
|
200
|
|
Max. Machine Speed(pcs/min)
|
300
|
250
|
250
|
220
|
220
|
220
|
200
|
180
|
|
Max.Feeding Size(mm)
|
880x2000
|
1180x2000
|
1180x2400
|
1180x2800
|
1380x2400
|
1380x2800
|
1540x2800
|
1570x3200
|
|
Min.Feeding Size(mm)
|
280x640
|
320x700
|
320x700
|
320x700
|
350x700
|
350x700
|
420x760
|
420x760
|
|
Skip Feeding(mm)
|
1100x2000
|
1500x2000
|
1500x2400
|
1500x2800
|
1700x2400
|
1700x2800
|
1900x2800
|
1900x3200
|
|
Max. Printing Area(mm)
|
800x2000
|
1150x2000
|
1150x2400
|
1150x2800
|
1350x2400
|
1320x2800
|
1540x2800
|
1540x3200
|
|
Thickness of Printing Plate(mm)
|
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
|
Min.Panel(mm) Slot Type L.
|
240x80x240x80
|
260x90x260x90
|
260x90x260x90
|
260x90x260x90
|
260x90x260x90
|
260x90x260x90
|
280x100x280x100
|
280x100x280x100
|
|
Max Slotting Depth(mm)
|
250
|
320
|
320
|
320
|
320
|
320
|
560
|
560
|
|
Max. Thickness of Sheet(mm)
|
8
|
12
|
12
|
12
|
12
|
12
|
12
|
12
|
|
Dimension(LxWxH)
T
F
|
T:11659x4240x3200
F:12079X4240X3200
|
T:13015x4400x3500
F:13550x4400x3500
|
T:13015x4800x3500
F:13550x4800x3500
|
T:13015x5220x3500
F:13550x5220x3500
|
T:13570x4830x3500
F:14028x4820x3500
|
T:13570x5220x3500
F:14028x5220x3500
|
T:14021x5220x3500
F:14071x5220x3500
|
T:14021x5719x3500
F:14071x5719x3500
|
Our Team:
For the time being, we have more than 300 employees in our team, and have our own R&D, manufacturing, sales and after-sales service department, with our strict production and experienced construction team, taking the professional route and providing one-stop service for our customers.
If you are interested in our automatic printing slotting die-Cutting machine, pls contact us now!
