Product Name: Sensitive Wired 2D QR Barcode Scanner Model SF1900
Main Description:
Long Lifespan Button
Holder Optional
Reliable Laser Engine
Read 2D and All Standard 1D Bar Codes
Traditional Durable Interface
1.5M Shock Resistance
USB/KB/COM Supported

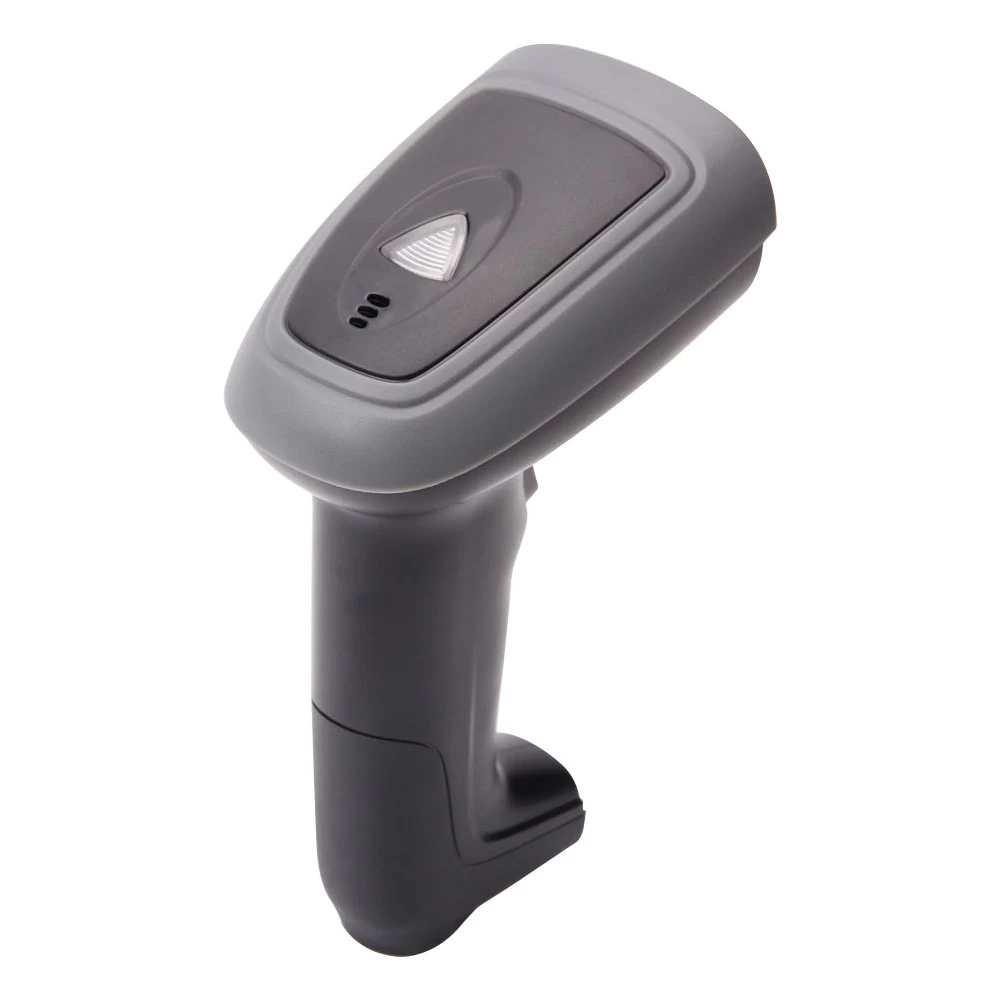

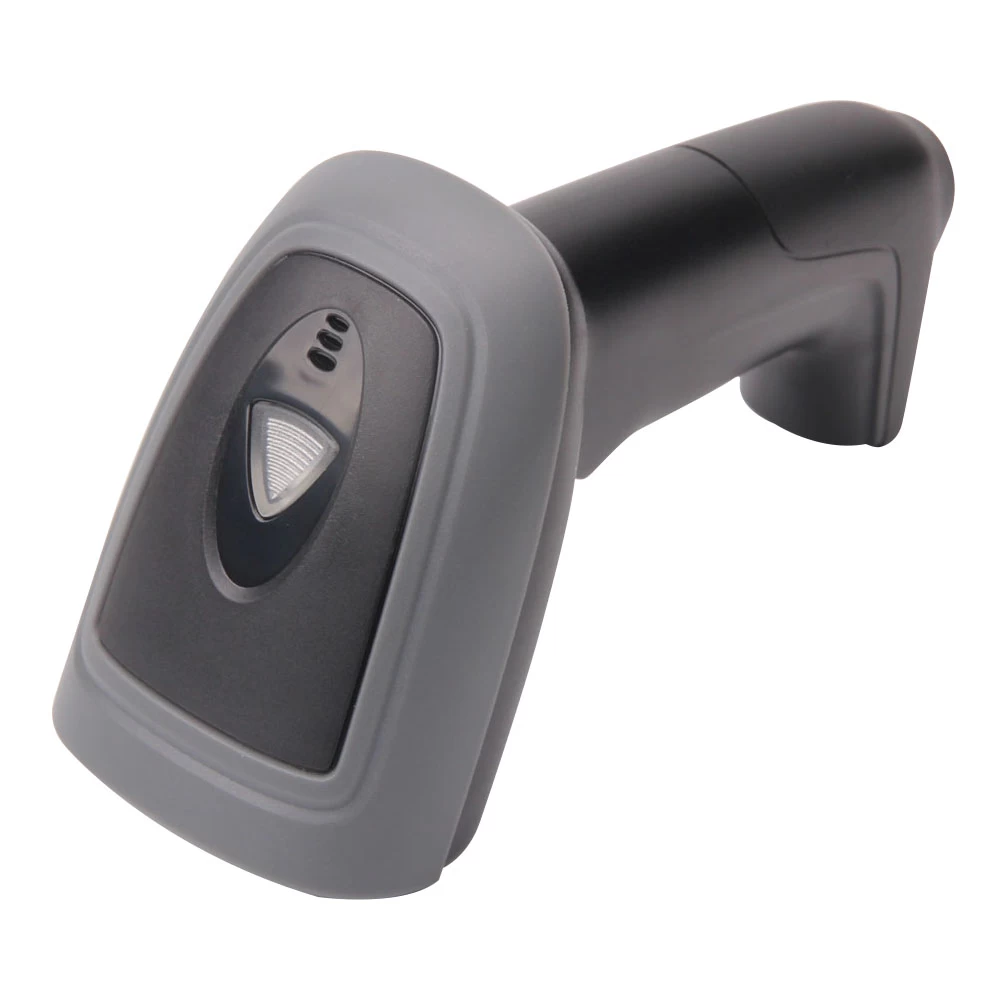

SF1900 2D Laser Barcode Scanner
Features：
Physical Parameters:
Material: ABS+PC+TPU
Size: L*W*H :170mm*97mm*68mm
Power supply:DC 5V
Performance Parameter:
Interface:USB, USB virtual RS232
Sensor: Planar CMOS sensor
Light source: Red CCD ,white LED (lighting)
Processor:32-bit ARM MCU
Decoding Capability：1D: Codabar, Code39, Code32, InterLeaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code93, Code128, Gs1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISSN, GS1 DATABAR(RSS14), GS1 DATABAR Limited, Gs1databar Expanded
2D: PDF417, QR CODE, MICRO QR, DATAMATRIX, AZTEC CODE
Resolution：Code39 3mil, QR 8.7mil, PDF417 5mil，PCS45%
Depth of field：
5MIL CODE39: 3--11CM
13MIL UPC-A： 4--27CM
20MIL CODE39: 7.5--35CM
6.7MIL PDF417: 3.5--9CM
10MIL DATAMATRIX: 3--10CM
15MIL DATAMATRIX: 3--17CM
20MIL QR: 3--21CM
Scanning Speed:300scans/sec
Scanning Method: Manualor auto-sensing
Scanning area: 5 * 5 cm² -- 30 * 30 cm²
Prompting Mode: Buzzer ,indicator light (LED)
Printing contrast: No lower than 35%
Scanning angle:Roll0-360°;pitch±65°;yaw±60°
Environment Parameters
IP Grade: IP 54
Operating temperature:0 to 50 ºC / 32 to 122 ºF
Storage temperature: 0 to 50 ºC / 32 to 122 ºF
Operating humidity: 5 - 95% (non-condensing)
ESD Protection: 15KV air discharge
Shock resistance:1.5Meter free fall on concrete surface
SF1900 Rugged long distance barcode scanner could be used widely in warehouses, logistics, supermarkets, and Retailing shops....
