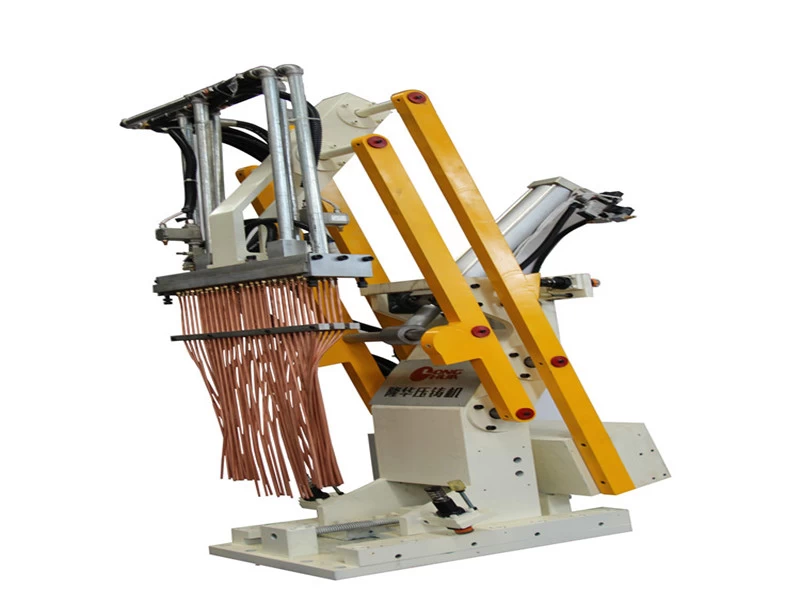

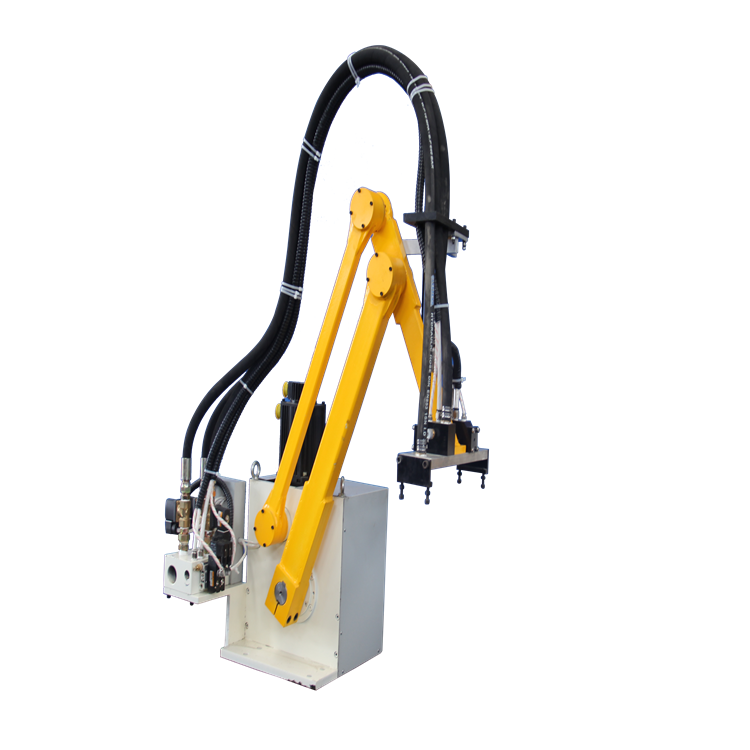

Servo electric automatic sprayer
Die casting sprayer use:
1. Uniform spraying of the release agent;
2. Rapid cooling of the mold;
3. Mold surface cleaning;
4. Provide stable and rapid production efficiency.
Features:
1. It adopts connecting rod structure, high mechanical strength, good stability and long service life.
2. It adopts Taiwan imported servo motor and runs smoothly.
3. Optional copper tube nozzle or independent atomizing nozzle nozzle.
4. Touch man-machine interface can edit the spraying program freely, and can be sprayed or spotted. With fault self-diagnosis display function.
5. With the early drop function, it can effectively save the spraying cycle.
6. Electric mold thickness adjustment function saves time, effort and safety.
|
Model
|
LH-10
|
LH-20
|
LH-30
|
LH-40
|
|
For Die Casting Machine
|
125T-200T
|
250T-400T
|
450T-550T
|
630T-1000T
|
|
Number Of Brass
|
>35PCS
|
>40PCS
|
>70PCS
|
>80PCS
|
|
Up-down Stroke
|
700MM
|
850MM
|
1100MM
|
1200MM
|
|
Base stroke
|
250MM
|
250MM
|
400MM
|
400MM
|
|
Motor Base
|
90W
|
90W
|
90W
|
90W
|
|
Hoist Motor
|
0.759KW
|
1KW
|
1KW
|
1KW
|
|
Battery Capacity
|
380V/0.75KW
|
380V/0.75KW
|
380V/1KW
|
380V/1KW
|
|
Compressed Air Pressure
|
5BAR
|
5BAR
|
5BAR
|
5BAR
|
|
Release Agent Pressure
|
4BAR
|
4BAR
|
4BAR
|
4BAR
|
|
Air Consumption
|
MIN/0.8m³
|
MIN/1.0m³
|
MIN/1.3m³
|
MIN/1.4m³
|
|
Cycle Time
|
5SEC
|
5SEC
|
6SEC
|
7SEC
|
