Seven segmeng LED 0.56" factory price common cathode anode
It is a 7 seg LED display product, with either bare chip potting epoxy or SMD chip blank sealing package. Both packages ways could realize high glow and well sealability. While different package technology needs different labor work and material so price could be different.
It is a single digit LED screen. Here in Jinhua we provide custom solution based on clients' requirement.
Small Size Seven Segment LED
Product Parameters
| Digit height |
0.56 inch (0.28 inch ~ 4 inch available) |
| Dimensions |
19 x 12.6 x 8mm |
| Digit quantity |
1 Digit |
| Available Emitting Color |
Red/Yellow Green/Yellow/Amber/Blue/White/Pure Green |
| Surface Color |
Black/Gray (white epoxy) |
| Epoxy Colors |
Red, Milky, Blue, Green and more |
| Polarity |
Common Anode/Common Cathode |
| Connector |
Pin |
| Operating Temperature |
-20-80°C |
| Requirements On Environmental Protection |
ROHS HSF |

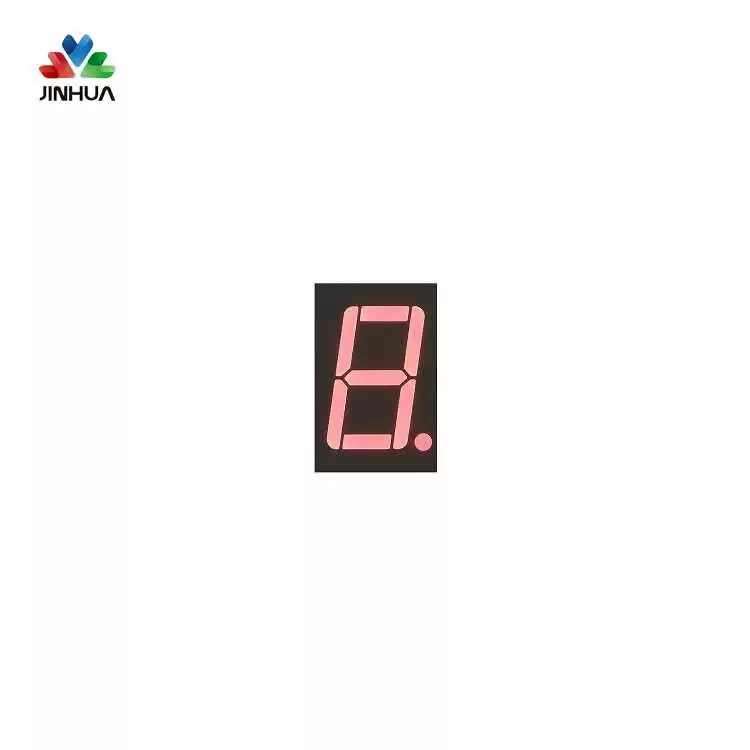

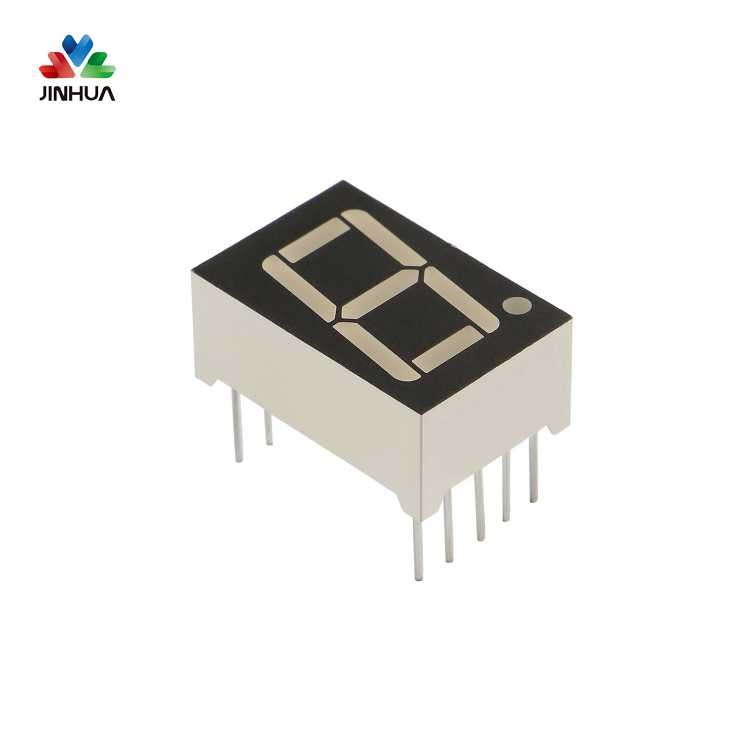

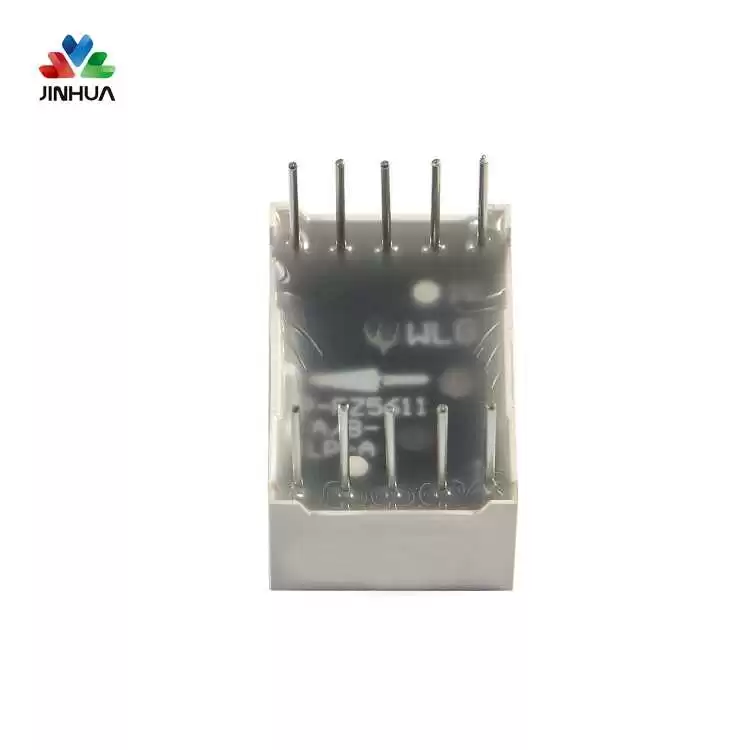

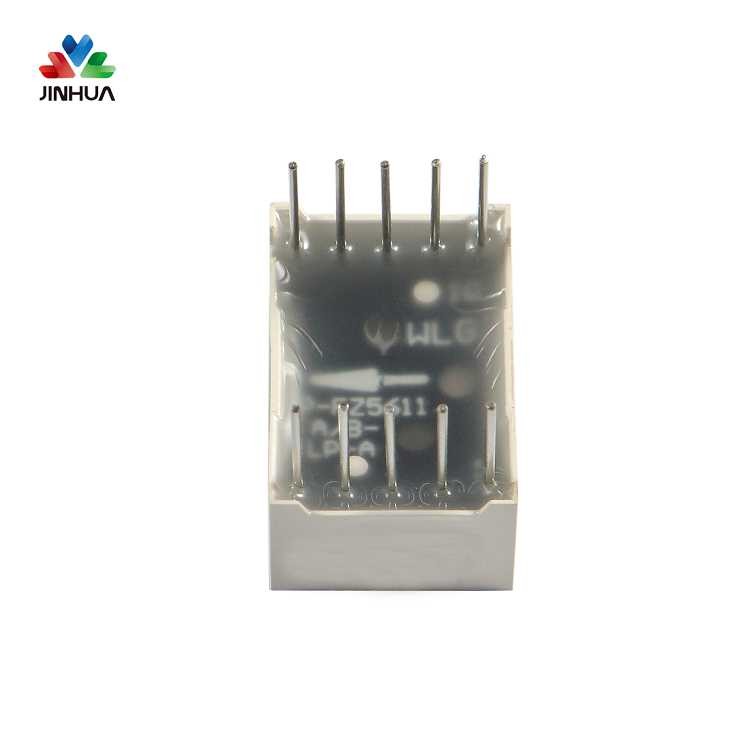

Detailed Picture
Features
Δ Wide Viewing Angle
Δ All Kinds Of Emitted Colors And Size
Δ I.C. Compatible
Δ Low Power Consumption
Δ Long Lifespan
Δ RoHS Compliant
Δ High Luminance
Δ Wide Range Working Temperature
Application
Seven Segment LED Display is normally connected with the main control borad by pins. This makes it easy to be assembled during actual product. And with the advantages of high glow and long life span, 7 segment LED screen is widely used in many applications such as electricity control panel, weighing device, home appliances, etc.
Production Line And Equipment
Company Profile
Why Choose Us
1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 20 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials:ASM machine,good chips and epoxy resin.
FAQ
Q1:Are you a factory or trading company?
A1:We are a factory with 20 years experience in this field. And we provide OEM&ODM services.
Q2:Can I get a sample?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: How do you ship the goods and how long does it take arrive?
A3: We usually ship by UPS, DHL, EMS, FEDEX or TNT. It usually takes 3-7 days.
(The freight for sample delivery is at receiver's side; For saving the cost, we recommend the way of prepaid instead of collect.)
Q4:Where is your location?
A4: Our Headquarter located in Nanjing city, Jiangsu Province, a beautiful city with more than 3000 years of history.
Q5.What is the delivery time?
A5.Normally it takes 20-45days after receiving your payment,but it could be negotiated based on your order quantity and our production schedule.
