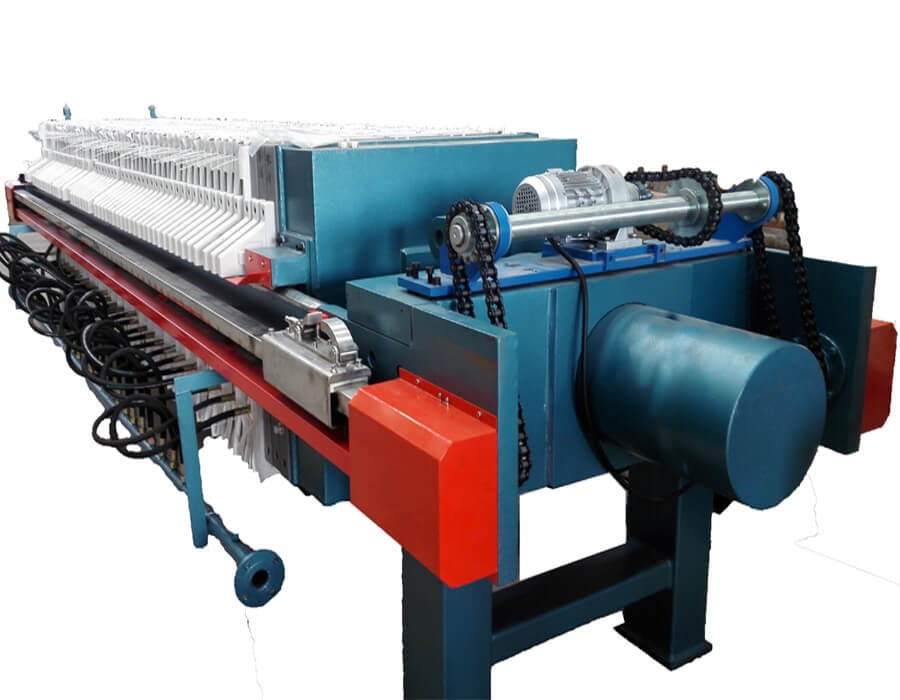

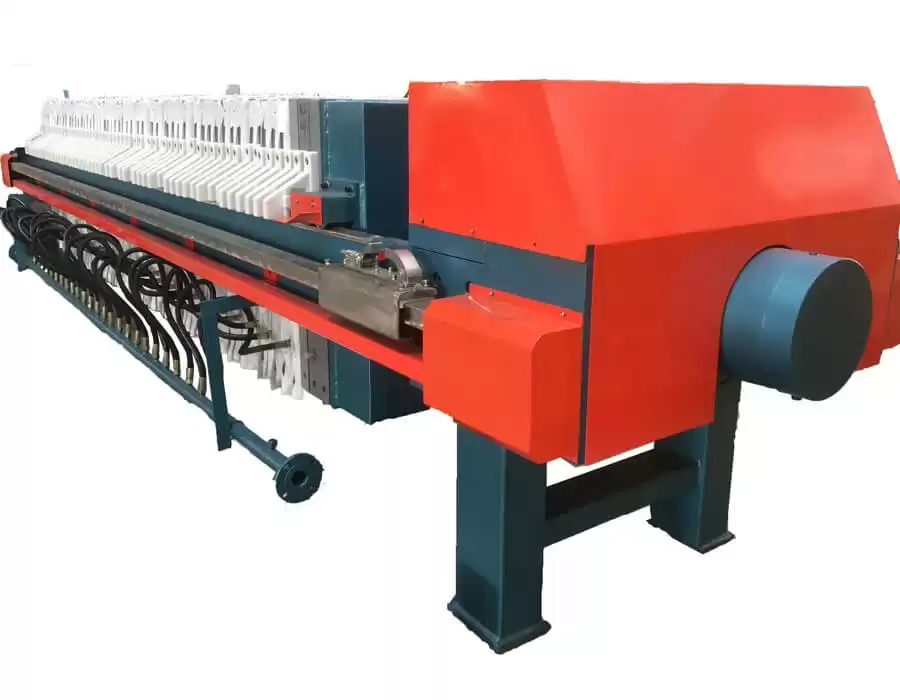

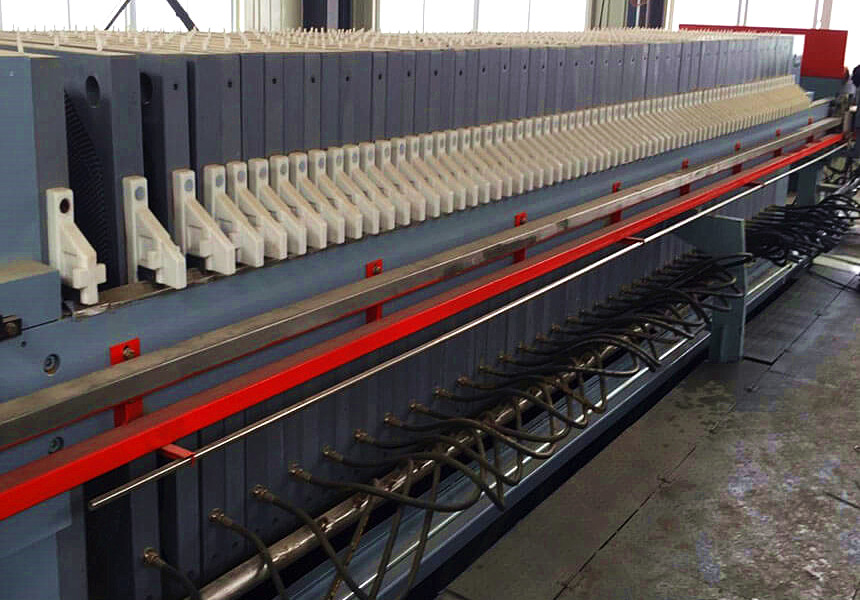

Sewage Treatment Solid Liquid Separator Membrane Filter Press
Membrane Filter Press Characteristic:
1. The main parts of filter press is made of high intensity welded steel, accessories processed by PLC with high precision.

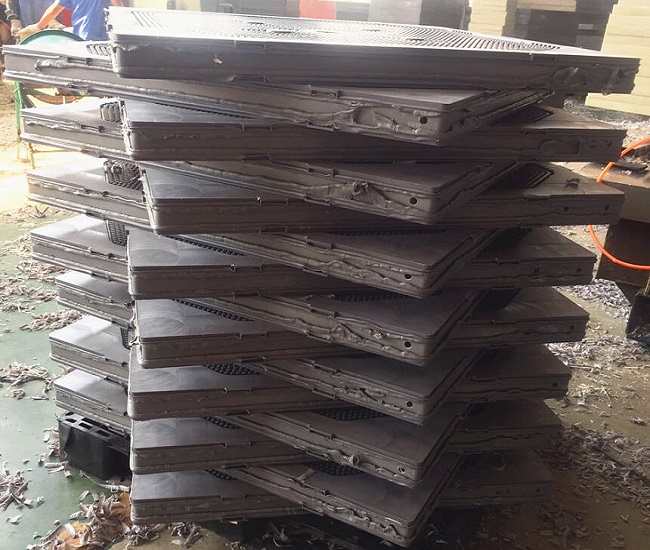

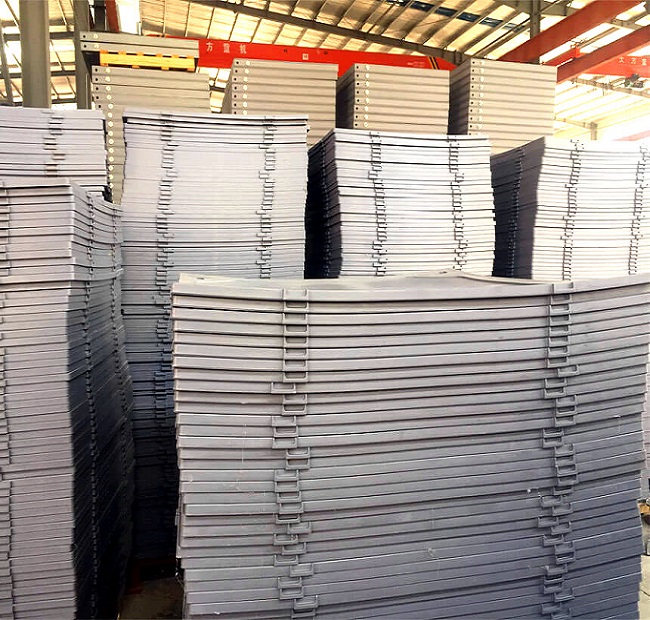

2. The filter plates are made of PP, long life span Corrosion resistant, non-toxic and tasteless
3. Hydraulic Pressing, adopting the contact meter to maintain the pressure automatically.
4. Second Filtration: air / water pressure is exerted behind the flexible drainage of the plate. The membrane in turn inflates or flexes outward and exerts pressure on the filter cake which has been formed. The cakes are then squeezed to reduce the amount of remaining moisture prior to cake discharge
How Membrane filter Press Work:
The slurry is transported by slurry pump to chambers which formed by filter plates. Then filtrating media (filter cloth) separates solid and liquid. When solid in slurry becomes cake shape, air or water is sent to diaphragm to fully squeeze the solid to reduce moisture content. If users have high requirements about filtration of sticky material and moisture content ratio, this machine has its own special characteristics to meet the needs.
Membrane Filter Press Advantage:
1. Easy to replace filtering cloth.
2. Increased product throughput
3. Reduction of the residual moisture of the filter cake
4. Shorter filtration, wash and cake cycles
5. Optimized cake structure and make the final cake drier

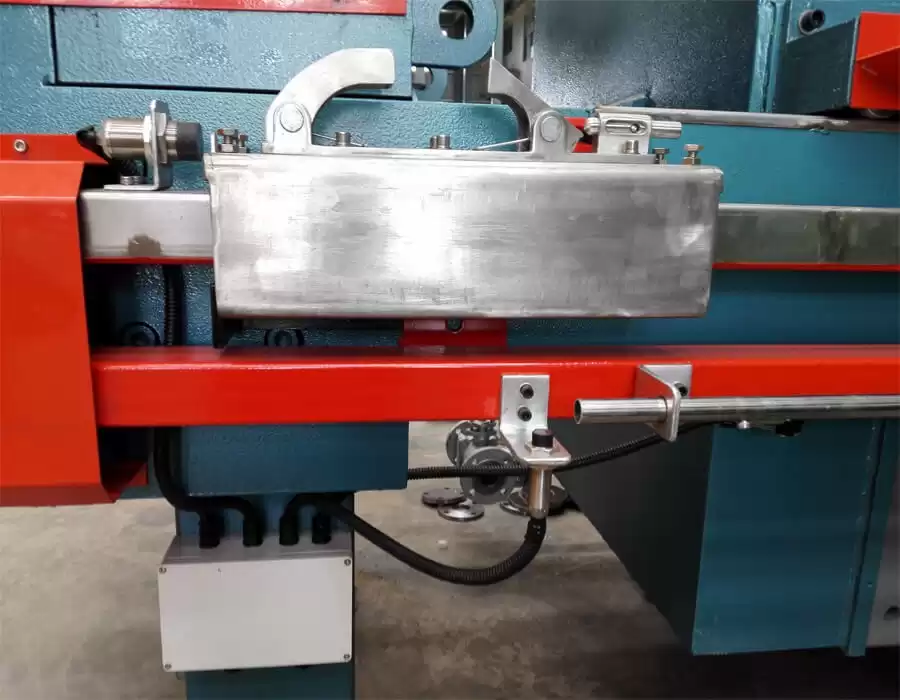

6. Automatic drawing plate, easy to discharge.
7.The highest filtering pressure can be 2Mpa.
Pre-sale service:
1.Your inquiry will be replied within 8 hours.
2.Help you to select suitable model
3. Spare parts are in stock
After-sale service:
1.Provide 12 months warranty period and you will have our technology support forever
2.Engineering available to offer the service to your machinery overseas
