Sewage Treatment Water Filtering Machine Filtration Press
Filter Press Description:
1.Strengthen polypropylene filter plates and flame are made through mold pressing.

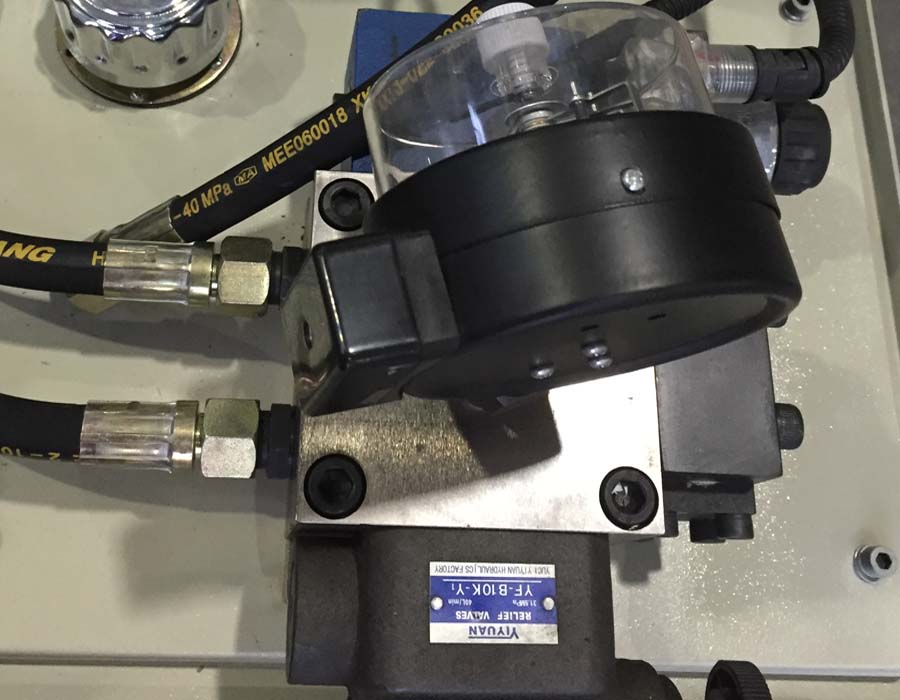

2.Adopt hydraulic pressing with
the maximum pressure pressure of 25Mpa and automatic pressure
maintaining by using electrical connecting pressure gauge.
Filter Press Application：
Square filter press are widely used in Food, Chemical, Dyeing, Leather, Mining Tails and Electroplate.
Filter Press Technical Parameters：

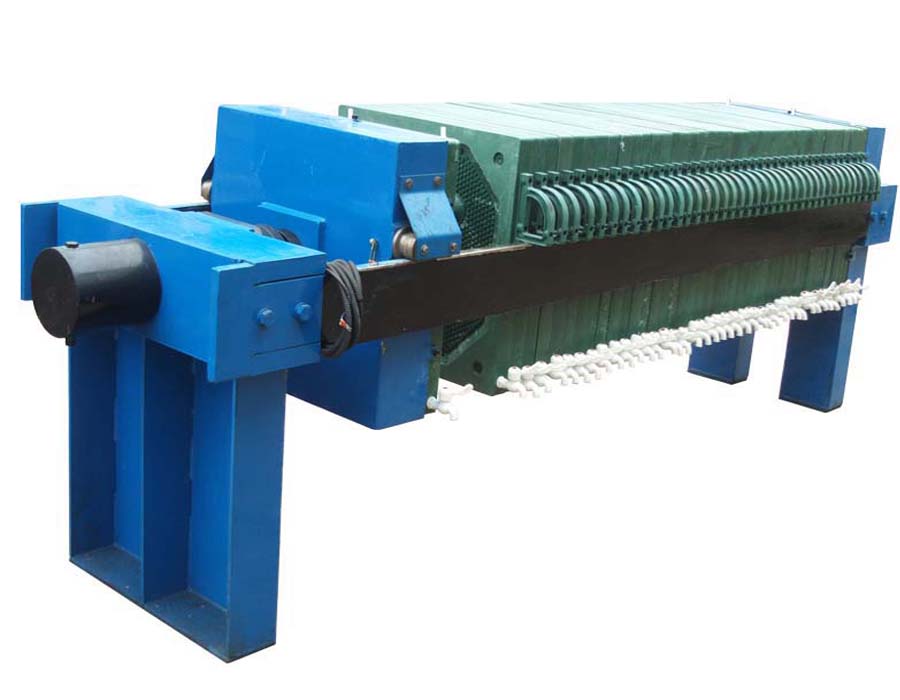

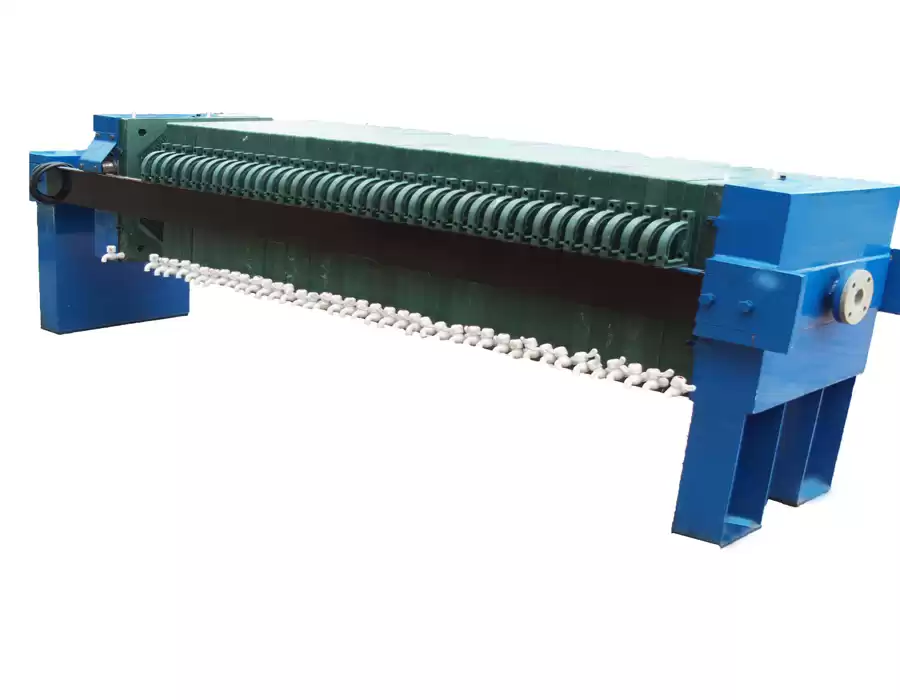

Hydraulic Chamber Filter Press With Square Plates
Model | Filter Area (m2) | Inner Size (mm) | Plate Thickness (mm) | Motor Power (kw) | Plate Number (Pcs) | Filter Capacity (L) | Working Pressure In Chamber (Mpa) | External Size (mm) L*W*H | Weight (kg) |
NX-630 | 16 | 630*630 | 50 | 1.5 | 26 | 200 | ≤1.0 | 2790*1020*1200 | 1320 |
20 | 32 | 250 | 3096*1020*1200 | 1400 |
25 | 40 | 313 | 3504*1020*1200 | 1540 |
NX-800 | 50 | 800*800 | 60 | 1.5 | 50 | 750 | ≤1.0 | 4794*1246*1325 | 3140 |
60 | 60 | 900 | 5404*1246*1325 | 3470 |
70 | 70 | 1050 | 6014*1246*1325 | 3950 |
Plates could be added or reduced according to customer’s requirements.

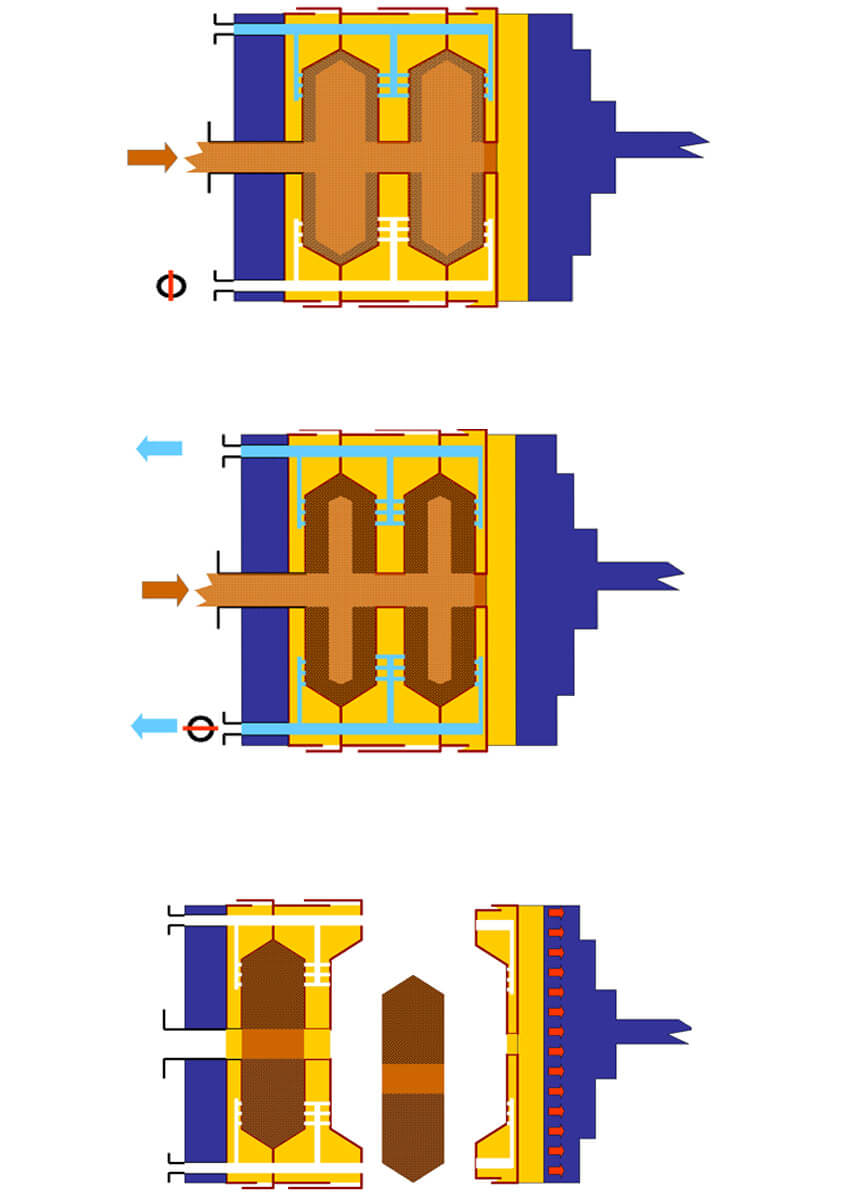

How Filter Press Work:
When
closing the filter press to pressure, the plates form chambers, the
sludge has been transported, the solids are retained in the chambers,
the liquid is evacuated through the exit orifices. When the chamber is
full, the water content decreases and a dry cake with the solid content
is formed.
