Function:

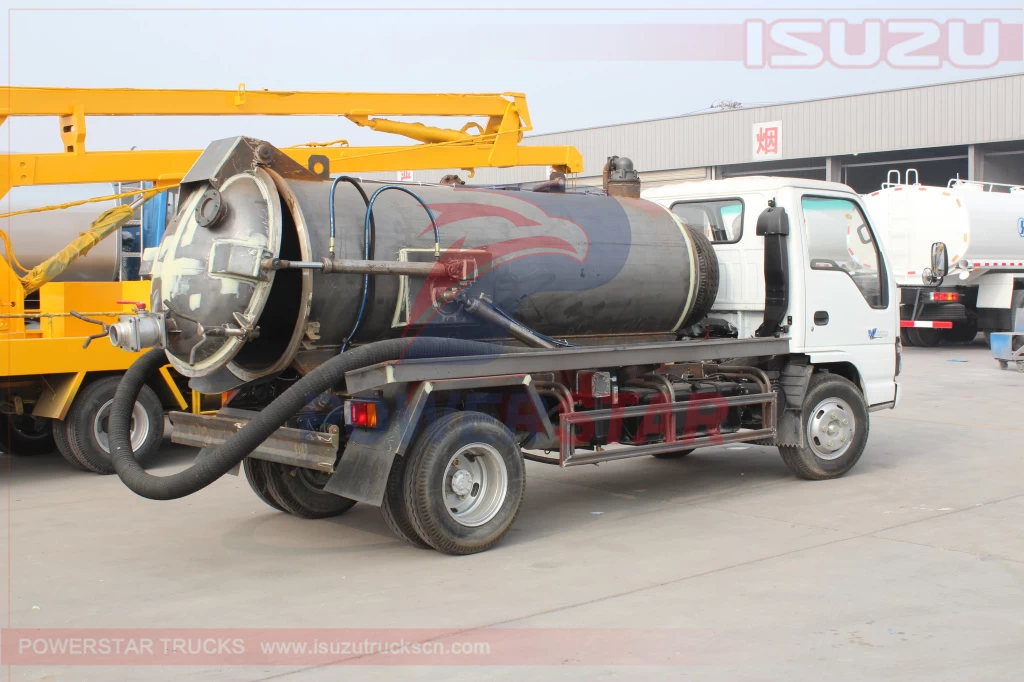

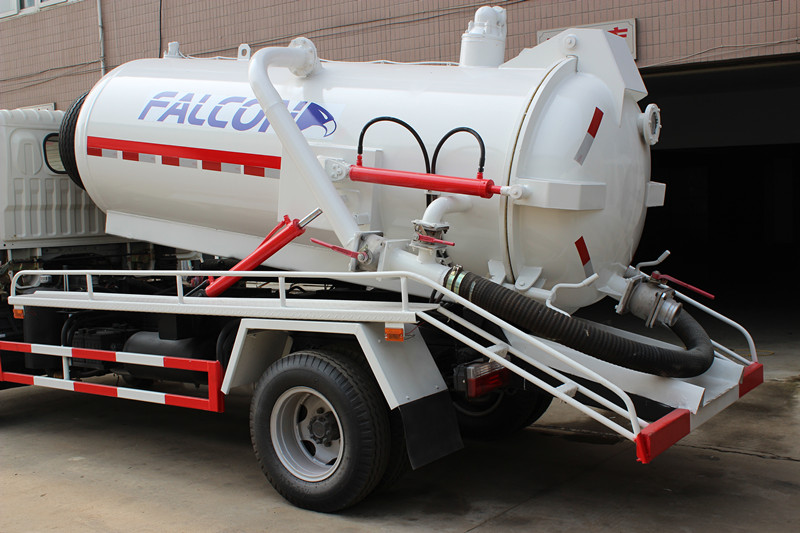

Vacuum sewage suction truck Isuzu (also called vacuum suction truck, sewage suction truck, sewage vacuum truck, waste vacuum tanker, sewer truck, vacuum tank truck, cesspit emptier, gully emptier etc.) This vacuum suction truck is mainly used to suck, transport, unload, and load sewage and sludge existing in the sewer lines and rainwater wells, and it can also be used to suck and transport wastewater, industrial waste oil, and sewage in large factories. Furthermore, sometimes it can even be used to dredge and clean small watercourses.
It is mainly composed of chassis, tank, hydraulic system, high-pressure system,and electrical system.
Features:
---- Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.
---- Adopt EU vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps, super powerful, highly efficient.
---- Pump can be operated by a hydraulic motor or by an auxiliary engine.
---- Overfill system with music horn is equipped, preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.
---- Nice shape, rational structure, durable and long service life.
Specification:
| Vacuum Truck ISUZU ( 5 m3) |
| General |
Vehicle Brand |
POWERSTAR |
| Chassis Brand |
ISUZU |
| Overall Dimension |
6000 x 2000 x 2710 mm |
| GVW / Kerb Weight |
7,300 kg / 4,350 kg |
| Cab |
Cab Capacity |
3 persons allowed |
| Air Conditioner |
Air conditioner equipped |
| Engine |
Fuel Type |
Diesel |
| Engine Brand |
ISUZU, 4KH1-TCG40 |
| Power |
120 HP / 130HP (88 KW / 96KW) |
| Displacement |
2999 ml |
| Emission Standard |
Euro III , Euro IV |
| Chassis |
Drive Type |
4X2, left hand drive |
| Transmission |
ISUZU gear box, no overhaul within 500,000km |
| Wheelbase/No. of axle |
3360 mm / 2 |
| Tyre Specification |
7.00-16 |
| Tyre Number |
6 tyres and 1 spare tyre |
| Max Speed |
100 km/h |
| Paint |
Metallic paint |
| Superstructure |
Vacuum Tank Capacity |
5,000 Liters |
| Tank Material |
Mild steel |
| Suction Head |
7 m |
| Vacuum Pump |
High efficiency, vacuum rare up to 93%, quick suction and discharge |
| Suction Hose |
High quality, wire strength hose |
| Install vacuum Pump drive by engine through PTO, hydraulic system, multi-way valve, pressure gauges, water-gas separator, oil-gas separator, oil tank reservoir, level inspection window and suction hose. |

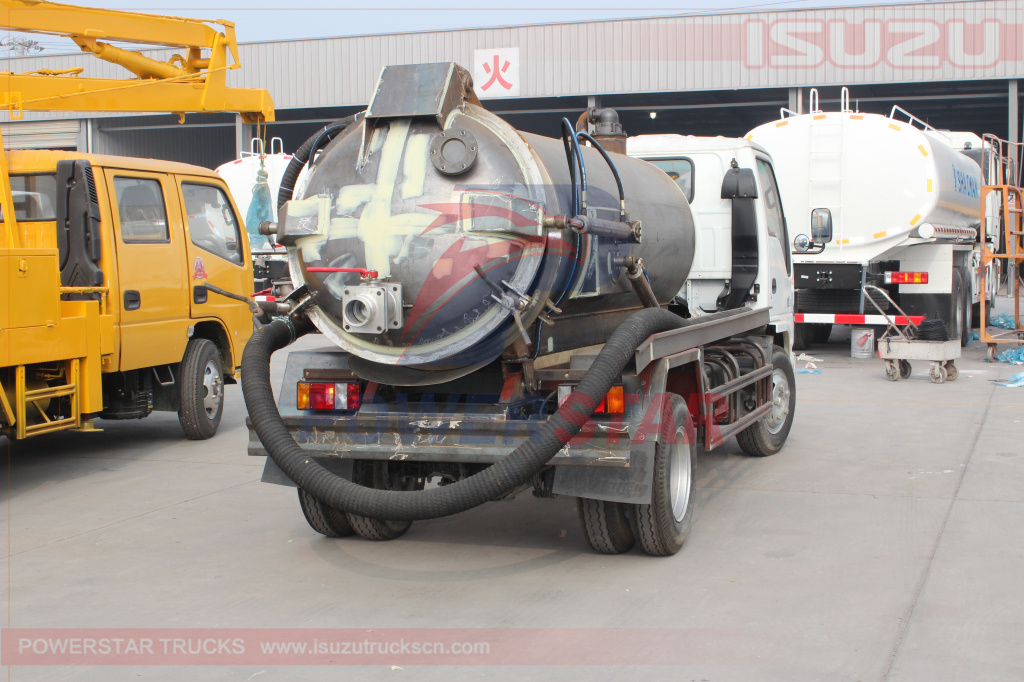

| Rear door can be hydraulic opened for complete discharge of solid stuff. |
| All other standard accessories: Tool kit, English manual…… |
| Optional |
1. Tank material could be mild steel, stainless steel…
2. Italy vacuum pump is available. |
|
|
|
