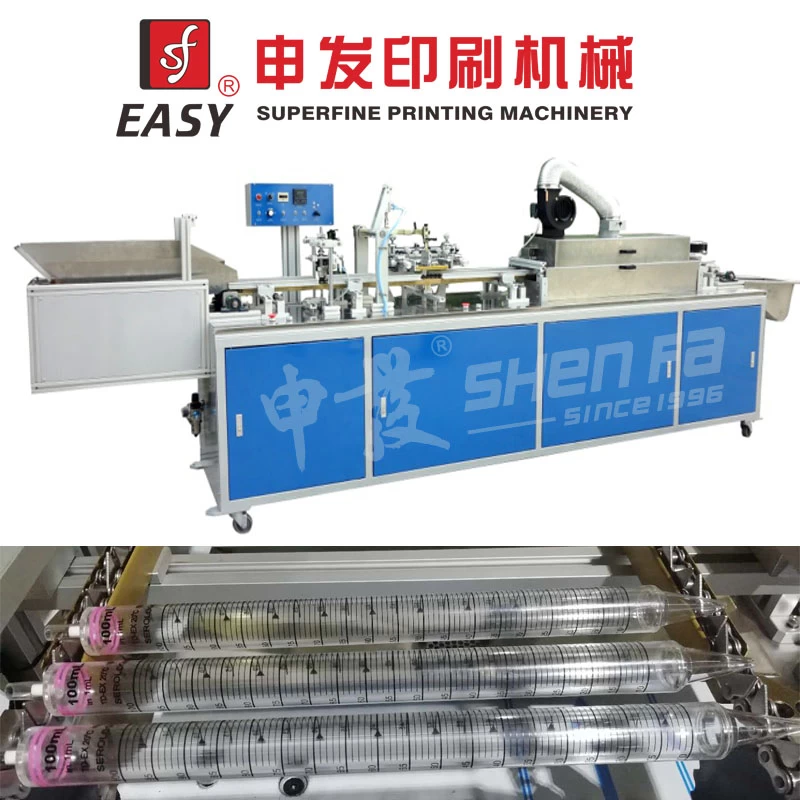

SF-P150 Automatic Silk Screen Printing Machine for Syringe

This machine with the good printing quality, fast speed, easy to adjust, It it use for the printing of round type plastic or metal pens, small round tubes, medical syringes, chopstick, cosmetics lipstick tube, and so on.

The auto printing system combine with the Automatic feeding & unloading system, Screen printing, UV or IR curing, with the non-class speed adjust,it is widely used in the pen printing factory and cosmetics manufacture.





Feature

1. Automatic feeding and unloading system.

2. Running smoothly with less noisy, can be adjust the printing distance & speed.

3. Control by Inverters for steady moving, ensure for good affect printing.

4. Adopt IR or UV drying system, it can finish the printing and drying at the same time.


Specification

1:Printing color: 1 color /2 color

2:Object dimension: 3 to 20mm

3:Object length: 70-200mm

4:Printing distance: 20 to 80mm

5:Output: 3600-4600pcs/hr

6:Power supply: 220V/110V , 50/60HZ ,3KW

7:Power consumption:3kw

8:Weight: 800kg

9:Dimension: 470×70×158CM

10: IR Drying oven length:1000MM (U shape)

11: IR Heating Tube power rate:2.5KW

12: Cooling Fan after IR heating

13.Pack Size:Wooden Case 444*78*173CM

14.Gross Weight:900KG

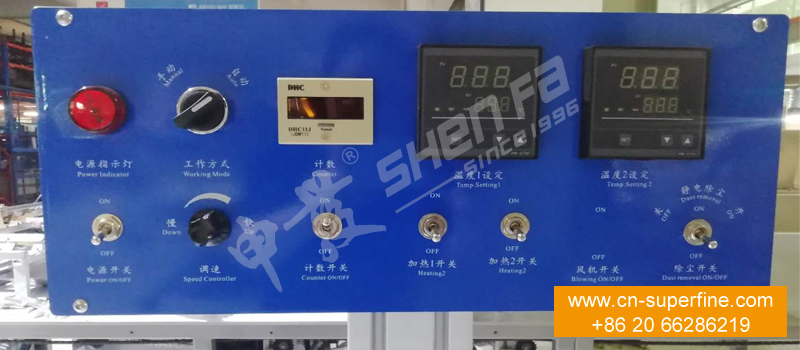

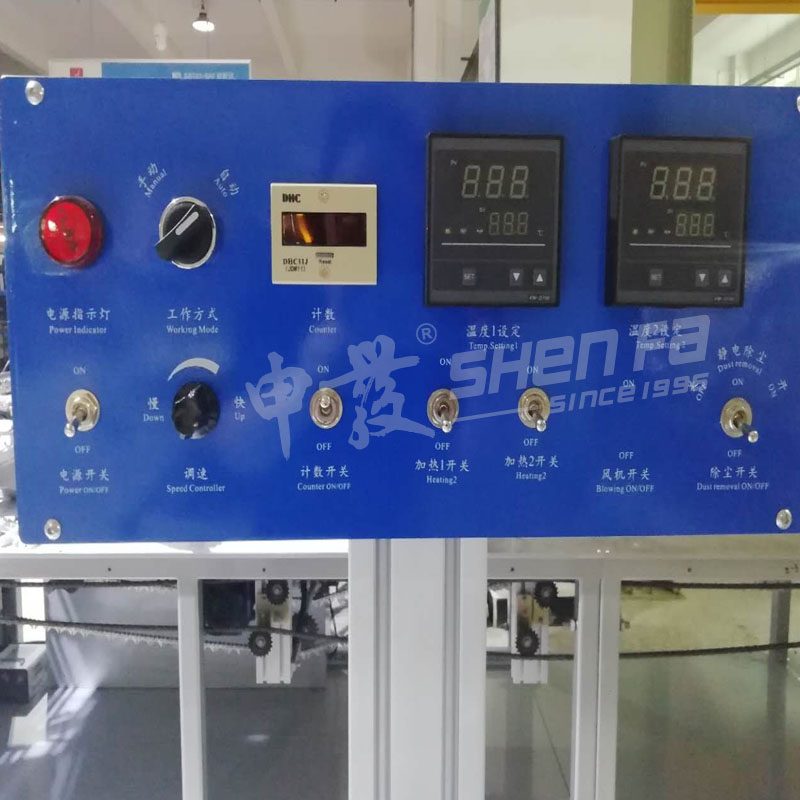

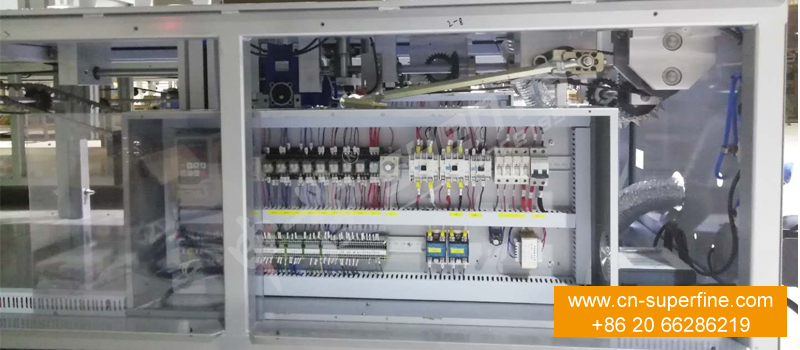

Machine detail pictures

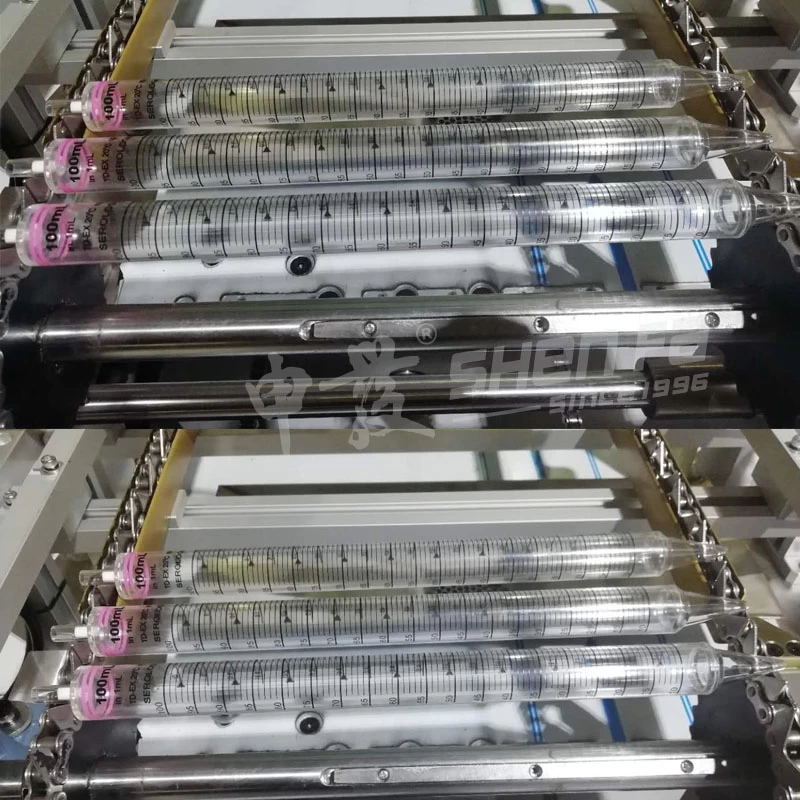

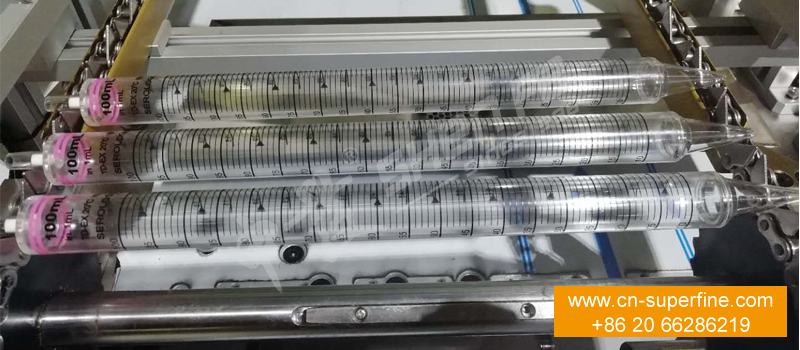

Diposable syringes printing machine


inoculator screen printing machine


one-shot injector printer


Machine running video
