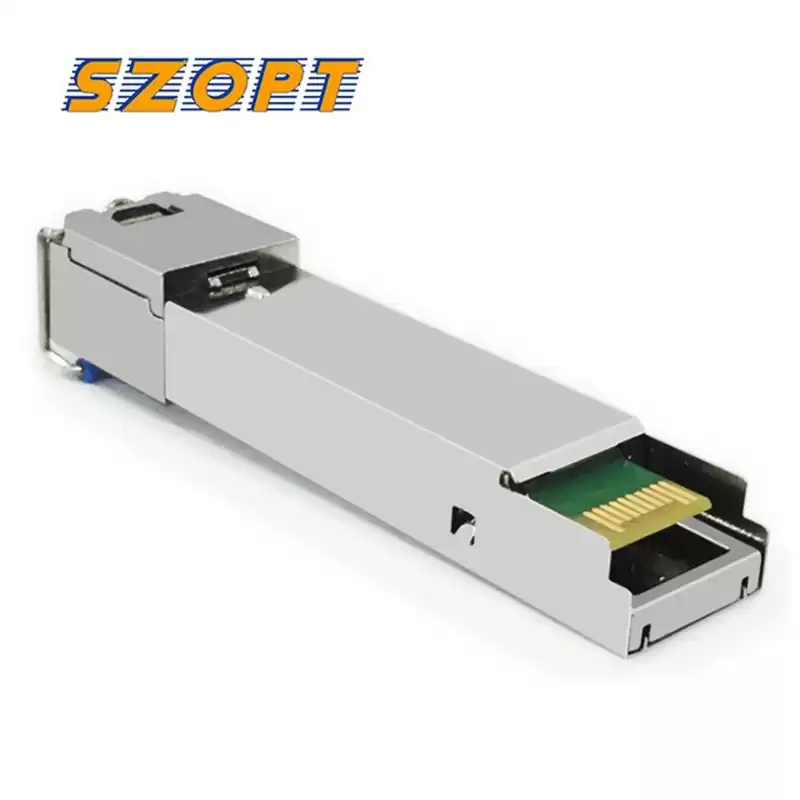

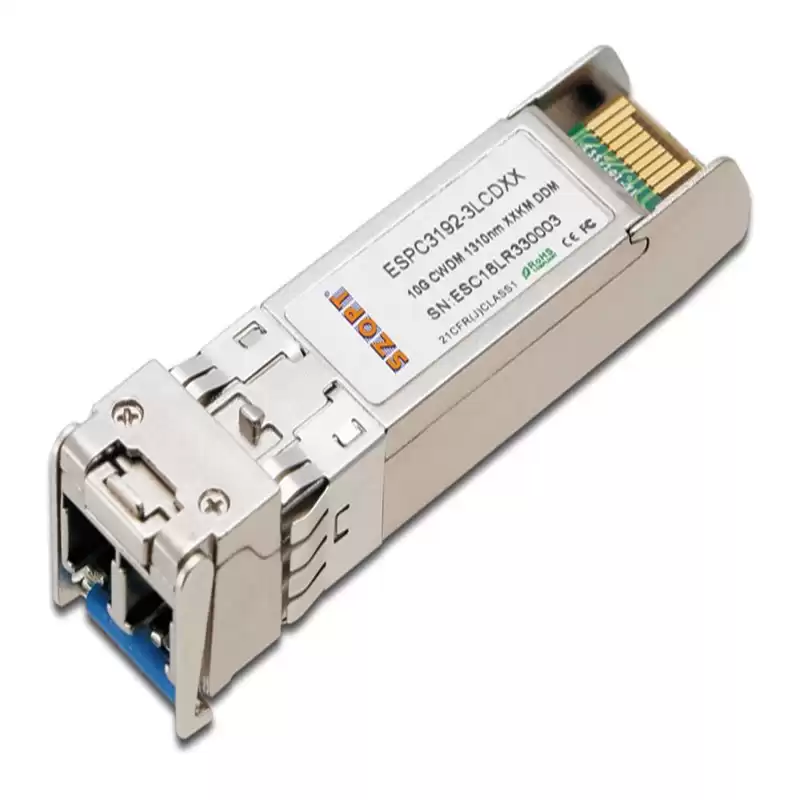

SFP 1.25Gbs SFP+10Gbs LC SMF Module Gigabit Transceiver

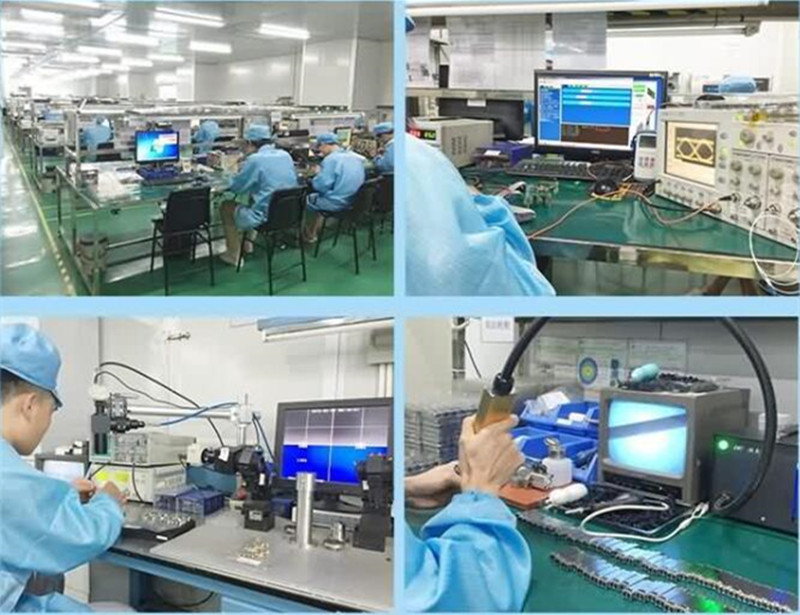

We have a complete strict quality control system,from
raw material,production process,inspection,packing,etc. to ensure the top quality
of the finished products reach 100% qualification before exporting . We
never let any defect out of factory.
Applications:
Gigabit Ethernet
1×Fiber Channel
DWDM Networks
Features:
Up to 1.25Gb/s Data Links
Hot-Pluggable
Duplex LC connector
Up to 80km on 9/125μm SMF
DWDM 100GHz ITU Grid C Band Available
DWDM DFB laser transmitter
Single +3.3V Power Supply
Monitoring Interface Compliant with SFF-8472
Low power dissipation <1W typically
Operating temperature range: -0°C to 70°C
RoHS compliant and Lead Free

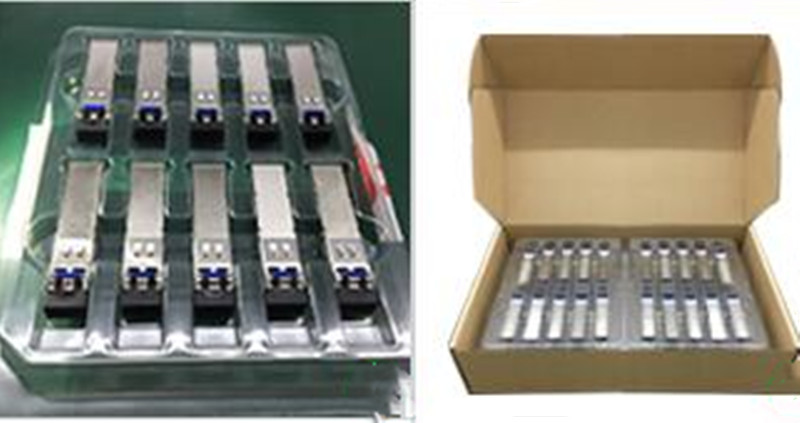

Package:
Each 10pcs per blister box,finally in a carton box.
DWDM Wavelength:
|
ITU Channel
|
Wavelength
|
ITU Channel
|
Wavelength
|
|
17
|
1563.86
|
40
|
1545.32
|
|
18
|
1563.05
|
41
|
1544.53
|
|
19
|
1562.23
|
42
|
1543.73
|
|
20
|
1561.42
|
43
|
1542.94
|
|
21
|
1560.61
|
44
|
1542.14
|
|
22
|
1559.79
|
45
|
1541.35
|
|
23
|
1558.98
|
46
|
1540.56
|
|
24
|
1558.17
|
47
|
1539.77
|
|
25
|
1557.36
|
48
|
1538.98
|
|
26
|
1556.55
|
49
|
1538.19
|
|
27
|
1555.75
|
50
|
1537.4
|
|
28
|
1554.94
|
51
|
1536.61
|
|
29
|
1554.13
|
52
|
1535.82
|
|
30
|
1553.33
|
53
|
1535.04
|
|
31
|
1552.52
|
54
|
1534.25
|
|
32
|
1551.72
|
55
|
1533.47
|
|
33
|
1550.92
|
56
|
1532.68
|
|
34
|
1550.12
|
57
|
1531.9
|
|
35
|
1549.32
|
58
|
1531.12
|
|
36
|
1548.51
|
59
|
1530.33
|
|
37
|
1547.72
|
60
|
1529.55
|
|
38
|
1546.92
|
61
|
1528.77
|
|
39
|
1546.12
|
|
|
