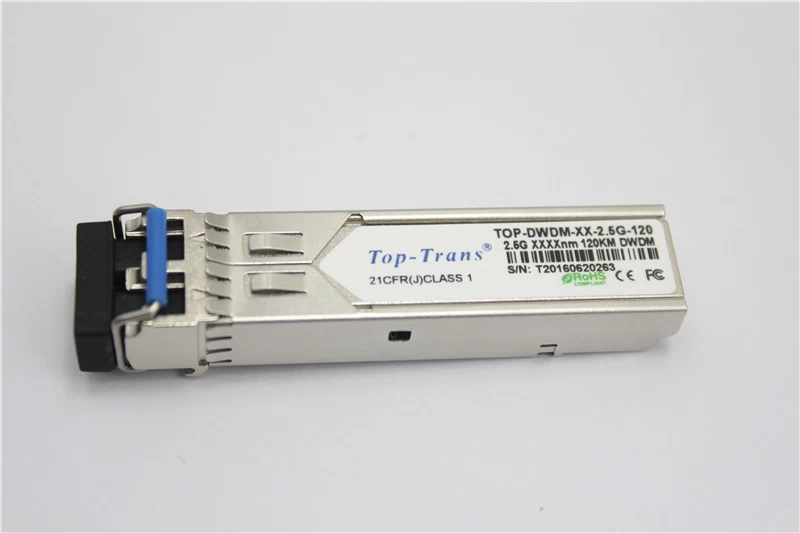

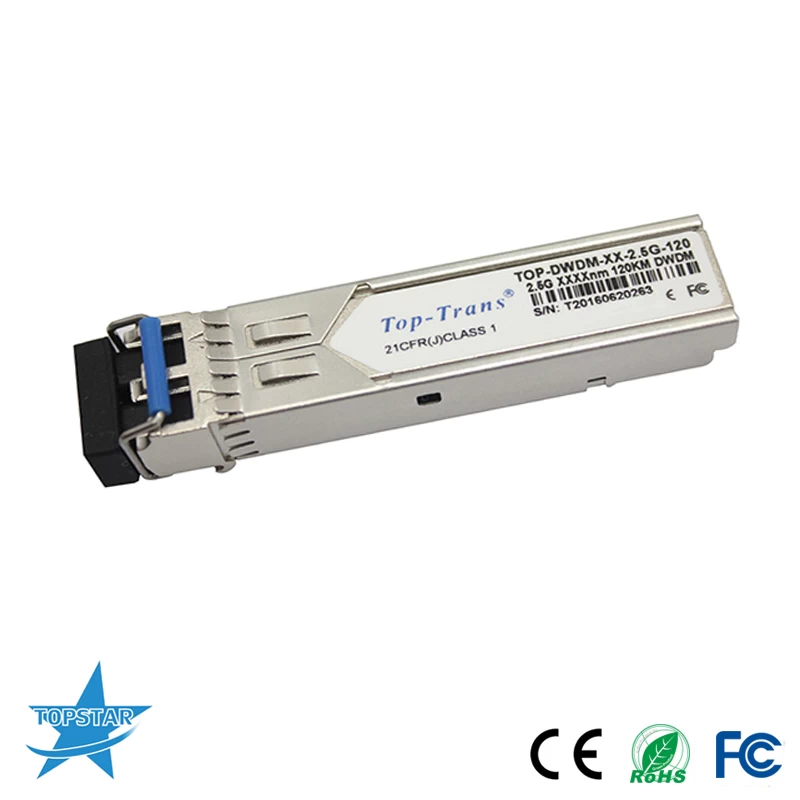

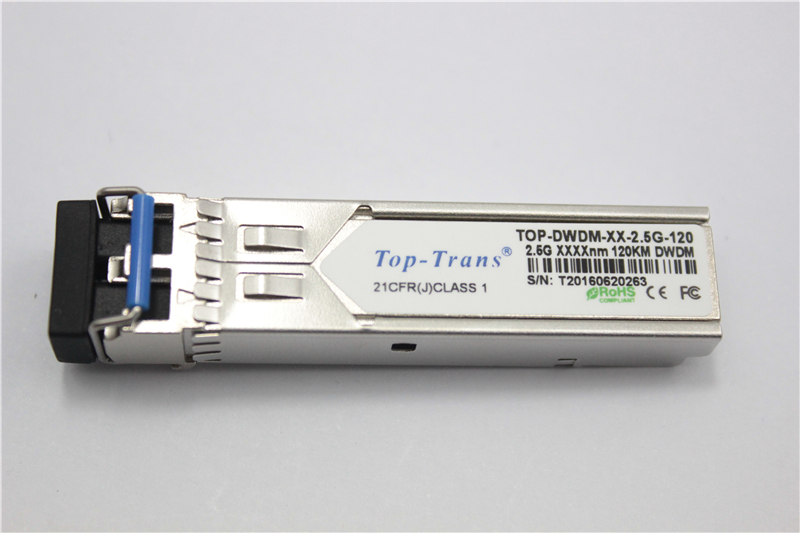

SFP 2.5g Optic Transceiver C/L-Band ITU 120km DWDM SDH Fiber Patch Cord

Top-trans DWDM SFP Transceiver exhibits excellent wavelength stability, supporting operation at 100GHz channel, cost effective module. It is designed for DWDM SONET/ SDH, Gigabit Ethernet and Fiber- Channel applications.


  • Data Rate2.5G
  • Temperature0℃~70℃/ -5℃~85℃/ -20℃~85℃
  • Warranty3 Years
  • Distance120km
  • WavelengthDWDM
  • ConnectorDual LC

SFP 2.5g Optic Transceiver C/L-Band ITU 120km DWDM SDH Fiber Patch Cord

SFP 2.5g DWDM 120km


Features

Wavelength selectable to C-band and L-band ITU-T grid wavelengths

Suitable for use in 100GHz channel spacing DWDM systems

DWDM SFP MSA Compliant

Up to 2. 667Gb/s data rate

Cold Start up Wavelength Compliance

Low Power Dissipation <1.3W Maximum

-5ºC to 70ºC Operating Case Temperature

Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power, receive optical power, Laser temperature and TEC current

Extended link budget with APD receiver technology

OC48/STM-16 Long Reach 80km(1600 ps/nm), 120km(2400 ps/nm) Versions

RoHS compliant and lead free


Applications

SFP Transceivers for DWDM SONET/ SDH

Ethernet IEEE 802.3ae

Fiber Channel


Professional Service

Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.



Compatibility:

Testing in Cisco/ Brocade/ Juniper/ Dell/ Arista/ HPE/ H3C etc devices to guarantee 100% compatible with your equipment.


OEM& ODM:

Customized label and package , OEM and ODM service offered.
