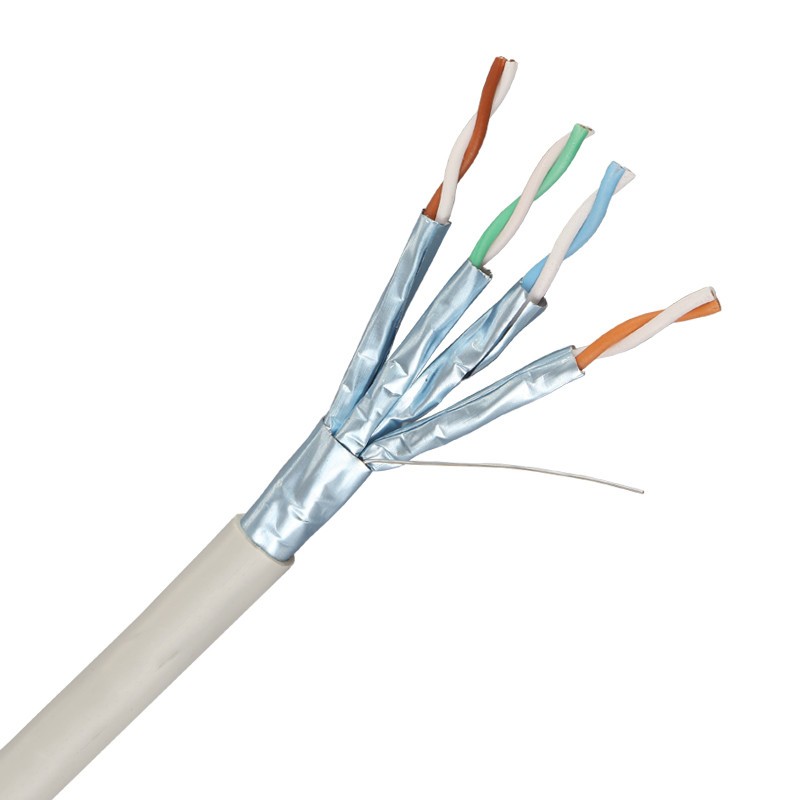

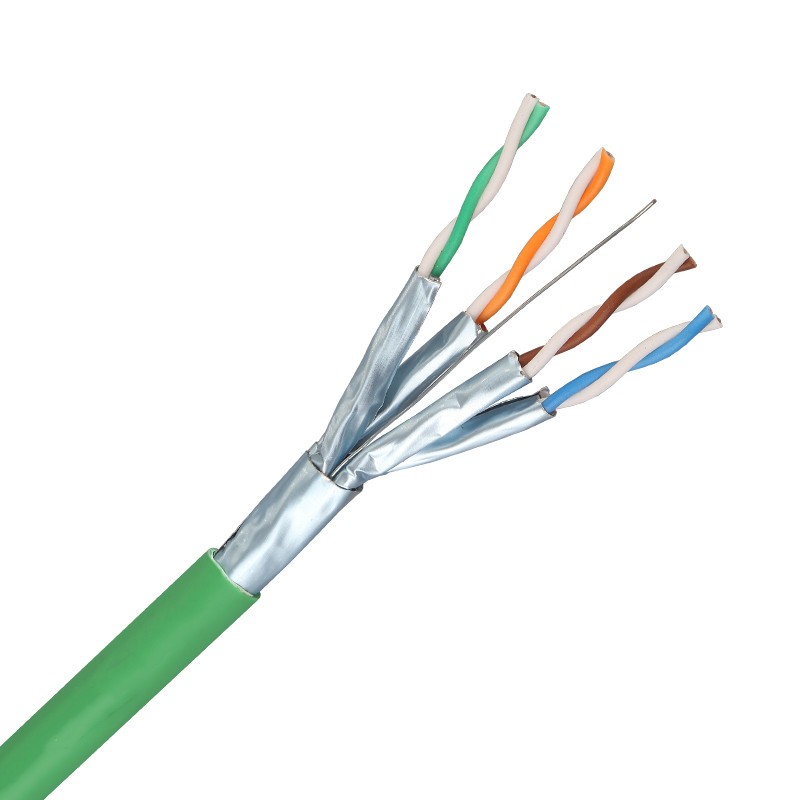

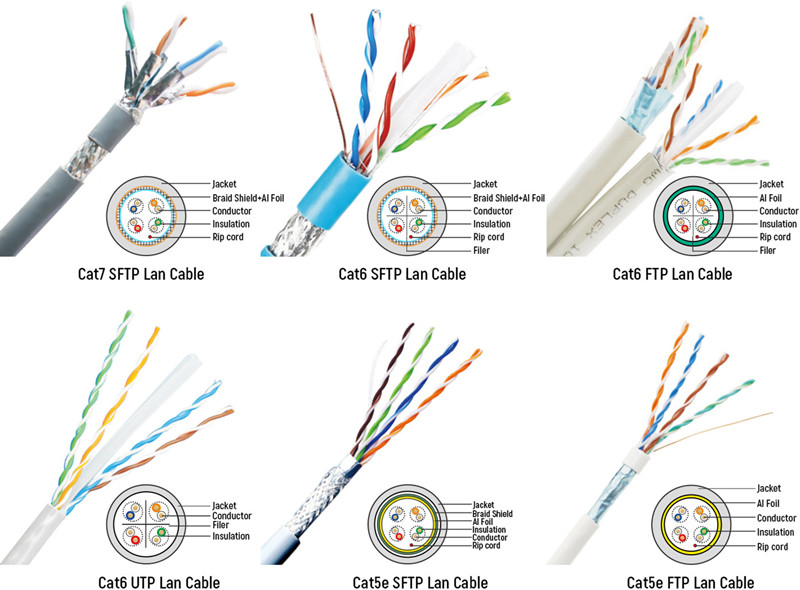

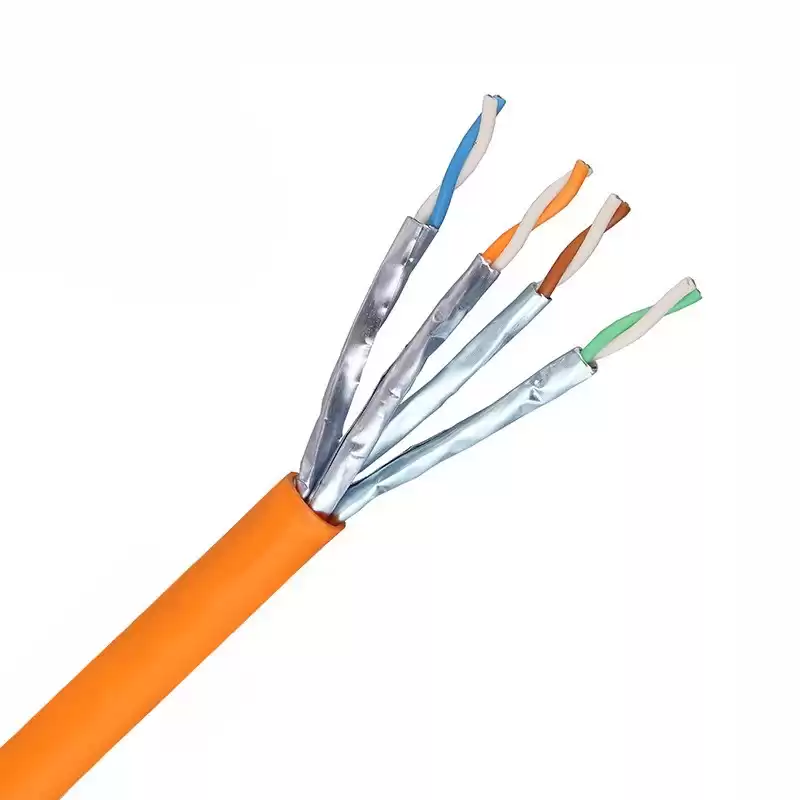

SFTP Cat5 Cat6 Cat7 Lan Cable

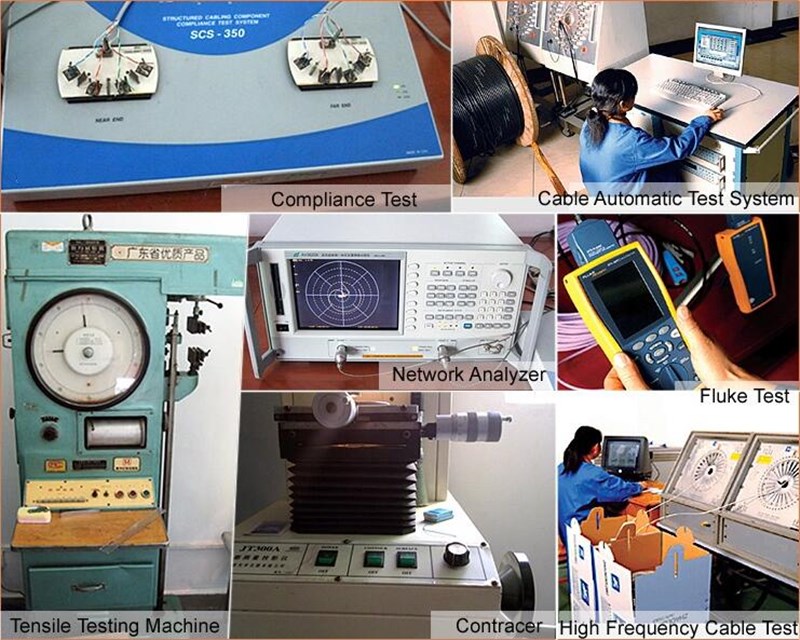

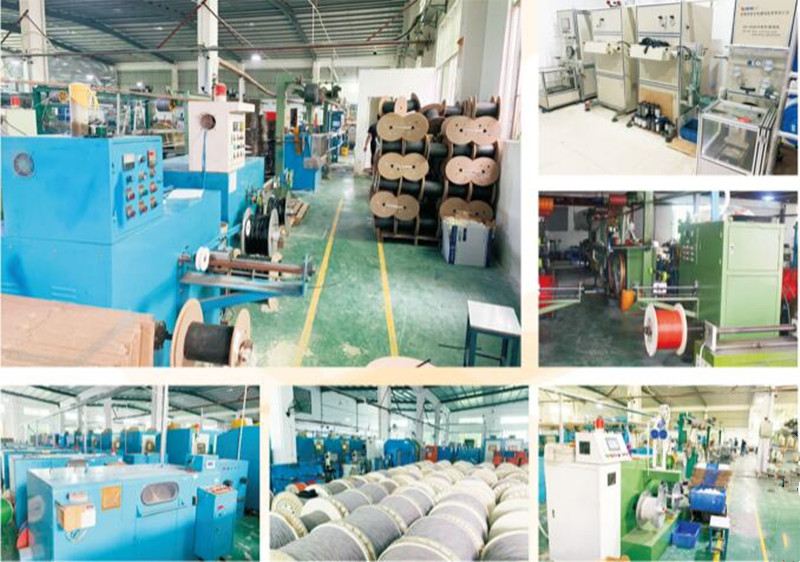

We have a complete strict quality control system,from
raw material,production process,inspection,packing,etc. to ensure the top quality
of the finished products reach 100% qualification before exporting . We
never let any defect out of factory.
Description:

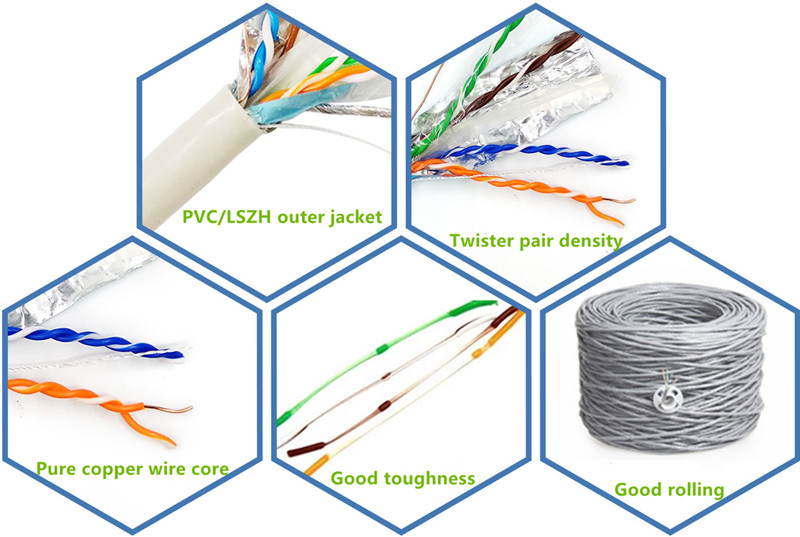

CCA or 24AWG Soft Plain Copper;
Eco-friendly,pollution-free and new materials selected.Promise new
material only;
Solid HDPE insulation;
High-temperature resistance,long working life.
Applications:
Computer Network Cabling System;
Broadband Network
Communication;
Ethernet Network;
Audio and Data Transmission
System.
Electronic
Characteristics
Impedance:
100± 15(ohms).
Rated
Temperture: 75º C
DC
Resistance unbalance(%): Max2.5
DC
Resistance 20º C: 8.4(Ohms/100m)
Pair-to-Ground
Capacitance Unbalance: 330(Pf/100m)
Transfer
Impendance: Max 10 mohms/m@100MHz.
Installation
Resistance: >5000MΩ *KM
Dielectric
strength: DC 2500V 2S
Transmission
Performance：
|
Frequency
|
Attenuation
|
Next
|
ACR
|
Return Loss
|
PS-Next
|
PS-ACR
|
Elfext
|
|
Mhz
|
dB/100m
|
dB
|
dB/100m
|
dB
|
dB/100m
|
|
|
|
|
|
|
1
|
2.1
|
100
|
98
|
27
|
97
|
95
|
90
|
|
4
|
3.6
|
100
|
96
|
30
|
97
|
93
|
84
|
|
10
|
5.5
|
100
|
95
|
30
|
97
|
92
|
80
|
|
16
|
7
|
98
|
91
|
30
|
95
|
88
|
78
|
|
20
|
7.8
|
97
|
89
|
30
|
94
|
86
|
74
|
|
31.25
|
10
|
95
|
85
|
30
|
92
|
82
|
68
|
|
62.5
|
14
|
92
|
78
|
30
|
89
|
75
|
60
|
|
100
|
18
|
90
|
72
|
26
|
87
|
69
|
64
|
|
155
|
22.5
|
88
|
66
|
25
|
85
|
63
|
60
|
|
200
|
25.5
|
87
|
62
|
25
|
84
|
59
|
58
|
|
250
|
28.7
|
86
|
57
|
23
|
83
|
54
|
56
|
|
300
|
31.6
|
85
|
53
|
20
|
82
|
50
|
54
|
|
600
|
45
|
82
|
37
|
19
|
79
|
34
|
48
|
|
750
|
50.5
|
82
|
32
|
17
|
79
|
29
|
42
|
|
900
|
55.9
|
82
|
26
|
16
|
79
|
23
|
40
|
|
1000
|
58.5
|
82
|
24
|
24
|
79
|
21
|
35
|
