SG-15G Tea bag packing machine

tea bag making mashine




Characteristics

♦ Patent for heat sealable tag system(No glue tag system)
♦ Filter paper width: 125mm and 140mm in one machine
♦ A sensor monitor for jam teabag, Alarm warning stop when it detects a shortage of materials.
♦ Empty tea bags reject device
♦ New grouped tea bags output chute
♦ Meet GMP standard and CE certification
♦ Provide Servo control for traction of envelope materials
♦ A sensing system that follows color mark automatically and ensures printing logo on a proper place
♦ Provide the pneumatic vacuum feeder as a new system


Technical data

Capacity

105±5bags/min

Max.Dosage

10 cm³

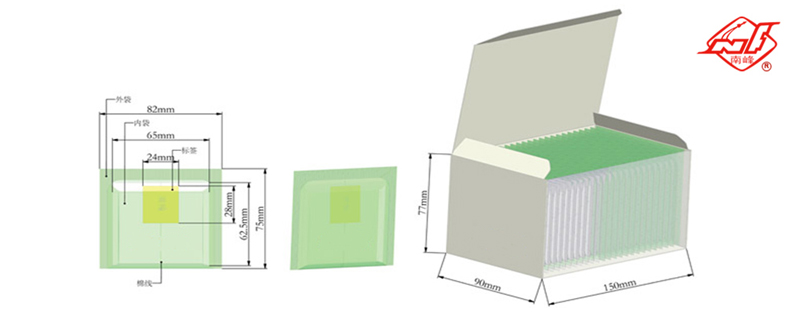

Size of tea bag (L×W)

65mm x 62.5mm

Size of envelope (L×W)

82mm x 75mm

Width of filter paper

125mm (140mm option)

Tag dimensions

26mm × 24mm (Heat sealable tag) , 28 mm×24 mm (Glue tag)

Thread length

220mm

Envelope materials

Various materials( Plastic / Foil / P.E, Paper / P.E )

Voltage

AC 380V/220V

Total power

3 KW

Overall dimension

2.840m×1.222m×2.250m

Carton dimensions

2.140m×1.410m×1.890m

Net Weight

1410kg

Gross weight

1610kg

Options

1) Heat sealable tag device  2) Date printing device  3) Semi  carton device  4) Pneumatic vacuum feeder   5) Modification cutter tool







Packing materials

Heat sealing filter paper : Single side heat-sealing ,16.5-21g/㎡ ,width:125mm .

Various heat sealable laminated materials : Plastic / Foil / P.E, Paper / P.E, Paper / Foil / P.E, Plastic / P.E.

Cotton thread : The thread should be original cotton thread with 3 strands of No.16 (21/4 in English System) thread wound into cone.

Tag paper : The tag paper should be coatched paper for food industry specially.High temperature ink print.

Filter paper: 5750bags/kg


Heat sealable tag paper:6250tags/kg

Cotton thread: 20000teabags/Roll

Envelope paper: 1000 bags/kg

Note : The consumption is collected from untransparent OPP20 / Pearl OPP 35 film.Other materials will be different. Counted according to the number of bags.
