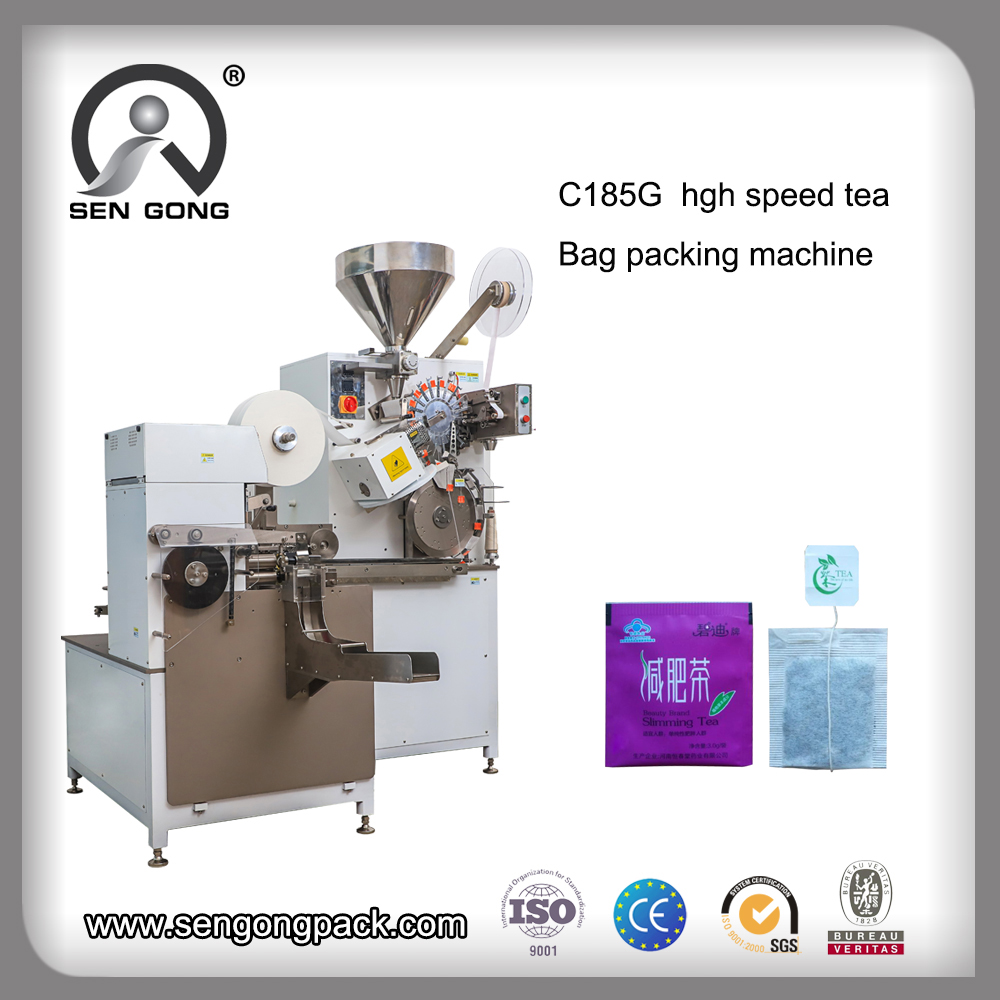

SG-185G high speed tea packing machines prices

tea bag making mashine




Technical data

Capacity

105±5bags/min

Max.Dosage

10 cm³

Size of tea bag (L×W)

65mm x 62.5mm

Size of envelope (L×W)

82mm x 75mm

Width of filter paper

125mm (140mm option)

Tag dimensions

26mm × 24mm (Heat sealable tag) , 28 mm×24 mm (Glue tag)

Thread length

220mm

Envelope materials

Various materials( Plastic / Foil / P.E, Paper / P.E )

Voltage

AC 380V/220V

Total power

2.5 KW

Overall dimension

1688m×1330m×2205m

Carton dimensions

1840m×1290m×1890m

Net Weight

1210kg

Gross weight

1410kg

Options

1) Heat sealable tag device  2) Date printing device  3) Semi  carton device  4) Pneumatic vacuum feeder   5) Modification cutter tool

packing materials

1.heat sealing filter paper:single side heat sealing ,at 16.5-20g/m2 and 125mm width

2.tag paper,the tag paper should be bleached paper for food industry,70g/m2

3.cotton thread,the thread should be original cotton thread with 3 standards of NO.16

4 outer bag:works with various heat sealable laminated materials: Plastic/foil/PE,paper/PE,paper/PE,plastic/PE


Packing materials

Heat sealing filter paper : Single side heat-sealing ,16.5-21g/㎡ ,width:125mm .

Various heat sealable laminated materials : Plastic / Foil / P.E, Paper / P.E, Paper / Foil / P.E, Plastic / P.E.

Cotton thread : The thread should be original cotton thread with 3 strands of No.16 (21/4 in English System) thread wound into cone.

Tag paper : The tag paper should be coatched paper for food industry specially.High temperature ink print.

Filter paper: 5750bags/kg

Heat sealable tag paper:6250tags/kg

Cotton thread: 20000teabags/Roll

Envelope paper: 1000 bags/kg

Note : The consumption is collected from untransparent OPP20 / Pearl OPP 35 film.Other materials will be different. Counted according to the number of bags.
