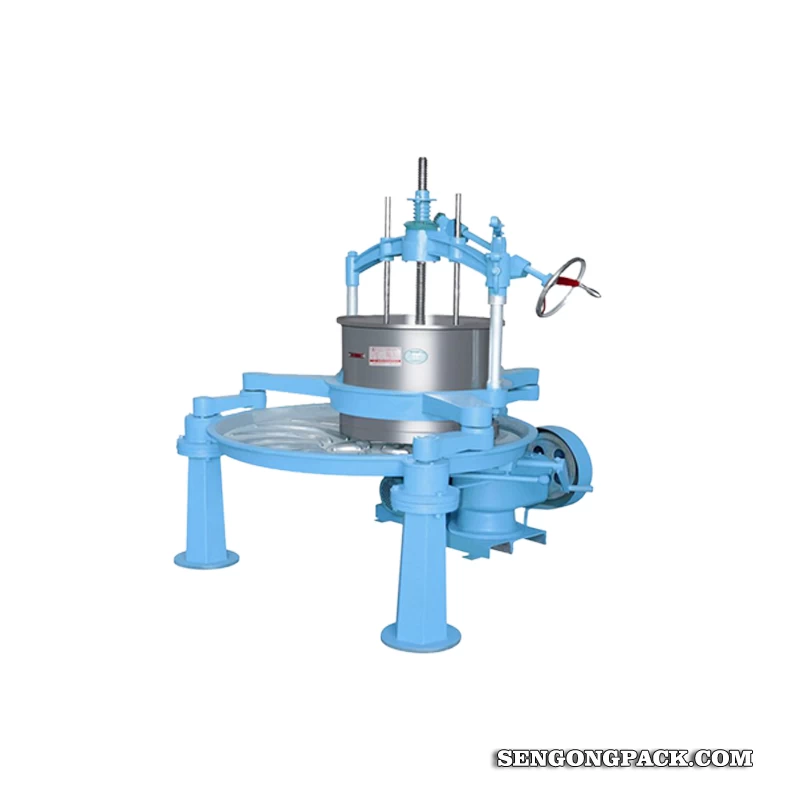

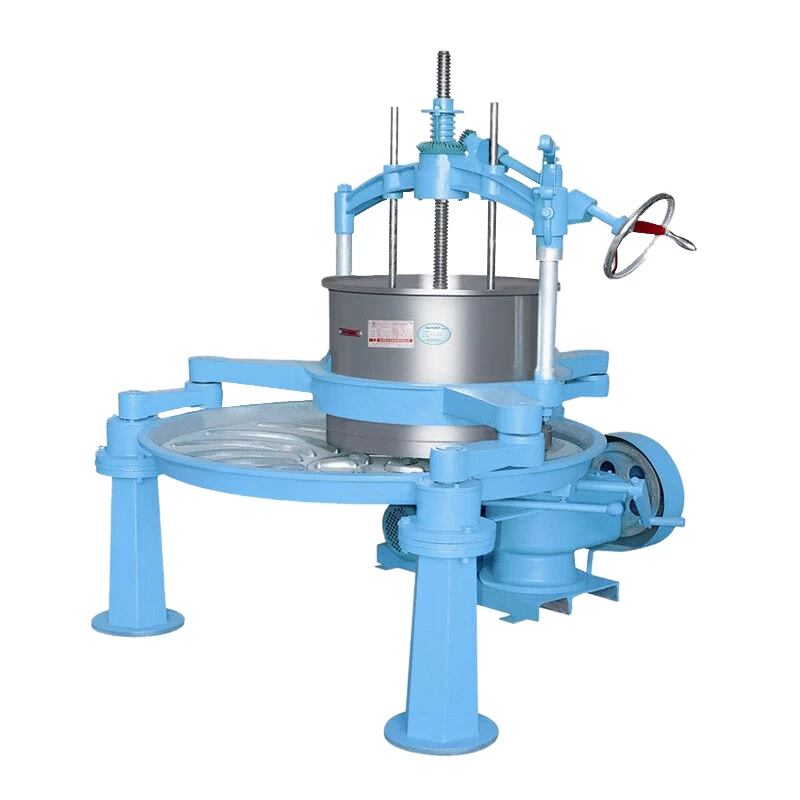

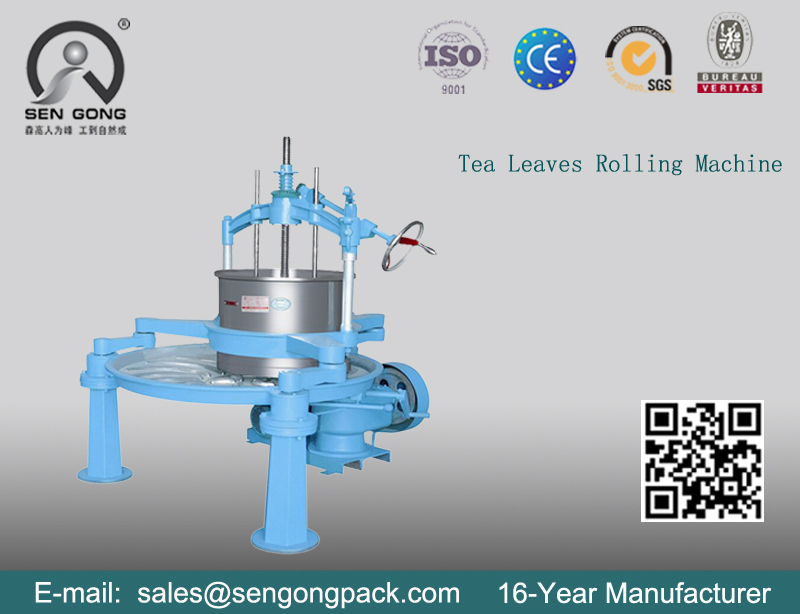

Machine name: Tea Leaves Twisting Machine/Rolling Machine
Machine model: SG-55
Machine features: 1. All the materials of twisting plate, thread rods, twisting barrel and barrel cover are SUS304 stainless steel;
2. Adopting double arm’s barrel cover pressing lifting structure, stable and beautiful.
Machine dimension: 1580*1400*1390mm(L*W*H)
Technical data:
Machine weight: 420KGS
Twisting barrel external diameter: 580mm
Twisting barrel internal diameter: 550mm
Twisting barrel height: 400mm
Supporting motor: Power: 2.2KW
Speed of rotation: 1400r/min
Rated voltage: 380V
Input voltage: 380V(three phase, three wire)
Twisting barrel rotating speed: 45r/min
