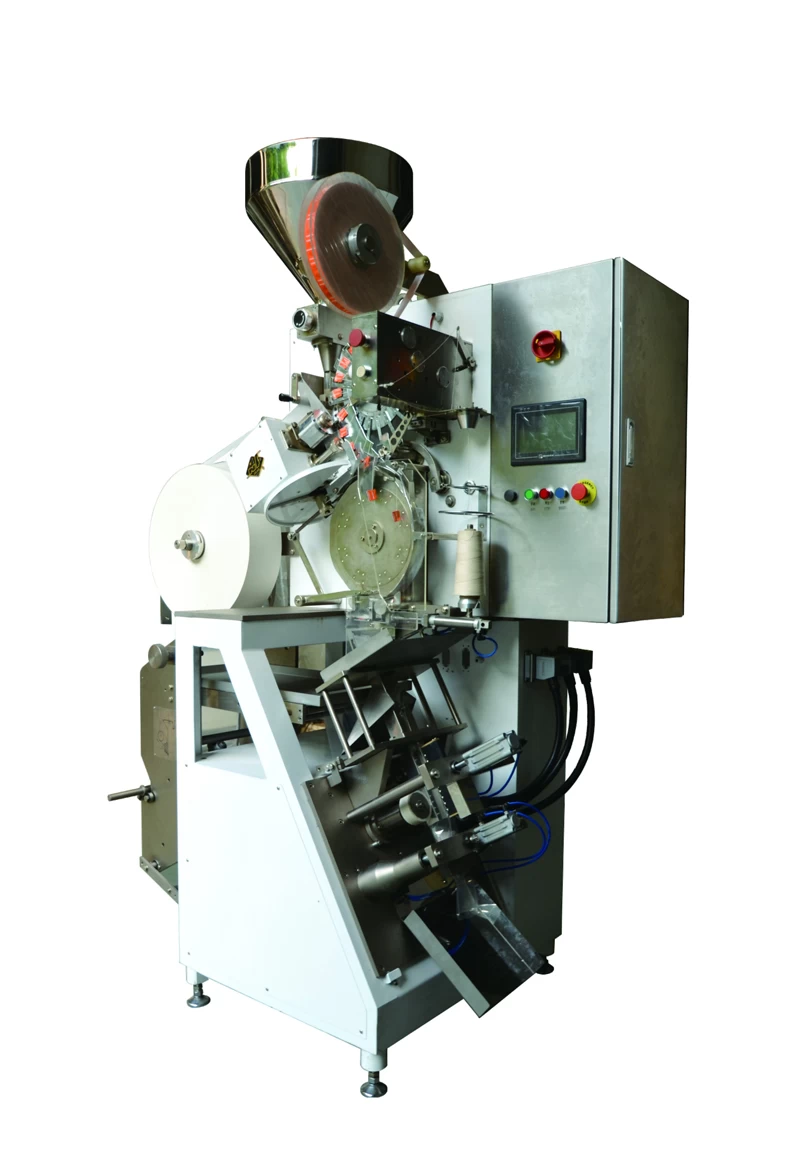

Model SG-8IV Tea bag packing machine
Tea bag packing machine Model SG-8IV offer filling, heat sealing,threading,labeling and over-wrapping functions.Adopting sealing pads in place of the sealing rollers used in machines of previous generations,this new system greatly improves the machine's flexibility and enables use of different packaging materials.It can pack 20 meshes to 60 meshes or bulk non-viscidity granular materials,such as CTC black tea,green broken tea,herbals into the bag.Main materials include paper / PE, plastic / Foil / PE and plastic / PE.
|
Capacity
|
105±5bags/min
|
|
Max.Dosage
|
6 cm³
|
|
Size of tea bag (L×W)
|
62.5mm×50 mm
|
|
Size of envelope (L×W)
|
80mm×70 mm
|
|
Width of filter paper
|
125mm
|
|
Tag dimensions
|
28mm ×24mm
|
|
Thread length
|
210mm
|
|

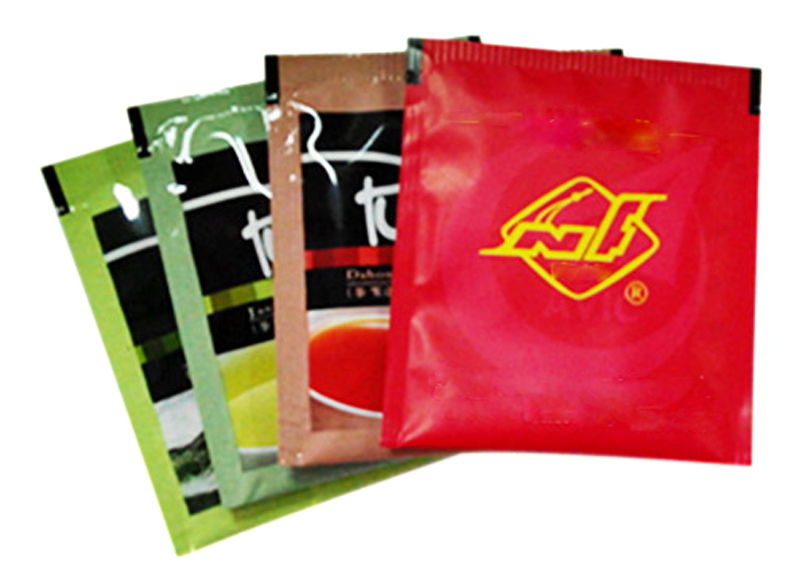

Envelope materials
|
Various materials( Plastic / Foil / P.E, Paper / P.E)
|
|
Voltage
|
AC 380V/220V
|
|
Total power
|
2.5 KW
|
|
Overall dimension
|
1.688m ×1.330m × 2.205m
|
|
Carton dimensions
|
1.840m × 1.290m×1.890m
|
|
Net weight
|
1210kg
|
|
Gross weight
|
1410kg
|
|
Options
|
1) Heat sealable tag system 2) Date printing device 3) Semi carton device 4) Pneumatic vacuum feeder 5) Modification cutter tool
|
