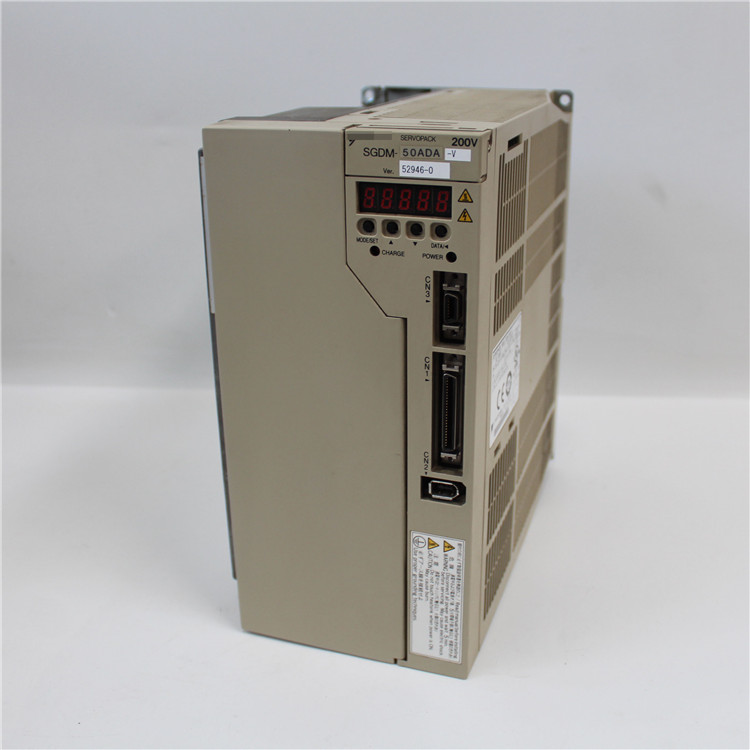

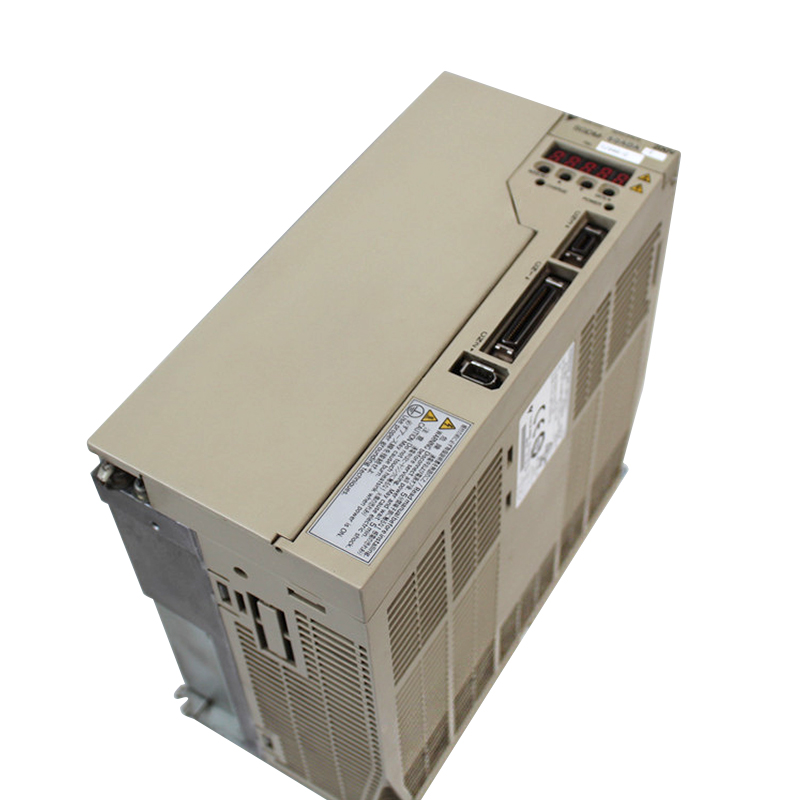

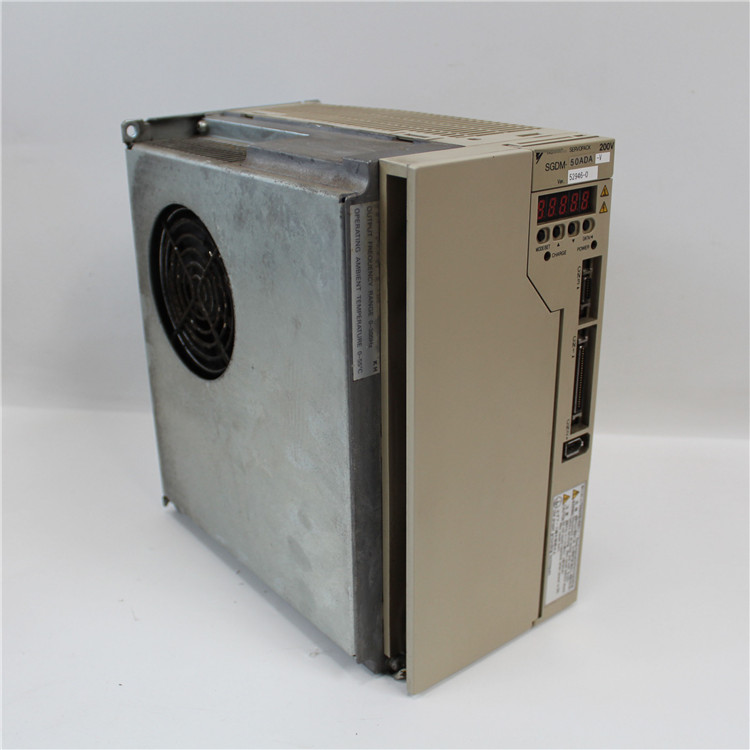

SGDM-50ADA-V Product Overview:
This manual is intended for the following users.
• Those selecting Σ-II Series servo drives or peripheral devices for Σ-II Series servo drives.
• Those wanting to know about the ratings and characteristics of Σ-II Series servo drives.
• Those designing Σ-II Series servo drive systems.
• Those installing or wiring Σ-II Series servo drives.
• Those performing trial operation or adjustments of Σ-II Series servo drives.
• Those maintaining or inspecting Σ-II Series servo drives.
Description of Technical Terms
The terms in this manual are defined as follows:
• Servomotor or motor = Σ-II Series SGMAH, SGMPH, SGMGH, SGMSH, SGMDH, SGMCS servomotor.
• SERVOPACK = Σ-II Series SGDM amplifier.
• Servo drive = A set including a servomotor and servo amplifier.
• Servo System = A servo control system that includes the combination of a servo drive with a host
computer and peripheral devices.
• Parameter number = Numbers that the user inputs toward the SERVOPACK.
Indication of Reverse Signals
In this manual, the names of reverse signals (ones that are valid when low) are written with a forward slash (/)
before the signal name, as shown in the following example:
• S-ON = /S-ON
• P-CON = /P-CON
