1.Product Introduction:
The copper-plated silver terminals of the SGX175A ensure superior conductivity and reliability. This connector comes complete with two terminals and two signal pins, which can be customized to fit your specific needs and requirements.
Whether you're looking for a high-quality OEM wire harness or simply need a quick and easy way to connect wires, the SGX175A 600V Discharge Connector is the perfect plug for all your needs. So why wait? Order yours today and experience the power and efficiency of this remarkable connector.
2.Technical Parameters：
| Rated current(Amperes) |
175A |
| Rated voltage(Volts) |
600V |
| Insulation Resistance |
5000MΩ |
| Without load(Contact/Disconnect Cycles) |
To 10000 |
| Flammability |
UL94 V-0 |
With Load(Hot Plug 250 Cycles＆120V)
|
75A |
The insertion force of finished products
|
≥110kgf
|
The pullout force of finished products
|
≥110kgf
|
| （AWG）Contact Barrel Wire Size(AWG) |
04AWG~1/0AWG |
| Environment Temperatures(℃) |
-20℃---125℃
|
| Material of terminal |
Red copper |
| Process of production |
Precision punching |
| Fully Ag-plating on surface, it’s Ag-plating thickness |
1μm |
| Shrapnel |
Stainless steel |
| Process of production |
Precision punching Plastic Injection |

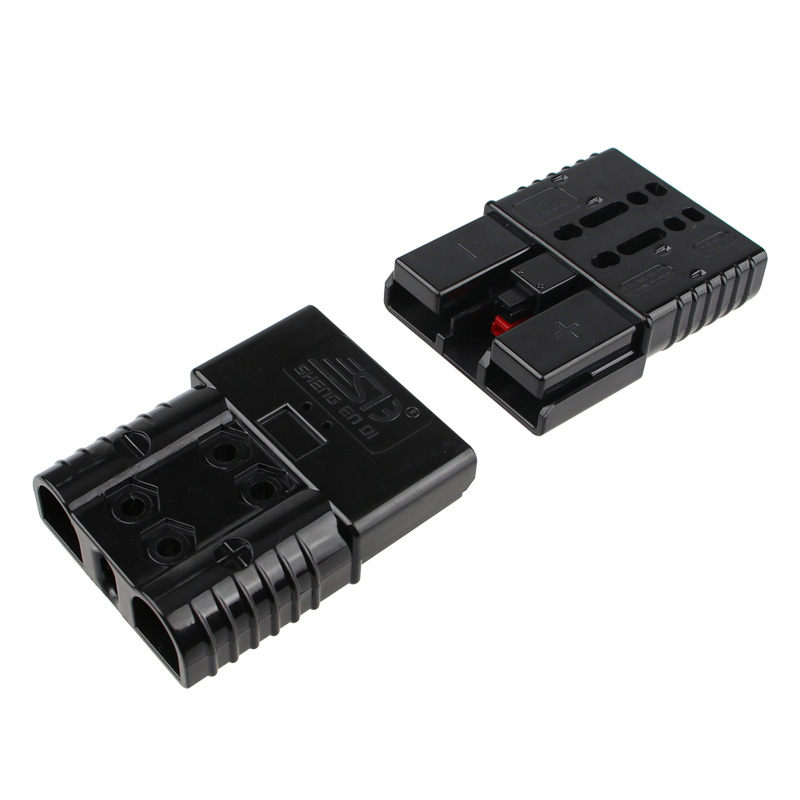

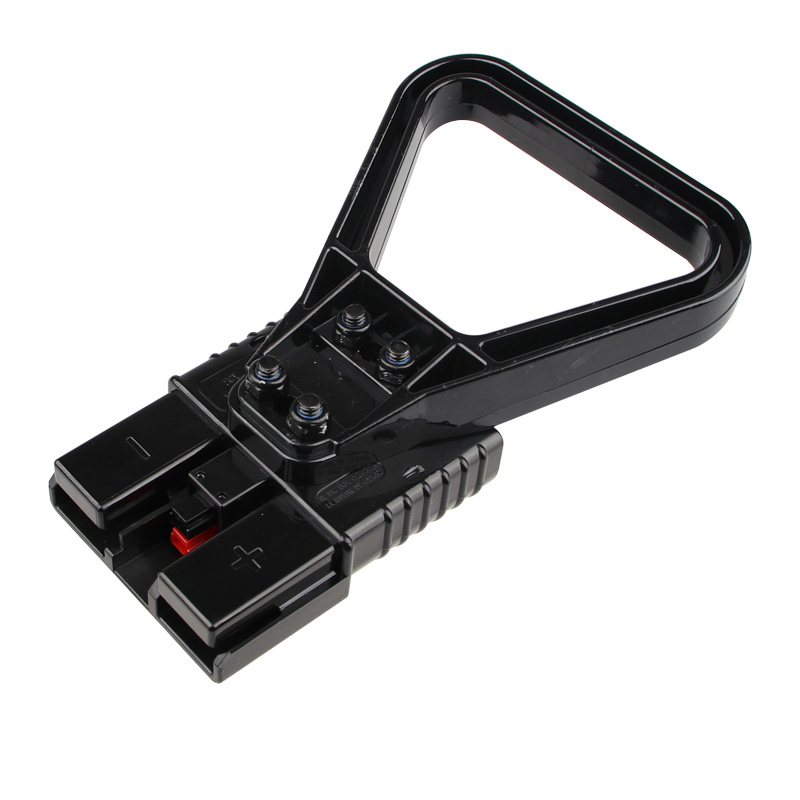

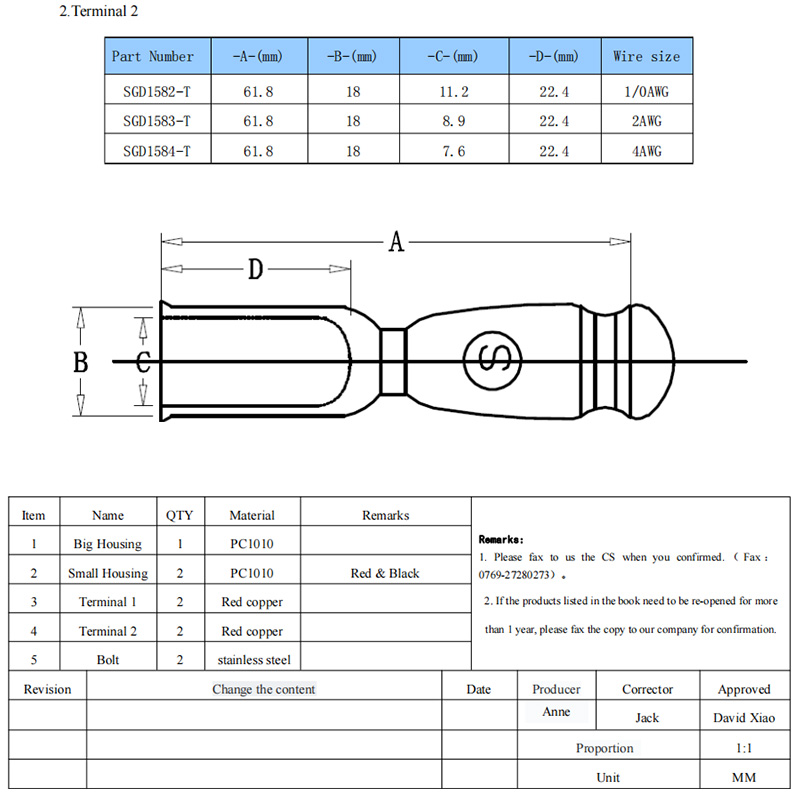

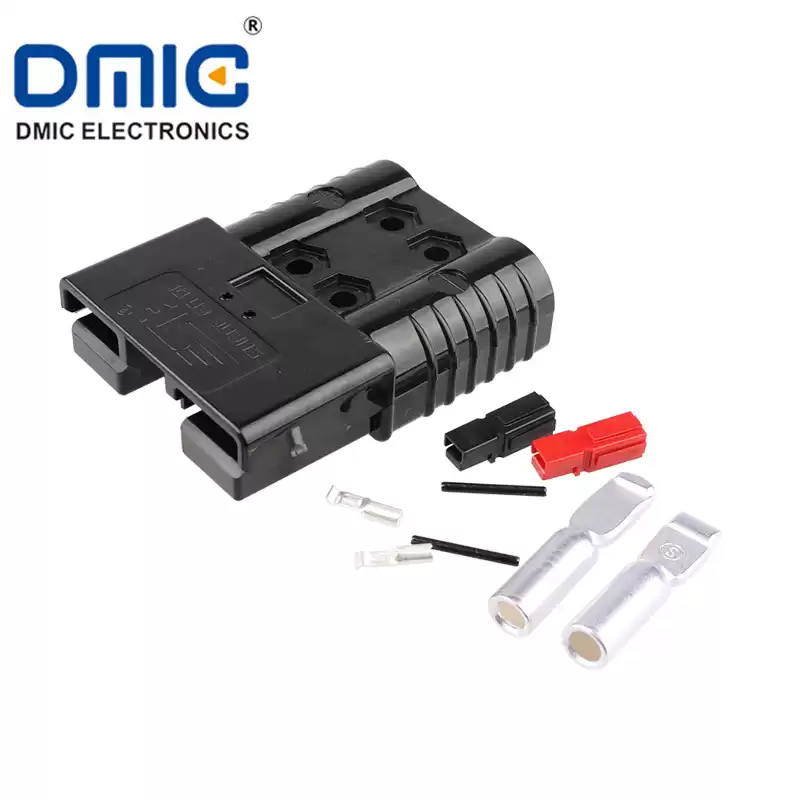

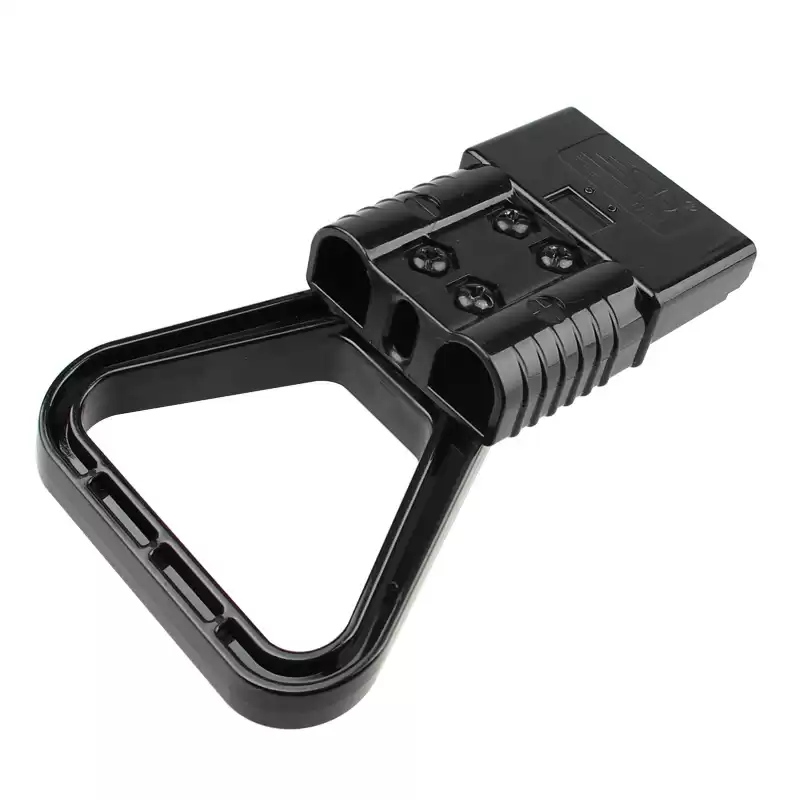

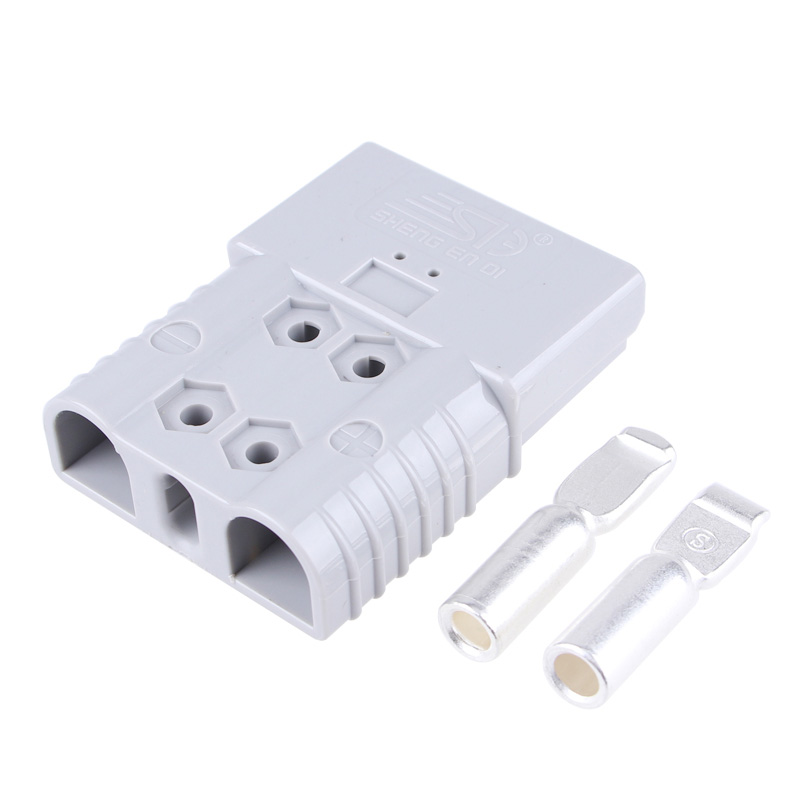

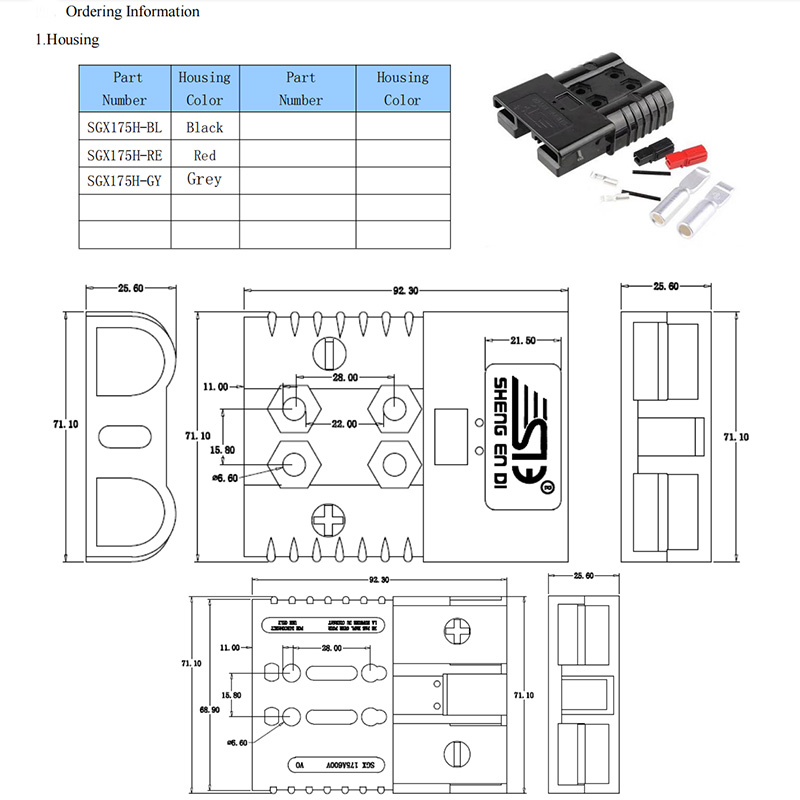

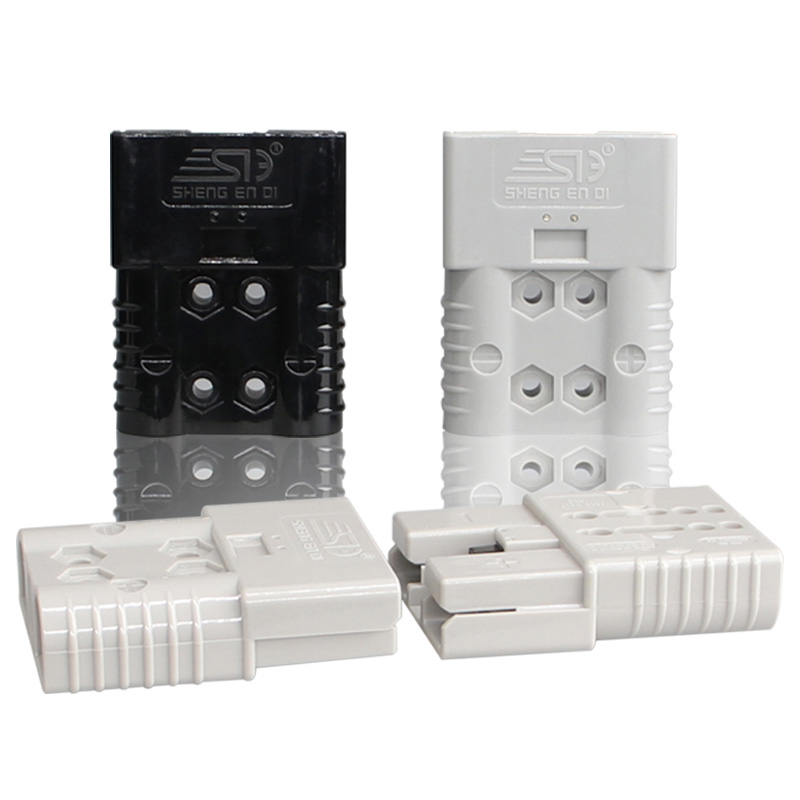

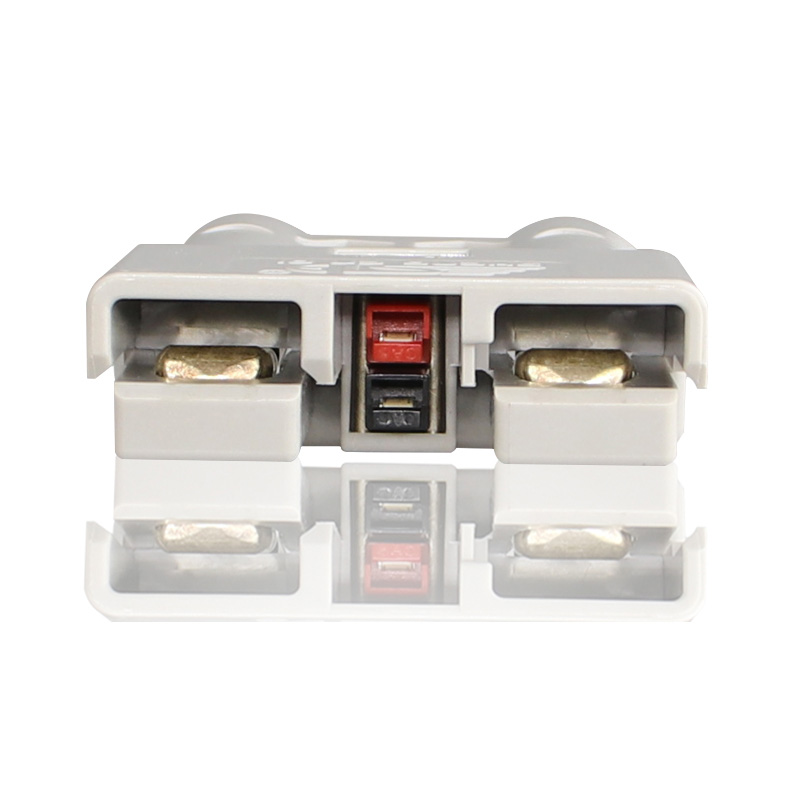

3.Picture Introduction:
4.Our Advantages:
∗At our company, we take pride in our ability to seamlessly integrate the research, development, production, and sales of various high-current connectors and accessories for new energy applications.
∗Offering unparalleled OEM cable harness customization and full-service connector and wire harness solutions, our team delivers a comprehensive approach to meeting your needs.
∗From start to finish, our goal is to provide exceptional quality and service, ensuring the success of your project. Trust us to be your all-in-one partner for cutting-edge new energy interconnectivity.
5.Packages & Shipping:
Our products are packaged to international standards, ensuring that your order arrives in immaculate condition. We are based in Guangdong, China, and dispatch all orders from this location. With our commitment to professional and efficient service, you can trust us to deliver your goods with utmost care and attention to detail.
6.FAQ:
Q: What services does your company offer for high-current connectors and cabling solutions?
A: Our company specializes in providing professional development, design, and integrated cabling solutions for high-current connectors ranging from 5A to 350A. We also offer production and sales of a wide range of high-current connectors, plugs, and UPS/EPS power sockets to support various industries, including automotive, electric vehicles, communication power, medical equipment, power distribution equipment, material handling equipment, solar energy, and new energy.
Our company boasts its own production and R&D base, and has obtained ISO9001 quality system certification. All of our products meet CE, 3C, and other certifications, as well as RoSH and REACH environmental protection requirements. With our commitment to quality and excellence, we offer reliable and efficient solutions to support our clients' businesses.
