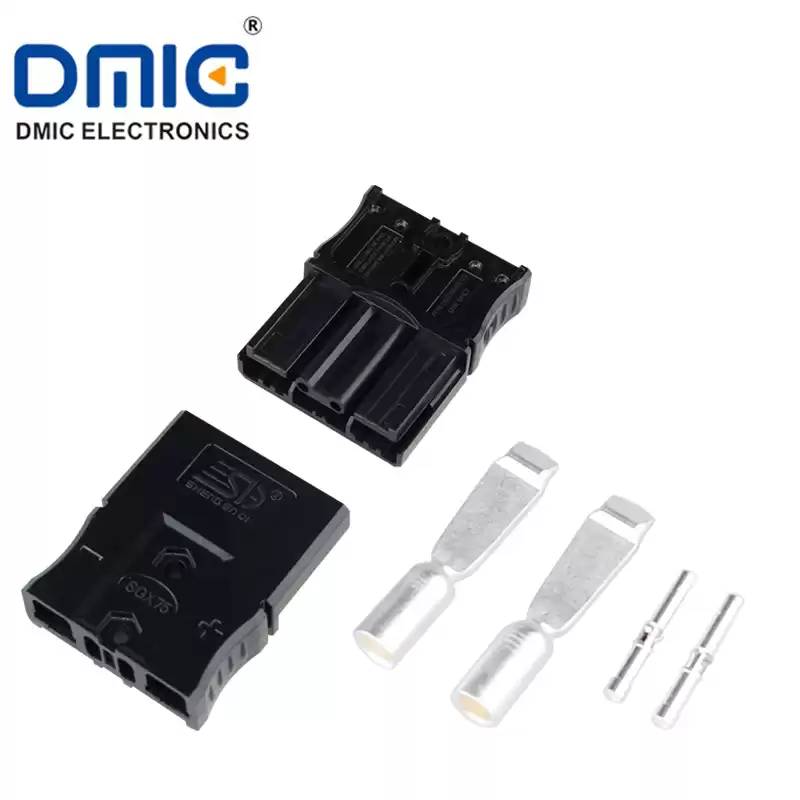

SGX75A 600V Battery Cable Connectors

The 2 Way Battery Connector ,features a simple, color-coded design for easy, hassle-free use.

The fire-retardant, UL94V-0 rated PC housing ensures maximum safety, while high-performance silver-plated copper terminals guarantee efficient electric conductivity.



SGX 75A 600V  Battery Cable Connectors





1.Product Introduction:

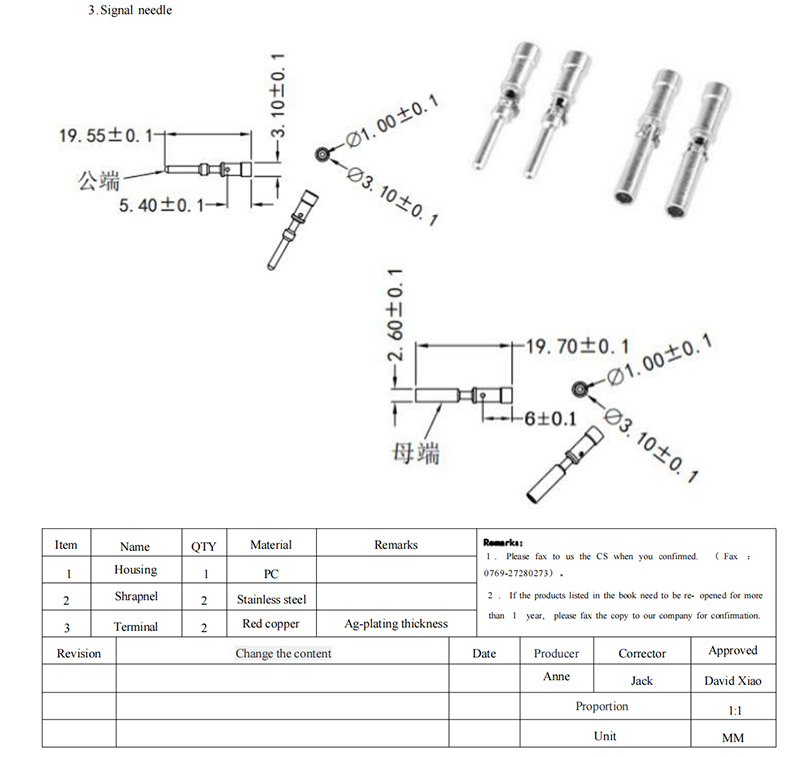

Our SGX 75A connector includes both male and female signal pins, providing a versatile solution for any electrical connection needs.

And with our custom wiring and harness services, we offer a one-stop-shop for all your connector and wiring needs.

Use the SGX 75A connector for a first-class electrical solution that guarantees top-notch performance and maximum safety.

2.Technical Parameters:

Rated current(Amperes) 75A
Rated voltage(Volts) 600V
Insulation Resistance ≥9900MΩ
Without load(Contact/Disconnect Cycles) To 5000
Flammability UL94 V-0
Average. Connection/disconnect(N)
90±8
The insertion force of finished products
≥9kgf
The pullout force of finished products
≥10kgf
(AWG)Contact Barrel Wire Size(AWG) 6~2/0AWG
Environment Temperatures(℃)

-20℃---75

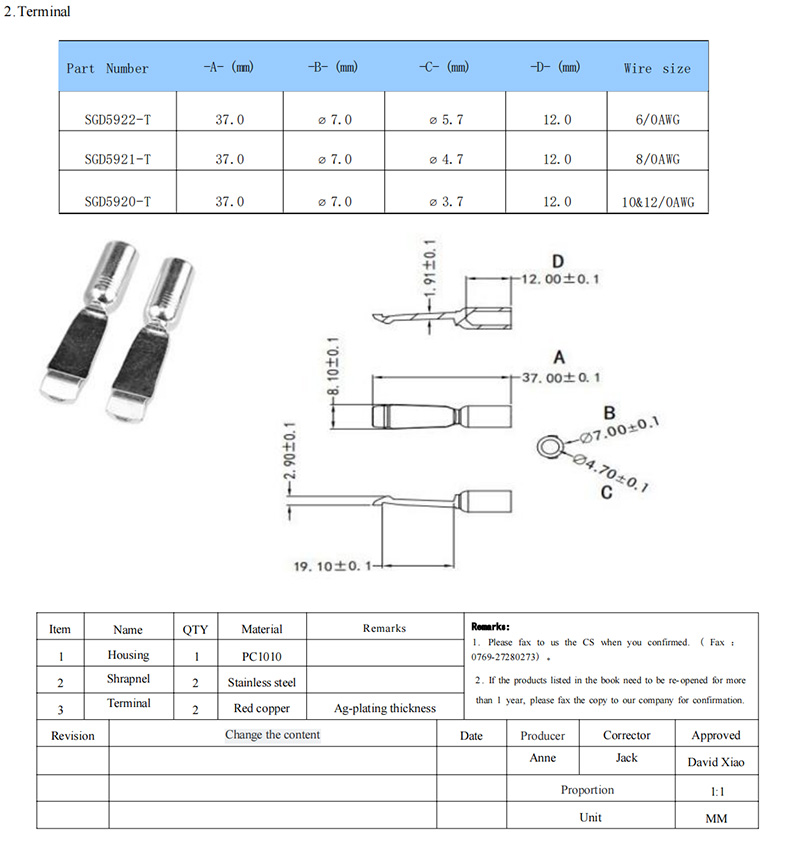

Material of terminal Red copper
Process of production Precision punching
Fully Ag-plating on surface, it’s Ag-plating thickness  0.5μm
Shrapnel Stainless steel
Process of production Precision punching  Plastic Injection

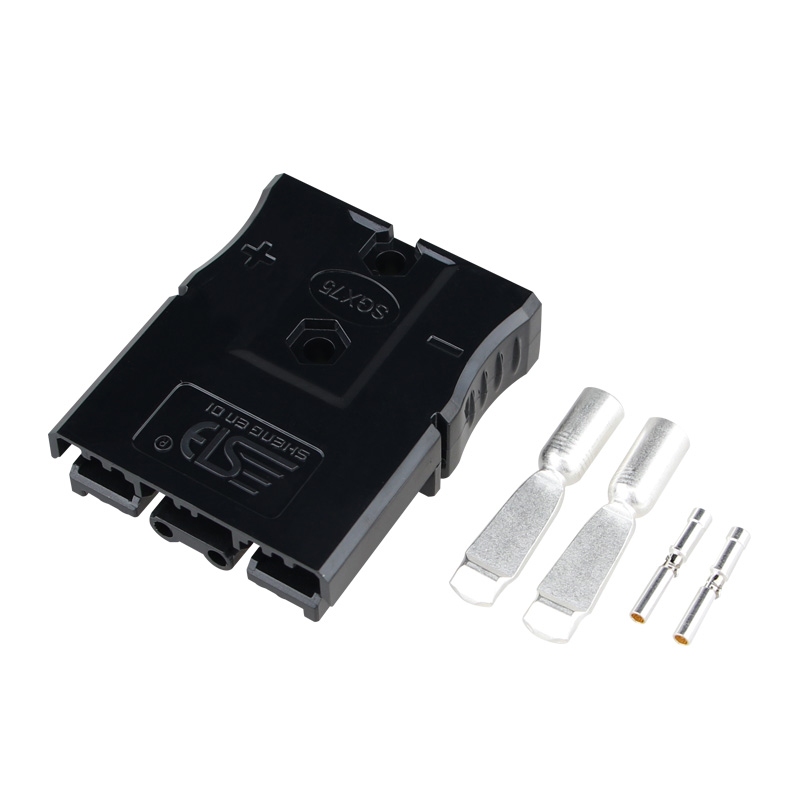

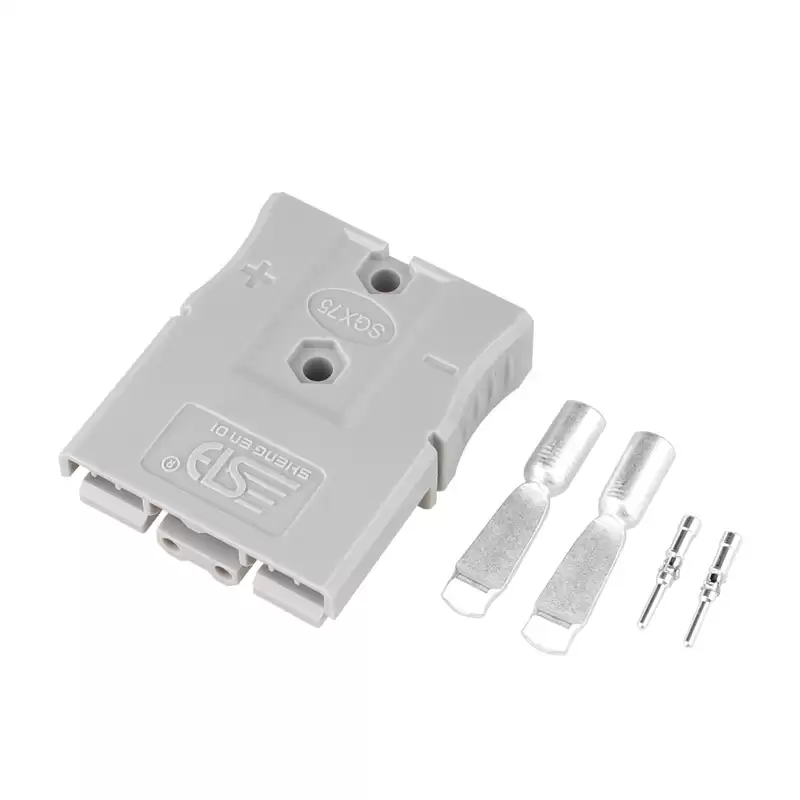

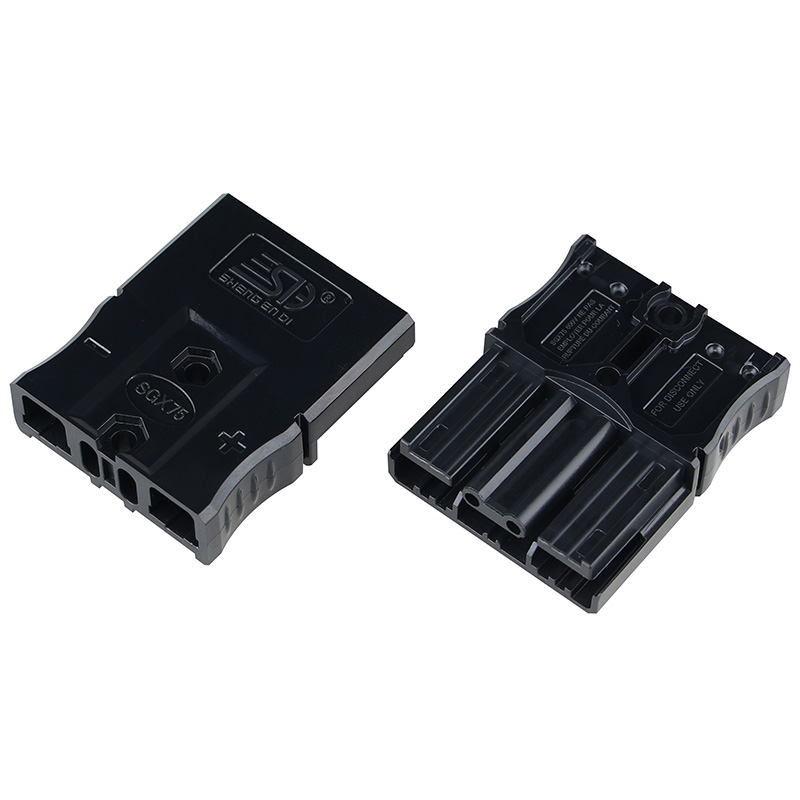

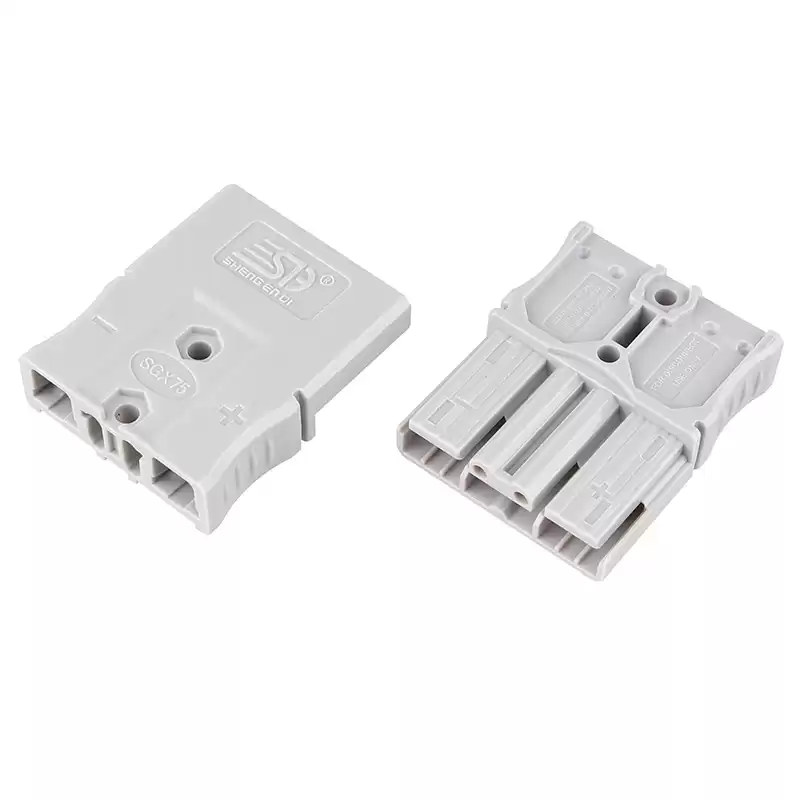

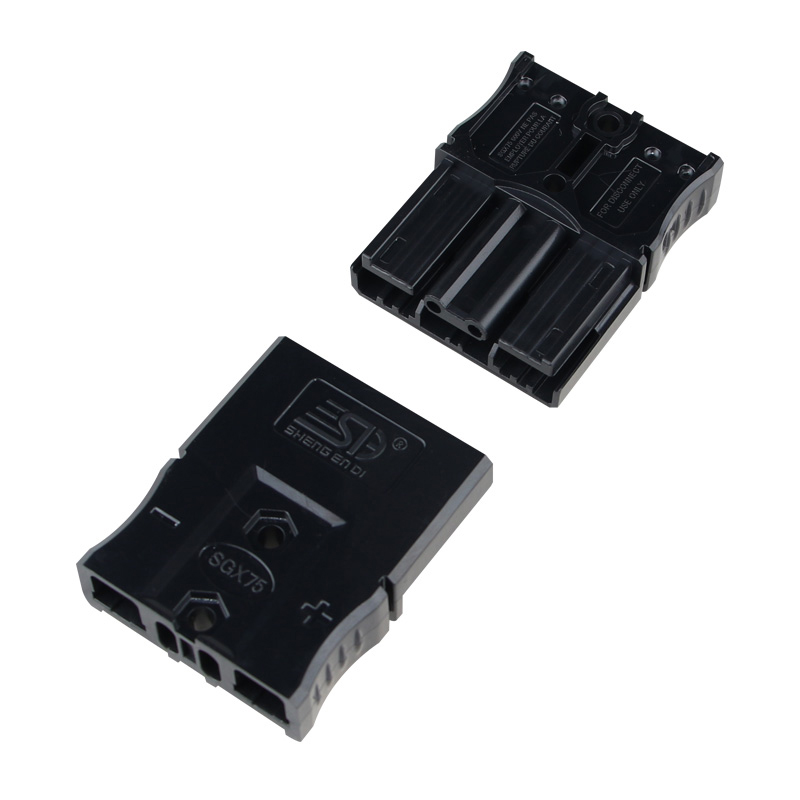

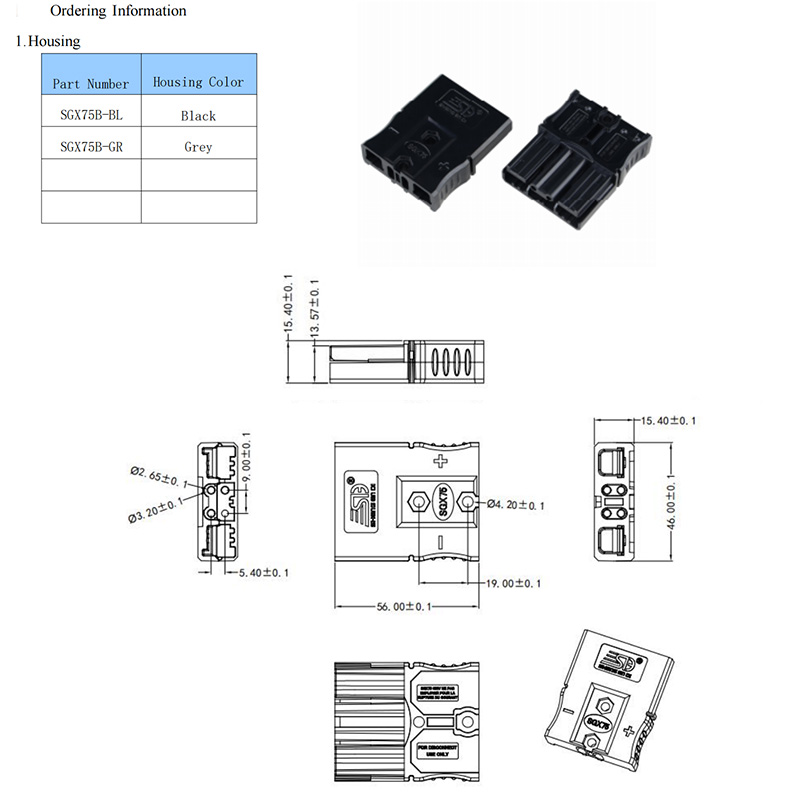

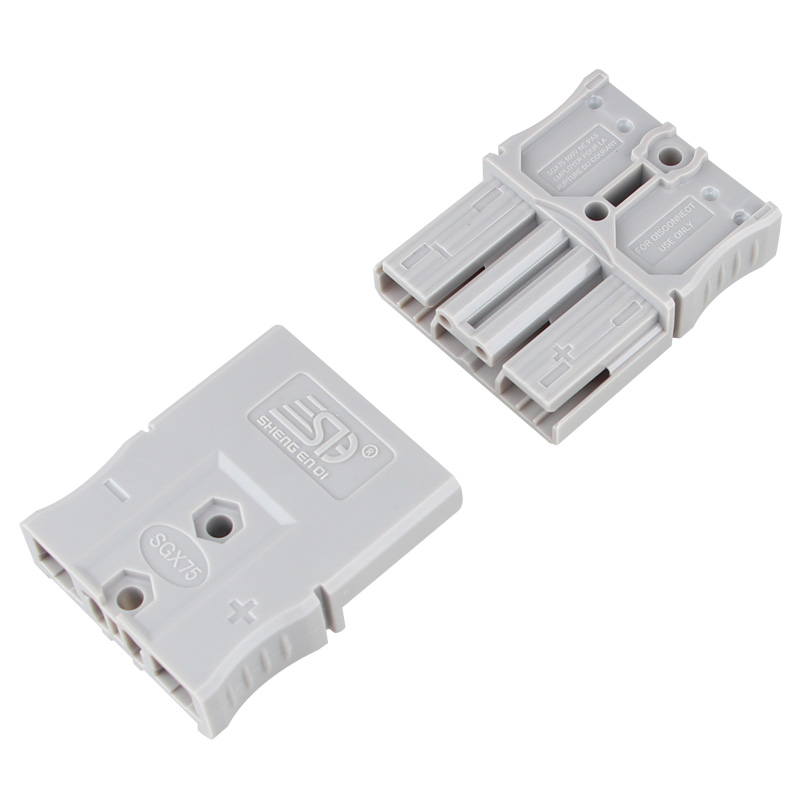

3.Picture Introduction:



4.Our Advantages:

∗At our company, we take pride in our ability to seamlessly integrate the research, development, production, and sales of various high-current connectors and accessories for new energy applications.

∗Offering unparalleled OEM cable harness customization and full-service connector and wire harness solutions, our team delivers a comprehensive approach to meeting your needs.

∗From start to finish, our goal is to provide exceptional quality and service, ensuring the success of your project. Trust us to be your all-in-one partner for cutting-edge new energy interconnectivity.



5.Packages & Shipping:

Our products are packaged to international standards, ensuring that your order arrives in immaculate condition. We are based in Guangdong, China, and dispatch all orders from this location. With our commitment to professional and efficient service, you can trust us to deliver your goods with utmost care and attention to detail.



6.FAQ:

Q: What services does your company offer for high-current connectors and cabling solutions?

A: Our company specializes in providing professional development, design, and integrated cabling solutions for high-current connectors ranging from 5A to 350A. We also offer production and sales of a wide range of high-current connectors, plugs, and UPS/EPS power sockets to support various industries, including automotive, electric vehicles, communication power, medical equipment, power distribution equipment, material handling equipment, solar energy, and new energy.

Our company boasts its own production and R&D base, and has obtained ISO9001 quality system certification. All of our products meet CE, 3C, and other certifications, as well as RoSH and REACH environmental protection requirements. With our commitment to quality and excellence, we offer reliable and efficient solutions to support our clients' businesses.
