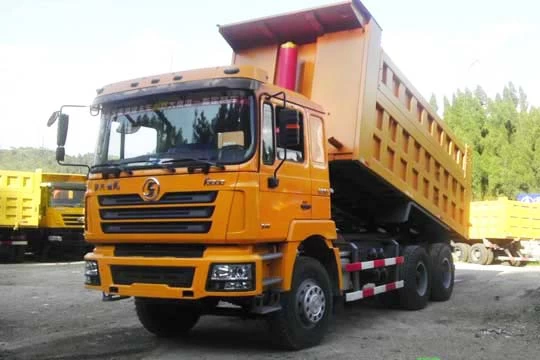

Shacman Delong F3000 10Wheels 6x4 35tons Dump Truck
Model
|
SX3257DR384
|
Overall Dimension（L*W*H） (mm)
|
8600×2495×3450
|
Wheel base (mm)
|
3800+1450
|
Curb weight （kg）
|
12,500
|
Dump Body
|
5600x2500x1500mm
|
Payload (kg)
|
12,000
|
Max Speed：（km/h）
|
≥80
|
Engine
|
Model
|
Diesel,WEICHAI Engine,CUMMINS Engine.
|
Type
|
water-cooled,4 strokes,6 cylinders in line,turbocharged
|
Horse Power
|
340hp,380hp,420hp,460hp,460hp Max
|
Injection type
|
Mechanical/Electrical
|
Fuel tanker capacity （L）
|
400L square aluminum alloy fuel tank
|
Clutch
|
Model
|
430, Single dry frictional disc，Hydraulic boosting
|
Gearbox
|
Model
|
FULLER Technology, Manual Transmission,
|
Brake system
|
Service brake
|
double circulation air brake system
|
Assistant brake
|
Engine exhaust brake
|
Park brake
|
Potential springs pressing on middle and rear wheels
|
Steering
system
|
Model
|
ZF technology
|
Suspension
System
|
Rear
Suspension
|
Non-free standing stabilization Leaf spring
|
Frame
|
STEYR Technology variable width, variable sections
|
Front axle
(Steyr Tech)
|
Double-shoe pneumatic brake, non-driving steering axle
|
Middle and
Rear axle
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor
|
Tire
|
315/80R22.5,12.00R22.5, 12.00R20,12.00-20
|
Electrical
system
|
Battery
|
2X12V/135Ah
|
Generator
|
28V-35A
|
Starter
|
5.4Kw/24V
|
Cab
|
Long cab with sleeper （High roof with two sleeper),Can be tipped forwardly;
|
| |
|
|
|
|
