Applications:

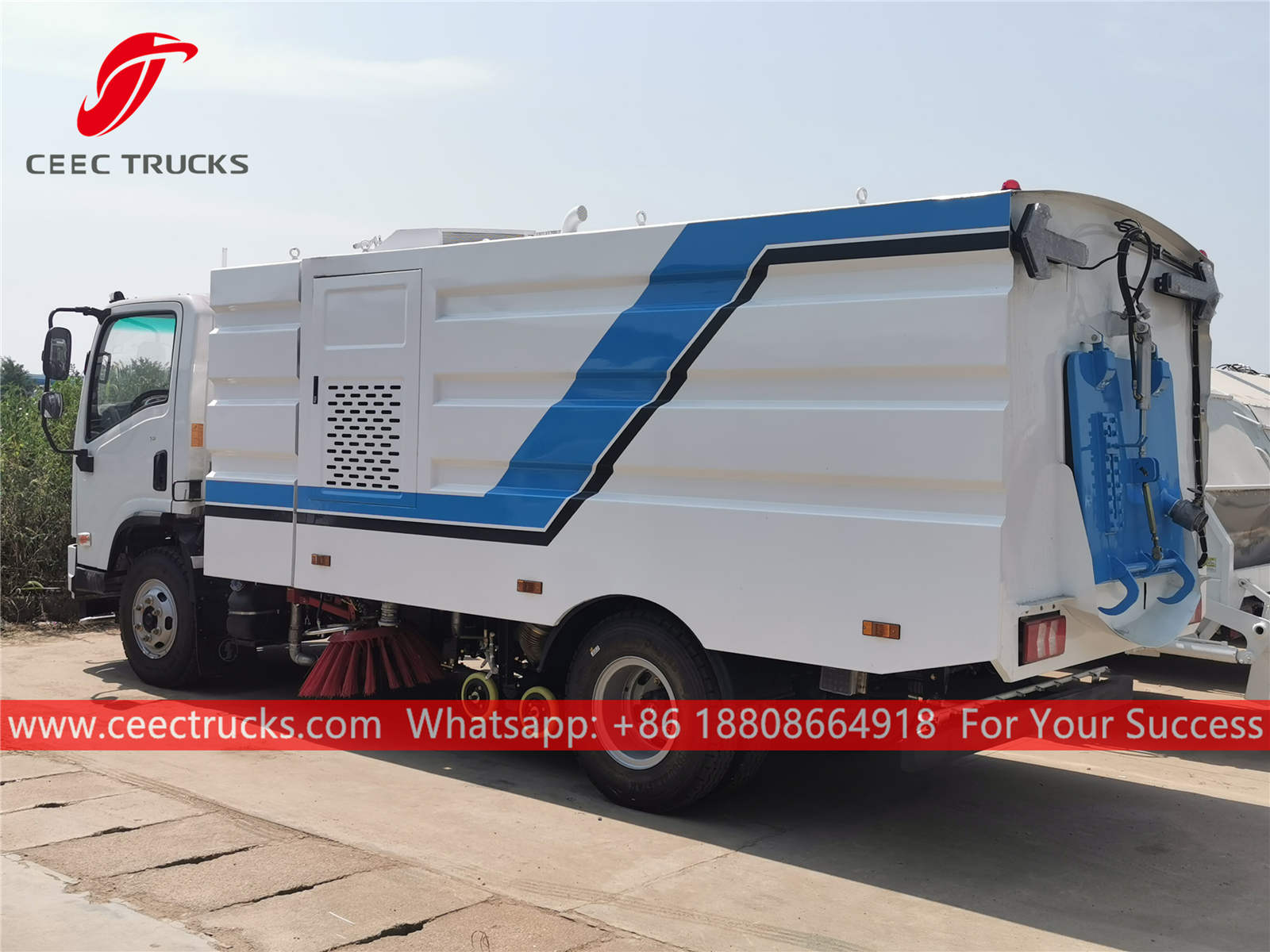

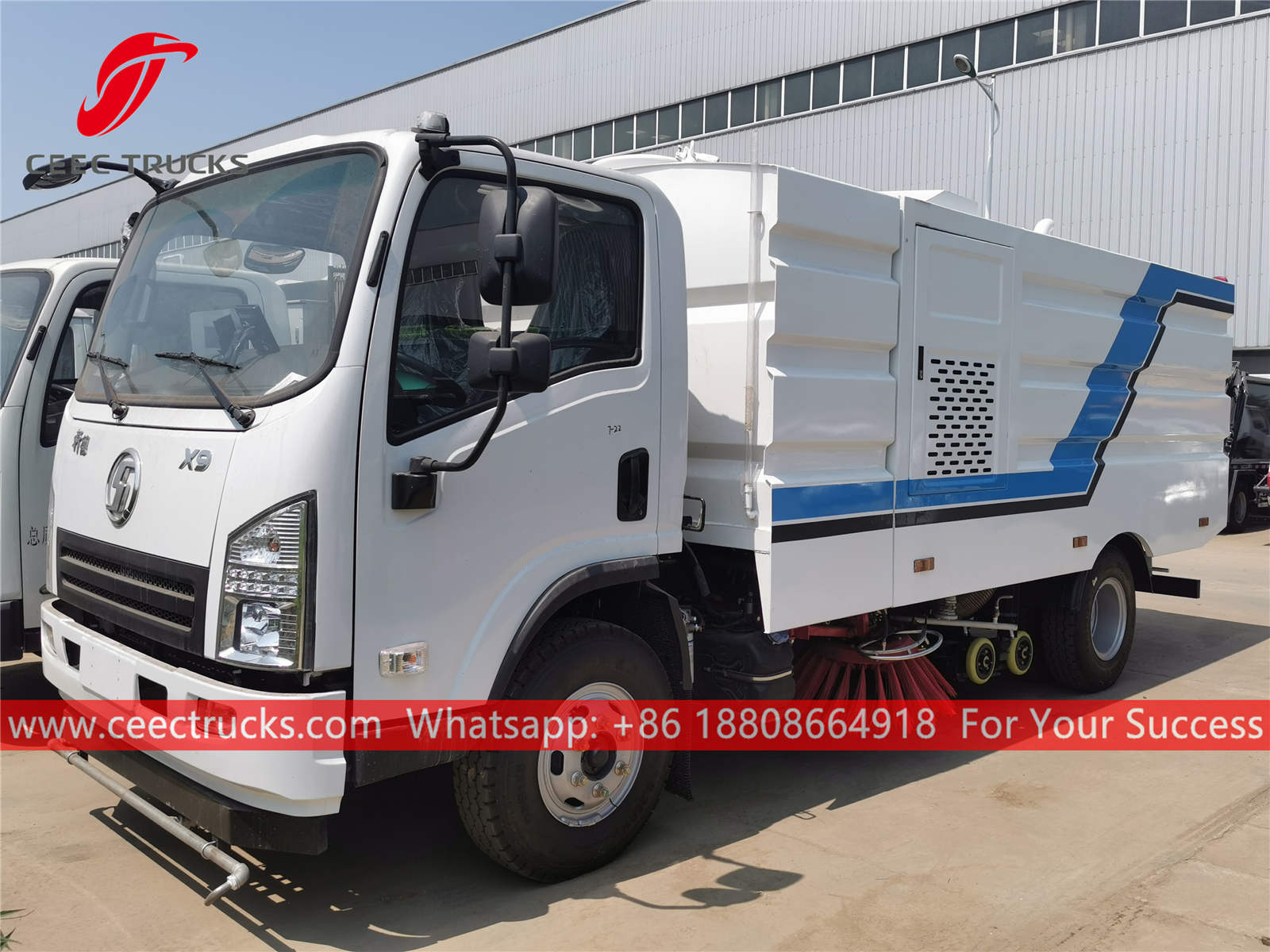

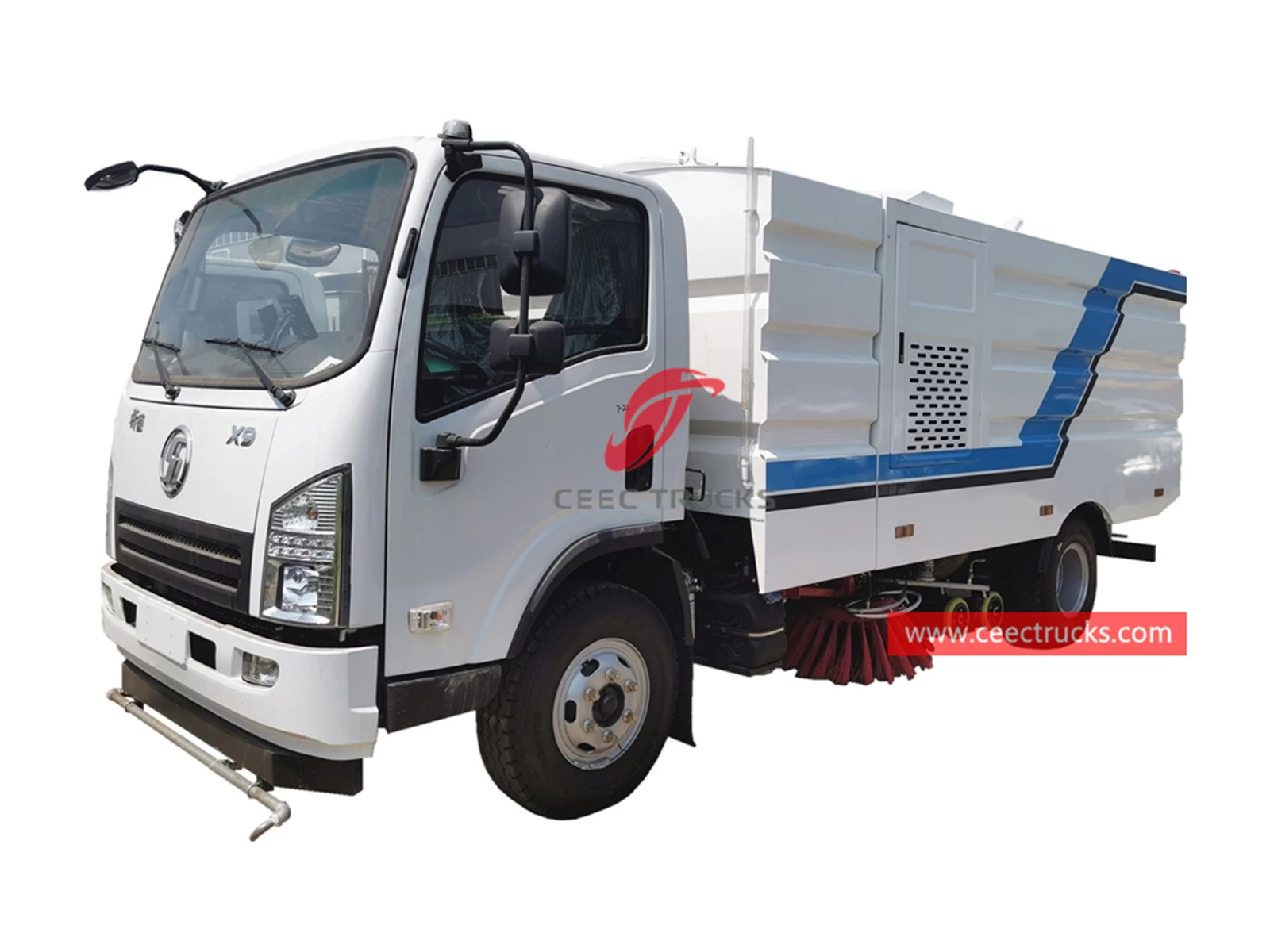

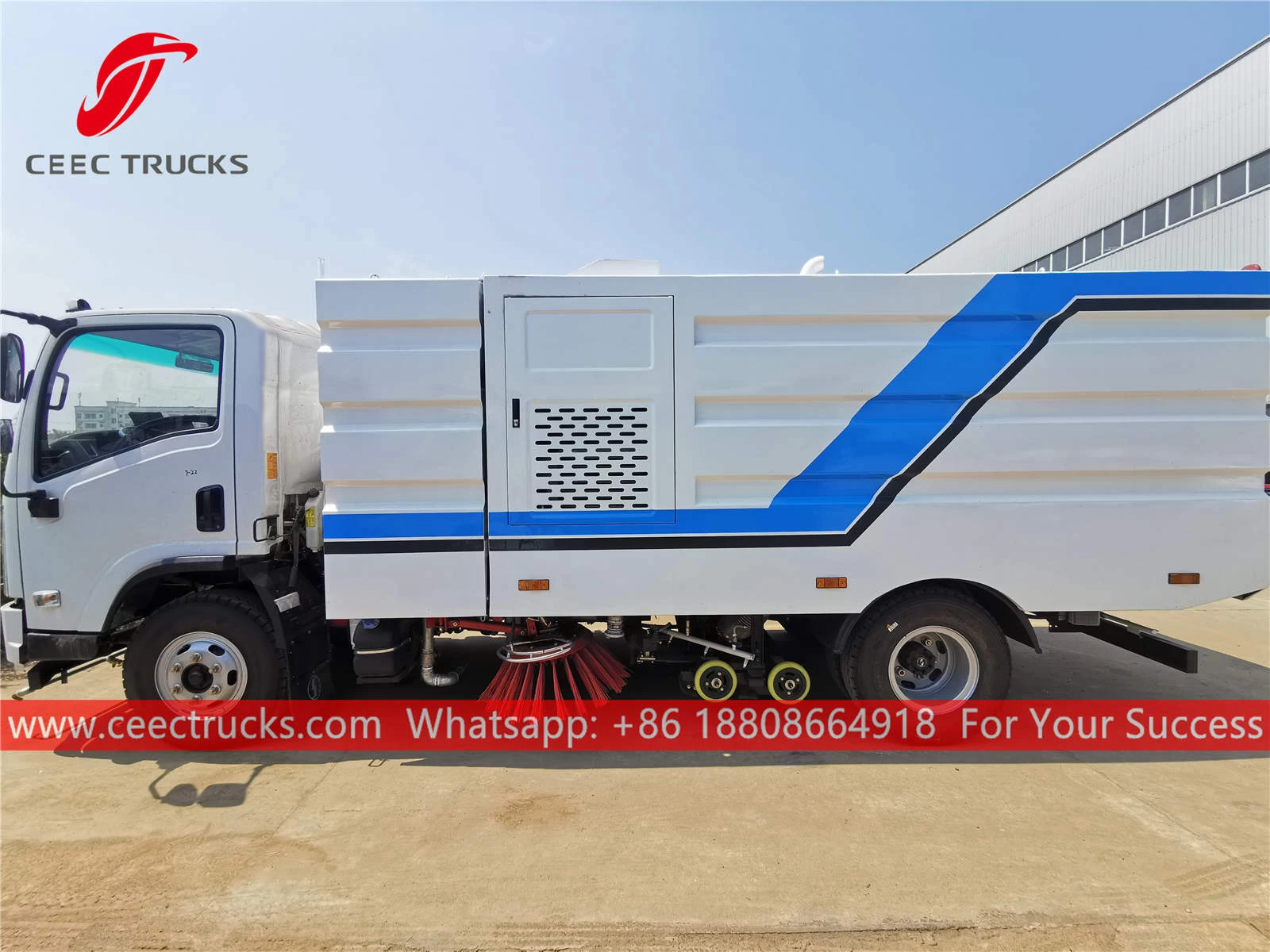

Street sweeping and wahsing truck Shacman (also called road sweeper truck, hydraulic street sweeper and washer truck, vacuum road sweeper truck with washing system, Shacman road cleaning truck) is designed
for daily sweeping in community, city, highway, construction site,
overhead roads, bridges, squares, airports as well as docks with asphalt
concrete and cement concrete road surface.
CEEC TRUCKS road sweeper truck use whole stainless steel material tanker, Original
Italy or America motor for easy operation, ISUZU or JMC auxiliary
engine, efficiently avoiding secondary pollution.
The road sweeper vehicle with shot peening painting, with all painting color and logos depend on requirement.
Key Features:

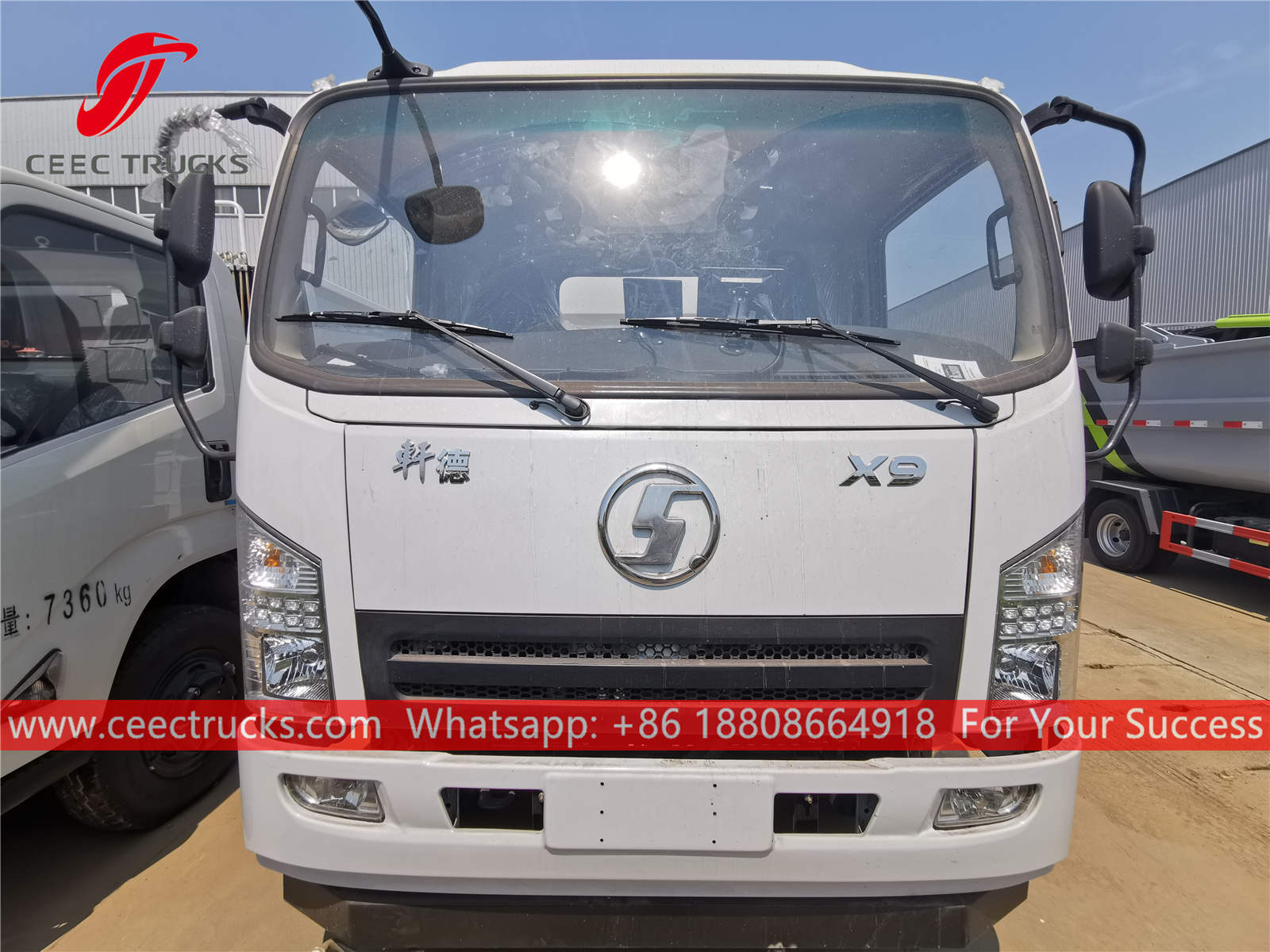

---- Shacman chassis, perfect performance
---- WEICHAI diesel engine, super powerful, no overhaul within 100,000 km.
---- Road Sweeper body capacity from 1 to 16 Cublic Meter.
---- Easy operation and easy maintenance.
---- Virious types of refuse container lifter are available.
Specifications:
|

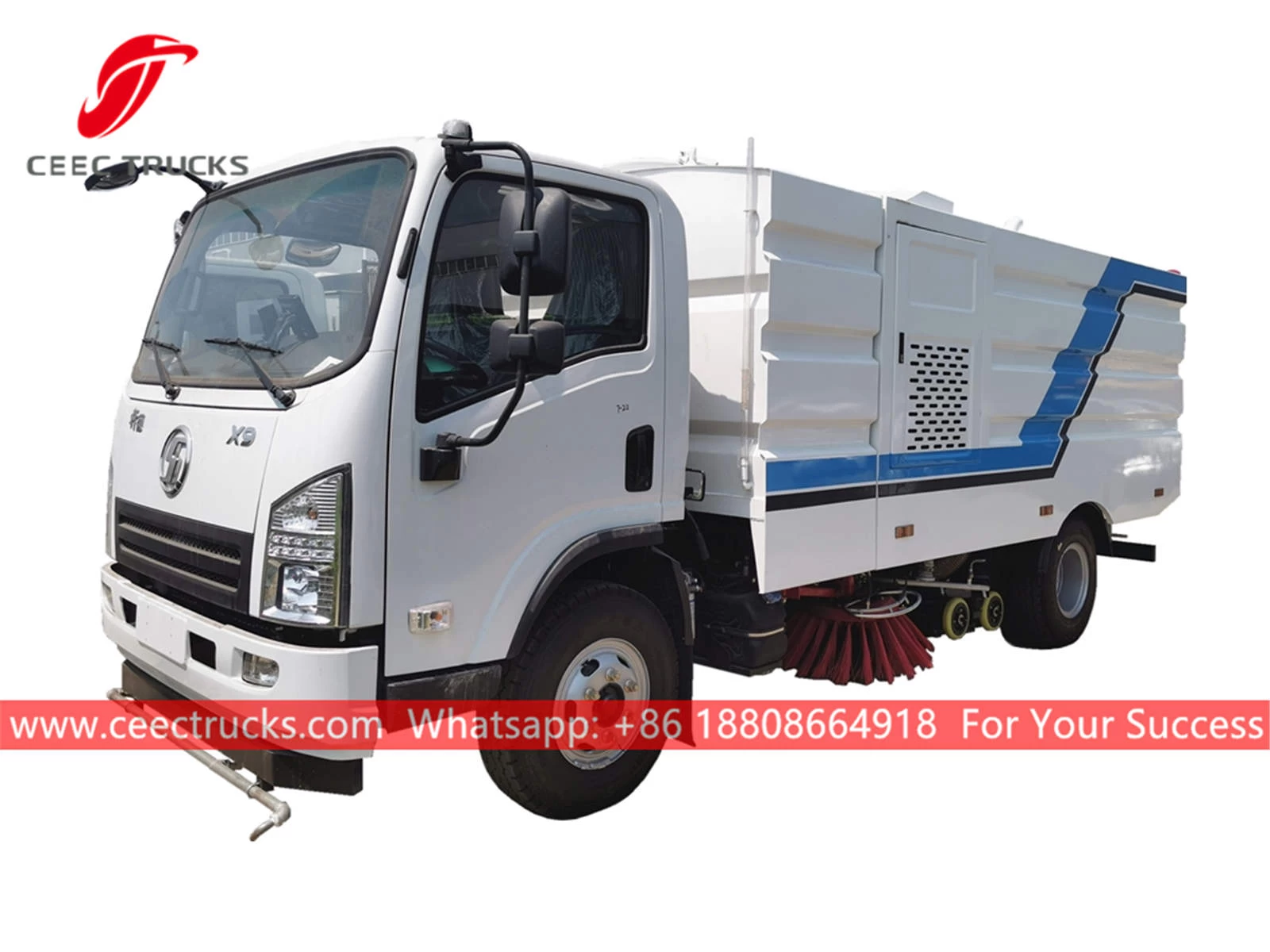

Shacman street sweeper truck with washer
|
|
General
|
Vehicle Brand
|
CEEC
|
|
Chassis Brand
|
Shacman
|
|
Overall Dimension
|
7000 * 2200 *2700 mm
|
|
GVW / Kerb Weight
|
14,000kg / 7,350kg
|
|
Cab
|
Cab Capacity
|
3 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
WEICHAI
|
|
Power
|
130 HP (96 KW)
|
|
Displacement
|
2970 ml
|
|
Emission Standard
|
Euro 5
|
|
Chassis
|
Drive Type
|
4X2, (left hand drive)
|
|
Transmission
|
6 speed levers with 1 reverse
|
|
Wheelbase/No. of axle
|
3800 mm / 2
|
|
Tire Specification
|
8.25R20
|
|
Tire Number
|
6 tires and 1 spare tire
|
|
Max Speed
|
85km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Body capacity
|
5 cbm dust tank & 4 cbm water tank
|
|
Tanker material
|
Stainless steel
|
|
Sweeping capacity
|
42,000 cbm/h
|
|
Sweeping speed
|
3-15 km/h
|
|
Max. sweeping width
|
3200 mm
|
|

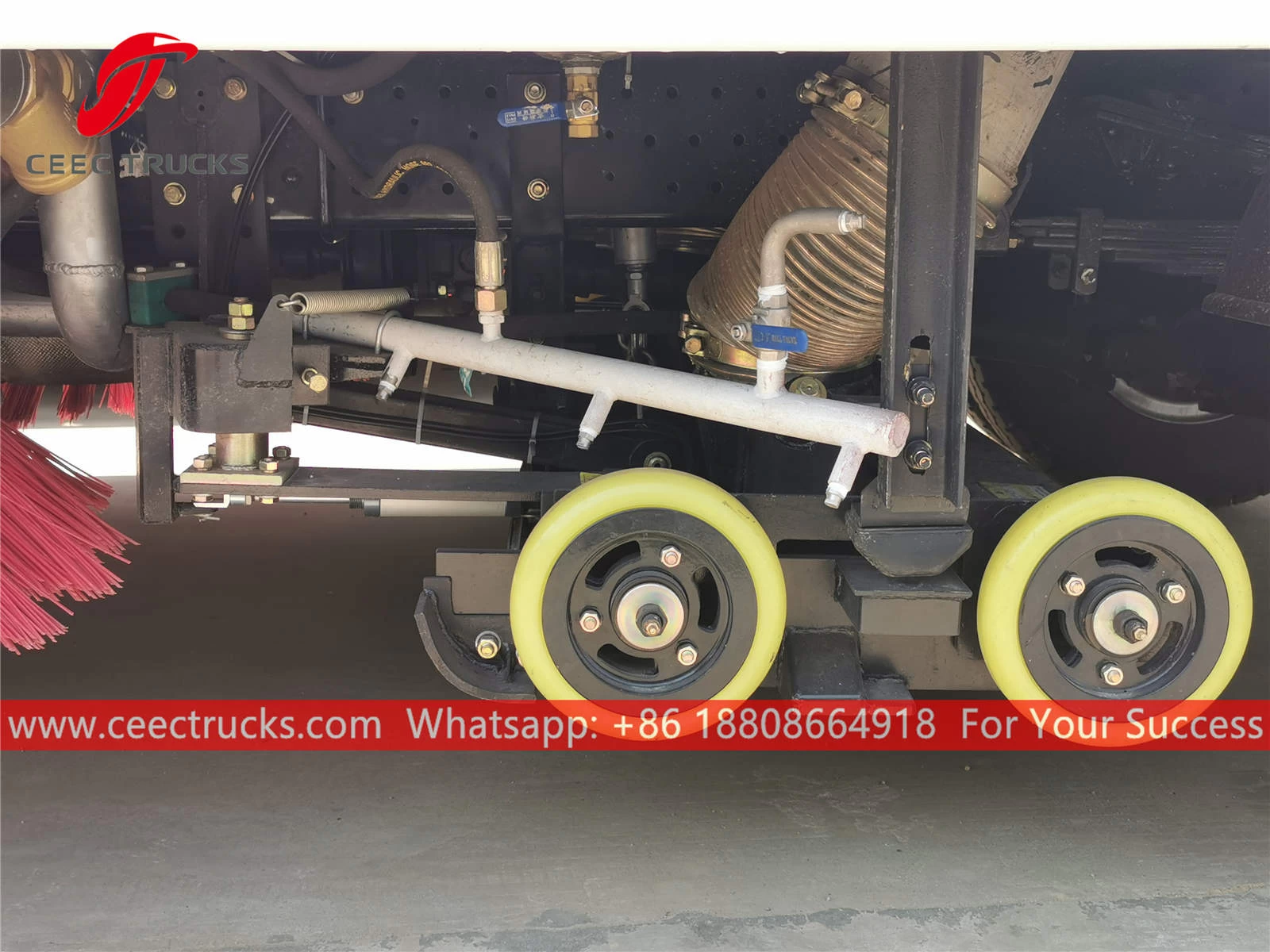

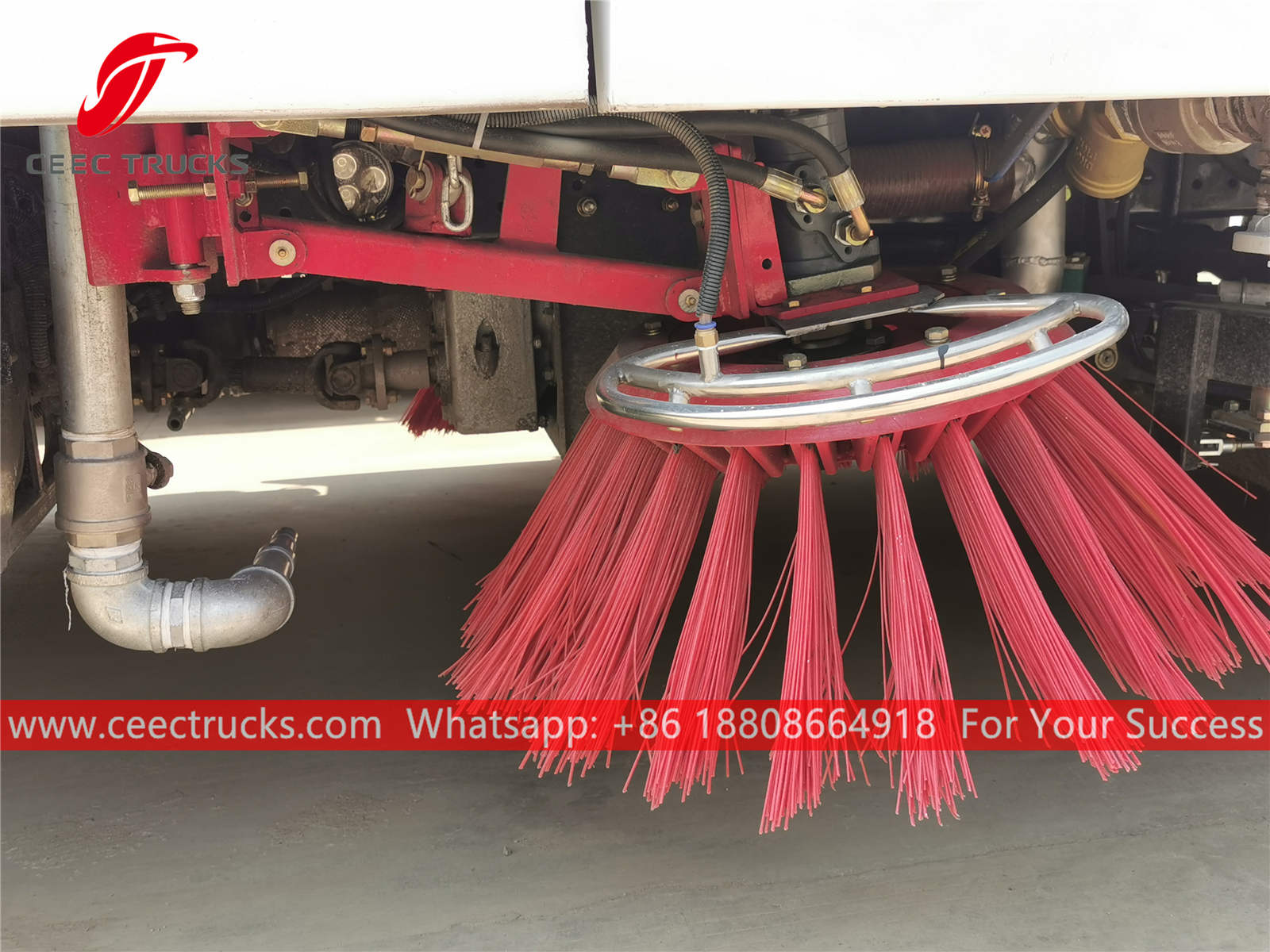

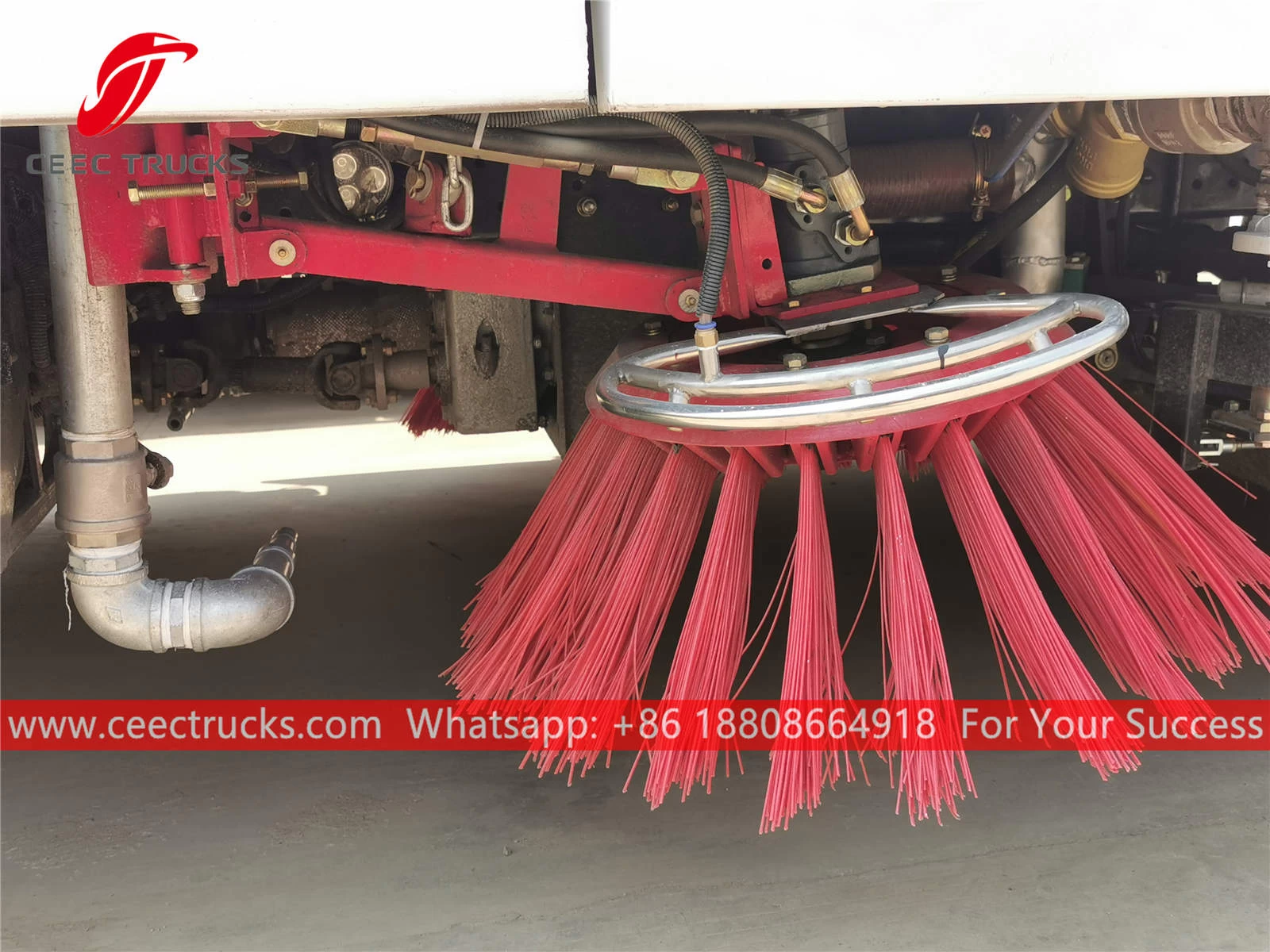

Suction plate
|
Whole set for road cleaning
|
|
Auxiliary engine
|
ISUZU engine, 77HP (57kw), super powerful
JMC engine, 77HP (57kw), super powerful
|
|
All standard accessories: Warning lights, music alarm, basic tool kit, English manual...
|
|
Optional
|
** Back alarm and Camera can be equipped.
** Italy Brevini motor can be optional.
** Air blower can be of stainless steel
|
