Shaped Irregular Cores C-type Silicon Core ED-type Core Permalloy Alloy Punched Sheets

Products can be customised

Shaped non-circular silicon steel cores are available in C-type and DE-type, which are customized according to performance requirements and can be adapted to a wide range of environmental use requirements.

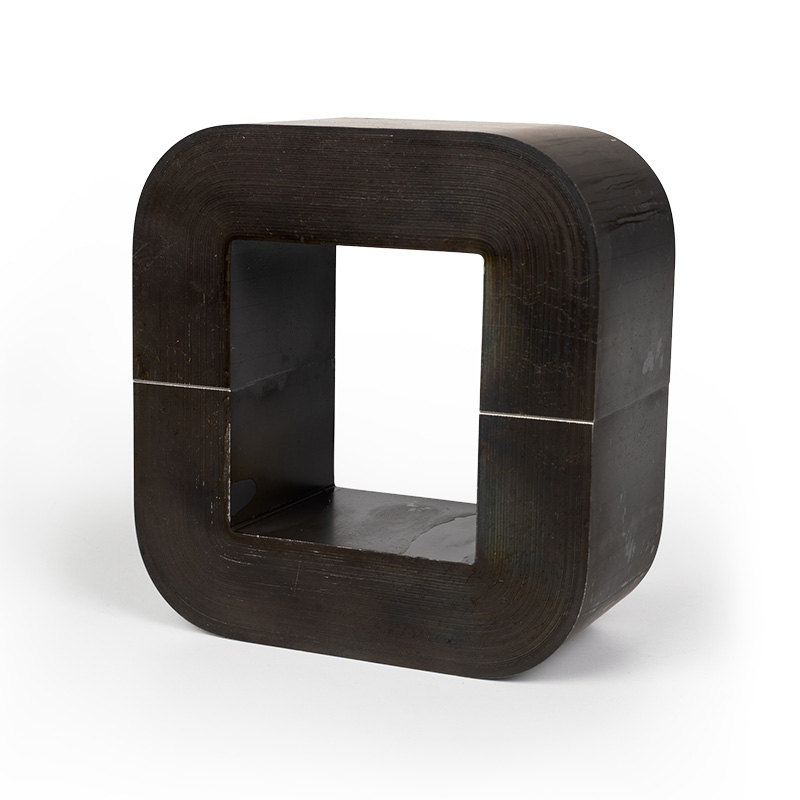

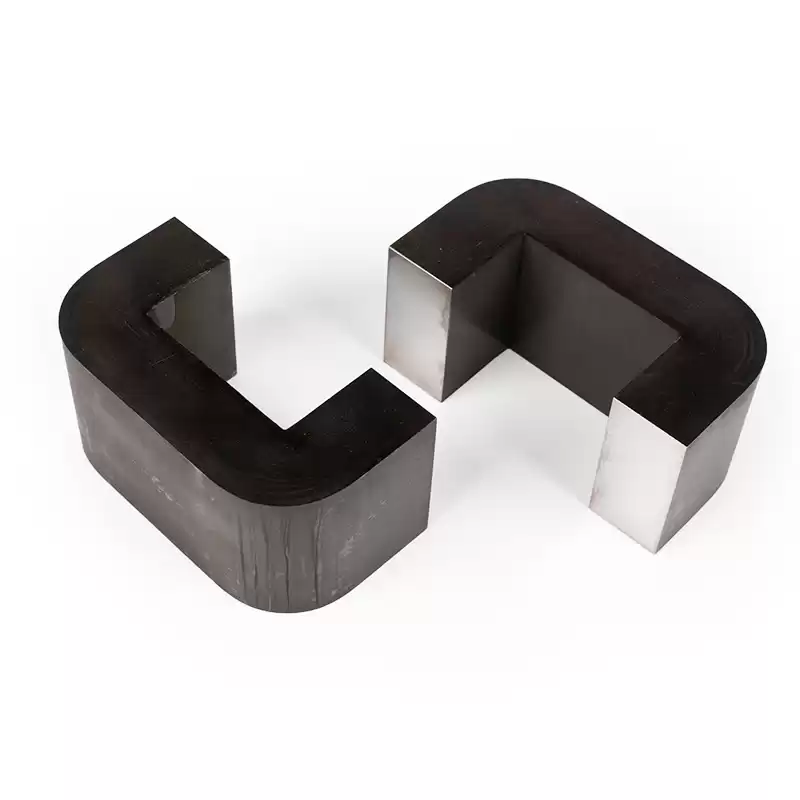

C-type:

Structural features: Because its structure is two halves put together to form a closed magnetic circuit, it is an open structure. Therefore, the coil can be made separately from the core, and then the coil is put on the core, so the production period can be shortened.

Application: Super C cores of various specifications are widely used in new energy fields such as wind power generation systems, solar photovoltaic, high-speed railroads, and so on.

ED-type:

Structural characteristics: Because of its structure for the three-phase two halves together to form a closed magnetic circuit, for the open structure. Therefore, the coil can be produced separately from the iron core, and then the coil is put on the iron core, so the production period can be shortened.

Application: Widely used in three-phase transformers, reactors, chokes and other electromagnetic components in electronic and electrical equipment.



Silicon core can be customised

  Size (mm) Input current (A) Output power (mW) No-load voltage (V)
1 67.5*18*2 5 3.4 6.8
2 67.5*18*2 10 11.4 10.9
3 74*10*2 5 2 5
4 74*10*2 10 6.6 7.68



core advantages:

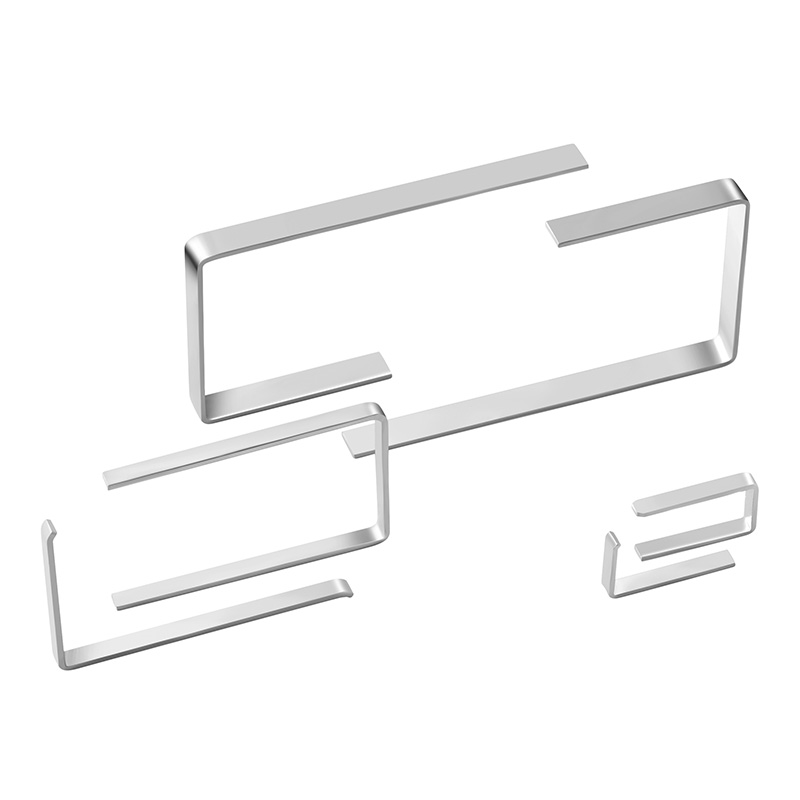

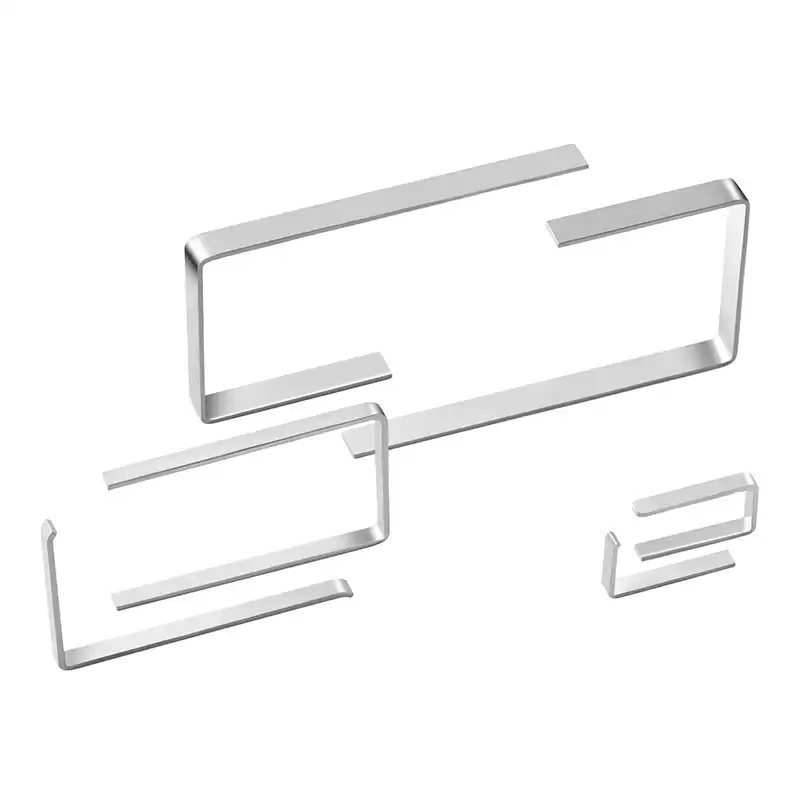

1. Manufacturing of opening and closing permalloy iron cores

Heat treatment technology, solidification technology, precision cutting technology, surface grinding technology

2. Opening and closing silicon steel core passivation and anti-rust technology

Metal oxide film, strong adhesion, no damage

3. Opening and closing structure (protection level IP68)

Elastic structure, precise closing, no vibration and noise, strong waterproof performance

4. AC measurement

0.01 level ultra-high precision measurement, wide frequency range

5.Magnetic shielding technology



Be familiar with the shielding mechanisms of various materials, and understand the characteristics and applications of various magnetic and metal materials



Application:current transformer



Commonly used alloys are 1J50, 1J79, 1J85 and so on. The saturation magnetic induction of 1J50 is slightly lower than that of silicon steel, but its magnetic permeability is dozens of times higher than that of silicon steel, and its iron loss is also 2 to 3 times lower than that of silicon steel. It is made into a transformer with a higher frequency (400~8000Hz), and the no-load current is small. It is suitable for making a small high-frequency transformer below 100W. 1J79 has good comprehensive performance and is suitable for high frequency and low voltage transformers, leakage protection switch cores, common mode inductance cores and current transformer cores. The initial permeability of 1J85 can reach more than 100,000 105, which is suitable for low-frequency or high-frequency input and output transformers, common mode inductors and high-precision current transformers with weak signals.



Hemei Electronics's shaped silicon steel and Permalloy cores can be customized to international series as well as customer requirements to meet a wide range of customer specifications.
